Product Overview

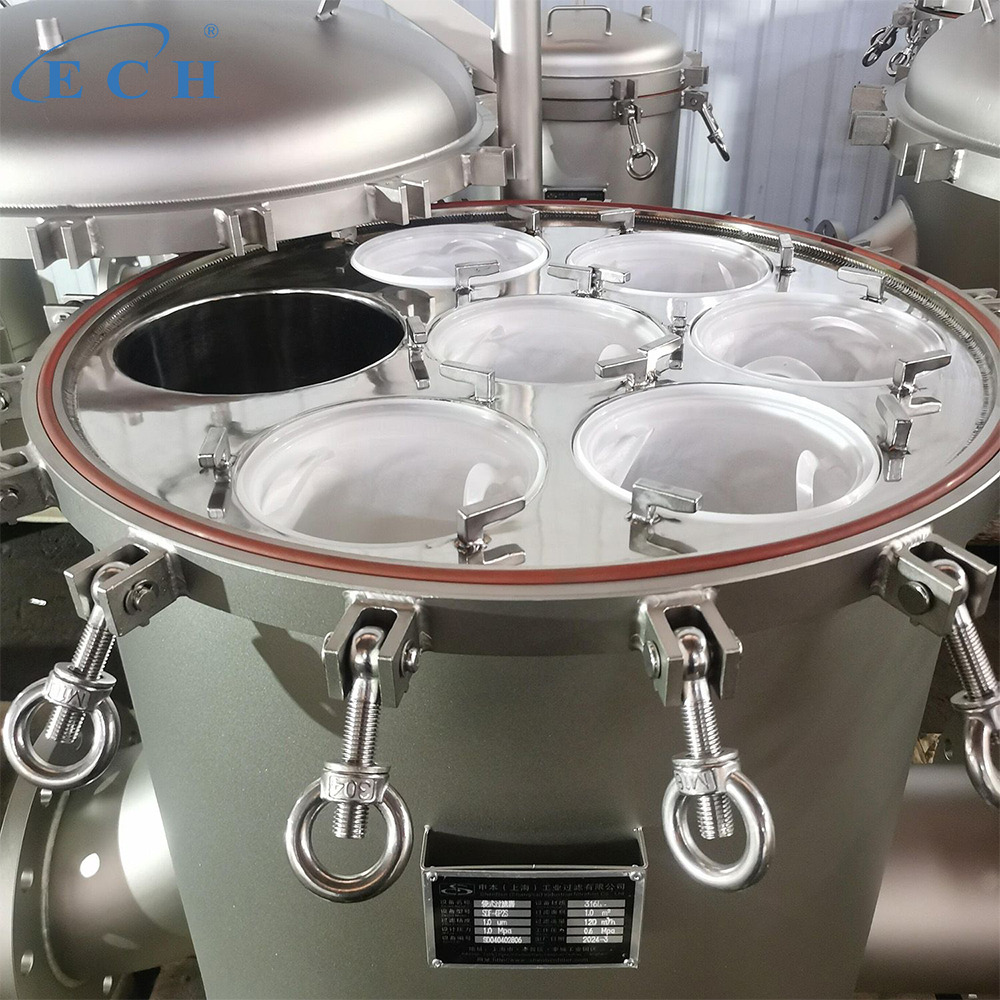

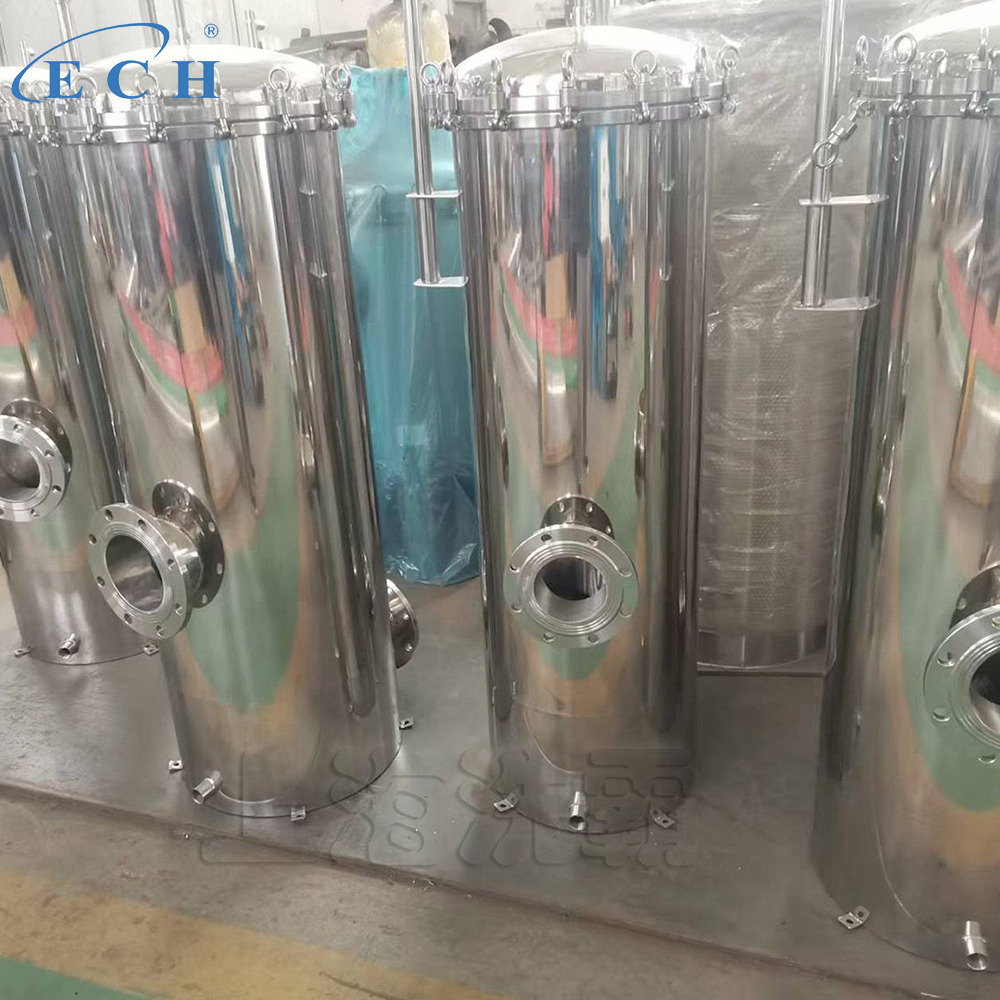

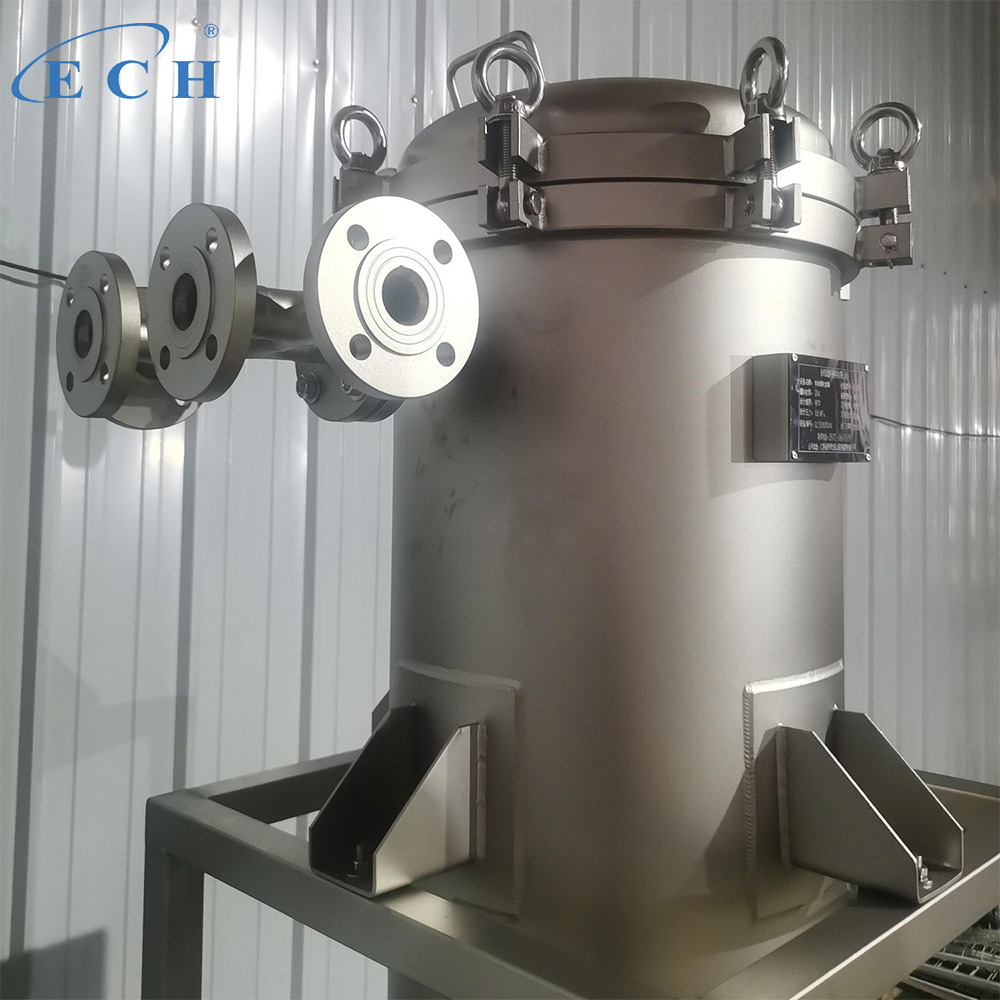

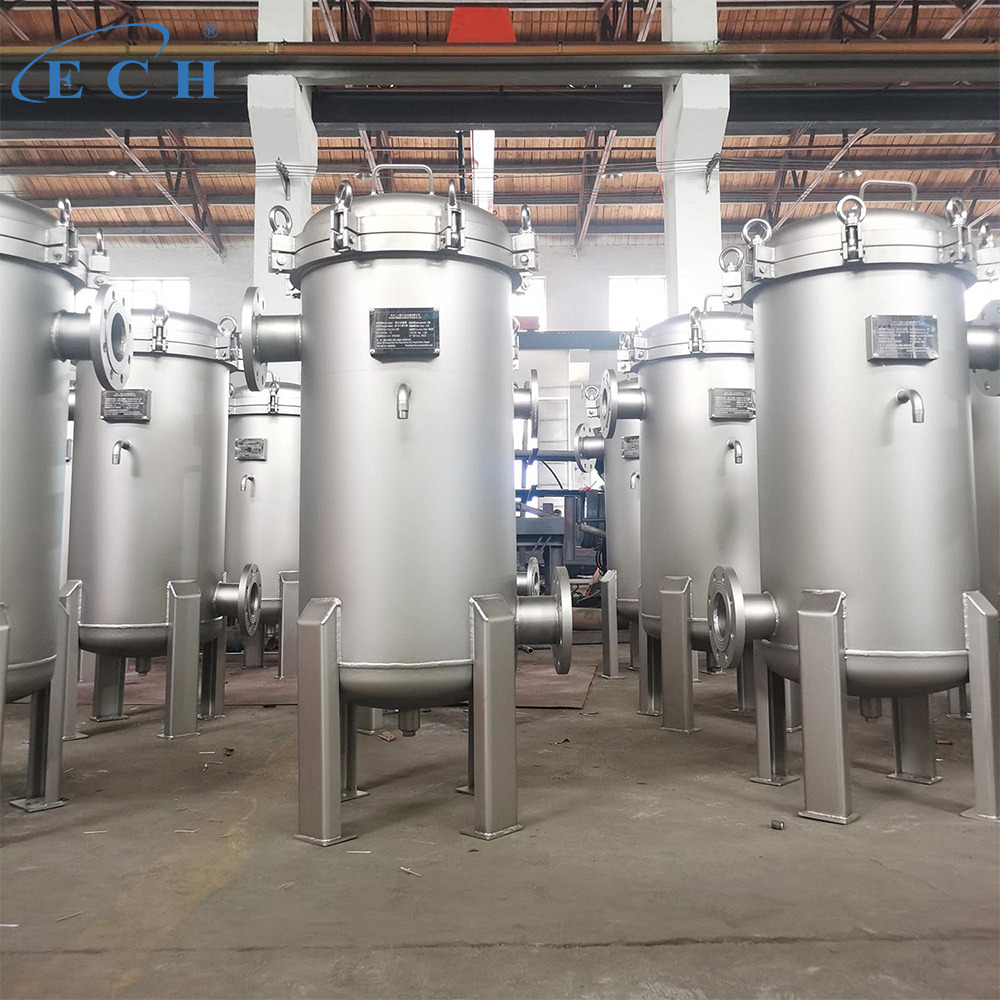

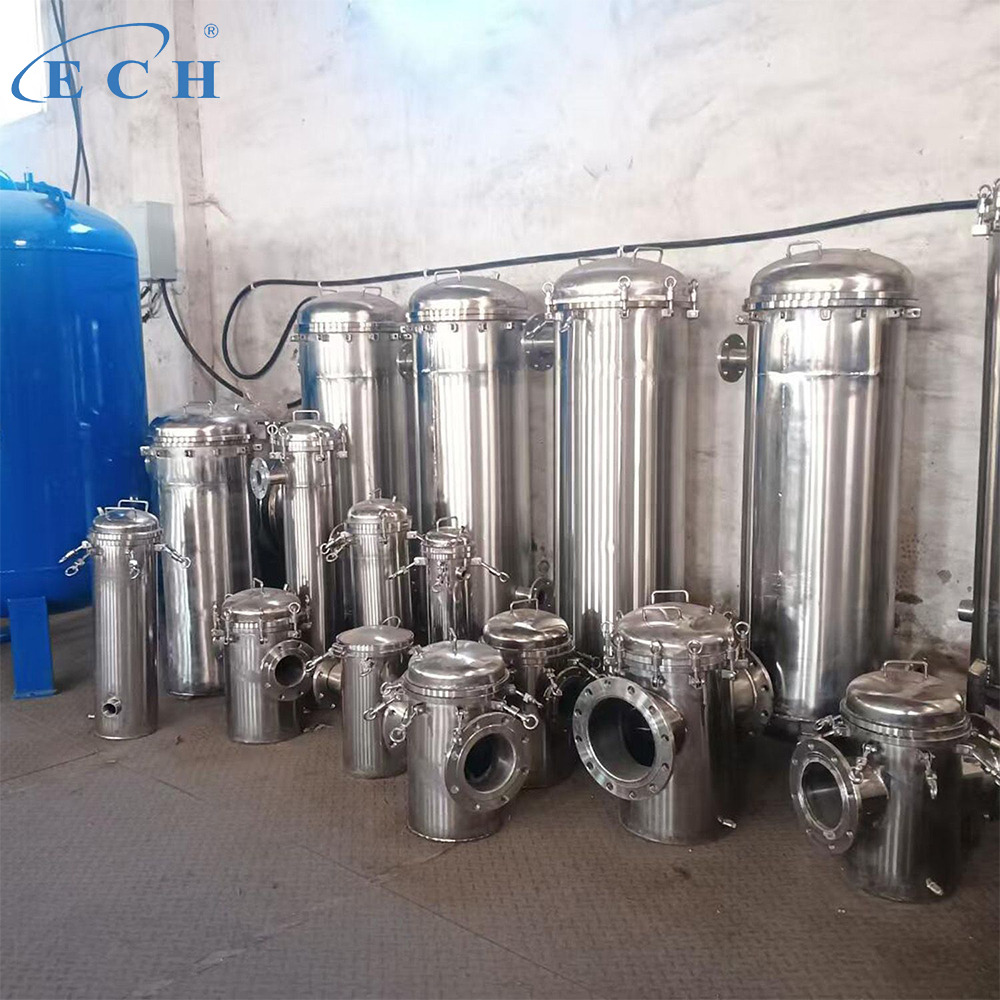

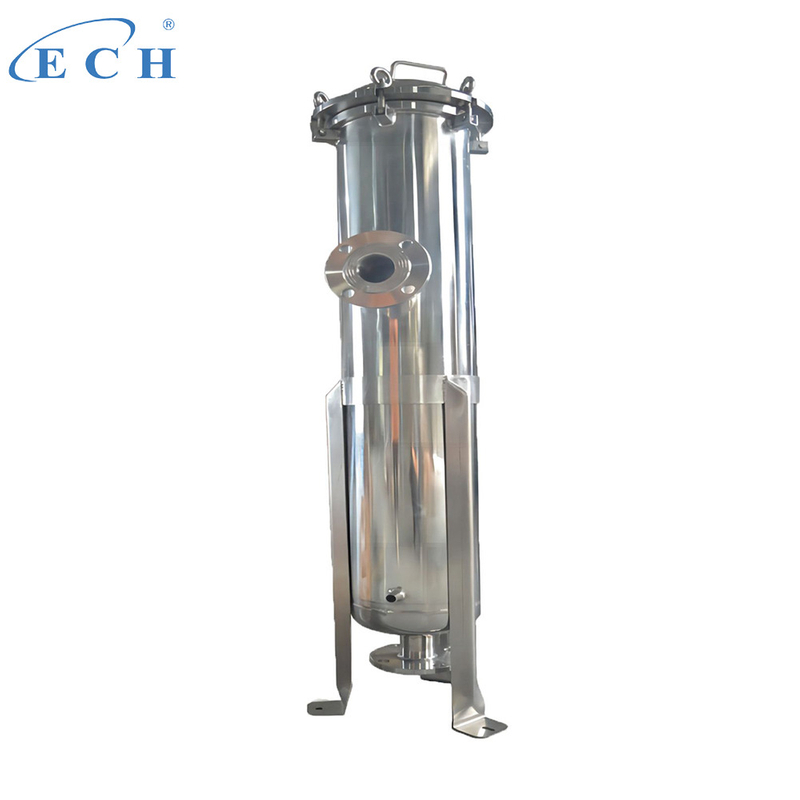

Precision Filters / Security Filters
This product features high-quality filter elements and robust housing, effectively removing 0.1-100μm particles to safeguard downstream equipment. Widely used in water treatment and process fluid purification for electronics, pharmaceuticals, food & beverage, and chemical industries.
Technical Parameters
Design Pressure: 0.6MPa (Higher pressure available upon request)
Operating Temperature: 5-40°C (Customizable for special temperatures)
Sealing Material: Butyl rubber, silicone rubber, fluororubber (Standard: silicone rubber)
Connection Type: Quick-release, threaded, flanged
Filter Cartridge Type: Flat end, 222, 226 socket
Surface Treatment: Mirror polish, electropolish, matte sandblasting
Filtration Accuracy: 0.1-100μm
Housing Material: SUS304, SUS316L
Design Flow Rate: 1-160m³/h
Applications:
Used in pre-treatment and terminal filtration in nanofiltration, ultrafiltration, reverse osmosis, and electrodialysis systems;
Suitable for high-purity water filtration in industries like electronics and semiconductors;
Effective in wastewater treatment and recycling processes for greywater.
Model | Diameter (mm) | Height (mm) | Inlet/Outlet | Reference Flow Rate | Filter Cartridge | Cartridge |
ECH-JM-15 | 300 | 1630 | DN65 | 15 | 10 | 40'' |
ECH-JM-22 | 350 | 1660 | DN80 | 22 | 15 | 40'' |
ECH-JM-35 | 400 | 1680 | DN80 | 35 | 20 | 40'' |
ECH-JM-45 | 450 | 1710 | DN100 | 45 | 25 | 40'' |
ECH-JM-55 | 500 | 1900 | DN100 | 55 | 30 | 40'' |
ECH-JM-65 | 550 | 1960 | DN125 | 65 | 35 | 40'' |
ECH-JM-75 | 600 | 2000 | DN125 | 75 | 45 | 40'' |
ECH-JM-80 | 650 | 2030 | DN125 | 80 | 50 | 40'' |
ECH-JM-100 | 700 | 2050 | DN150 | 100 | 60 | 40'' |
ECH-JM-105 | 750 | 2080 | DN150 | 105 | 65 | 40'' |
ECH-JM-110 | 800 | 2100 | DN150 | 110 | 70 | 40'' |
ECH-JM-130 | 900 | 2150 | DN150 | 130 | 80 | 40'' |
ECH-JM-160 | 1000 | 2200 | DN200 | 160 | 100 | 40'' |
FAQ
Q1: What is the difference between a precision filter and a standard filter?
A1: Precision filters use multi-layer gradient filtration technology with an accuracy of up to 0.1 microns, effectively capturing fine particles to protect sensitive equipment like RO membranes, while standard filters are only for coarse filtration.
Q2: How often should the filter cartridge be replaced?
A2: Replace the cartridge when the pressure drop reaches 0.1MPa or water quality deteriorates (turbidity ≥1NTU). Regular inspection every 3-6 months is recommended.
Q3: Can we customize the equipment?
A3: Yes.We offer OEM/ODM customizationbased on your needs.
