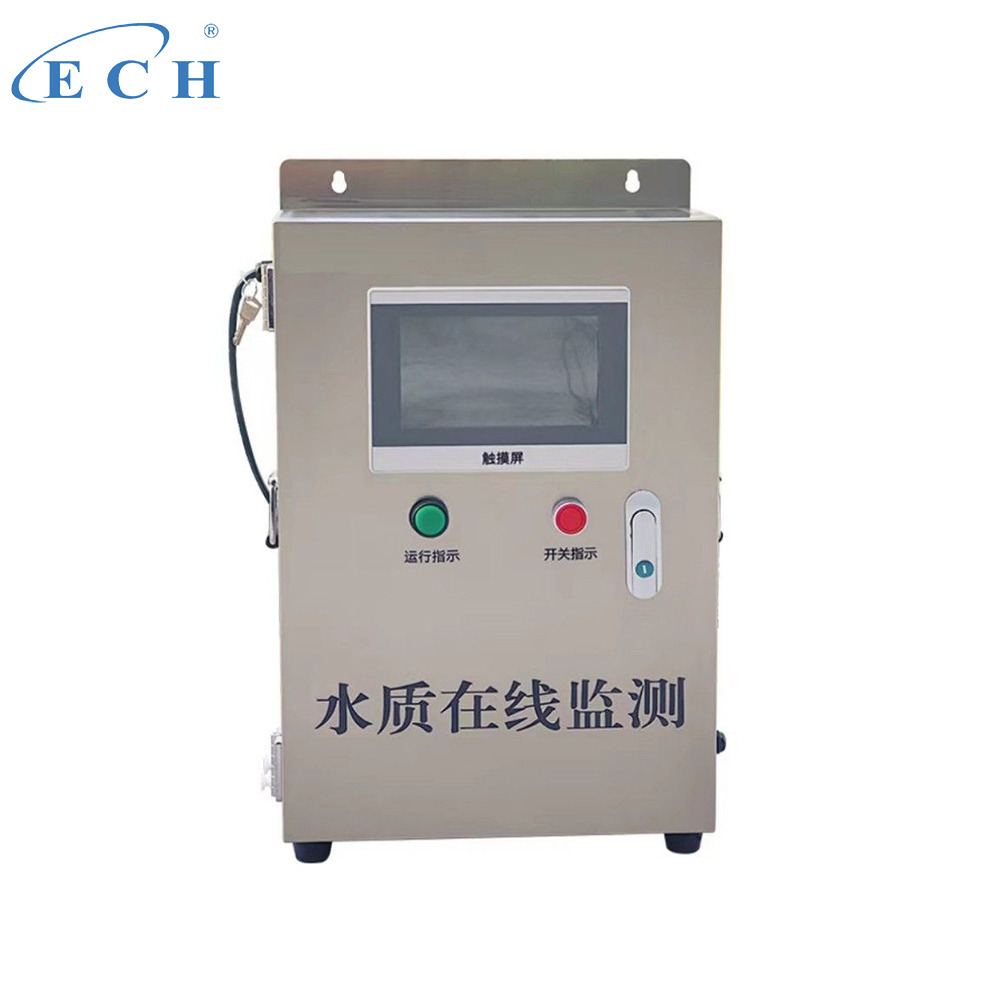

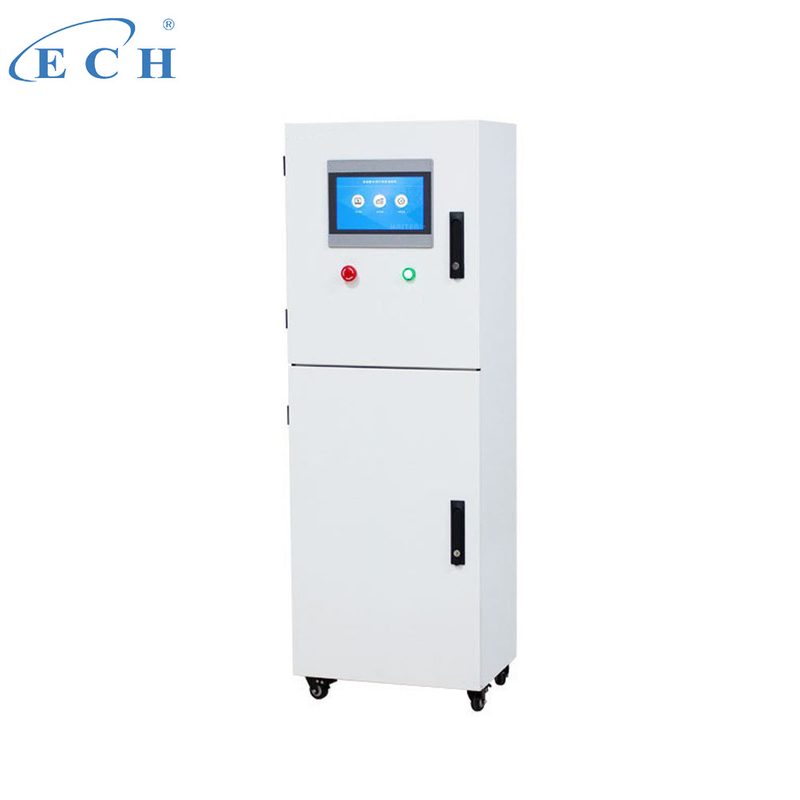

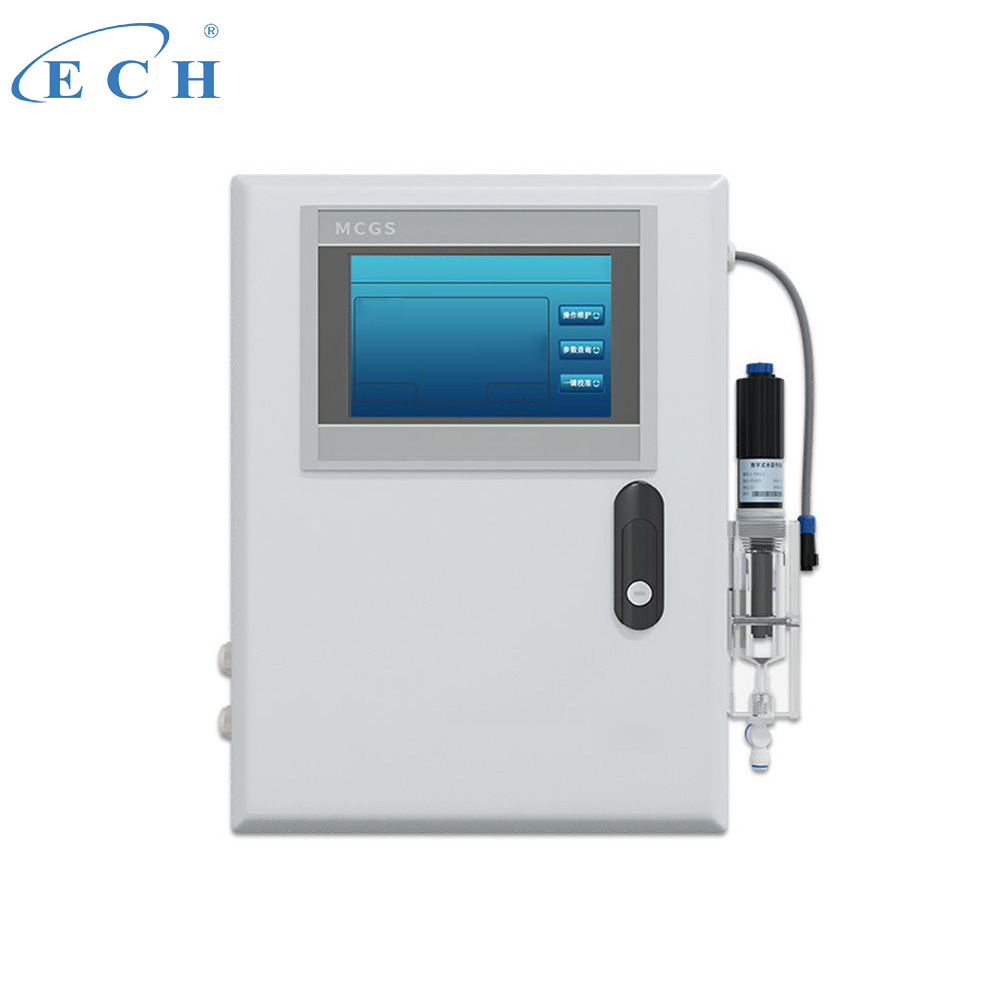

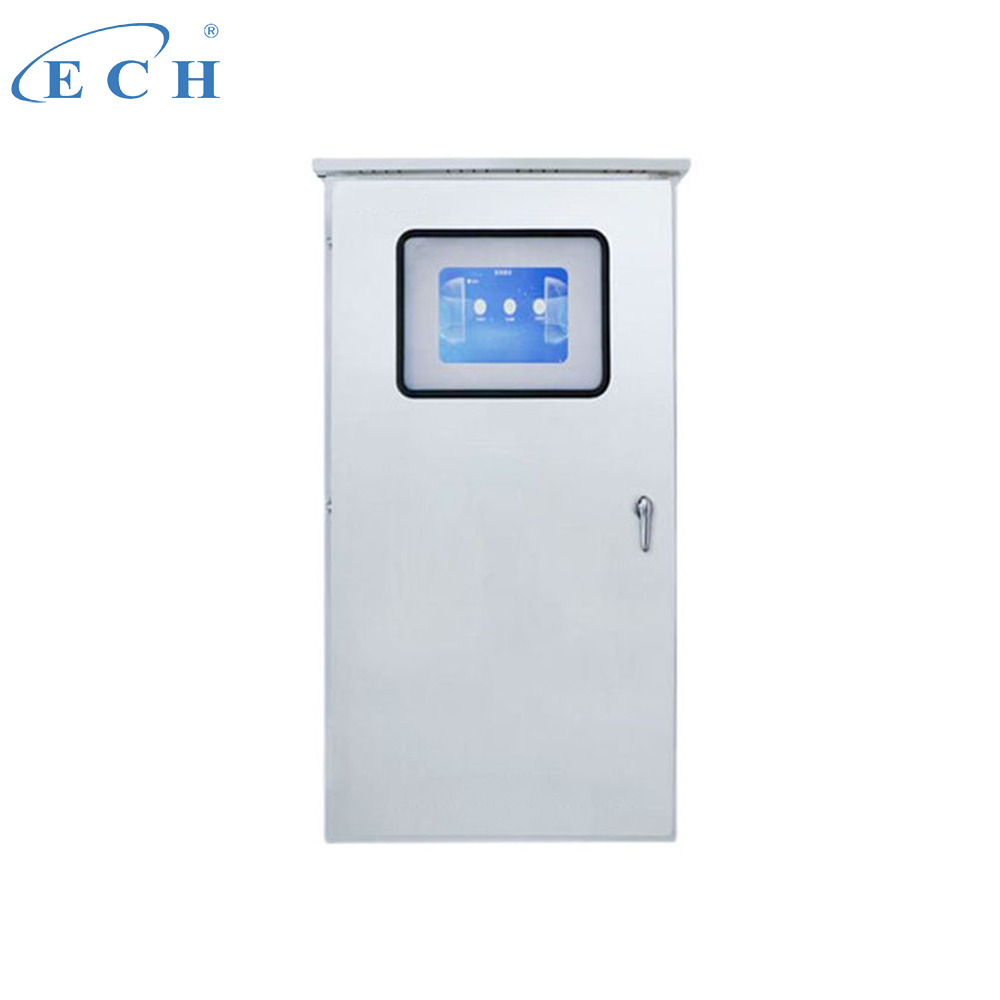

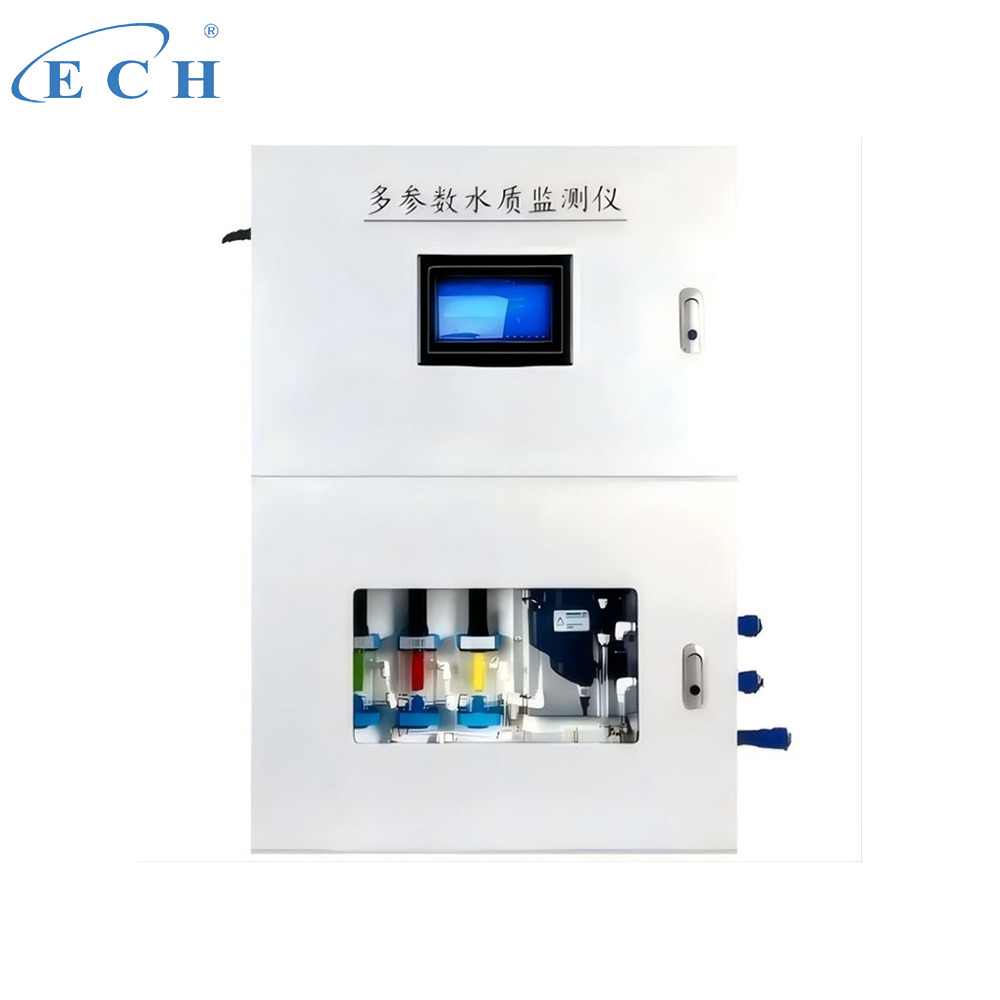

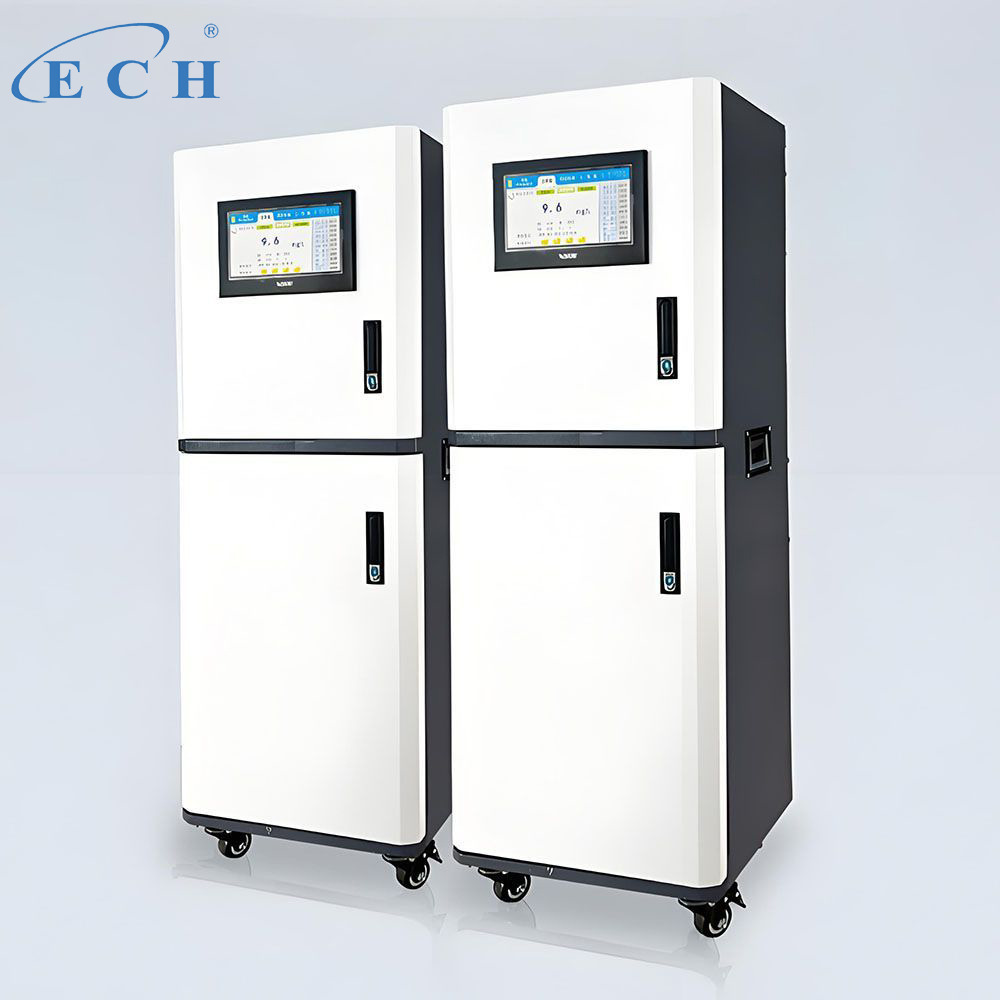

Product Overview
The Multi-parameter Water Quality Online Monitor is a high-efficiency, intelligent monitoring system designed for real-time water quality detection and automatic management. Adopting a system-integrated installation design, it combines RS-485 remote network communication technology and APP-based mobile monitoring functions, significantly simplifying on-site installation, commissioning, operation, and real-time monitoring processes. This system is specifically optimized to monitor key water quality and hygiene indicators for swimming pools and similar water environments, realizing automatic monitoring, automatic dosing control, and remote data transmission. It is widely applicable to public swimming pools, water parks, private swimming pools, waterscapes, and other scenarios, ensuring water quality meets relevant national and industrial standards while reducing manual operation costs and avoiding risks caused by improper manual dosing.
Technical Specifications
| Item | Range | Accuracy | Resolution |
Residual Chlorine | 0~2.000mg/L(HC1O) | ±5% | 0.001mg/L |
ORP (Oxidation-Reduction Potential) | -1500~+1500mV | ±6mV | 1mV |
pH | 0~14.00pH | ±0.1pH,±0.3℃ | 0.01pH |
Conductivity | 0~5000μS/cm | ±1.5%,±0.3℃ | 1 |
Turbidity | 0~20.00NTU | ±3% | 0.01NTU/0.1℃ |
Algae Inhibition | min | 1 | |
Water Temperature | -50~+150℃ | 0.1 | 0.01 |
Core Advantages
Intelligent Automation: Realizes real-time monitoring of multiple key water quality indicators and automatic dosing control, effectively avoiding excessive drug dosage caused by manual addition, ensuring water quality stability and compliance with standards.
Easy Operation & Installation: System-integrated design simplifies on-site installation and commissioning; the APP-based mobile monitoring function allows users to remotely monitor water quality and adjust equipment operation anytime, anywhere, reducing manual management costs.
Reliable Data Transmission: Adopts RS-485 remote network communication technology, which can transmit monitoring data to the specified network port in real-time, facilitating data statistics, analysis and supervision by relevant departments.
Strong Versatility: Widely applicable to various water scenarios such as public swimming pools, water parks, private swimming pools and waterscapes, meeting the diverse needs of different users.
Customizable & Cost-Effective: Provides OEM/ODM customization services to meet personalized needs; as a manufacturer integrating R&D, production and trade, it offers factory-direct prices and professional technical support, reducing user purchase and after-sales costs.
Application Fields
The Multi-parameter Water Quality Online Monitor is mainly used in scenarios that require real-time monitoring and management of water quality, especially for water environments related to human contact and entertainment. Its specific application fields include:
Public Swimming Pools: Including municipal swimming pools, community swimming pools, and school swimming pools, ensuring the health and safety of swimmers.
Water Parks: Monitoring the water quality of wave pools, slides, and other entertainment facilities to maintain a safe and comfortable playing environment.
Private Swimming Pools: Providing convenient and intelligent water quality management solutions for family or villa swimming pools, reducing manual maintenance workload.
Waterscapes: Monitoring the water quality of urban waterscapes, garden waterscapes, and artificial lakes to maintain water clarity and ecological stability.
Other Scenarios: It can also be customized for water quality monitoring in small-scale water treatment facilities, aquaculture ponds, and other places according to user needs.
Usage Methods & Safety Precautions
Usage Methods
Installation: Install the monitor in a well-ventilated, dry area near the monitored water body, following the system-integrated installation guidelines. Ensure the sensor is properly immersed in the water to be tested and the connection with the dosing pump is firm.
Commissioning: After installation, connect the equipment to the power supply and configure the communication parameters (consistent with the control cabinet and APP). Calibrate the monitoring indicators according to the standard values to ensure the accuracy of detection data.
Operation: After commissioning, the system will automatically start real-time monitoring. Users can view real-time data, set indicator limit values, and control dosing pumps through the on-site display panel or mobile APP.
Daily Maintenance: Regularly clean the sensor to avoid dirt accumulation affecting detection accuracy; check the communication connection and power supply regularly to ensure stable operation of the system.
Safety Precautions
Electrical Safety: Ensure the power supply voltage matches the equipment specification; cut off the power supply before installation, commissioning or maintenance to avoid electric shock.
Chemical Safety: When the system is connected to dosing equipment, ensure the dosing pipeline is sealed to prevent chemical leakage; operators should wear protective gloves and goggles when contacting chemicals.
Equipment Protection: Avoid installing the monitor in harsh environments such as high temperature, high humidity, or strong corrosion; prevent the sensor from being hit or damaged to avoid affecting detection performance.
Calibration & Maintenance: Regularly calibrate the monitoring indicators (recommended once a month) to ensure data accuracy; do not disassemble the equipment without authorization, otherwise the after-sales service will be invalid.
Emergency Handling: If the equipment fails (such as abnormal data, communication interruption), stop using it immediately, cut off the power supply, and contact professional after-sales personnel for maintenance.
FAQ
What standardized output signals and communication protocols does your water quality monitor provide, and how will it interface with our control cabinet?
Our water quality monitor comes standard with the Modbus RTU over RS-485 communication protocol, offering comprehensive and industrially standardized interface options to ensure seamless integration with your control cabinet. The interface is designed in line with industrial standards, and our technical team will provide detailed connection guidelines and on-site support if needed to ensure smooth docking.
Can we customize the equipment?
Yes. We offer OEM/ODM customization based on your needs. Customizable items include monitoring indicators, equipment size, display function, communication mode, and brand logo, etc. Our R&D team will communicate with you in detail to provide a personalized solution that meets your specific requirements.
Is your company a trading company or a manufacturer?
We are a manufacturer with in-house production and export capability. Our Company integrates R&D, manufacturing, and international trade, offering factory-direct prices and professional support. We have a complete production line and quality control system to ensure product quality and delivery efficiency, and we can provide one-stop after-sales service including technical guidance and maintenance.
How often does the monitor need to be calibrated, and can we calibrate it ourselves?
It is recommended to calibrate the monitoring indicators once a month to ensure the accuracy of detection data. We provide standard calibration tools and detailed calibration guidelines, so you can calibrate the equipment yourself. If you encounter difficulties, our technical team can provide remote guidance or on-site calibration services.
What is the service life of the equipment, and what after-sales services do you provide?
The service life of the main unit of the monitor is 3-5 years (depending on the usage environment and maintenance). We provide a one-year free warranty service from the date of delivery. During the warranty period, we will provide free replacement of damaged parts (excluding man-made damage). After the warranty period, we will provide lifelong maintenance services at a preferential price, and ensure the supply of spare parts for a long time.
