Condenser Rubber Ball Automatic Cleaning Device

The Condenser Rubber Ball Automatic Cleaning Device is a high-efficiency, intelligent online maintenance system specifically designed for condenser tube cleaning, widely applied in power plants, chemical processing, HVAC, petrochemical, and marine industries. It features an advanced automated mechanical cleaning mechanism that utilizes resilient sponge balls to scour and remove fouling, scaling, and debris from the inside of condenser tubes—all without interrupting the normal operation of the condenser system.

This innovative design ensures sustained heat exchange efficiency, significantly reduces the need for manual cleaning, minimizes system downtime, and extends the service life of condenser equipment. By leveraging the system’s own circulating water flow as the driving force, the device achieves energy-saving operation while maintaining optimal performance, making it a cost-effective and reliable solution for condenser maintenance.

Working Principle

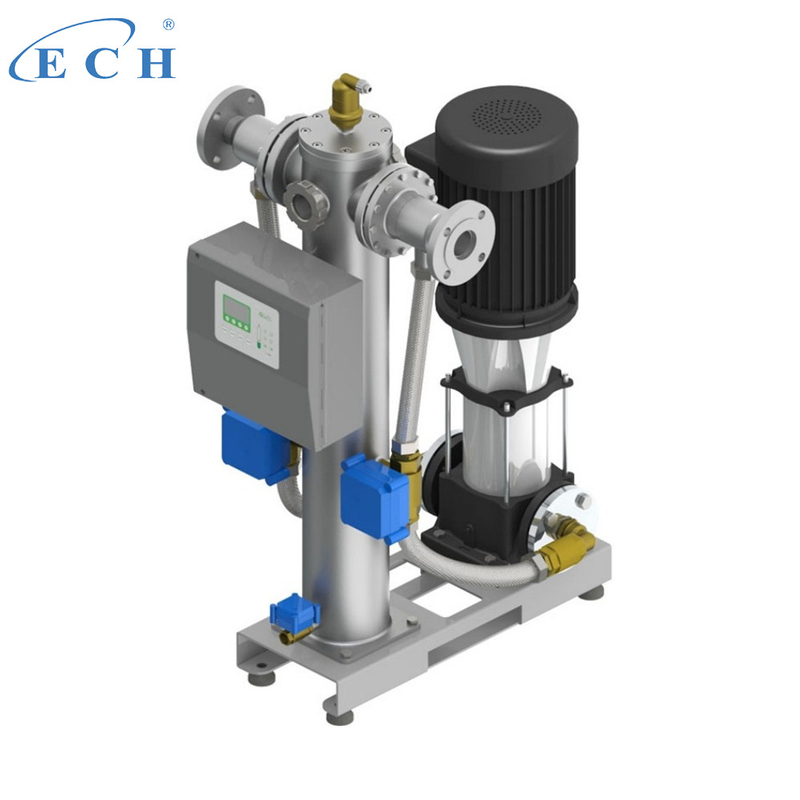

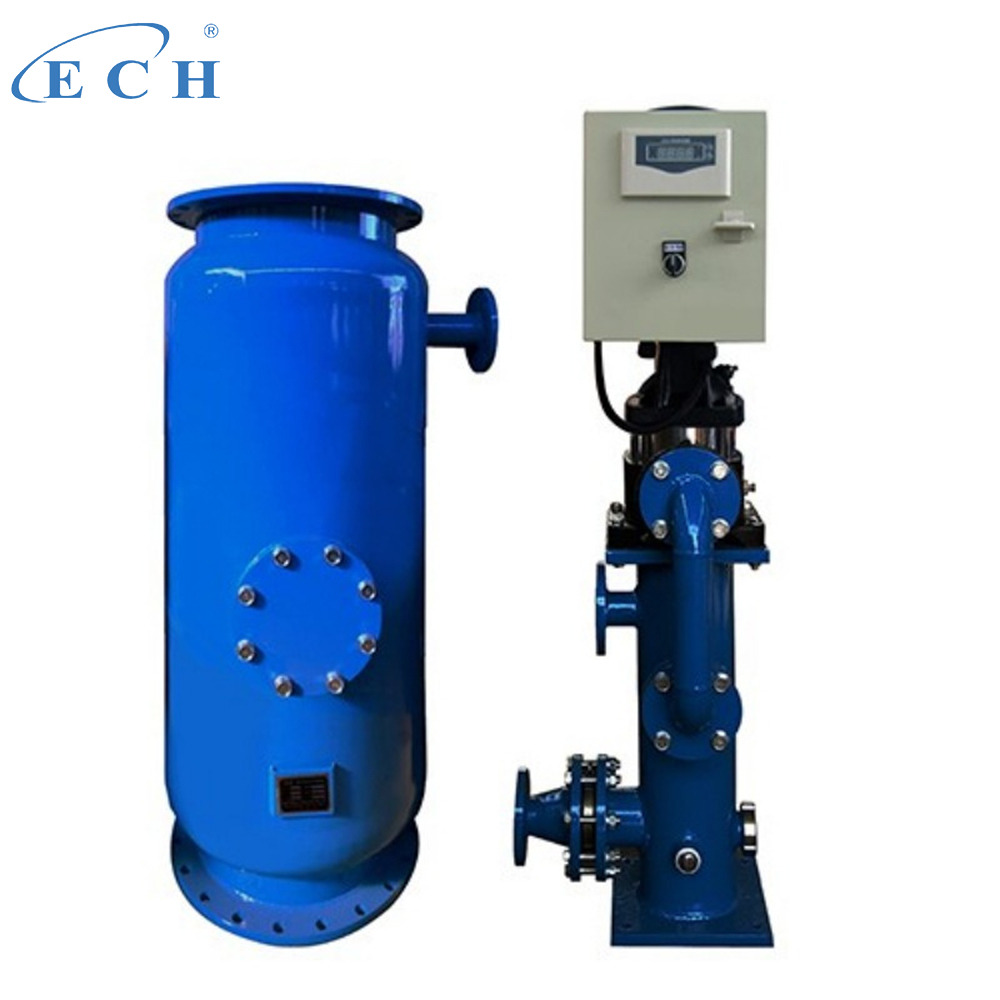

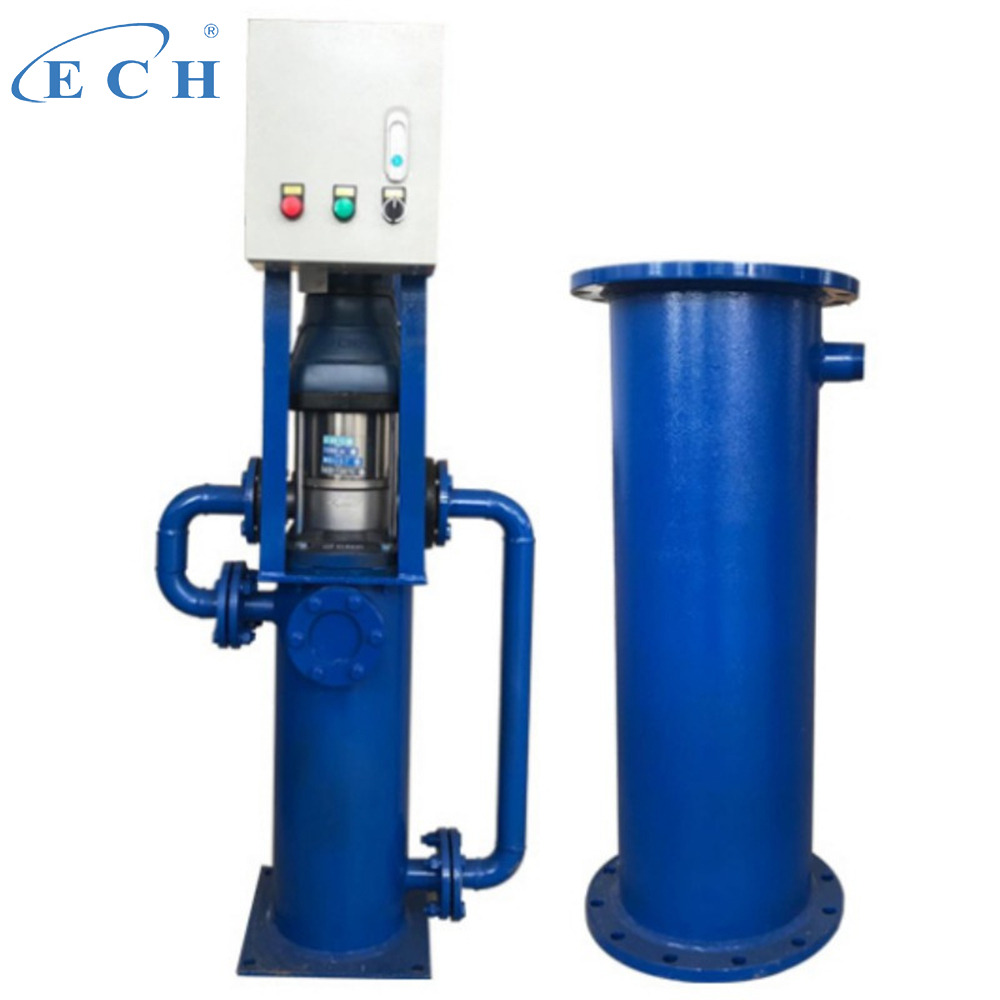

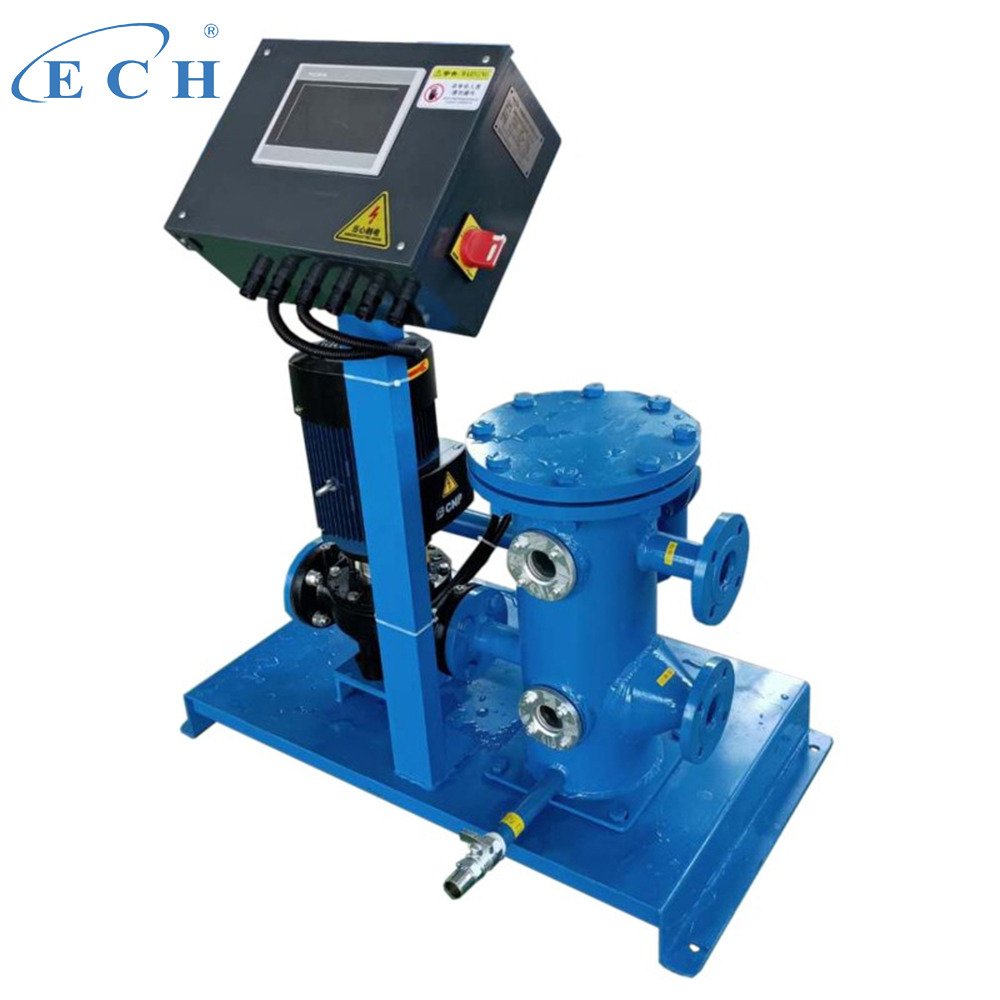

The condenser rubber ball automatic cleaning device primarily consists of a control system, ball injection unit, recovery strainer, and specialized sponge rubber balls. The system is integrated into the condenser's cooling water circuit. During operation, the control system commands the injection unit to launch a predetermined number of sponge balls into the water flow.

These balls, slightly larger in diameter than the condenser tubes, are propelled by the circulating water pressure through the tubes, where they mechanically scrub and dislodge fouling deposits from the inner walls. After passing through the condenser, the balls and dislodged debris are carried to a recovery strainer at the outlet side. The strainer captures the balls while allowing water to pass through, and the cleaned balls are then returned to the injection unit for the next cleaning cycle, all without interrupting system operation.

• Online Cleaning Without Downtime: The automated cleaning mechanism operates continuously during the condenser’s normal operation, eliminating the need for system shutdown. This significantly reduces downtime and manual cleaning costs, ensuring uninterrupted production and operation.

• Efficient Fouling Removal: Resilient sponge rubber balls (slightly larger than condenser tubes) are propelled through the tubes by circulating water, mechanically scrubbing inner walls to remove fouling, scaling, and debris. Ensures sustained heat exchange efficiency and prevents performance degradation.

• Energy-Saving Design: The cleaning process is driven solely by the system’s own circulating water flow, requiring no additional power for ball movement. Lowers energy consumption and operational costs compared to traditional cleaning methods.

• Full Customization Capability: As a professional manufacturer, we offer complete OEM/ODM customization, tailoring the device to your specific condenser parameters (tube diameter, number of tubes, water flow rate, pressure) to ensure perfect compatibility and optimal cleaning effect.

• Low Maintenance & Easy Operation: Equipped with an intelligent PLC control system, the device operates automatically with minimal manual intervention. Sponge balls are recyclable and reusable, reducing consumable costs; regular maintenance only requires checking the recovery strainer and ball condition.

• Extends Equipment Service Life: By preventing fouling buildup and reducing corrosion caused by debris, the device protects condenser tubes from damage, extending the service life of the condenser and related equipment, and reducing maintenance and replacement costs.

• Wide Compatibility: Suitable for various types of condensers, including power plant condensers, industrial refrigeration units, petrochemical cooling systems, marine central coolers, and HVAC chiller condensers.

• Reliable & Durable: Made of high-quality components (corrosion-resistant materials for the control system, injection unit, and strainer) and resilient sponge balls, ensuring stable operation in harsh industrial environments.

The Condenser Rubber Ball Automatic Cleaning Device is a versatile online cleaning solution, widely used in industries where condenser performance and maintenance are critical. Its main application fields include:

• Power Plants: Used in coal-fired, gas-fired, and nuclear power plant condenser systems to remove fouling and scaling, maintain heat exchange efficiency, and ensure stable power generation.

• Chemical & Petrochemical Industries: Applied to condensers in chemical processing plants, petrochemical refineries, and chemical reaction systems, preventing fouling buildup that affects production efficiency and product quality.

• HVAC Industry: Used in chiller condensers for commercial buildings, office buildings, shopping malls, and hotels, maintaining cooling efficiency and reducing energy consumption for air conditioning systems.

• Marine Industry: Suitable for marine central coolers and shipboard condenser systems, withstanding harsh marine environments to ensure reliable operation of ship equipment.

• Industrial Refrigeration: Applied to condensers in industrial refrigeration units, cold storage systems, and food processing refrigeration equipment, ensuring stable cooling performance and reducing maintenance costs.

• Other Fields: Used in condensers for pharmaceutical plants, food & beverage processing facilities, and water treatment systems, meeting the high-standard cleaning and maintenance needs of various industries.

Usage Methods

• Installation: Integrate the device into the condenser’s cooling water circuit, ensuring correct connection of the ball injection unit, recovery strainer, and control system. Confirm that the sponge rubber balls are compatible with the condenser tube diameter (slightly larger than the tubes). Ensure all connections are tight to avoid water leakage.

• Parameter Setting: Use the PLC control system to set the cleaning cycle, number of sponge balls to be injected, and operation mode (automatic or manual). Adjust parameters based on the condenser’s fouling degree, water flow rate, and working pressure.

• Start-Up Operation: Turn on the control system and start the device. The injection unit will automatically launch the preset number of sponge balls into the circulating water flow, which will be propelled through the condenser tubes for cleaning. The recovery strainer will capture the balls and return them to the injection unit for recycling.

• Daily Monitoring: Regularly check the operating status of the device, including the control system, injection unit, and recovery strainer. Ensure the sponge balls are intact and recyclable; replace damaged balls in a timely manner. Monitor the condenser’s heat exchange efficiency to adjust the cleaning cycle if needed.

• Maintenance: Clean the recovery strainer regularly to remove accumulated debris and prevent clogging. Inspect the injection unit and control system every 3–6 months for normal operation. Check the sponge balls for wear and tear, and replace them when necessary (recommended every 6–12 months, depending on usage).

Safety Precautions

• Pressure Safety: Ensure the device operates within the rated working pressure (1.0 MPa or 1.6 MPa, or customized pressure). Do not exceed the rated pressure, as this may damage the injection unit, strainer, or condenser tubes. Before maintenance, close the relevant valves and release the internal pressure to avoid injury.

• Electrical Safety: The control system and electrical components must be connected to a matching power supply. Cut off the power supply before installing, maintaining, or disassembling the device to avoid electric shock. Keep the control panel dry and away from water to prevent short circuits.

• Mechanical Safety: Do not touch the moving parts (e.g., injection unit, recovery strainer) during operation to avoid personal injury. Use appropriate tools for installation and maintenance to avoid damaging the device or condenser pipeline.

• Sponge Ball Safety: Use only compatible sponge rubber balls (correct size and material). Do not use damaged or mismatched balls, as they may get stuck in the condenser tubes and cause blockages or damage.

• Operating Environment: Install the device in a well-ventilated, dry industrial environment, avoiding extreme temperatures (below 5℃ or above 80℃) and high humidity. Protect the device from direct sunlight, corrosive gases, and mechanical impact.

• Unauthorized Disassembly: Do not disassemble the device’s internal components (e.g., control system, injection unit) without authorization. If there is a fault (e.g., ball jamming, system failure), stop the device, cut off the power, and contact professional after-sales personnel for maintenance.

FAQ

• What are the applications of the condenser rubber ball automatic cleaning device?

The condenser rubber ball automatic cleaning device is widely used in power plant condenser systems, industrial refrigeration units, petrochemical cooling systems, marine central coolers, and HVAC chiller condensers. It is designed to automatically remove fouling and scaling from the inside of condenser tubes, maintain heat exchange efficiency, reduce energy consumption, and extend the equipment's service life. It is also applicable to condensers in pharmaceutical plants, food & beverage processing facilities, and water treatment systems.

• What is the working pressure and driving force of the system?

The standard working pressure of our systems is typically 1.0 MPa or 1.6 MPa, which can be specified according to your project requirements to match your condenser’s working conditions. The cleaning process is driven solely by the system's own circulating water flow, requiring no additional power for the ball movement. This energy-saving design reduces operational costs and ensures seamless integration with your existing condenser system.

• Can you provide customization based on our specific condenser design?

Yes, we offer complete OEM/ODM customization. As a professional manufacturer integrating R&D, manufacturing, and sales, we can customize the device based on your specific condenser tube diameter, number of tubes, water flow rate, and pressure parameters. Our R&D team will communicate with you in detail to understand your system requirements, ensuring the customized solution perfectly matches your condenser and delivers optimal cleaning performance. We also provide factory-direct prices and professional technical support throughout the customization and installation process.

• How often do the sponge rubber balls need to be replaced?

The replacement cycle of the sponge rubber balls depends on the fouling degree of the condenser and the operating environment. Under normal working conditions, we recommend replacing the balls every 6–12 months. If the balls show significant wear, deformation, or damage (e.g., tearing, hardening), they should be replaced immediately to avoid affecting the cleaning effect or causing blockages in the condenser tubes.

• Is your company a trading company or a manufacturer?

We are a professional manufacturer integrating R&D, manufacturing, and sales. We have our own production workshop, advanced manufacturing equipment, and a strict quality control system to ensure the reliability and performance of each condenser rubber ball automatic cleaning device. We offer factory-direct pricing, one-stop technical support, and after-sales service (including installation guidance, maintenance, and spare parts supply) to meet your needs.

• How does the device ensure that the sponge balls are not stuck in the condenser tubes?

The sponge rubber balls are specially designed to be slightly larger than the condenser tubes (customized based on your tube diameter) to ensure effective scrubbing while maintaining flexibility. The circulating water flow provides sufficient driving force to propel the balls through the tubes smoothly. Additionally, the recovery strainer is designed to efficiently capture the balls after they pass through the condenser, preventing them from accumulating in the pipeline. Our technical team also optimizes the ball size and material based on your condenser parameters to further avoid jamming.
