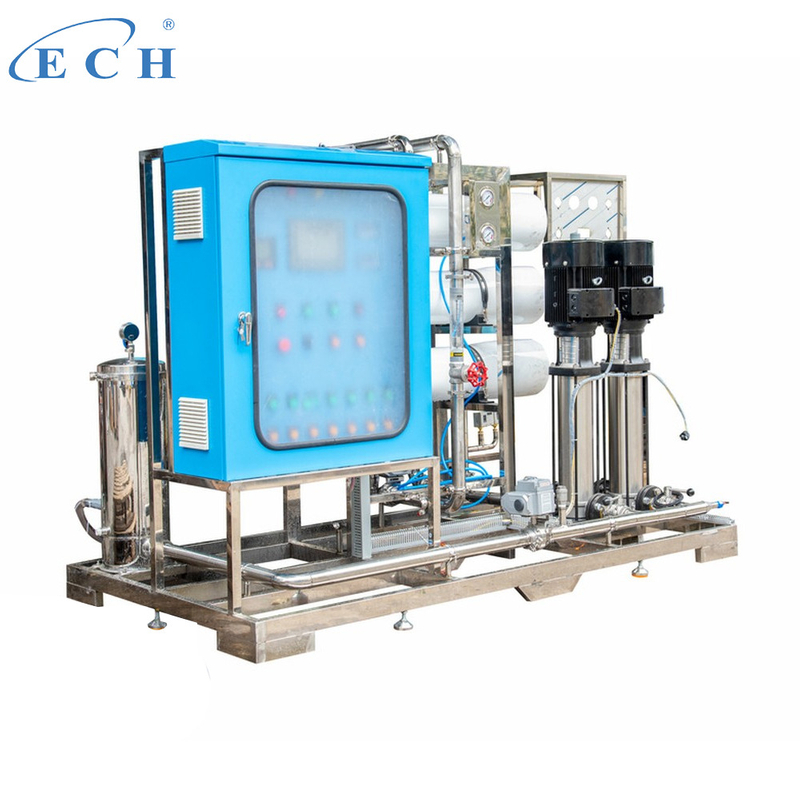

Industrial RO System 2m³/h

The 2m³/h Reverse Osmosis (RO) Water Treatment System is a fully integrated, intelligent water purification solution designed to produce high-quality purified water for industrial applications. It combines advanced pretreatment processes, a high-efficiency RO unit, precise electrical control, and standardized piping, delivering stable water output with conductivity ≤20μS/cm.

Constructed with SS304 stainless steel for core components, the system features full automatic operation, multi-stage pretreatment protection, and a compact integrated design. It effectively safeguards RO membranes from fouling and scaling, ensuring long-term stable operation. Widely applicable in the food, pharmaceutical, and electronics industries, this system can be customized to meet specific water quality, production capacity, and on-site installation requirements of different industries.

• System Capacity: 2m³/h

• Recovery Rate: ≥65%

• Desalination Rate: ≥98%

• Outlet Conductivity: ≤20μS/cm

• Operation Pressure: 1.0-1.5MPa

• Fully Automatic Operation：Equipped with an advanced electrical control system, the system realizes full-automatic operation of water intake, pretreatment, RO filtration, and water output, reducing manual intervention and operational costs.

• Multi-Stage Pretreatment Protection：The integrated pretreatment process (multi-media filter + softener + cartridge filter) effectively removes suspended solids, large particles, calcium, and magnesium ions from raw water, preventing RO membrane fouling and scaling to extend service life.

• High-Quality Material & Durability：Core components are made of SS304 stainless steel, offering excellent corrosion resistance, stability, and a long service life, suitable for harsh industrial water treatment environments.

• High Purification Efficiency：The RO unit adopts a 3kW high-pressure pump and 2 pieces of 8040 membranes, ensuring efficient water filtration and stable water quality (conductivity ≤20μS/cm) to meet the strict water standards of food, pharmaceutical, and electronic industries.

• Compact Integrated Design：The system features a compact and space-saving structure, with standardized piping and modular design, making installation, debugging, and maintenance convenient.

• Wide Industry Applicability：Suitable for water treatment needs in food, pharmaceutical, electronics, and other industries, providing reliable purified water for production processes.

• Food Industry：Purified water for food processing, beverage production, and food ingredient preparation, meeting food safety and hygiene standards.

• Pharmaceutical Industry：High-purity water for drug production, medical equipment cleaning, and pharmaceutical testing, complying with pharmaceutical industry water quality regulations.

• Electronics Industry：Purified water for electronic component manufacturing, circuit board production, and semiconductor processing, ensuring product quality and yield.

• Other Industrial Fields：Customizable for other industrial water treatment scenarios requiring purified water with low conductivity.

Usage Methods

• Installation & Commissioning：Install the system on a flat, firm foundation, correctly connect raw water inlet, purified water outlet, drain pipe, and power supply. Commission the system by professional technicians, set parameters such as water intake flow, filtration pressure, and automatic control procedures, and test the operation of each module to ensure normal operation.

• Daily Operation：After commissioning, the system operates in full-automatic mode. The electrical control system monitors water quality, pressure, and flow in real time, automatically adjusting the operation of the high-pressure pump and each filter module. Regularly check the water level and pressure of each filter tank to ensure stable water output.

• Regular Maintenance：Clean or replace the cartridge filter regularly according to the raw water quality; backwash the multi-media filter periodically; inspect the RO membranes and high-pressure pump monthly to ensure the system operates efficiently.

Safety Precautions

• Ensure the power supply is connected correctly and the system is grounded to avoid electric shock hazards. Do not operate the electrical control cabinet with wet hands.

• When replacing filter elements or maintaining the RO unit, shut down the system and cut off the power supply first to prevent equipment damage or personal injury.

• Avoid overpressure operation of the system; regularly check the pressure gauge to ensure the operating pressure is within the specified range to protect the RO membranes and pipeline system.

• Store spare parts and consumables (filter elements, membranes) in a dry, cool place to avoid damage from moisture and high temperatures.

• Keep the equipment away from flammable, explosive, and corrosive substances to ensure safe operation.

FAQ

• Why does this 2m³/h RO system include both multi-media filter and softener in pretreatment?

The multi-media filter is responsible for removing suspended solids, sediment, and large particles in raw water, while the softener eliminates calcium and magnesium ions through ion exchange to prevent scaling. This combined pretreatment process forms a multi-layer protection for RO membranes, effectively reducing membrane fouling and scaling risks, significantly extending the service life of RO membranes and lowering long-term maintenance costs.

• Can we customize the equipment?

Yes, we offer OEM/ODM customization services based on your specific needs. Customizable items include system capacity, water quality indicators, core component materials (e.g., upgrading to SS316 stainless steel), pretreatment process combinations, control systems, and supporting equipment, to perfectly match your production requirements and on-site conditions.

• Is your company a trading company or a manufacturer?

We are a professional manufacturer with in-house production and export capabilities. Our company integrates R&D, manufacturing, and international trade, with a complete production line and professional technical team. We provide factory-direct prices, stable product quality, on-time delivery, and comprehensive pre-sales and after-sales technical support.

• What is the service life of the RO membranes in this system?

Under normal operation and regular maintenance, the service life of 8040 RO membranes in this system is generally 2-3 years. The service life can be extended by ensuring proper pretreatment, stable operating pressure, and regular cleaning of the membranes.

• What raw water qualities is this 2m³/h RO system suitable for?

This system is suitable for treating tap water, groundwater, and surface water with general turbidity and hardness. For raw water with high turbidity, high hardness, or high salinity, we can customize the pretreatment process (e.g., adding an activated carbon filter or desalination module) to meet the treatment requirements.
