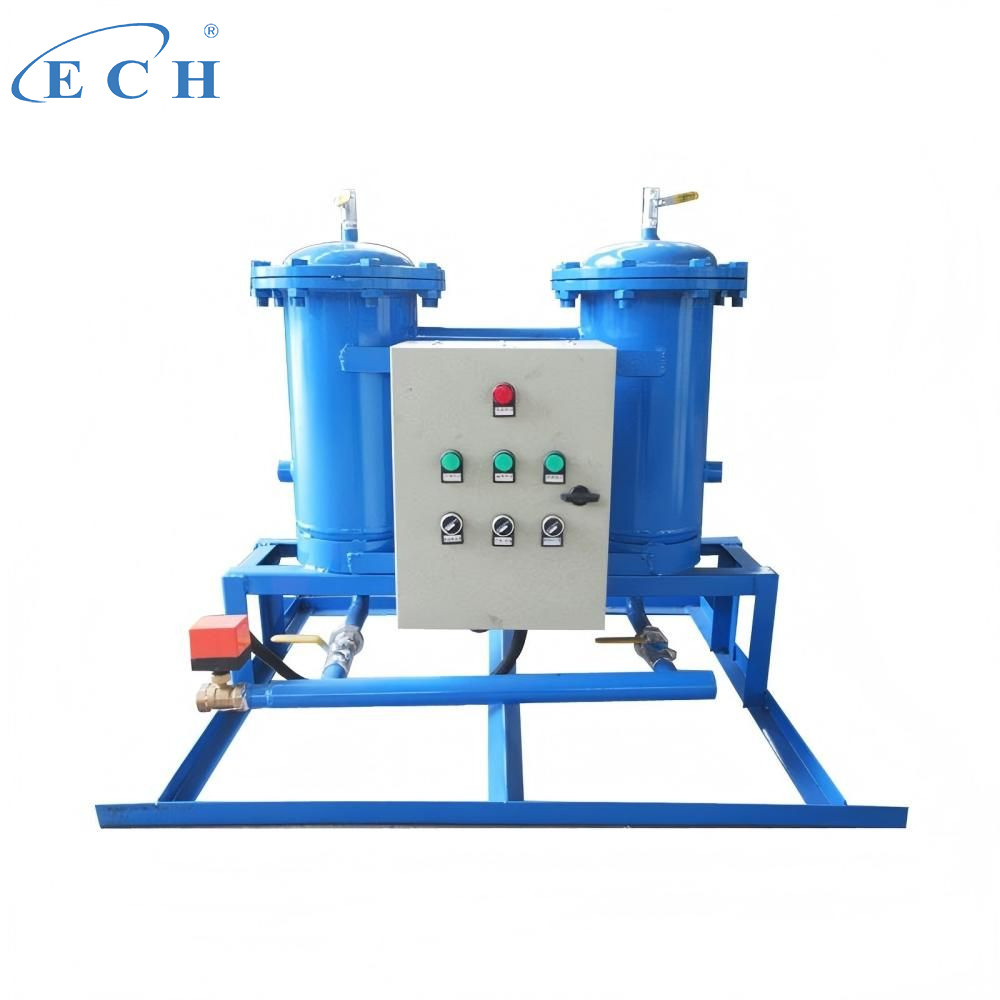

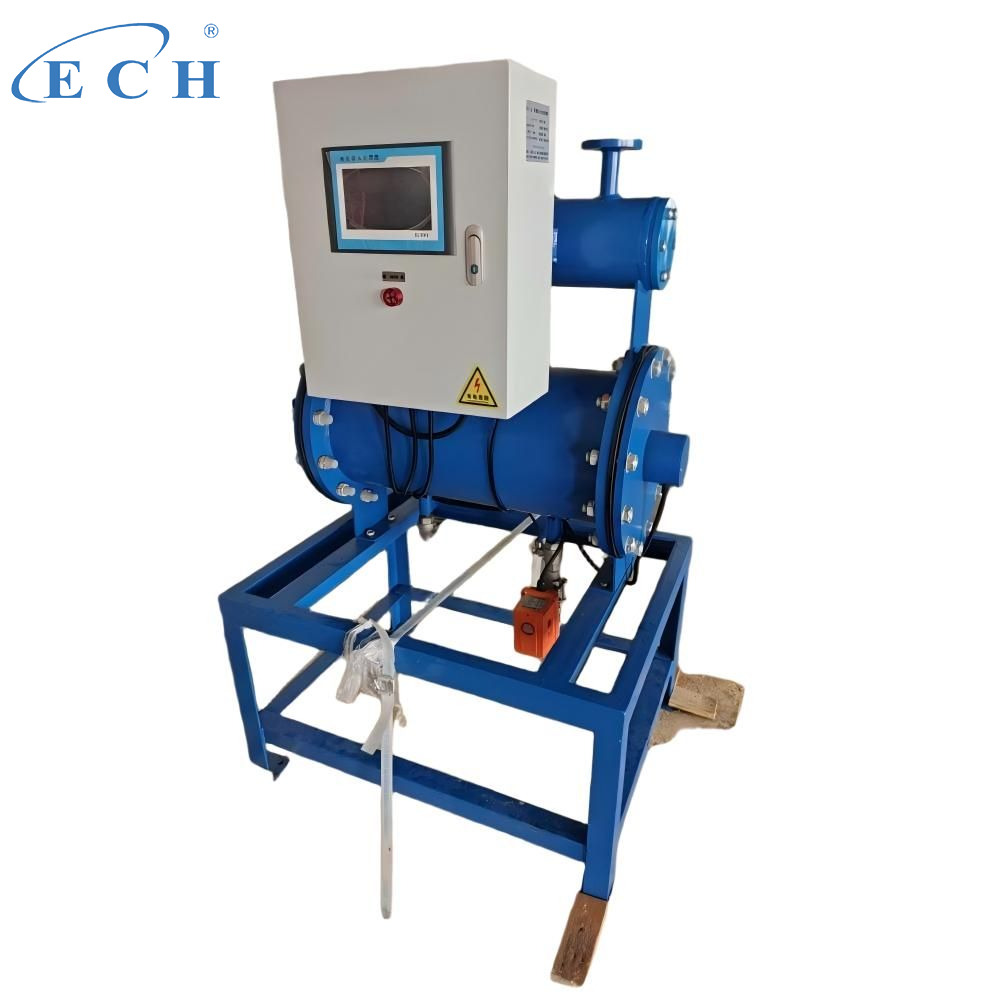

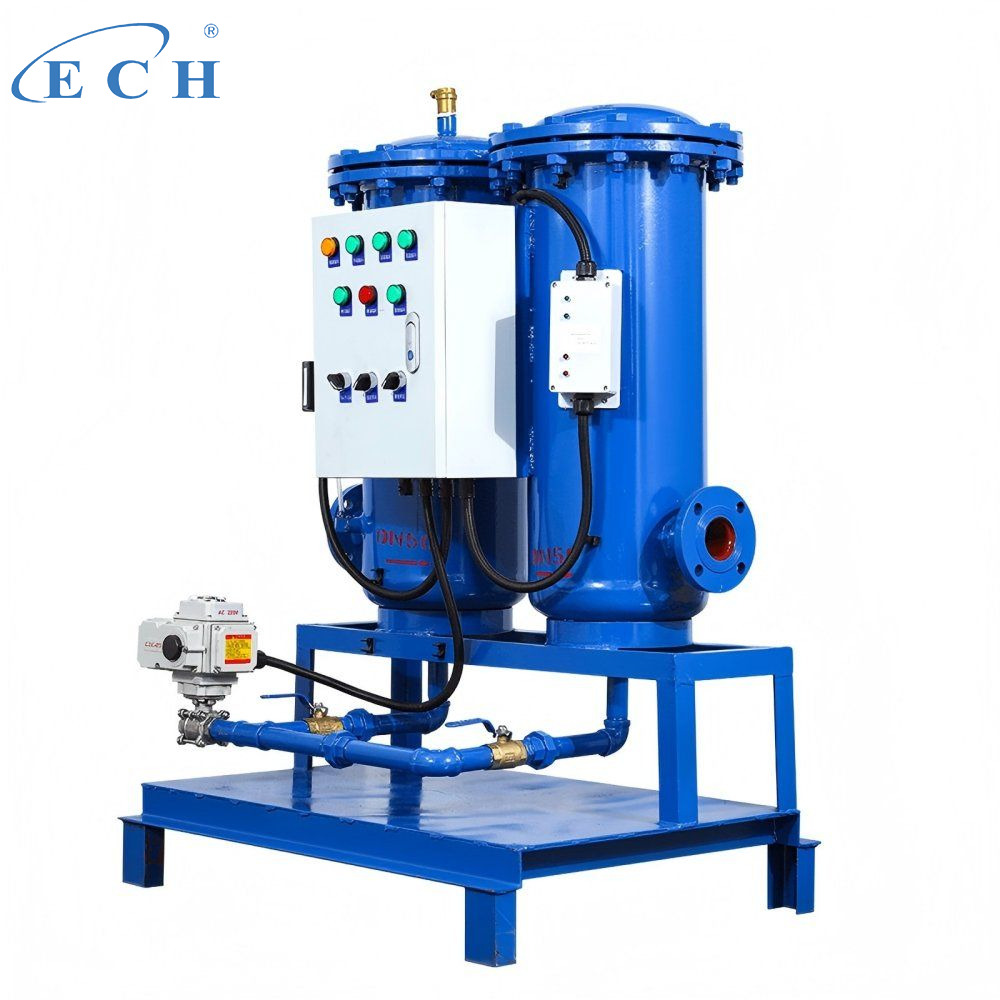

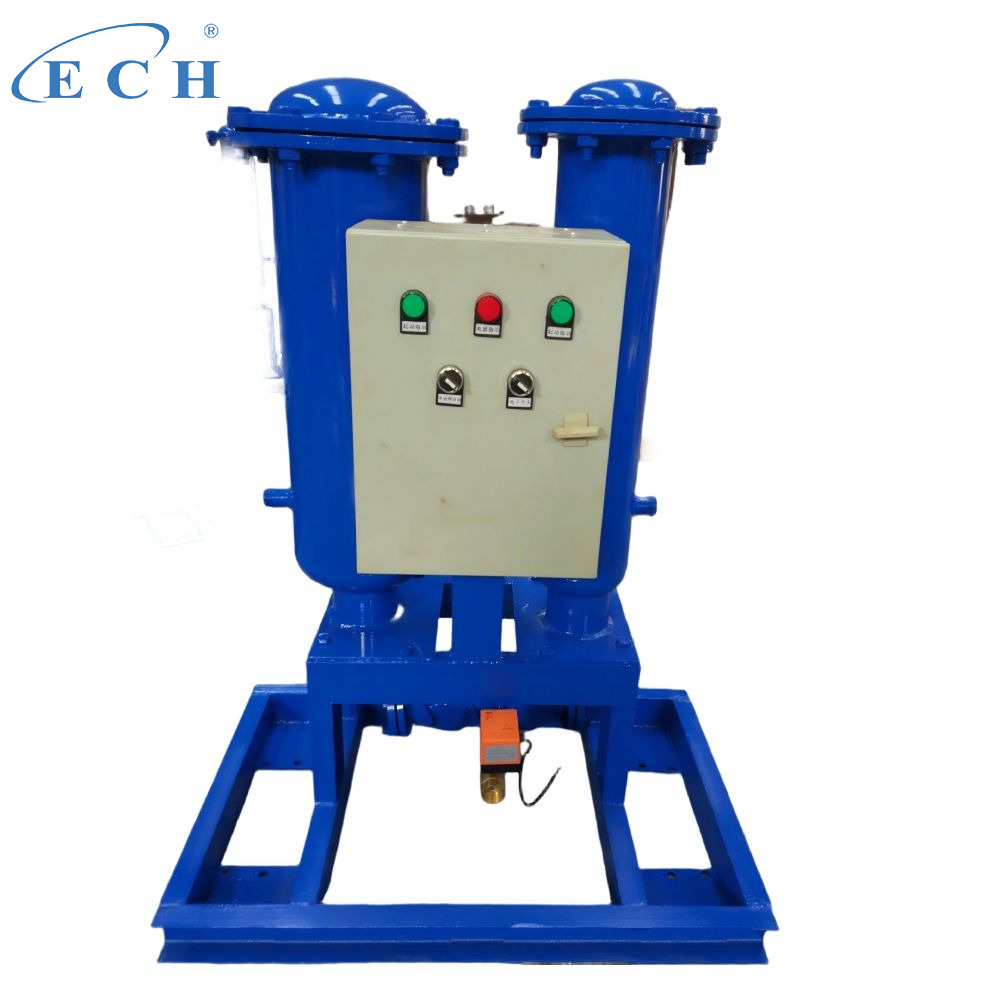

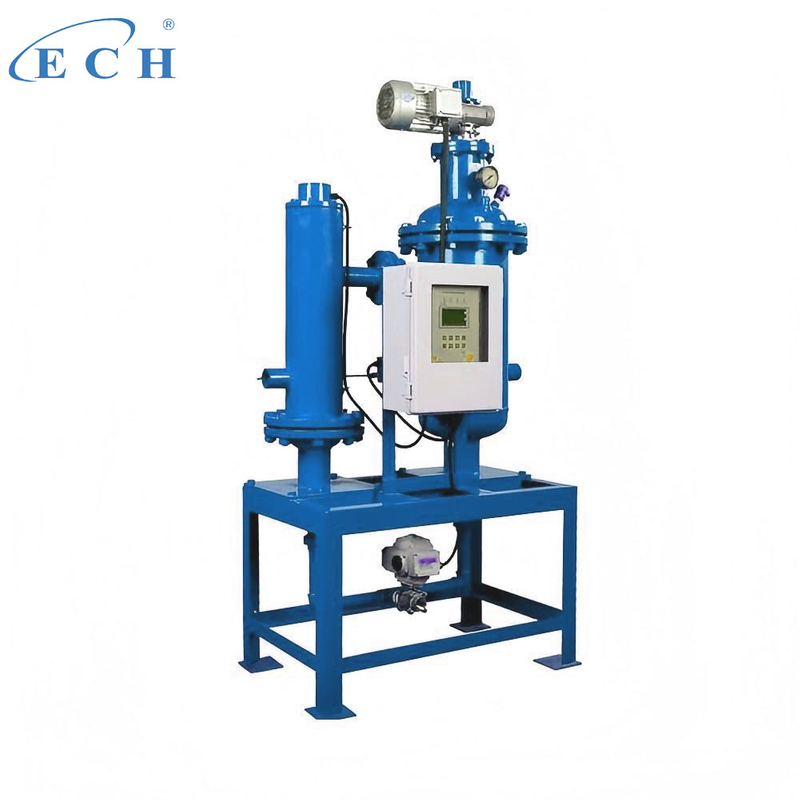

Side Flow Water Processor

The Side Flow Water Processor is an efficient, energy-saving integrated water treatment device designed for circulating water systems, featuring advanced micro-electrolysis technology to solve core water treatment problems such as bacteria, algae, corrosion, and scaling. Under the action of an appropriate applied voltage, the processor generates micro-electrolysis in the flowing water, prompting chlorine ions, oxygen molecules, and water molecules dissolved in the water to produce oxidizing substances. These oxidizing substances diffuse to all areas where water flows, directly killing bacteria and algae cells in the water through the action of electric current. Meanwhile, reactive oxygen forms an oxide film on the pipeline surface, effectively preventing further corrosion and inhibiting various microbial corrosion and deposition corrosion.

Unlike full-flow water processors, it only treats 5% of the main circulation system’s water flow and is installed via a bypass pipeline, which is more flexible and cost-effective. It is widely used in various circulating water systems, providing reliable anti-corrosion, sterilization, and algae-removal effects while reducing energy consumption and maintenance costs.

• Efficient Micro-Electrolysis Technology: Generates oxidizing substances through micro-electrolysis under applied voltage, directly killing bacteria and algae cells in circulating water, with a sterilization rate of over 99%. At the same time, reactive oxygen forms an oxide film on pipelines to prevent corrosion, effectively inhibiting microbial and deposition corrosion.

• Energy-Saving & Cost-Effective: Only treats 5% of the main circulation system’s water flow, consuming less energy compared to full-flow water processors. Bypass installation avoids interrupting the main pipeline operation, reducing installation and downtime costs.

• Flexible Installation: Installed via bypass pipeline, no need to modify the main circulating water pipeline, suitable for retrofitting existing systems and new projects. The compact design saves installation space.

• Durable & Corrosion-Resistant: Made of high-quality carbon steel, with optional epoxy/zinc plating anti-corrosion coating to adapt to harsh working environments, extending the service life of the equipment.

• Environmentally Friendly & Chemical-Free: Adopts physical micro-electrolysis treatment, no need to add chemical agents, avoiding secondary pollution of water quality and complying with environmental protection standards.

• Easy Operation & Low Maintenance: Simple control system, automatic operation after startup, no frequent manual intervention. Regular maintenance only requires checking the electrode and cleaning the pipeline, reducing labor costs.

• Strong Adaptability: Suitable for various circulating water systems, with adjustable applied voltage and treatment flow rate to meet different water quality and system size requirements.

• Customizable Design: Supports customization of equipment size, applied voltage, anti-corrosion coating, and other parameters to perfectly match user-specific application scenarios.

The Side Flow Water Processor is a versatile water treatment device, mainly used in circulating water systems that require efficient sterilization, algae removal, and anti-corrosion, especially suitable for scenarios where full-flow treatment is not needed or pipeline modification is inconvenient. Its main application fields include:

• Central Air Conditioning Circulating Water Systems: Used in commercial buildings, office buildings, and shopping malls to treat cooling water and chilled water, prevent bacteria, algae, and pipeline corrosion, and improve heat exchange efficiency.

• Industrial Cooling Water Systems: Applied to chemical, metallurgical, textile, electronic, and machinery industries, treating circulating cooling water to inhibit corrosion and scaling, ensuring stable operation of production equipment.

• Boiler Circulating Water Systems: Treats boiler circulating water, prevents corrosion and deposition, reduces boiler maintenance costs, and extends boiler service life.

• Municipal & Commercial Water Systems: Suitable for municipal water circulation, water parks, swimming pools, and hotel water systems, ensuring water quality safety and system stability.

• Other Fields: Used in circulating water treatment of power plants, industrial parks, and residential communities, providing efficient and cost-effective water treatment solutions.

Usage Methods

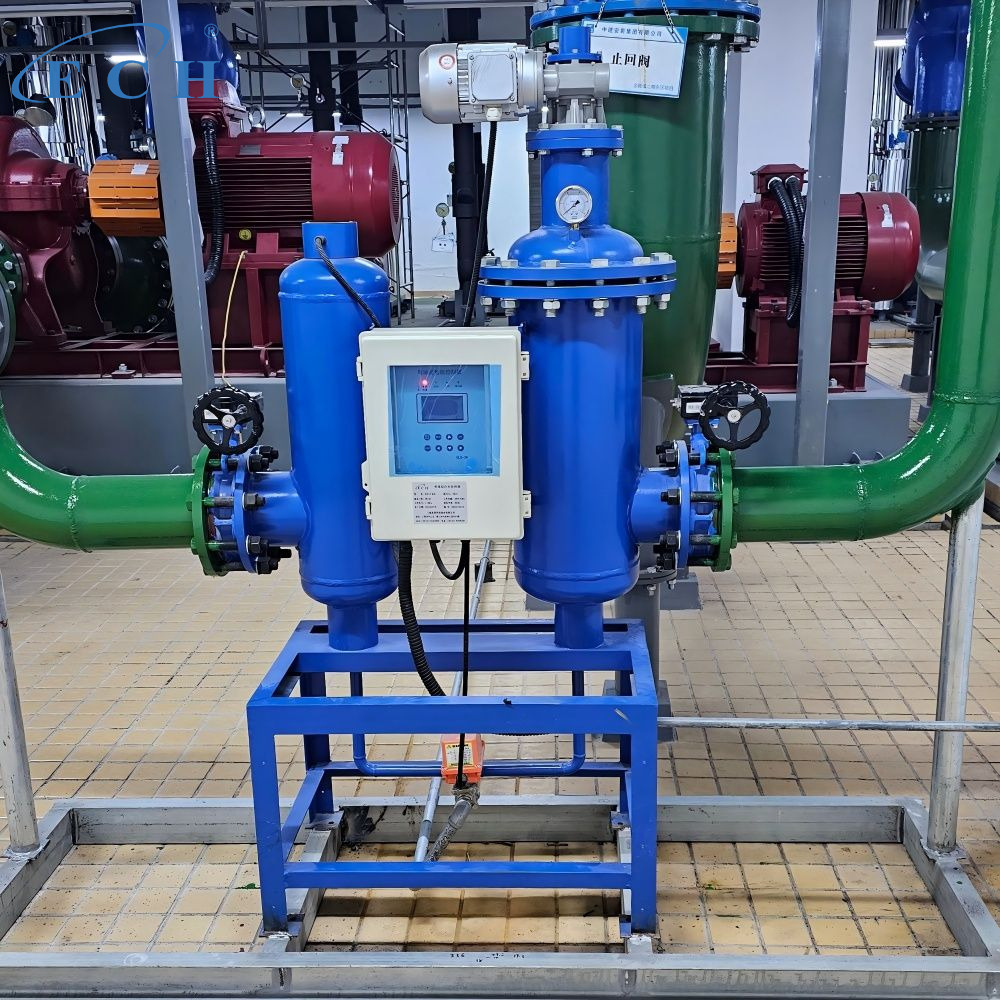

• Installation: Install the side flow water processor on the bypass pipeline of the main circulating water system, ensuring the inlet and outlet directions are consistent with the water flow direction. The pipeline connection should be tight to avoid leakage. Ensure there is enough space around the equipment for maintenance.

• Parameter Setting: Connect the power supply, adjust the applied voltage according to the water quality and treatment requirements (guided by our technical team). Set the operation mode (automatic or manual) according to actual needs.

• Start-Up Operation: Turn on the power supply, start the processor, and it will enter normal operation. The micro-electrolysis process will generate oxidizing substances, which diffuse with the water flow to achieve sterilization, algae removal, and anti-corrosion effects.

• Daily Monitoring: Regularly check the operating status of the equipment, including applied voltage, water flow, and pressure loss. Observe the water quality to ensure the treatment effect. Record the operating parameters for future maintenance reference.

• Maintenance: Clean the equipment pipeline and electrode every 1–3 months to remove accumulated impurities and ensure the micro-electrolysis effect. Check the anti-corrosion coating (if any) for damage, and repair or re-spray it in time. Inspect the power supply and connection lines regularly to ensure safe operation.

Safety Precautions

• Electrical Safety: Ensure the power supply voltage matches the equipment’s rated voltage. Cut off the power supply before installation, maintenance, or disassembly to avoid electric shock. Keep the control panel and electrical components dry to prevent short circuits.

• Pressure Safety: Do not operate the equipment beyond the rated pressure range. Before disassembly, close the bypass pipeline valves and release the internal pressure to avoid injury or equipment damage caused by pressure release.

• Mechanical Safety: Do not touch the electrode or internal components during operation. Use appropriate tools for installation and maintenance to avoid damaging the pipeline or equipment shell. Wear protective gloves when cleaning the electrode to avoid electric shock or scratches.

• Anti-Corrosion Protection: If the equipment is used in a corrosive environment, ensure the anti-corrosion coating is intact. Avoid using the equipment in highly corrosive media without professional customization.

• Operating Environment: Do not use the equipment in an environment beyond the specified temperature (-10℃ to +60℃). Avoid installing the equipment in direct sunlight, rainy, or humid areas to prevent damage to electrical components.

• Unauthorized Disassembly: Do not disassemble the equipment or its internal components without authorization. If there is a fault (such as abnormal voltage, poor treatment effect), contact professional after-sales personnel for maintenance.

FAQ

• What is the material of the equipment?

The standard material of the side flow water processor is carbon steel, which is durable and cost-effective. For harsh working environments (such as high-corrosion circulating water systems), we provide optional anti-corrosion coatings, such as epoxy coating and zinc plating, to enhance the equipment’s corrosion resistance and extend its service life.

• What are the differences between side-stream and full-flow water processors in terms of circulation water treatment and installation methods?

The key differences lie in treatment flow rate and installation method: The side-stream (side flow) water processor only treats 5% of the main circulation system’s water flow and is installed via a bypass pipeline connection, which does not require interrupting the main pipeline operation and is more energy-saving. In contrast, the full-flow water processor must treat 100% of the circulating water flow and is installed in series directly on the main pipeline, which may require interrupting the system during installation and consumes more energy.

• Can we customize the equipment?

Yes, we offer comprehensive OEM/ODM customization services to meet your specific needs. Customizable items include equipment size (adapted to different bypass pipeline specifications), applied voltage (adjusted according to water quality), anti-corrosion coating (epoxy/zinc plating or other materials), and control functions. Our professional team will communicate with you in detail to provide a personalized solution.

• Is your company a trading company or a manufacturer?

We are a professional manufacturer integrating R&D, manufacturing, and sales. We have our own production workshop, advanced production equipment, and a strict quality control system. We can provide factory-direct prices, professional technical support, and one-stop after-sales service (including installation guidance, maintenance, and spare parts supply) to ensure your product experience and system stable operation.

• What is the sterilization rate of the side flow water processor?

The side flow water processor adopts advanced micro-electrolysis technology, which can directly kill bacteria and algae cells in circulating water, with a sterilization rate of over 99%. The oxidizing substances generated by micro-electrolysis diffuse to all areas of the water flow, ensuring comprehensive sterilization and algae removal effects.

• Does the equipment need to add chemical agents during operation?

No, the side flow water processor relies on physical micro-electrolysis technology to generate oxidizing substances, realizing sterilization, algae removal, and anti-corrosion without adding any chemical agents. This not only reduces operating costs but also avoids secondary pollution of water quality, making it more environmentally friendly and suitable for long-term use.
