Product Overview

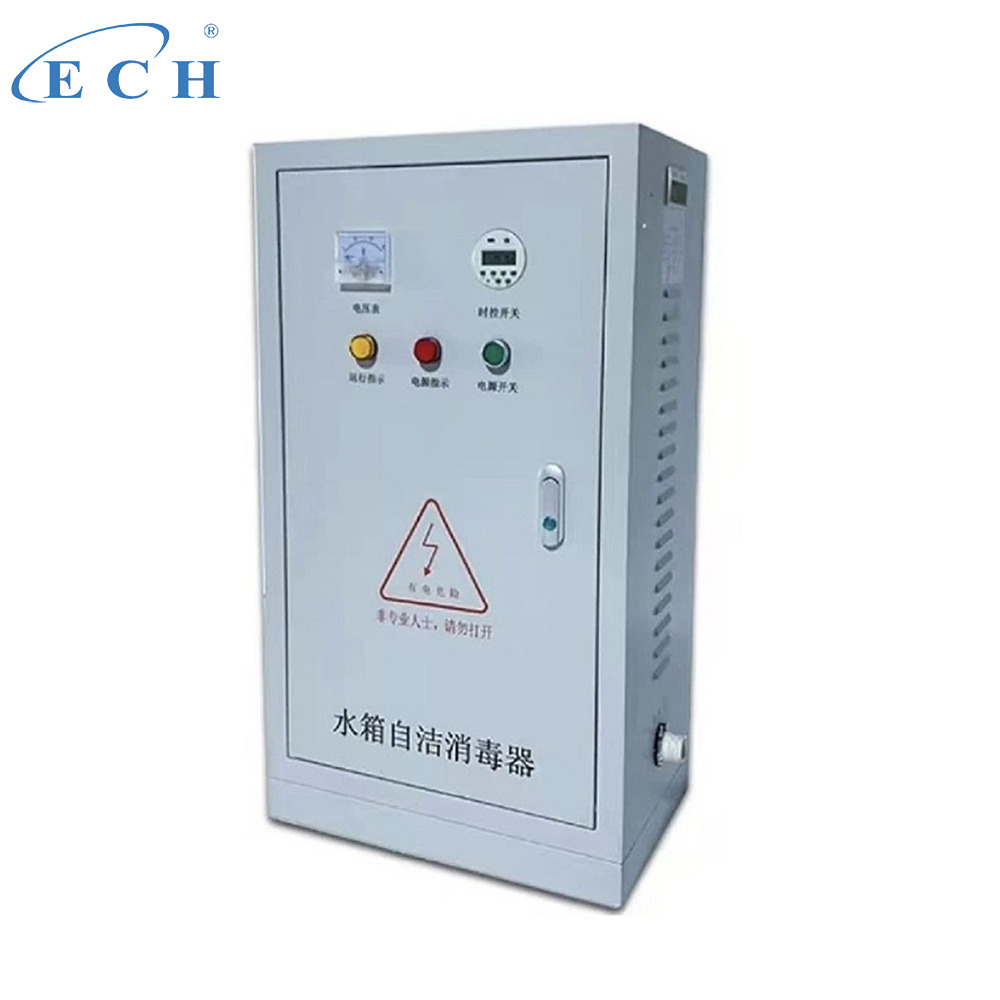

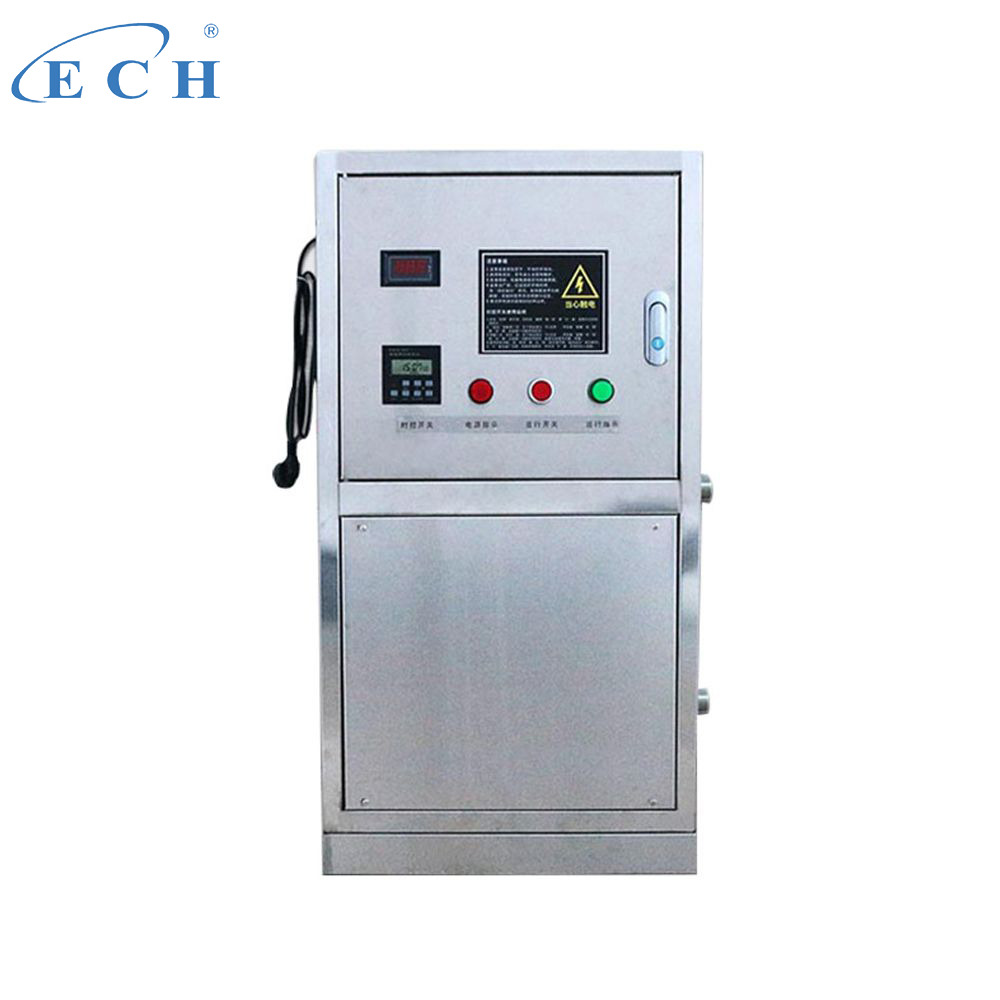

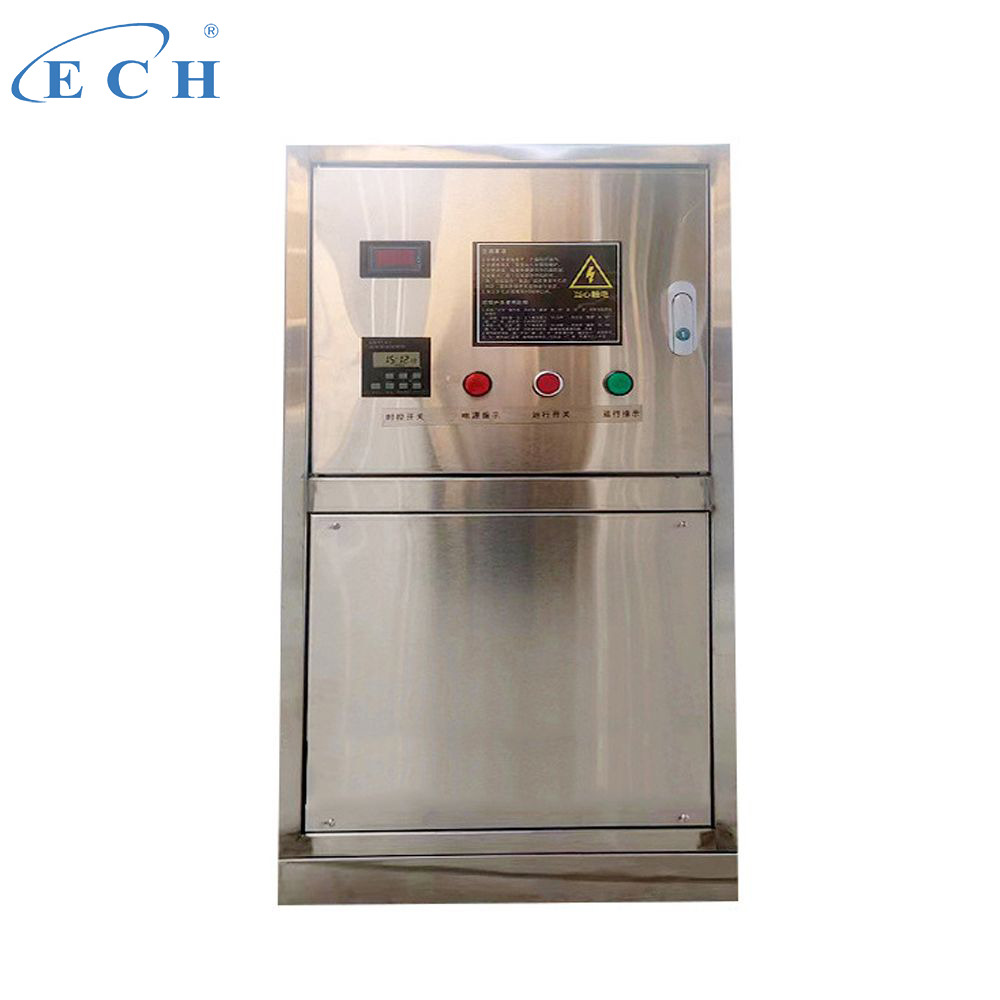

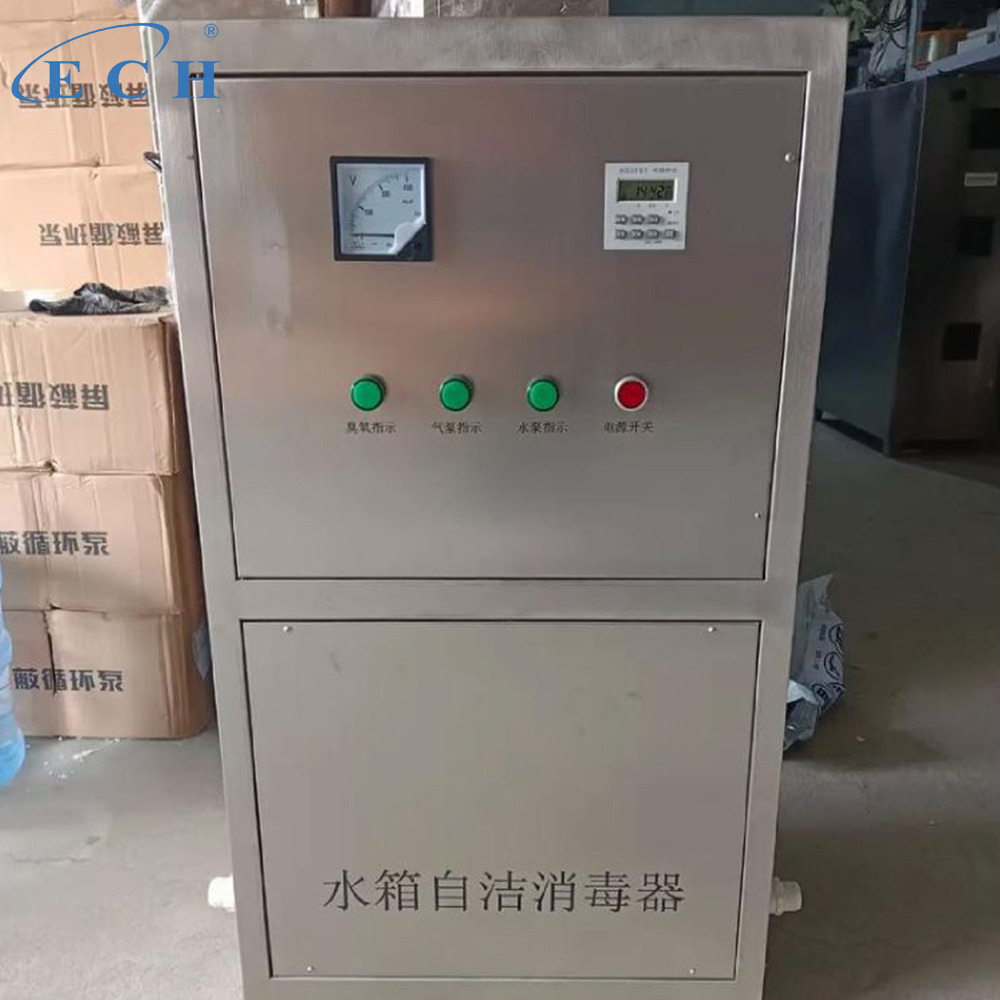

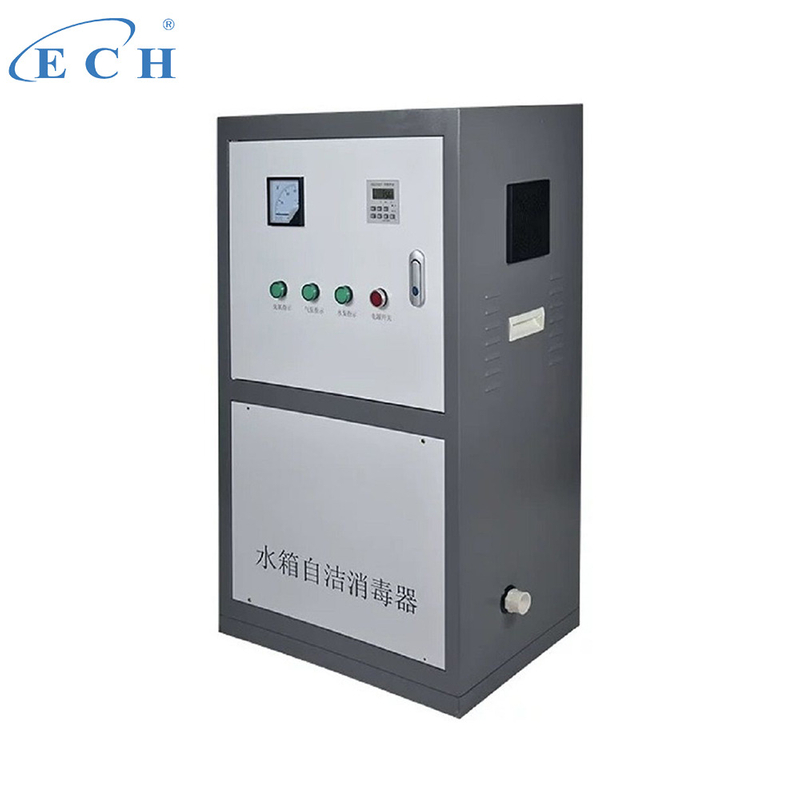

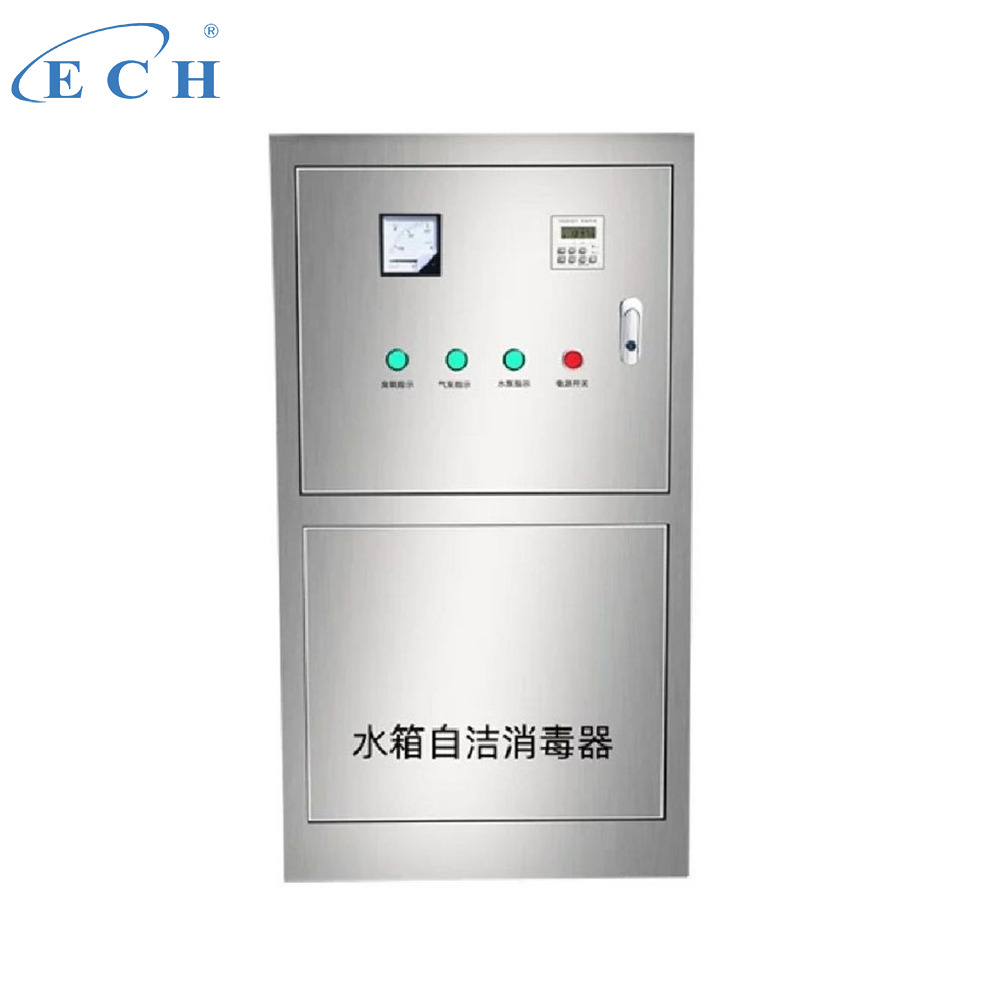

Tank sterilizer(External Type)
The external tank sterilizer is a high-tech product specifically developed to address the issues of long-term water stagnation in tanks (or reservoirs), frequent contamination by pathogens and microorganisms, and severe pollution. This product is characterized by its safety, hygiene, convenience, efficiency, remarkable effectiveness, and cost-effectiveness, making it one of the best solutions currently available for sterilizing and disinfecting water in tanks (or reservoirs).
Working Principle
The external tank sterilizer is a device designed based on customers' specific requirements and the working principles of internal tank sterilizers. The equipment, which integrates a main unit and an auxiliary unit, is installed outside the water tank. The main unit generates operational signals and transmits them to the auxiliary unit. The auxiliary unit's motor then electrolyzes water to produce highly oxidizing substances (such as ozone and chlorine dioxide). Through an automated pump circulation system, water from the tank is continuously treated and disinfected within the equipment.
Key Features:
1)Continuously circulates and disinfects the water stored in the tank, effectively sanitizing and purifying the water, the inner walls of the tank, and the water pipelines.
2)Activates water molecules, reducing the size of water clusters, which is beneficial to health.
3)Equipped with a filter to promptly remove impurities from the water.
4)Improves water quality indicators such as turbidity, total iron, and organic matter, while also enhancing the anti-scaling properties of the water.
5)Exhibits broad-spectrum and sustained sterilization capabilities, with a continuous sterilization duration of up to 48 hours.
6)Sterilization rate: >99.9%; Algae removal rate: >99.9%; Legionella: meets international standards.
Model | Pump Parameters | Total Power | Applicable Tank/Cistern Volume | |
Domestic Water Tank | Fire Water Tank | |||
ECH-SW-1 | Flow Rate: 2m³/h,Head: 22m,Quantity: 1 unit | 600W | 80m³ | 250m³ |
ECH-SW-2 | Flow Rate: 4m³/h,Head: 23.5m,Quantity: 1 unit | 900W | 160m³ | 500m³ |
ECH-SW-3 | Flow Rate: 8m³/h,Head: 18m,Quantity: 1 unit | 1300W | 240m³ | 750m³ |
ECH-SW-4 | Flow Rate: 8m³/h,Head: 27m,Quantity: 1 unit | 2200W | 320m³ | 1000m³ |
FAQ
Q1: What are the application scenarios for tank sterilizers?
A1: Tank sterilizers are suitable for:
1)Domestic water tanks/cisterns in residential communities, apartment buildings, villas, and hotels;
2)Secondary water supply systems in office buildings, schools, hospitals, shopping malls, and sports stadiums;
3)Water storage facilities such as fire water tanks, swimming pools, and agricultural irrigation systems.
Q2: What are the main differences between external and internal tank sterilizers?
A2: External units offer easier access and flexibility for retrofitting, while internal units integrate directly into the tank for simpler operation in space-limited scenarios.
Q3: Can we customize the equipment?
A3: Yes.We offer OEM/ODM customizationbased on your needs.
Q4: Is your company a trading company or a manufacturer?
A4: We are a manufacturer with in-house production and export capability. Our Company integrates R&D, manufacturing, and international trade, offering
factory-direct prices and professional support.
