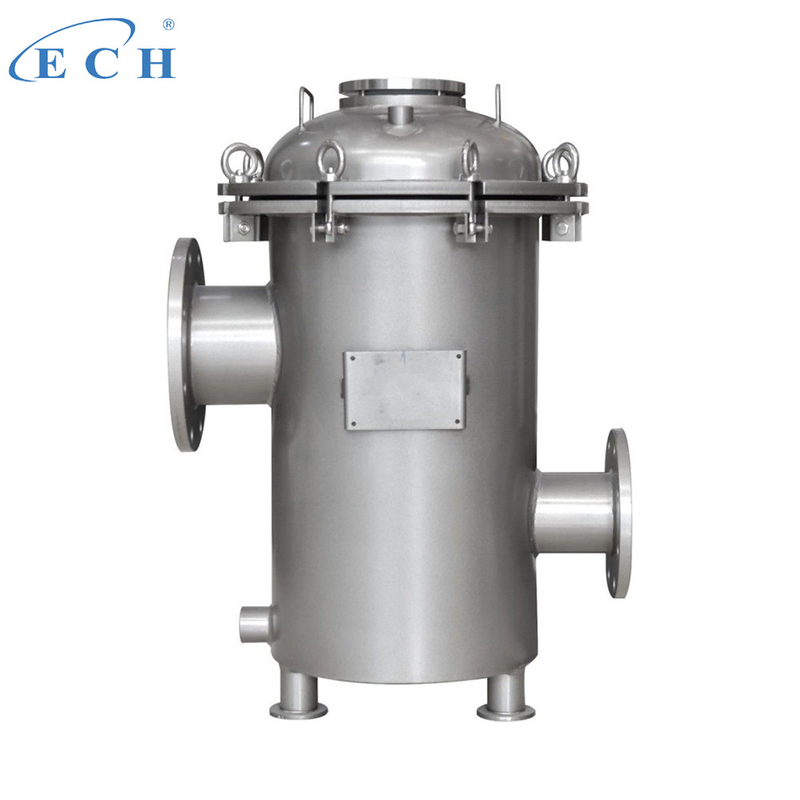

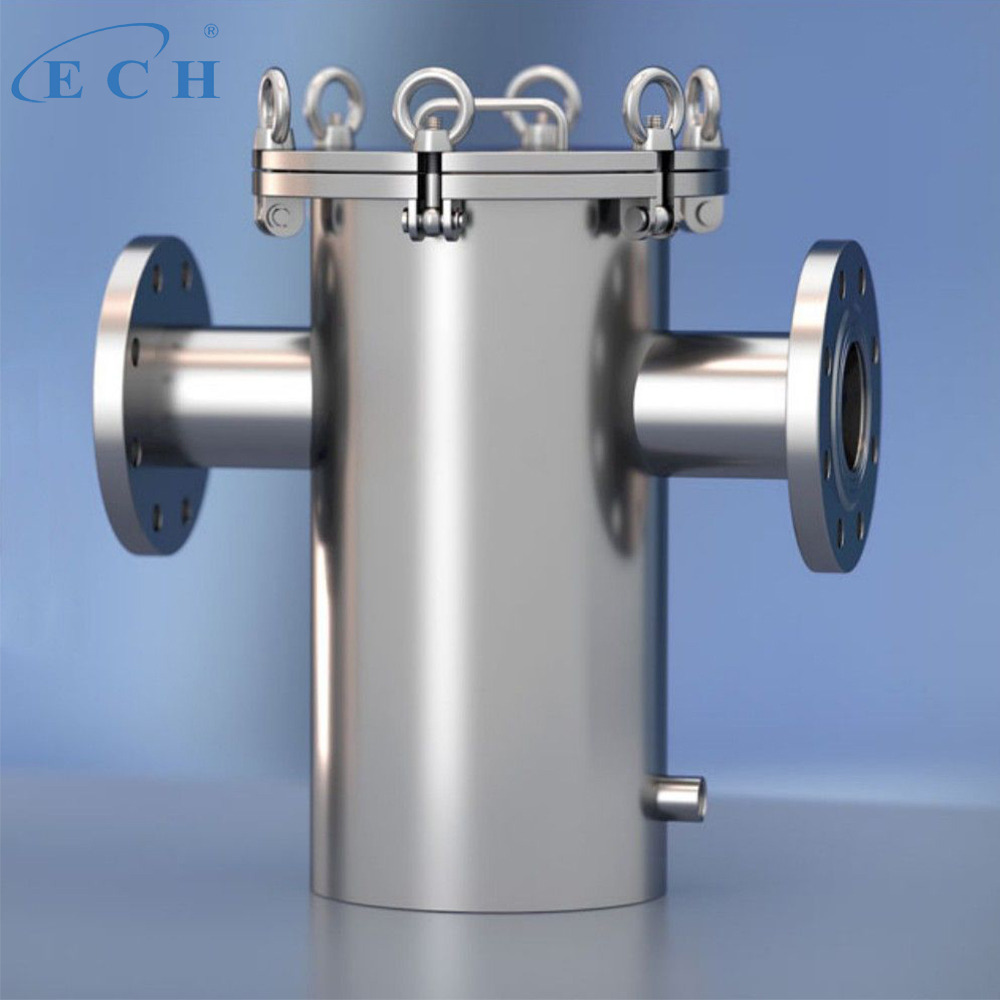

Stainless Steel Hair Filter

The Stainless Steel Hair Filter is a high-performance pre-filtration device designed for water circulation pipelines, mainly used to intercept large particulate impurities and protect downstream equipment. It features premium material construction, efficient filtration, and user-friendly operation, making it an essential pre-filtration component for swimming pools, spas, and water treatment systems.

The filter housing is constructed from high-grade stainless steel, which provides exceptional resistance to corrosion, erosion, and mechanical impact, ensuring long service life. Its uniquely designed perforated basket efficiently captures hair, fibers, and large debris, while the streamlined inlet and outlet ensure minimal pressure loss during operation. The filter is easy to install, clean, and maintain, with a filtration precision that can effectively intercept impurities larger than 1-2mm, protecting downstream pumps, finer filters, and other equipment from clogging and damage.

Working Principle

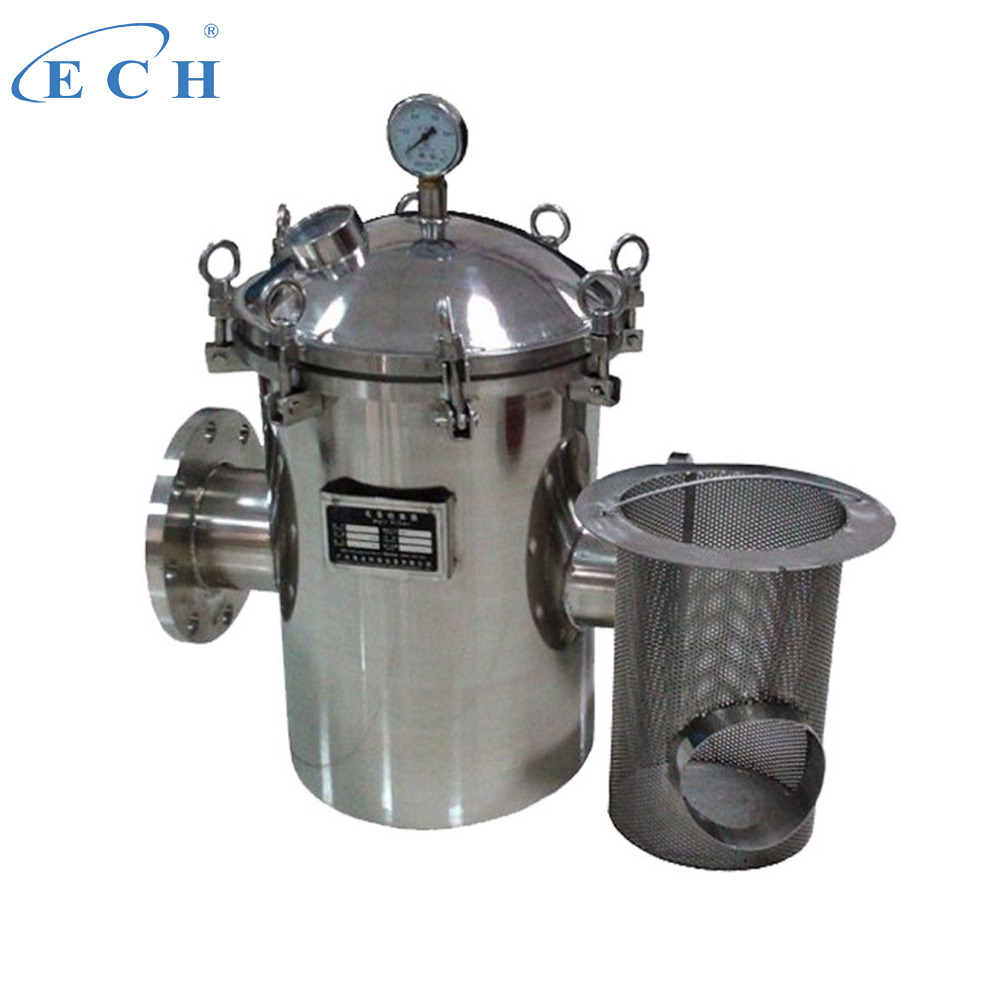

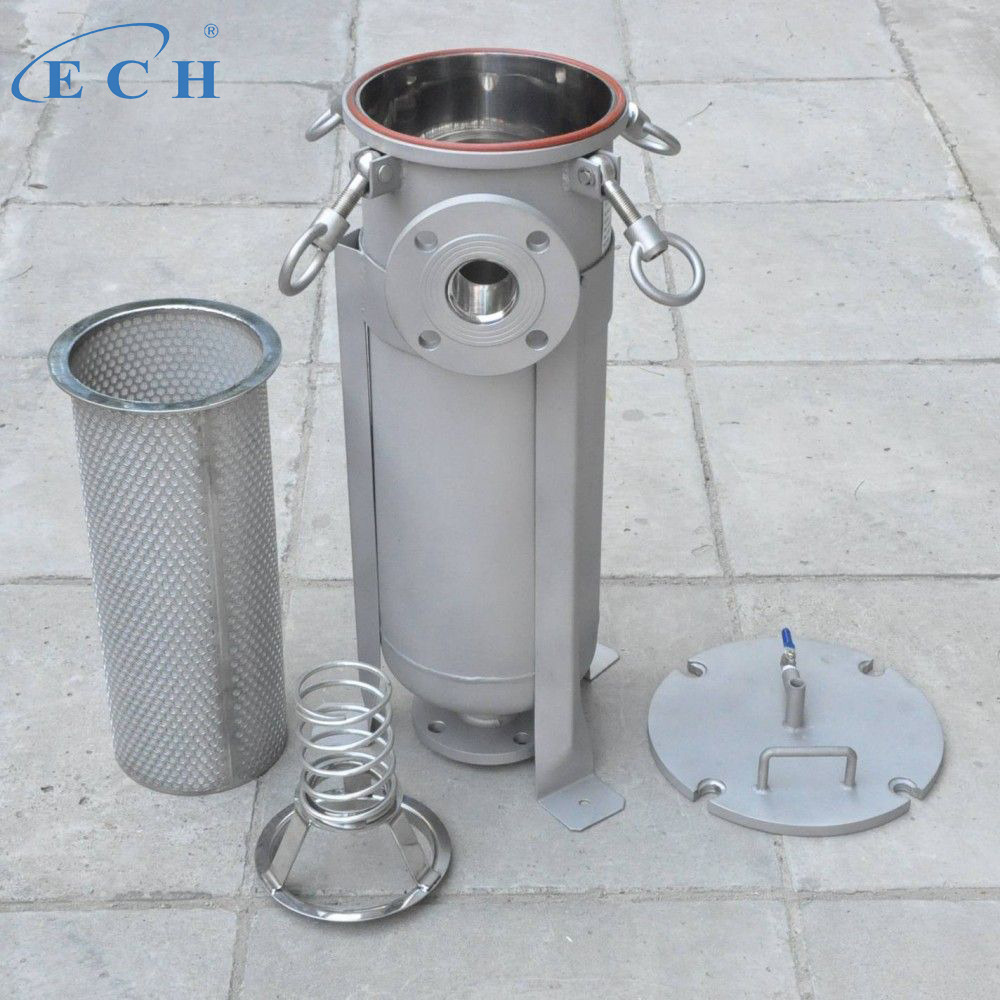

The stainless steel hair filter mainly consists of a stainless steel housing, a precision-perforated filter basket, a sealing gasket, and a pressure-resistant cover with quick-open clamps. The filter is equipped with a cylindrical stainless steel basket featuring fine pores, which is mounted vertically inside the housing. The top cover is secured by robust clamps ensuring a tight seal.

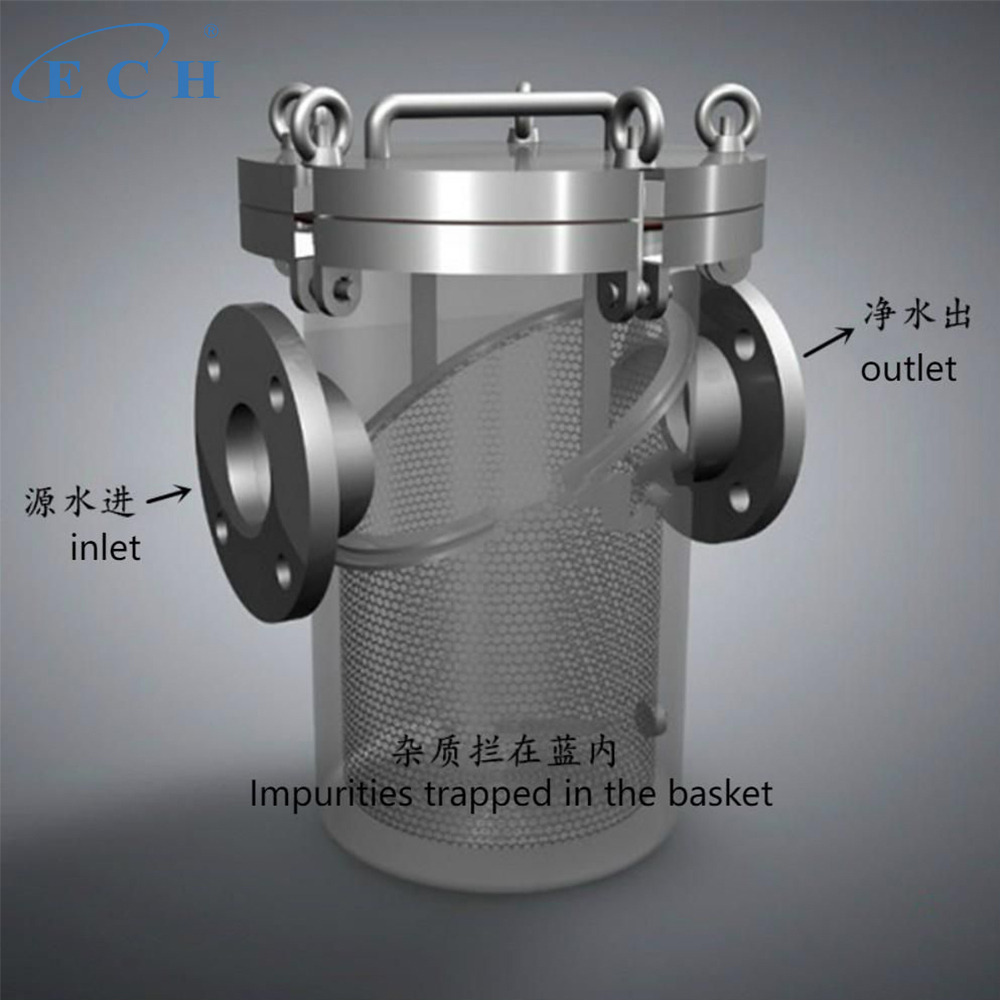

During operation, water enters the filter through the inlet port, and hair, lint, and large debris are physically trapped by the basket while allowing water to pass through smoothly. Accumulated impurities are removed by manually opening the cover and extracting the basket for cleaning, without requiring tools or interrupting the system operation for extended periods.

Control Method

The stainless steel hair filter operates on a manual mechanical principle, requiring no external power or control systems. Its operation relies on periodic manual intervention based on visual inspection or a predefined maintenance schedule.

The key operational parameter is the pressure drop across the filter: an increase in differential pressure indicates basket clogging and signals the need for cleaning. Maintenance involves releasing the quick-open clamps, removing the top cover, and extracting the filter basket for manual rinsing. Users can easily integrate this cleaning routine into their regular equipment upkeep, ensuring consistent filtration performance with minimal operational complexity.

• Durable Premium Material: Constructed from 304 or 316 high-grade stainless steel, offering exceptional resistance to corrosion, chlorine, erosion, and mechanical impact, ensuring a long service life in various water treatment environments.

• Efficient Pre-Filtration: The uniquely designed perforated basket efficiently captures hair, fibers, lint, and other large debris, effectively intercepting impurities larger than 1-2mm. This protects downstream equipment (like pumps and finer filters) from clogging and damage, significantly improving the overall efficiency of the water treatment system.

• Low Maintenance & Easy Cleaning: Features a simple design with a quick-open clamp and a removable filter basket. Cleaning is a fast, manual process without the need for tools or complex backwashing procedures, reducing operational and maintenance costs.

• Minimal Pressure Loss: The optimized flow path, combined with the perforated basket and streamlined inlet and outlet design, ensures efficient water flow with very low flow resistance, avoiding unnecessary energy consumption.

• Easy Installation: The filter is designed for easy installation, suitable for quick integration into water circulation pipelines of swimming pools, spas, and water treatment systems.

• No External Power Required: Operates on a manual mechanical principle, requiring no external power or complex control systems, reducing operational complexity and energy consumption.

• Stable Filtration Performance: With simple structure and reliable design, the filter maintains consistent filtration performance, ensuring the smooth operation of the entire water circulation system.

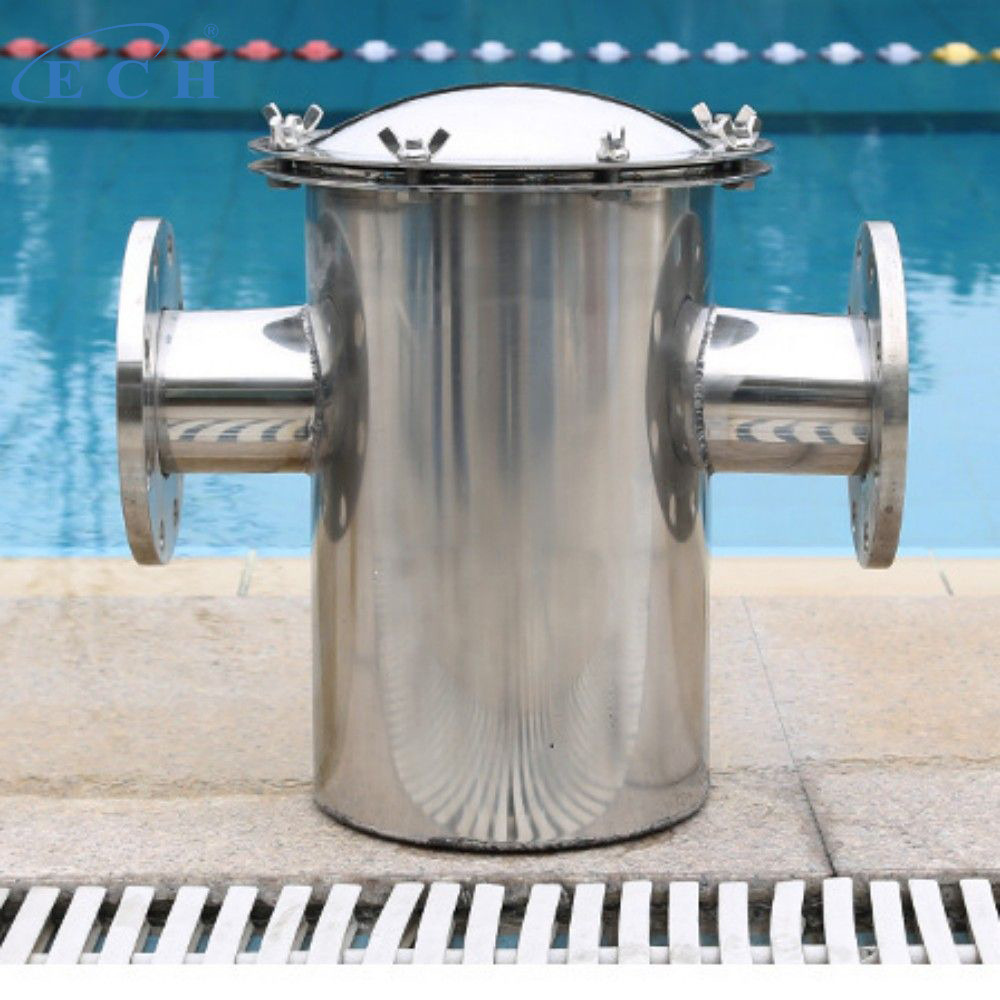

• Swimming Pools: Installed in the water circulation pipeline of commercial and residential swimming pools, intercepting hair, fibers, and large debris brought by bathers, protecting pool pumps, sand filters, and other equipment from clogging.

• Spas & Hot Tubs: Used for pre-filtration of spa and hot tub water, removing hair and debris to ensure the cleanliness of the water and the normal operation of downstream equipment.

• Water Treatment Systems: As a pre-filtration component in various water treatment systems, intercepting large particulate impurities to protect subsequent precision filtration equipment, improving the overall treatment efficiency and service life of the system.

• Other Water Circulation Scenarios: Suitable for other water circulation pipelines that require pre-filtration to remove large debris, such as hotel water supply, leisure water facilities, and small-scale water treatment projects.

Usage Methods

• Equipment Installation: Install the stainless steel hair filter in the water circulation pipeline, ensuring correct connection of the inlet and outlet (water enters through the inlet and exits through the outlet). Secure the filter on a flat, firm foundation, and fasten the top cover with quick-open clamps to ensure a tight seal.

• Daily Operation: The filter operates manually without external power. During use, monitor the pressure drop across the filter (if a pressure gauge is installed) or perform visual inspections regularly to check for basket clogging.

• Cleaning & Maintenance: Clean the filter when the pressure drop increases significantly or according to a predefined maintenance schedule (e.g., weekly for commercial pools, bi-weekly for residential pools). To clean: release the quick-open clamps, remove the top cover, extract the filter basket, rinse it manually to remove accumulated debris, then reinstall the basket, cover, and clamps. No tools are required, and the system operation does not need to be interrupted for extended periods.

• Regular Inspection: Periodically inspect the sealing gasket for wear or damage, replace it if necessary to prevent water leakage. Check the quick-open clamps to ensure they are tight and secure, and inspect the filter basket for deformation or damage.

Safety Precautions

• Ensure the filter is installed correctly and the inlet/outlet connections are tight to avoid water leakage during operation.

• Before cleaning the filter, shut off the water supply to the pipeline to prevent water splashing and personal injury.

• Do not use sharp tools to clean the filter basket, to avoid damaging the perforated pores and affecting filtration performance.

• After cleaning, ensure the filter basket is reinstalled correctly and the top cover is tightly fastened with quick-open clamps, to prevent water leakage and ensure filtration efficiency.

• Regularly check the pressure drop across the filter; do not continue using the filter when the pressure drop is excessively high, to avoid pipeline pressure increase and equipment damage.

• Store and use the filter in a well-ventilated, dry environment, away from direct sunlight, high temperature, and corrosive substances, to protect the stainless steel housing and extend service life.

• Operators should be familiar with the equipment operation and cleaning steps before use; avoid misoperation that may cause equipment damage or water leakage.

• Keep the equipment out of the reach of children and unauthorized personnel to prevent misoperation and accidental injury.

FAQ

• What is a stainless steel hair filter? What is its core function?

A stainless steel hair filter is a pre-filtration device installed in the water circulation pipeline of swimming pools, spas, and water treatment systems. Its core function is to physically intercept and remove large particulate impurities such as hair, fibers, lint, and other debris from the water. This protects downstream equipment (like pumps and finer filters) from clogging and damage, ensuring the smooth operation of the entire system.

• What are the main advantages of a stainless steel hair filter?

The main advantages are as follows:

1. Durable Material: Constructed from 304 or 316 stainless steel, offering exceptional resistance to corrosion, chlorine, and mechanical impact, ensuring a long service life.

2. Efficient Pre-Filtration: Effectively captures large debris that can quickly clog and burden the main filtration system, significantly improving overall efficiency.

3. Low Maintenance & Easy Cleaning: Features a simple design with a quick-open clamp and a removable filter basket. Cleaning is a fast, manual process without the need for tools or complex backwashing procedures.

4. Minimal Pressure Loss: The perforated basket and optimized flow path design ensure efficient water flow with very low flow resistance.

• How often does the stainless steel hair filter need to be cleaned?

The cleaning frequency is not fixed and depends entirely on the bather load and the amount of debris. It should be cleaned:

1. When the pressure drop across the filter increases significantly (if a pressure gauge is installed).

2. As part of a regular maintenance schedule (e.g., weekly for commercial pools, bi-weekly for residential pools).

3. After periods of heavy usage or if there is a visible accumulation of debris in the pump basket or skimmer, suggesting the hair filter may also be full.

A quick visual inspection of the basket is the simplest way to determine if cleaning is needed.

• Is your company a trading company or a manufacturer?

We are a professional manufacturer with in-house production and export capabilities. Our company integrates R&D, manufacturing, and international trade, with a complete production line and professional technical team. We provide factory-direct prices to reduce your procurement costs, and offer stable product quality, on-time delivery, and comprehensive pre-sales consultation and after-sales support.

• Can we customize the equipment?

Yes, we offer OEM/ODM customization services based on your needs. We can customize the filter size, filtration precision, housing material (304/316 stainless steel), and quick-open clamp design to perfectly match your on-site installation conditions and water treatment requirements.

• Does the stainless steel hair filter require external power?

No, the stainless steel hair filter operates on a manual mechanical principle, requiring no external power or control systems. Its operation only relies on periodic manual cleaning, which is simple and energy-saving.
