Product Overview

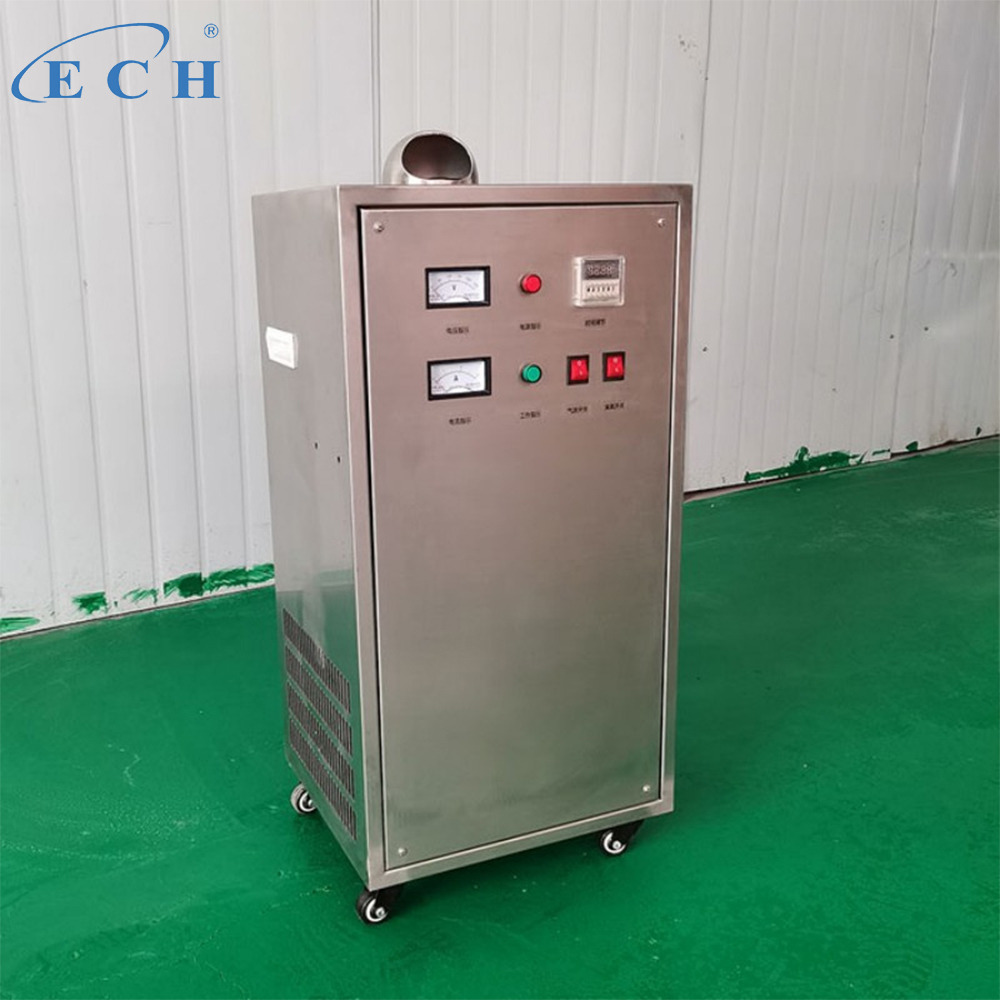

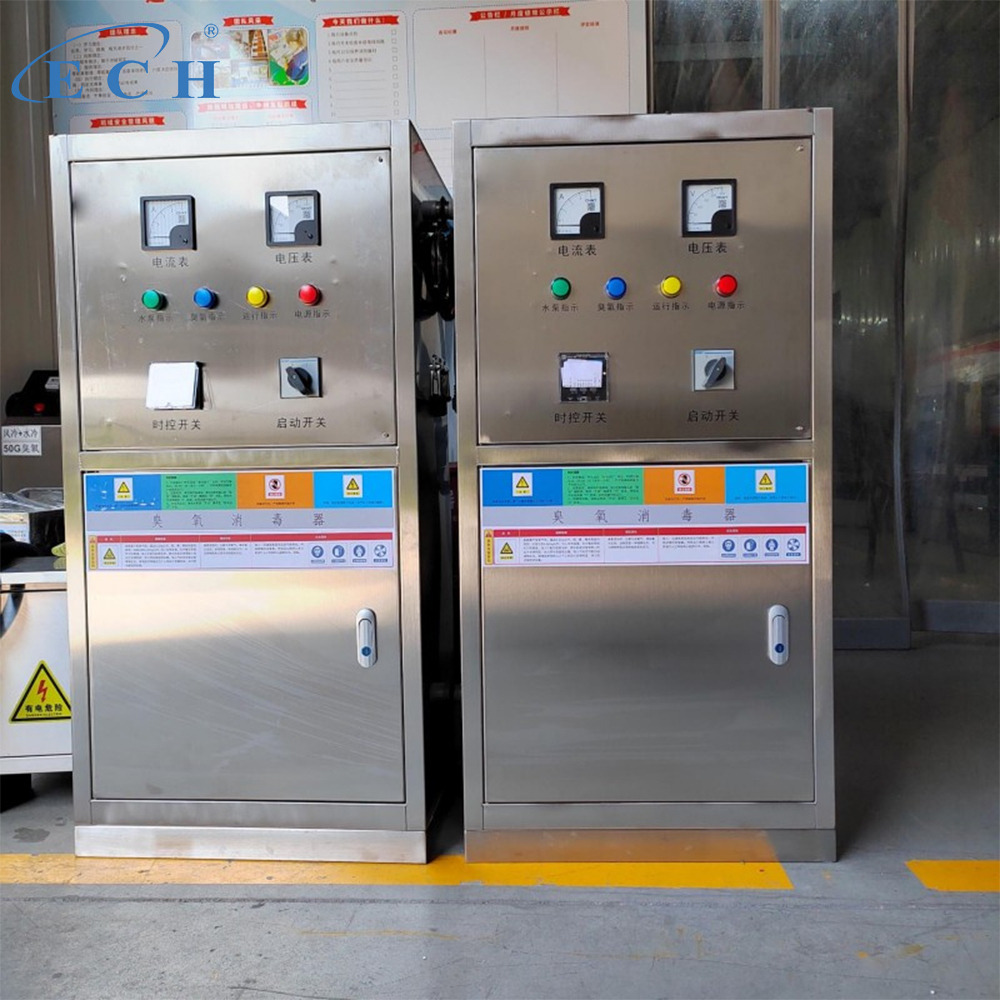

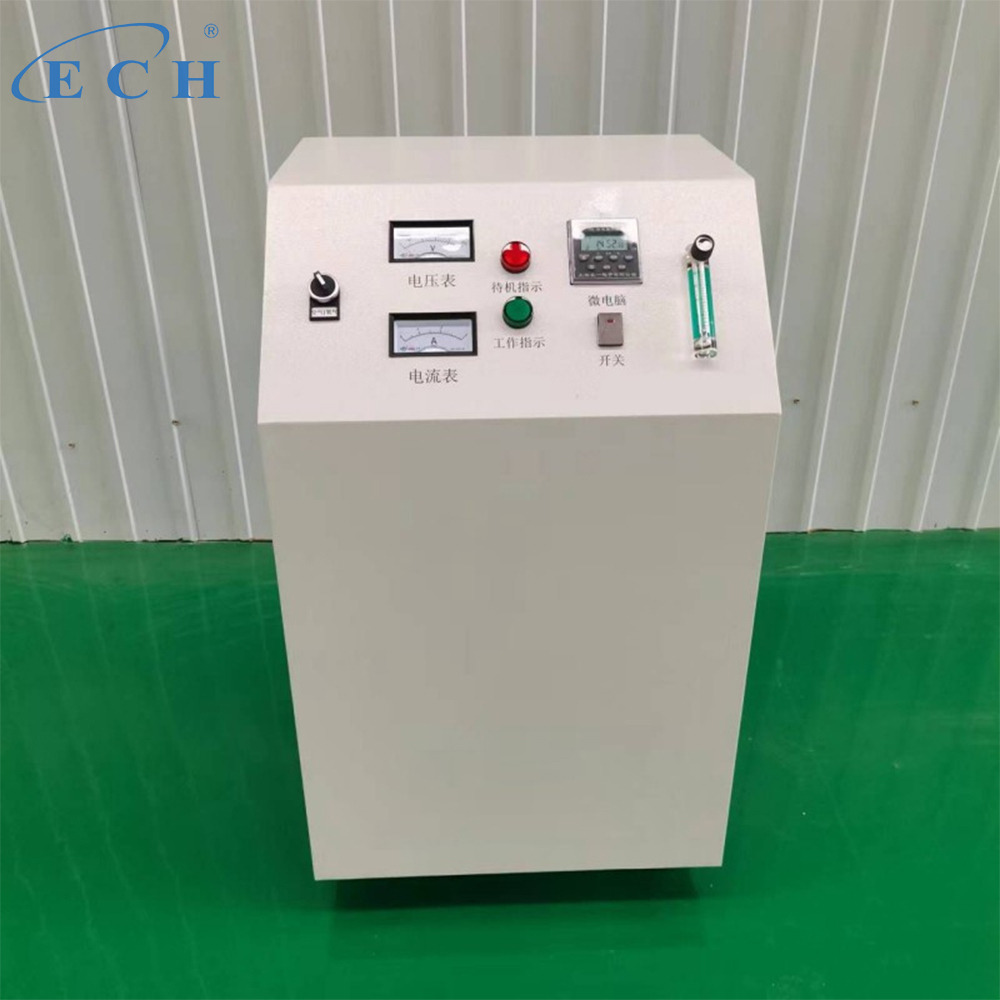

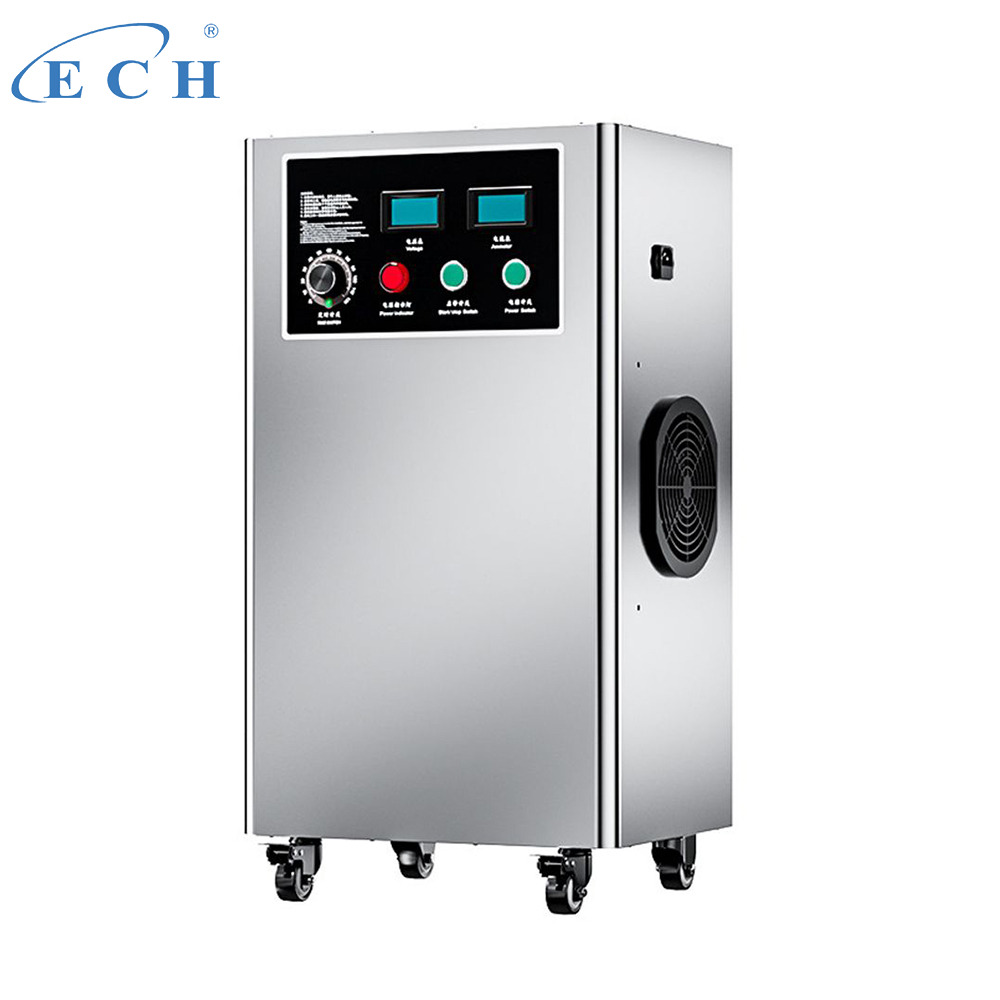

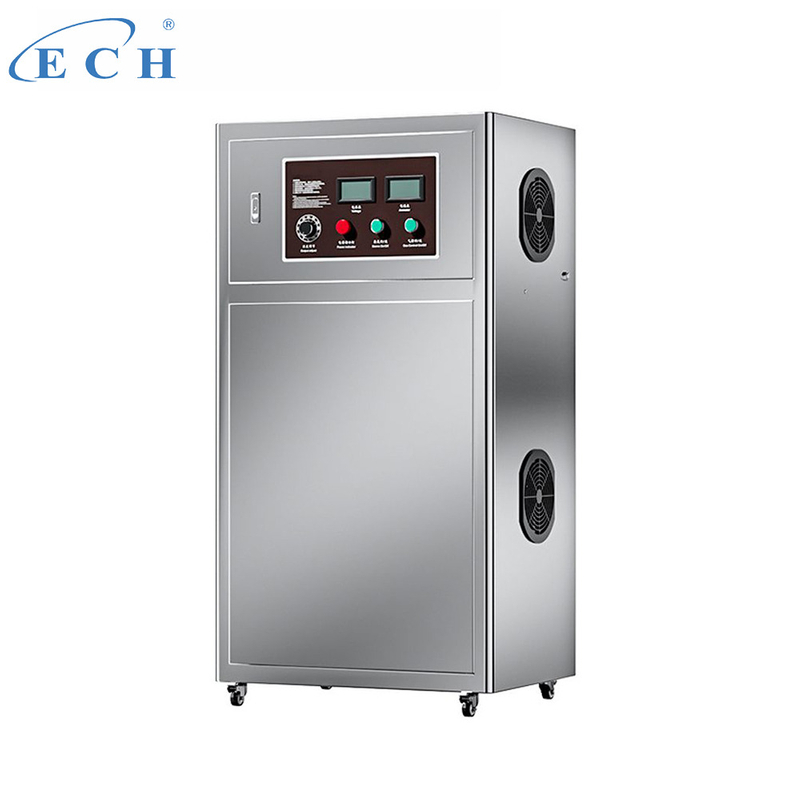

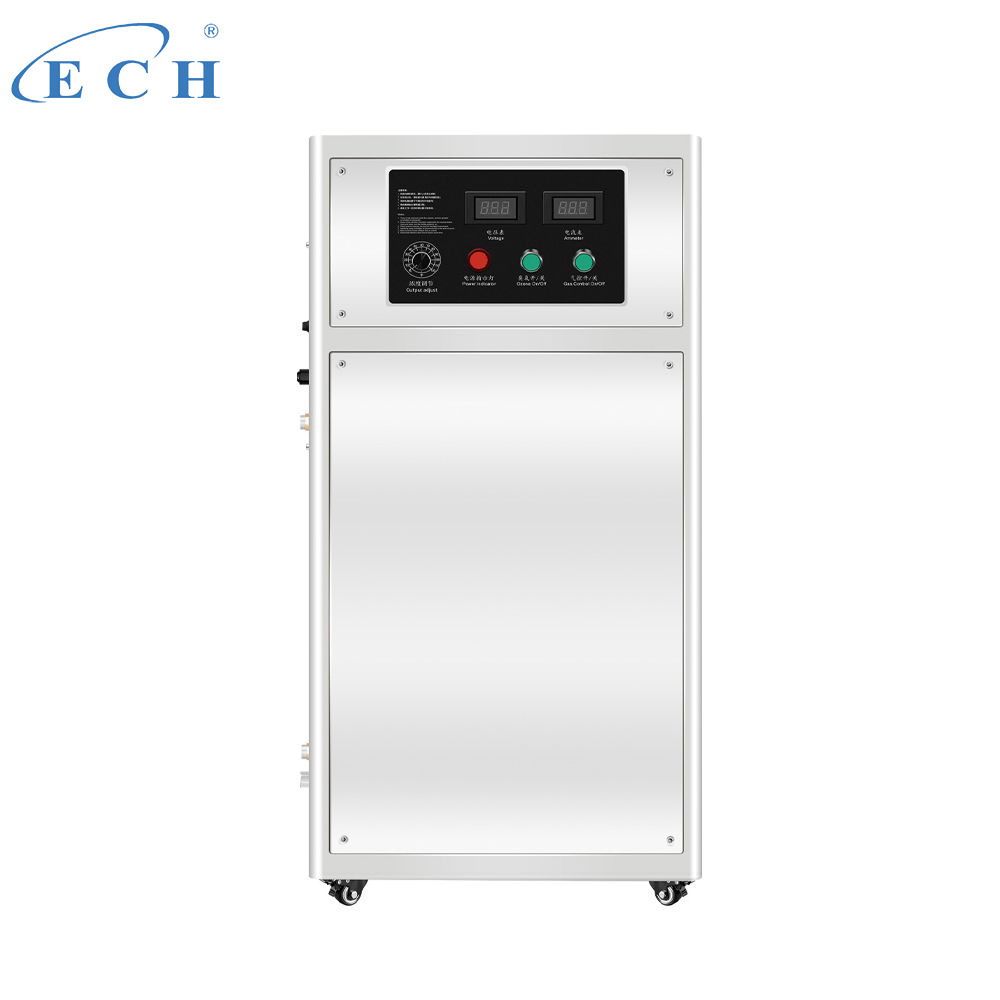

This series of Ozone Generators is a high-performance, durable ozone production equipment that adopts advanced technology to generate ozone through corona discharge. It is designed with scientific structural features and high-quality materials, ensuring stable operation, high ozone concentration, and long service life, widely applicable to various disinfection, deodorization, and water treatment scenarios.
The discharge chamber of the ozone generator consists of a dielectric quartz tube generator, which provides efficient corona discharge conditions. Its unique anti-backflow design effectively prevents backflow (a common issue that easily damages the machine), thereby extending the machine's lifespan. The circuit adopts a modular design for convenient maintenance and replacement, while dielectric components, connectors, and pipes are made from anti-oxidation materials, ensuring strong oxidation resistance and long operational life. Additionally, the large corona area and low working temperature significantly increase the ozone concentration, ensuring efficient ozone output.
Technical Specifications
Equipment parameters | |||||
Parameters | ECH-CY-5 | ECH-CY-10 | ECH-CY-15 | ECH-CY-20 | ECH-CY-30 |
Ozone production | 5 | 10 | 15 | 20 | 30 |
Cooling mcthod | Air cooling | Air cooling | Water cooling | Water cooling | Water cooling |
Max ozone concentration | 15-25mg/L | 15-25mg/L | 15-25mg/L | 15-25mg/L | 15-25mg/L |
L*W*H | 280*200*480(mm) 11*8*19(inch) | 280*200*480(mm) 11*8*19(inch) | 500*380*855(mm) 20*15*34(inch) | 500*380*855(mm) 20*15*34(inch | 500*380*855(mm) 20*15*34(inch) |
Weight | 5kg 11.0 lb | 5.1kg 11.2 lb | 20kg 44.1 lb | 20kg 44.1 lb | 25kg 55.1lb |
Power | 85W | 140W | 280W | 360W | 450W |
Electrical power supply | Module power supply | Module power supply | Adjustable power supply | Adjustable power supply | Adjustable power supply |
Air pump/ compressor | Air pump | Air pump | Air pump | Air pump | Air pump |
Parameters | ECH-CY-40 | ECH-CY-50 | ECH-CY-60 | ECH-CY-70 | ECH-CY-80 |
Ozone production | 40 | 50 | 60 | 70 | 80 |
Cooling mcthod | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling |
Max ozone concentration | 15-25mg/L | 15-25mg/L | 15-25mg/L | 15-25mg/L | 15-25mg/L |
L*W*H | 500*330*1025(mm) 20*13*40(inch) | 500*330*1025(mm) 20*13*40(inch) | 600*400*1170(mm) | 600*400*1170(mm) | 600*400*1170(mm) 24*16*46(inch) |
Weight | 25kg 55 lb | 35kg 77 lb | 36kg 77 lb | 36kg 77 lb | 36kg 79 lb |
Power | 520W | 580W | 680W | 750W | 840W |
Electrical power supply | Adjustable power supply | Adjustable power supply | Adjustable power supply | Adjustable power supply | Adjustable power supply |
Air pump/ compressor | Compressor | Compressor | Compressor | Compressor | Compressor |
Core Advantages
Long Service Life & Continuous Operation: The generator unit has a long service life and can operate continuously, meeting the needs of long-term, stable ozone supply scenarios.
Dual Cooling System: Utilizes both air cooling and water cooling systems, which can adapt to varying ozone production levels and ensure stable machine operation under different working conditions.
Unique Anti-Backflow Design: The unique structural design prevents backflow from damaging the ozone generator, effectively protecting the machine and extending its service life.
High Ozone Concentration: The large corona area and low working temperature significantly improve ozone concentration, ensuring efficient disinfection and purification effects.
Anti-Oxidation & Durable: Dielectric components, connectors, and pipes are made from anti-oxidation materials, which are resistant to oxidation and ensure long operational life.
Modular Circuit Design: The circuit adopts a modular design, making maintenance, inspection, and component replacement more convenient and efficient, reducing downtime.
Advanced Corona Discharge Technology: Applies advanced corona discharge technology to generate ozone stably and efficiently, ensuring reliable ozone output.
Application Fields
Water Treatment: Suitable for drinking water disinfection, wastewater treatment, swimming pool water disinfection, and landscape water purification, effectively killing bacteria, viruses, and algae, and removing odors.
Food Industry: Used for food processing environment disinfection, food surface sterilization, and food preservation, extending the shelf life of food and ensuring food safety.
Medical Industry: Applied to medical equipment disinfection, hospital environment deodorization, and medical wastewater treatment, meeting medical hygiene standards.
Air Purification: Used for indoor air purification, deodorization, and sterilization (such as hotels, offices, workshops), removing harmful gases and microorganisms.
Other Fields: Suitable for aquaculture water disinfection, chemical industry oxidation treatment, and other scenarios requiring ozone disinfection and purification.
Usage Methods & Safety Precautions
Usage Methods
Equipment Installation: Install the ozone generator on a flat, firm, well-ventilated foundation, ensuring the cooling system (air cooling and water cooling) is unobstructed. Correctly connect the power supply, ozone output pipeline, and other supporting components.
Parameter Adjustment: According to the actual demand, adjust the ozone output to the appropriate level. The dual cooling system (air cooling and water cooling) will automatically adapt to the ozone production level to ensure stable operation.
Continuous Operation: The generator can operate continuously; start the equipment and monitor the ozone output, working temperature, and backflow status regularly to ensure normal operation.
Maintenance: Regularly inspect the dielectric quartz tube generator, anti-oxidation components, and connectors for abnormalities. Clean the cooling system periodically to ensure cooling efficiency. Utilize the modular circuit design to replace damaged components quickly if needed.
Safety Precautions
Ensure the equipment is installed in a well-ventilated area, as excessive ozone accumulation may cause discomfort. Avoid operating the equipment in a closed, unventilated space.
Do not touch the ozone output port or dielectric components when the equipment is working, as high-voltage electricity and ozone may cause injury.
Regularly check the anti-backflow device to ensure it works normally, preventing backflow from damaging the machine.
When performing maintenance, shut down the equipment and cut off the power supply first to avoid electric shock or ozone exposure hazards.
Ensure the cooling system (air cooling and water cooling) operates normally; do not block the cooling vents or cut off the cooling water supply during operation, to prevent overheating and equipment damage.
Operators should wear appropriate protective equipment (such as masks, gloves) when working with the equipment for a long time, to avoid ozone irritation.
Store and use the equipment away from flammable, explosive, and corrosive substances, to protect the anti-oxidation components and ensure safe operation.
Keep the equipment out of the reach of children and unauthorized personnel to prevent misoperation and accidental injury.
FAQ
What technology does the ozone generator utilize?
Our series of ozone generators employs advanced technology that generates ozone through corona discharge. The discharge chamber is constructed from a dielectric quartz tube generator, which provides efficient and stable corona discharge conditions for ozone production.
How does the unique design of the generator enhance its durability?
The generator features a unique backflow prevention design that protects the machine from damage caused by backflow, a common issue that easily impairs equipment performance. Additionally, the modular circuit design facilitates convenient maintenance and component replacement, while the use of oxidation-resistant materials for dielectric components, connectors, and pipes contributes to a longer operational lifespan.
Can the ozone output be adjusted?
Yes, the ozone output is adjustable. The generator combines both air-cooling and water-cooling systems, which can adapt to varying ozone production levels, ensuring stable operation and meeting different ozone demand scenarios.
Is your company a trading company or a manufacturer?
We are a professional manufacturer with in-house production and export capabilities. Our company integrates R&D, manufacturing, and international trade, with a complete production line and professional technical team. We provide factory-direct prices to reduce your procurement costs, and offer stable product quality, on-time delivery, and comprehensive pre-sales consultation and after-sales support.
Can the ozone generator operate continuously?
Yes, the generator unit has a long service life and can operate continuously, which is suitable for scenarios requiring long-term, stable ozone supply, such as large-scale water treatment and continuous air purification.
Why is the anti-backflow design important for the ozone generator?
Backflow can easily damage the machine, affecting its operational life and performance. The unique anti-backflow design effectively prevents backflow, protects the internal components (such as the dielectric quartz tube generator) from damage, and ensures the long-term stable operation of the ozone generator.
