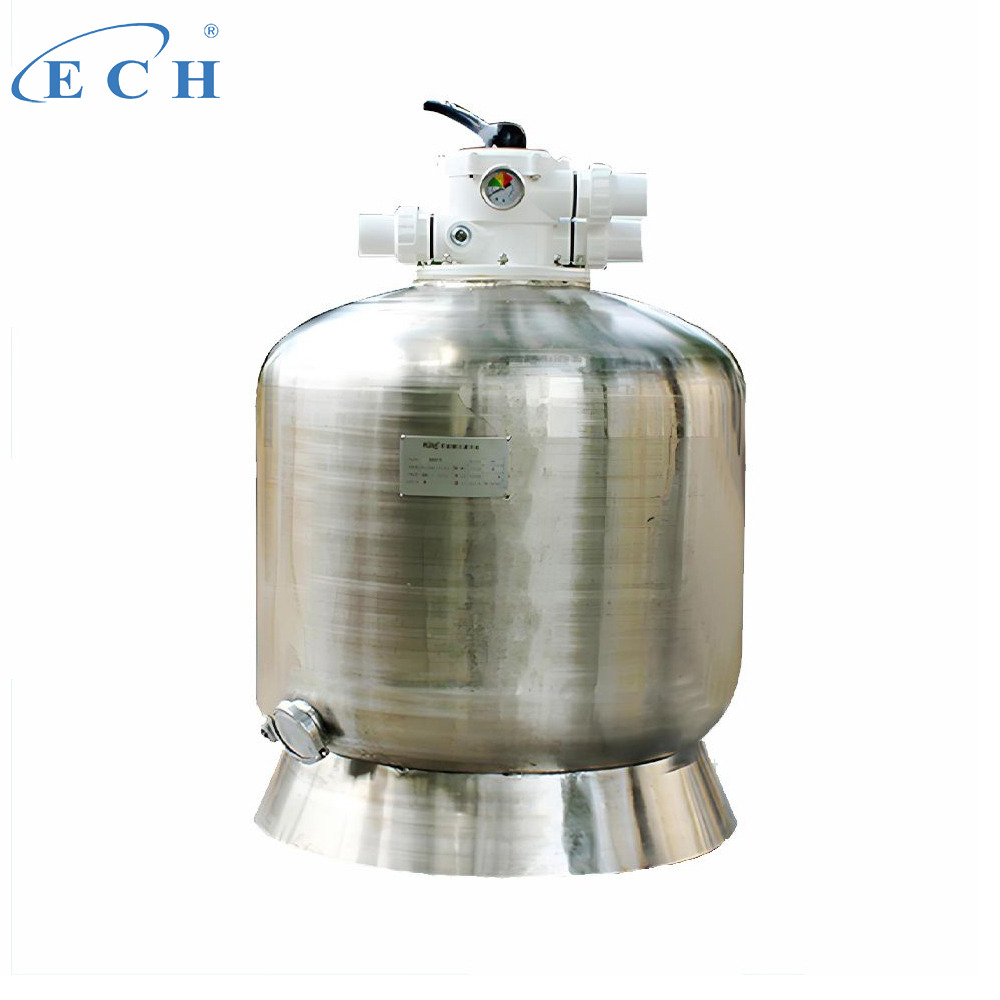

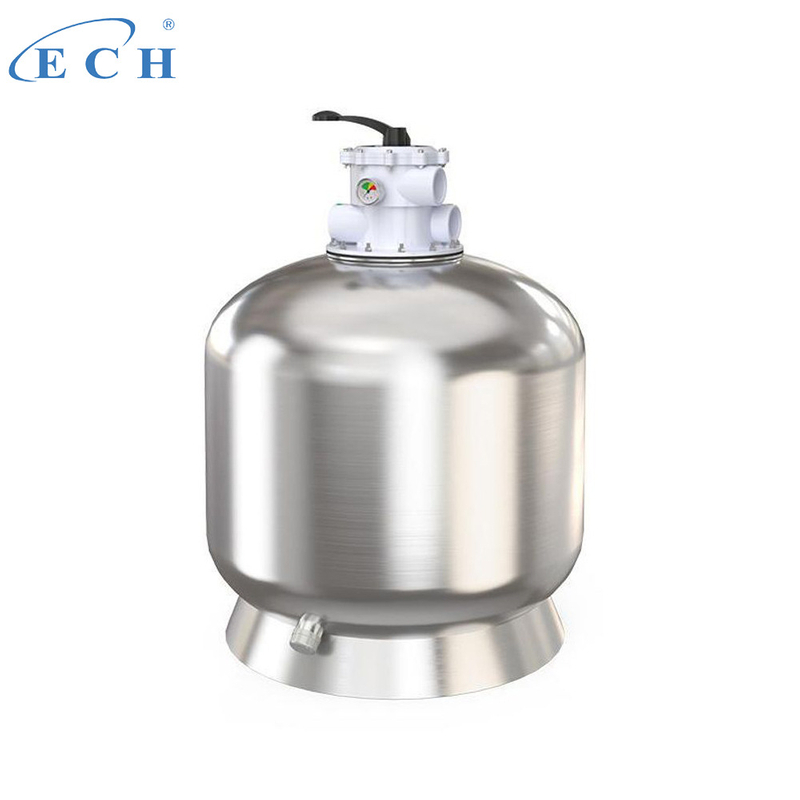

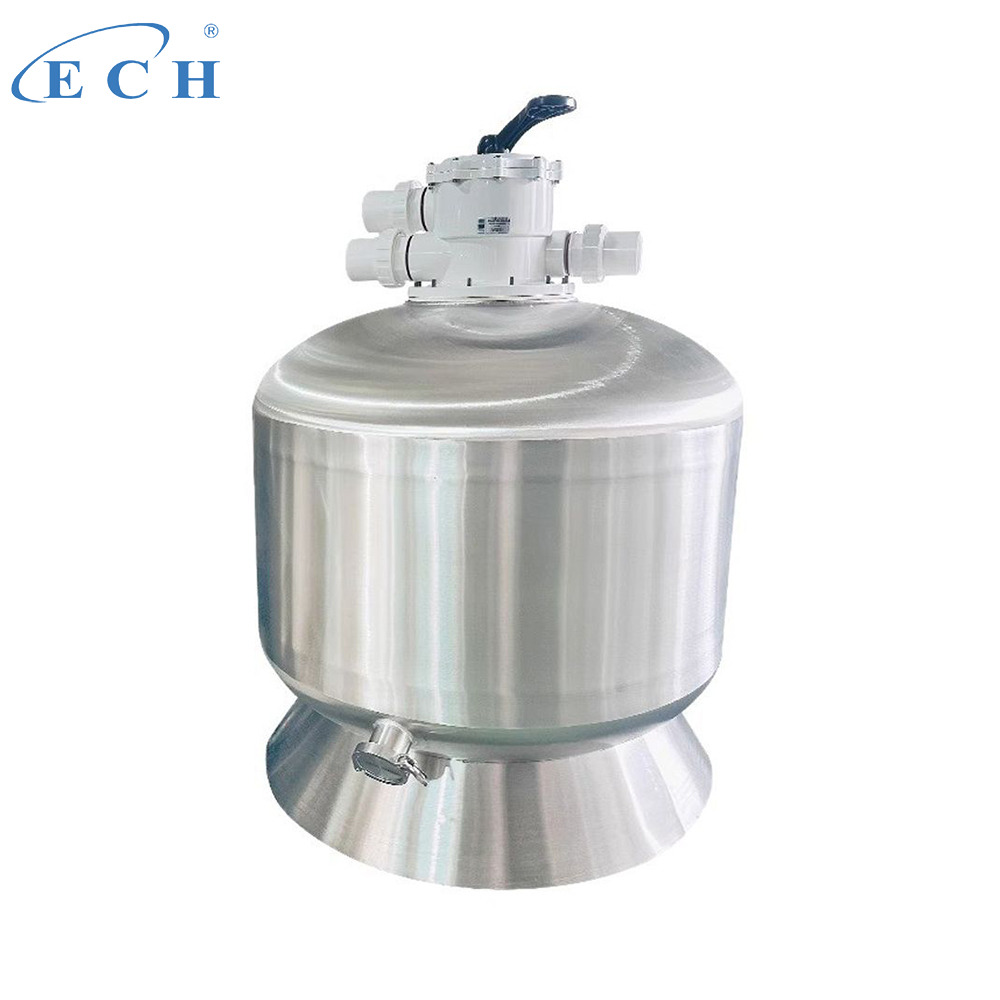

Top-Discharge Sand Cylinder (Stainless Steel)

The Top-Discharge Sand Cylinder (Stainless Steel) is a cost-effective, high-performance filtration equipment designed for efficient water impurity removal, featuring premium material construction and intelligent workflow control. It is widely applicable to various industrial, commercial, and municipal water treatment scenarios, providing reliable filtration solutions with user-friendly operation and long-term stability.

The tank of this sand cylinder is made of environmentally friendly, high-quality stainless steel composite material, which endows the equipment with robust durability, excellent wear resistance, and strong resistance to deformation and fracture. It adopts an economical yet high-performance configuration, balancing filtration efficiency and procurement cost. The entire workflow is intelligently managed by a 6-position multi-functional valve, which can switch between different working modes to meet diverse filtration and maintenance needs, ensuring smooth operation and convenient use.

• Premium & Eco-Friendly Material: The tank is constructed from high-quality, environmentally friendly stainless steel composite material, featuring robust durability, excellent wear resistance, and strong resistance to deformation and fracture, suitable for long-term use in various water treatment environments.

• Economical & High-Performance: Adopts an economical configuration that reduces procurement costs while ensuring high filtration performance, achieving a perfect balance between cost-effectiveness and operational efficiency.

• Intelligent 6-Position Multi-Functional Valve: Equipped with a 6-position multi-functional valve to manage the entire workflow, supporting flexible switching between normal backwash, post-backwash residual discharge, bypass drainage, bypass circulation, and system off modes, meeting diverse operation and maintenance needs.

• Efficient Filtration & Maintenance: The normal backwash function expels accumulated contaminants, and the post-backwash residual discharge removes remaining impurities, ensuring stable filtration efficiency and reducing maintenance workload. The valve-controlled workflow makes operation and maintenance more convenient.

• User-Friendly Operation: The equipment is designed for easy operation, with clear valve position settings and simple workflow control, requiring no complex professional skills, reducing labor intensity for operators.

• Wide Applicability: Suitable for various water treatment scenarios, such as industrial circulating water filtration, municipal water supply pretreatment, swimming pool water purification, pure water system pretreatment, and food processing water filtration, providing versatile and reliable filtration support.

• Long Service Life: Benefiting from the premium stainless steel composite material and scientific structural design, the sand cylinder has strong wear resistance and durability, ensuring a long service life and reducing equipment replacement costs.

• Industrial Circulating Water Systems: Used for filtering suspended solids, sediment, and other impurities in industrial circulating water, preventing pipeline blockage and equipment scaling, ensuring the stable operation of industrial production systems. The flexible valve functions facilitate convenient maintenance.

• Municipal Water Supply: Applied to municipal water pretreatment, removing large particles and suspended solids from raw water, improving the quality of tap water and meeting residents' daily water needs. The economical configuration is suitable for large-scale municipal water treatment projects.

• Swimming Pool Purification: Used for swimming pool water filtration, removing suspended solids, algae, and other impurities, keeping the pool water clean and clear. The backwash and residual discharge functions ensure efficient maintenance and compliance with hygiene standards.

• Pure Water System Pretreatment: As a pretreatment component for pure water preparation systems (such as RO systems), it removes large particles and impurities to protect subsequent precision equipment, ensuring the efficiency and stability of pure water production.

• Food Processing Industry: Used for pretreatment of food processing water, removing impurities to ensure the safety and hygiene of production water, meeting food industry standards. The premium stainless steel material complies with food-grade hygiene requirements.

• Other Scenarios: Suitable for commercial and industrial water treatment scenarios that require efficient filtration, flexible operation, and cost-effectiveness, such as hotel water supply, medical water pretreatment, and beverage production water filtration.

Usage Methods

• Equipment Selection: Select the appropriate model and configuration according to the raw water quality, impurity type, filtration capacity requirements, and on-site installation conditions, ensuring it matches the actual water treatment needs.

• Installation & Commissioning: Install the sand cylinder on a flat, firm foundation, correctly connect the raw water inlet, filtered water outlet, and drainage pipeline. Professional technicians will commission the equipment, check the 6-position multi-functional valve, adjust the filtration pressure and flow rate, and test each valve function to ensure normal operation.

• Daily Operation: According to the actual water treatment needs, switch the multi-functional valve to the corresponding position: use the normal filtration mode for daily water purification; switch to normal backwash when contaminants accumulate; use post-backwash residual discharge to remove remaining impurities after backwashing; select bypass drainage or bypass circulation when filtration is not needed; switch to system off to shut down the equipment.

• Maintenance: Regularly inspect the 6-position multi-functional valve to ensure flexible switching and no leakage. Check the filter media periodically, clean or replace it when filtration efficiency decreases. Inspect the stainless steel tank and pipelines for abnormalities (such as leakage, loose connections), and repair or replace worn parts in a timely manner.

Safety Precautions

• Ensure the sand cylinder is installed correctly and the pipeline connections are tight to avoid water leakage, pressure loss, or equipment damage during operation.

• Do not exceed the specified operating pressure during use; regularly check the pressure gauge to prevent tank deformation or damage caused by overpressure.

• When switching the multi-functional valve, ensure the equipment is in a stable state to avoid water hammer or pressure impact, which may damage the valve or pipeline.

• When performing maintenance, cleaning, or filter media replacement, shut down the system and cut off the water supply first to prevent water splashing and personal injury.

• Avoid collision, extrusion, or heavy impact on the stainless steel tank to prevent deformation or fracture.

• Store and use the equipment in a well-ventilated, dry environment, away from direct sunlight, high temperature, and corrosive substances, to protect the stainless steel material and extend the service life.

• Operators should be familiar with the functions of the 6-position multi-functional valve and the equipment operation manual before use; avoid misoperation that may cause equipment failure or safety hazards.

• Keep the equipment out of the reach of children and unauthorized personnel to prevent misoperation and accidental injury.

FAQ

• What materials are used in the construction of the top-extraction sand tank?

The tank of the Top-Discharge Sand Cylinder (Stainless Steel) is manufactured from premium-grade, eco-friendly stainless steel composite material. This material ensures exceptional durability, strong resistance to deformation and fracture, as well as excellent wear resistance, making the equipment suitable for long-term use in various water treatment environments.

• How does the water distribution system in the sand tank function?

The sand tank is equipped with a uniquely designed water distributor, which ensures a uniform and stable water flow throughout the entire filtration system. This even water flow avoids filtration dead angles, improves filtration efficiency, and ensures consistent water quality output. Meanwhile, the efficient drainage system cooperates with the water distributor, enhancing the overall filtration and backwash performance of the equipment.

• What are the specific functions of the 6-position multi-functional valve?

The 6-position multi-functional valve manages the entire workflow of the sand cylinder, with five key functions: 1. Normal Backwash: Expels accumulated contaminants from the filter; 2. Post-Backwash Residual Discharge: Removes remaining impurities from the water discharge line; 3. Bypass Drainage: Drains water without filtration; 4. Bypass Circulation: Circulates water without filtration; 5. System Off: Shuts down the operation. It supports flexible switching to meet different operation and maintenance needs.

• Can we customize the equipment?

Yes, we offer OEM/ODM customization services based on your specific needs. We can customize the tank size, filtration capacity, 6-position multi-functional valve specifications, water distributor design, and other parameters to perfectly match your raw water quality, on-site installation conditions, and water treatment requirements.

• Is your company a trading company or a manufacturer?

We are a professional manufacturer with in-house production and export capabilities. Our company integrates R&D, manufacturing, and international trade, with a complete production line and professional technical team. We provide factory-direct prices to reduce your procurement costs, and offer stable product quality, on-time delivery, and comprehensive pre-sales consultation and after-sales support.

• How often should the sand cylinder be backwashed?

The backwash frequency depends on the influent turbidity and impurity content. Typically, it is recommended to perform normal backwash every 8-24 hours. If the raw water has high turbidity and more contaminants, the backwash frequency should be appropriately increased to ensure filtration efficiency and avoid filter media clogging.
