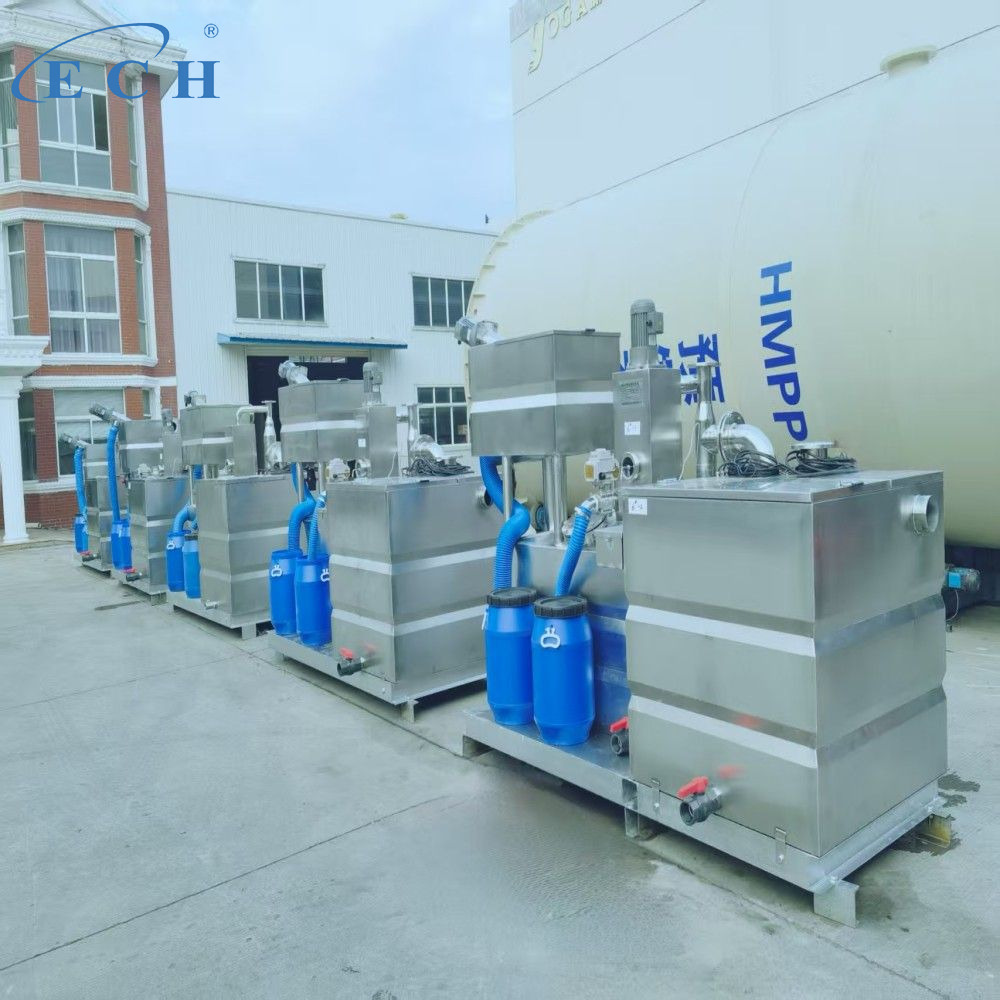

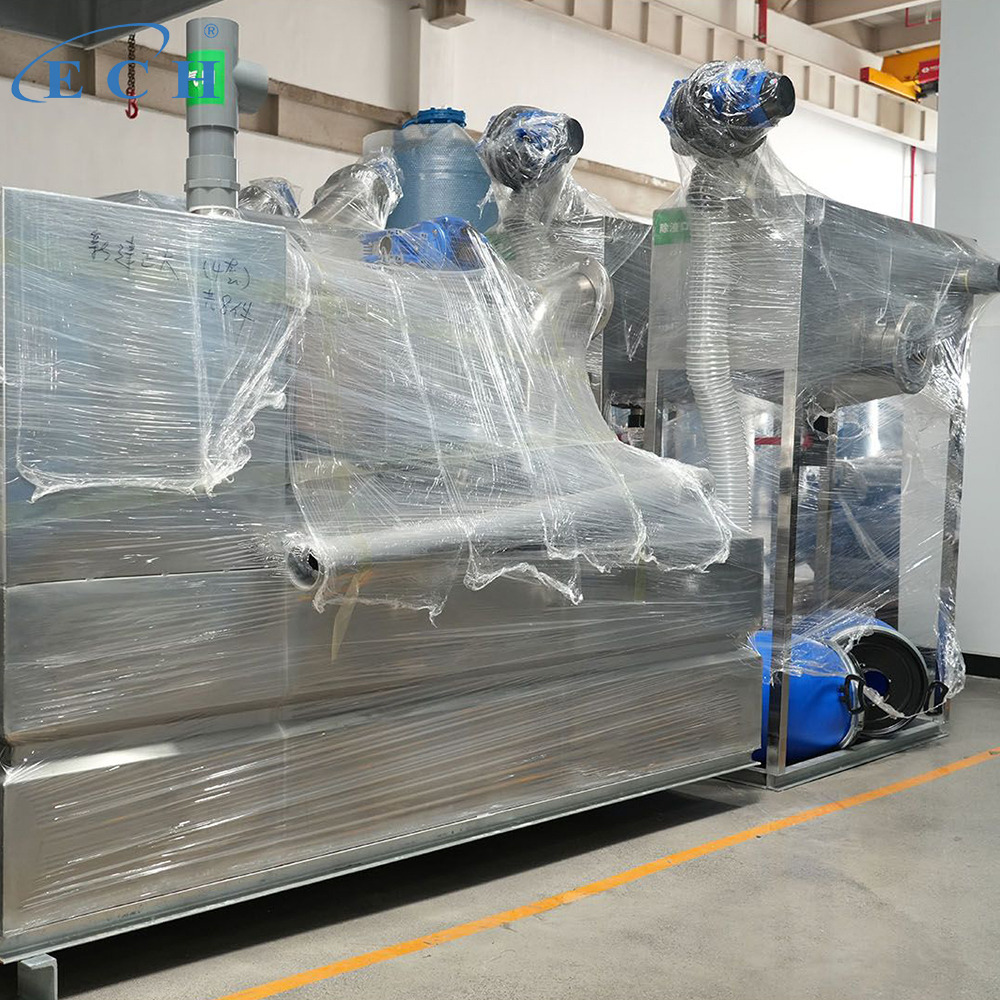

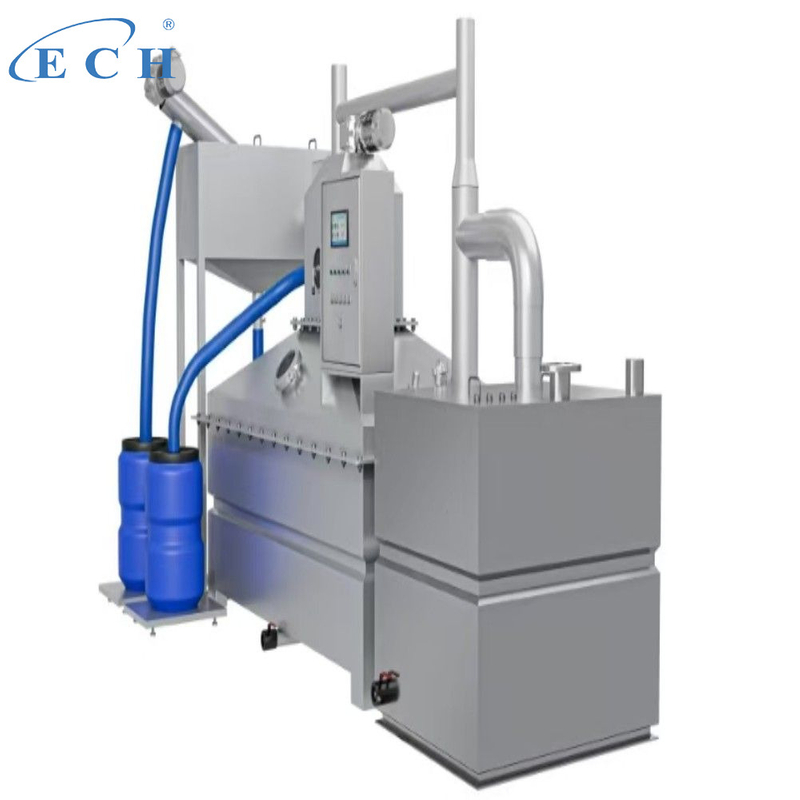

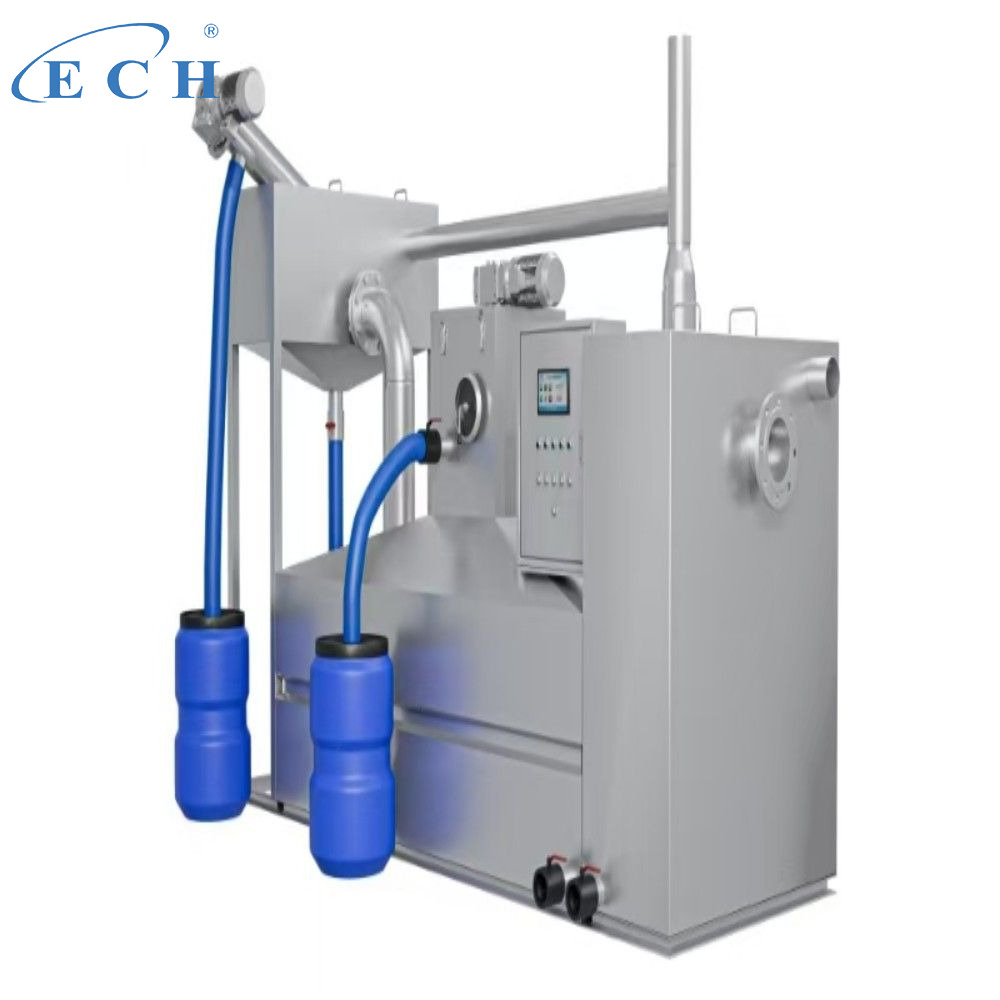

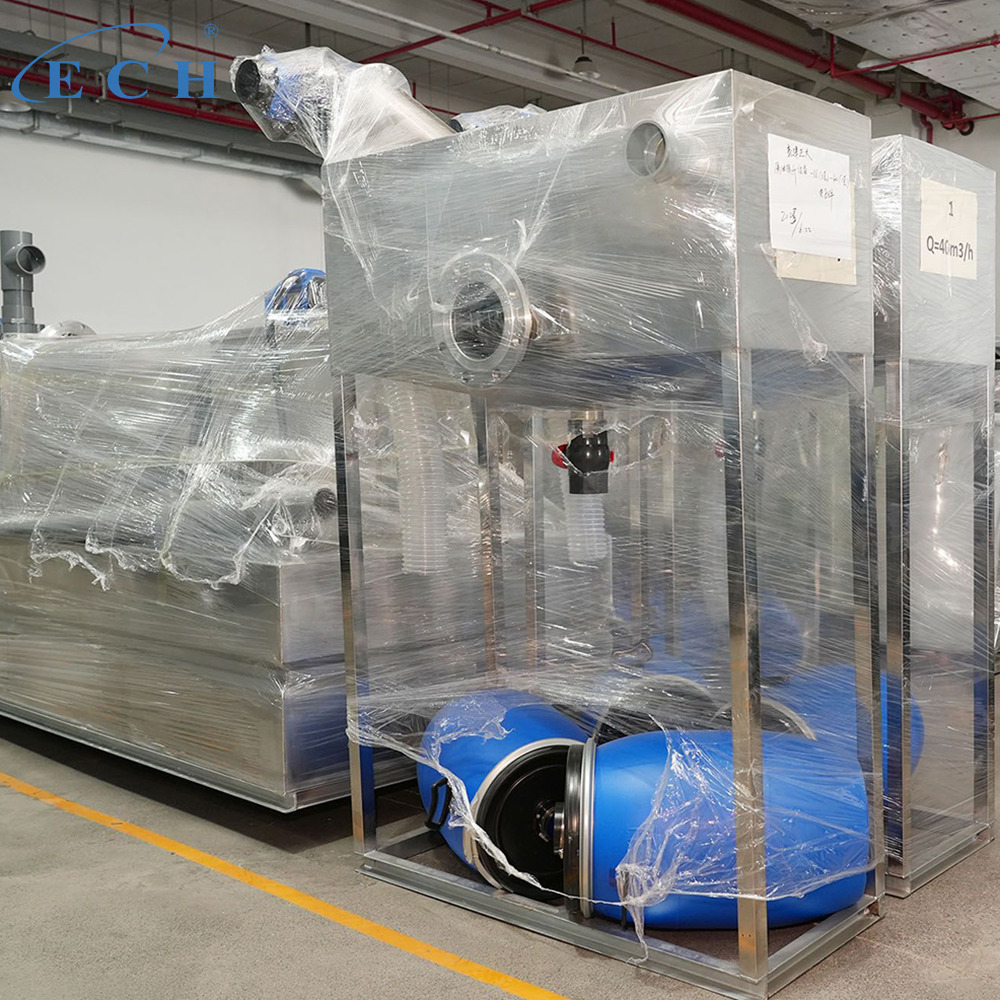

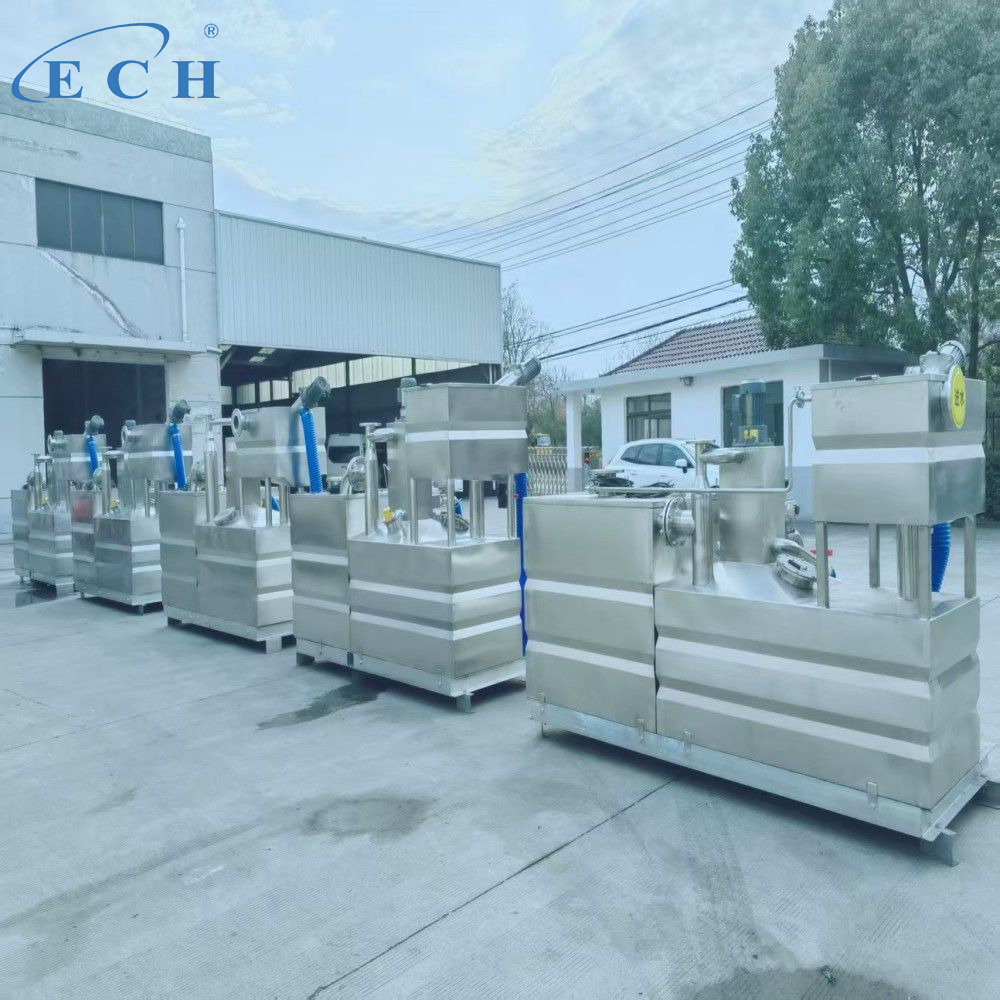

Integrated Oil Isolation Lifting Equipment

The Integrated Oil Isolation Lifting Equipment is an environmentally friendly, intelligent device independently developed and produced by our company, specifically designed to efficiently treat oil-containing wastewater from the catering industry. It integrates oil-water separation, solid-liquid separation, sewage lifting, and intelligent control into one integrated system, solving the core pain points of catering wastewater treatment—low oil-water separation efficiency, solid impurity clogging, and difficult sewage lifting.

Adopting advanced three-stage separation treatment and an enclosed overall structure, the equipment is odor-free, clean, and environmentally friendly, ensuring compliance with global environmental protection standards for wastewater discharge. Equipped with a high-performance intelligent control system, automatic solid-liquid separation device, constant temperature electric heating mechanism, sewage lifting device, and self-cutting sewage pump, it realizes fully automatic operation with minimal manual intervention.

Widely applied to underground restaurants, hotels, commercial kitchens, and auxiliary food processing facilities that require oil-water separation and sewage lifting, this equipment is a reliable, efficient, and cost-effective solution for catering industry oil-containing wastewater treatment, helping users reduce operational costs and meet environmental discharge requirements.

• Clean, Intelligent & Integrated Design: Integrates three-stage separation treatment, intelligent control, sewage lifting, and solid-liquid separation into one device; enclosed overall structure ensures odor-free, clean, and environmentally friendly operation, meeting high environmental protection standards.

• Efficient Oil-Water Separation: Equipped with a conical sealed oil-water separation chamber, matched with constant temperature electric heating device and mixing mechanism, which maintains grease at the optimal flow temperature, realizing efficient and rapid grease concentration and separation, ensuring treated wastewater meets discharge standards.

• Automatic Solid-Liquid Separation: Built-in filtration device and particle recovery device, capable of automatic slag removal and solid-liquid separation, effectively preventing impurity accumulation and equipment clogging, reducing maintenance frequency.

• Intelligent Fully Automatic Operation: Adopts PCU microcontroller intelligent control system, with comprehensive functions such as liquid level detection, automatic alarm, overload/short circuit protection, remote signal transmission, and water pump dry-run protection; realizes fully automatic operation, no manual on-duty required, saving labor costs.

• Anti-Overflow Sewage Lifting: Built-in liquid level sensor in the sewage lifting device, which can timely detect sewage level and prevent overflow, ensuring safe and stable operation of the equipment and the surrounding environment.

• Anti-Clogging Self-Cutting Pump: Unique spiral structure design with cutter blade impeller, which can effectively shred impurities in the sewage, completely eliminate clogging risks, and ensure smooth operation of the sewage lifting system.

• Easy Installation & Low Maintenance: No foundation required, only needs a level ground for installation; flexible rubber joints on inlet/outlet pipelines reduce vibration impact; centralized installation design reserves sufficient space for slag removal device maintenance, making daily maintenance simple and labor-saving.

• Strong Customization Capability: Supports full OEM/ODM customization, including hourly processing capacity, pump configuration (single/dual pump), external/internal type, and control function expansion, perfectly matching different catering scenarios and wastewater treatment needs.

• Independent R&D & High Reliability: Independently developed and produced by our company, with high-quality components and strict quality control system, ensuring stable operation in harsh catering kitchen environments and long service life.

The Integrated Oil Isolation Lifting Equipment is specially developed for catering industry oil-containing wastewater treatment, focusing on scenarios that require both oil-water separation and sewage lifting. Its main application fields include:

• Underground Restaurants & Catering Outlets: Suitable for underground restaurants, food courts, and catering stores where sewage cannot be discharged naturally due to terrain restrictions, realizing efficient oil-water separation and lifting to municipal sewage pipelines.

• Hotels & Guesthouses: Applied to hotel kitchens, banquet halls, and catering service areas, effectively treating oil-containing wastewater generated from cooking, food processing, and tableware cleaning, ensuring compliance with environmental discharge regulations.

• Commercial Kitchens: Used in large-scale commercial kitchens, such as chain restaurants, enterprise canteens, and school canteens, handling large volumes of oil-containing wastewater, preventing pipeline clogging and environmental pollution caused by oil deposition.

• Auxiliary Food Processing Facilities: Suitable for food processing factories, snack production workshops, and food distribution centers, treating wastewater containing cooking oil, food residues, and other impurities, protecting the environment and equipment.

• Other Catering-Related Scenarios: Applicable to cafes, bakeries, western restaurants, and catering supply facilities that generate oil-containing wastewater and need efficient separation and lifting treatment.

Usage Methods

• Installation:

Choose a level ground (no foundation required) and install the equipment centrally, reserving sufficient space around it for the maintenance of the slag removal device.

Install flexible rubber joints on the inlet and outlet pipelines to reduce vibration impact and protect the equipment and pipelines.

Reserve a vent pipe in the grease separator room to ensure air circulation; it is recommended to reserve a faucet and floor drain in the room for daily cleaning and maintenance.

Connect the equipment to the power supply, check the wiring of the intelligent control system, and ensure all connections are firm and correct.

• Pre-Operation Check:

Confirm the equipment is installed stably, with tight pipeline connections and no water leakage.

Check the parameters of the intelligent control system (liquid level detection range, alarm threshold, etc.) to ensure they are correctly configured according to the on-site scenario.

Inspect the self-cutting sewage pump, slag removal device, constant temperature heating device, and liquid level sensor for normal operation; ensure there is no debris blocking the equipment.

• Start-Up Operation:

Turn on the power supply, and the intelligent control system will automatically start and enter the working state.

The equipment will automatically complete solid-liquid separation, oil-water separation, and sewage lifting according to the detected sewage liquid level and preset parameters.

Monitor the equipment’s operating status through the control panel, including liquid level, heating temperature, and pump operation status, and deal with abnormal alarms in a timely manner.

• Daily Monitoring:

Regularly check the working status of the intelligent control system, ensure no overload, short circuit, dry-run, or other alarms are triggered.

Observe the oil separation effect and the accumulation of slag in the slag removal device; clean the slag removal device in a timely manner when slag accumulates excessively.

Check the constant temperature heating device to ensure it maintains the grease at the optimal flow temperature, ensuring separation efficiency.

Inspect the liquid level sensor to ensure it can accurately detect the sewage level and prevent overflow.

• Maintenance:

Clean the slag removal device and filtration component regularly (recommended every 1–2 weeks, adjusted according to the impurity content of the catering wastewater).

Inspect the self-cutting sewage pump regularly, check the wear of the cutter blade impeller, and replace worn parts in a timely manner to ensure anti-clogging performance.

Check the sealing performance of the oil-water separation chamber, repair or replace the sealing parts if there is leakage.

Maintain the intelligent control system and electrical components regularly, keep them dry and clean, and ensure stable operation.

Safety Precautions

• Electrical Safety: Ensure the power supply voltage matches the equipment’s rated voltage. Cut off the power supply before installation, maintenance, or disassembly to avoid electric shock accidents. Keep the intelligent control panel and all electrical components dry to prevent short circuits.

• Mechanical Safety: Do not touch the rotating parts of the self-cutting sewage pump (such as the cutter blade impeller) during equipment operation to avoid personal injury. Use appropriate tools for maintenance and slag cleaning, and wear protective gloves to prevent scratches.

• Temperature Safety: The constant temperature electric heating device operates at a specific temperature during working; do not touch the heating component directly to avoid burns. Regularly check the heating device to prevent overheating and equipment damage.

• Sewage Safety: The equipment is used to treat catering oil-containing wastewater; avoid direct contact with the treated sewage to prevent contamination. Dispose of the separated grease and slag in accordance with local environmental protection regulations to avoid secondary pollution.

• Operating Environment: Install the equipment in a well-ventilated, dry area, avoiding high humidity, corrosive gases, and direct sunlight. Do not place flammable, explosive, or other dangerous materials near the equipment to prevent fire or explosion hazards.

• Unauthorized Disassembly: Do not disassemble the internal components of the equipment (such as the oil-water separation chamber, intelligent control system, self-cutting pump) without authorization. If the equipment fails (such as abnormal alarm, poor separation effect, or pump failure), stop the equipment, cut off the power supply, and contact professional after-sales personnel for maintenance.

• Overload Protection: Do not exceed the equipment’s hourly processing capacity during use, as this may cause overload of the pump and control system, leading to equipment damage. If the sewage volume exceeds the rated capacity, adjust the operation rhythm or customize a larger model.

FAQ

• What is the core technology of the oil-water separator?

The core technologies of our Integrated Oil Isolation Lifting Equipment include: a cone-shaped sealed oil-water separation chamber (equipped with constant temperature electric heating device and mixing mechanism), automatic solid-liquid separation device (with built-in filtration and particle recovery functions), intelligent control system (PCU microcontroller with multiple protection functions), and self-cleaning self-cutting discharge pump (unique spiral structure with cutter blade impeller). These core technologies work together to achieve efficient oil-water separation, automatic slag removal, anti-clogging, and intelligent operation, ensuring stable and reliable treatment effect.

• What's the unique advantage of your oil-water separator?

The unique advantage of our equipment lies in its integrated intelligent design and anti-clogging performance. The intelligent control system enables fully automatic operation, with no need for manual on-duty, which greatly saves labor costs; the self-cutting sewage pump with unique spiral structure and cutter blade impeller can effectively shred impurities in the sewage, completely eliminating clogging risks that often occur in traditional equipment. In addition, the enclosed structure is odor-free and environmentally friendly, and the integrated design simplifies installation and maintenance, making it more suitable for catering industry scenarios.

• Can we customize the equipment?

Yes, we provide comprehensive OEM/ODM customization services to meet your specific application needs. Customizable items include hourly processing capacity (adjusted according to your daily sewage volume), pump configuration (single pump or dual pump, selected according to lifting requirements), external/internal type (matched with your equipment room space), and control function expansion (such as adding remote monitoring, data statistics, etc.). Our professional R&D and technical team will communicate with you in detail to provide a personalized solution that perfectly matches your on-site scenario.

• Is your company a trading company or a manufacturer?

We are a professional manufacturer integrating R&D, manufacturing, and sales. The Integrated Oil Isolation Lifting Equipment is independently developed and produced by our company, with our own production workshop, advanced manufacturing equipment, and strict quality control system. We can provide factory-direct prices, professional technical support, and one-stop after-sales service (including installation guidance, maintenance training, and spare parts supply) to ensure your product experience and stable equipment operation.

• How to ensure the oil-water separation effect of the equipment?

We ensure the oil-water separation effect through multiple designs: first, the three-stage separation treatment technology effectively separates solid impurities and grease step by step; second, the conical sealed oil-water separation chamber is equipped with a constant temperature electric heating device and mixing mechanism, which maintains the grease at the optimal flow temperature, facilitating rapid concentration and separation of grease; third, the equipment is equipped with intelligent monitoring, which can timely adjust the operation parameters according to the water quality and liquid level, ensuring stable separation effect. In addition, regular maintenance can also further ensure the long-term efficient operation of the equipment.

• What should I do if the equipment is clogged?

Our equipment is equipped with a self-cutting sewage pump, which can effectively shred impurities and avoid clogging. If clogging occurs accidentally, please first cut off the power supply, then check the slag removal device and the inlet of the self-cutting pump, clean the accumulated slag and impurities, and inspect the cutter blade impeller for wear. If the impeller is worn, replace it in time. If the clogging is serious, contact our after-sales personnel for professional maintenance to avoid damaging the equipment.
