Suspended solids in industrial cooling water systems create a compounding financial burden that extends far beyond simple maintenance. Left unchecked, airborne debris, sand, silt, and biological matter drawn in by cooling towers lead to severe heat exchanger fouling, drastically reduced thermal efficiency, and costly unplanned downtime. Historically, industrial facilities relied on manual basket strainers to capture this particulate matter. However, manual filtration introduces significant hidden costs, including excessive labor hours, frequent process interruptions, and increased exposure to hazardous water chemistry for maintenance personnel.
Modern continuous, high-volume cooling operations require a reliable and automated approach to fluid management. The Self-Cleaning Filter serves as the industry standard for automating debris removal. By stabilizing differential pressure and protecting downstream equipment without halting the main fluid flow, this technology ensures operational continuity. Transitioning from manual intervention to automated filtration protects critical infrastructure, optimizes energy consumption, and provides a measurable return on investment for industrial cooling applications.
Continuous Operation: An automatic self-cleaning strainer utilizes differential pressure (dP) triggers to clean itself without interrupting the main cooling water flow, ensuring zero process downtime.
Precision vs. Performance: Selecting the correct micron rating requires balancing the protection needs of downstream heat exchangers against acceptable pressure drops and backwash frequencies.
Technology Matching: The choice between a self-cleaning backwash filter, a mechanically scraped filter, and a vacuum scanner depends entirely on the specific Total Suspended Solids (TSS) profile and water source.
TCO Reduction: While upfront capital expenditure is higher than manual strainers, ROI is typically achieved within 9–18 months through eliminated maintenance labor, reduced water waste, and optimized energy efficiency.
Establishing a reliable operational baseline is the first step in optimizing any industrial cooling water system. Cooling towers inherently act as massive air scrubbers. A standard cooling tower moving thousands of cubic feet of air per minute will pull in vast quantities of atmospheric dust, pollen, insects, and industrial exhaust particulates. A successful filtration system must prevent three primary threats: mineral scaling, biological fouling, and particulate accumulation. When these elements combine, they form an insulating layer on heat transfer surfaces, severely degrading system performance.
The cost of inaction regarding cooling water filtration cascades rapidly throughout a facility. Poor filtration directly impacts chiller efficiency. Biological slime and dirt possess a thermal conductivity significantly lower than that of the copper or stainless steel tubes they coat. A fouling layer as thin as 0.001 inches on a heat exchanger tube can increase overall energy consumption by up to ten percent. Furthermore, particulate accumulation accelerates mechanical wear on pump impellers and mechanical seals, leading to premature equipment failure.
Fouling Thickness (Inches) | Fouling Type | Estimated Energy Penalty (%) | Impact on Chiller Compressor |
0.001 | Biological Slime | 9 - 11% | Increased electrical load |
0.003 | Silt / Sand | 15 - 18% | Elevated head pressure |
0.005 | Calcium Carbonate Scale | 22 - 25% | Risk of thermal shutdown |
0.010 | Mixed Debris & Biofilm | 30%+ | Severe mechanical strain |
Evaluating the trade-offs between manual and automated filtration reveals why manual strainers fail at an industrial scale. The failure loop of manual strainers follows a predictable and costly pattern:
Debris Accumulation: The basket strainer slowly fills with debris, causing a gradual restriction in flow and a steady increase in differential pressure.
Flow Degradation: As pressure drops, the cooling water flow rate to the heat exchangers decreases, causing process temperatures to rise dangerously close to alarm limits.
Process Interruption: Operators must physically isolate the pipeline, depressurize the housing, and halt cooling water flow to the affected zone.
Hazardous Maintenance: Personnel manually remove and clean the heavy, debris-filled basket, exposing themselves to biological agents like Legionella and chemical treatments before reassembling the unit.
Implementing an automatic self-cleaning strainer eliminates these bottlenecks. It provides the continuous flow and consistent pressure required for uninterrupted industrial processes, completely removing the operator from the hazard zone.

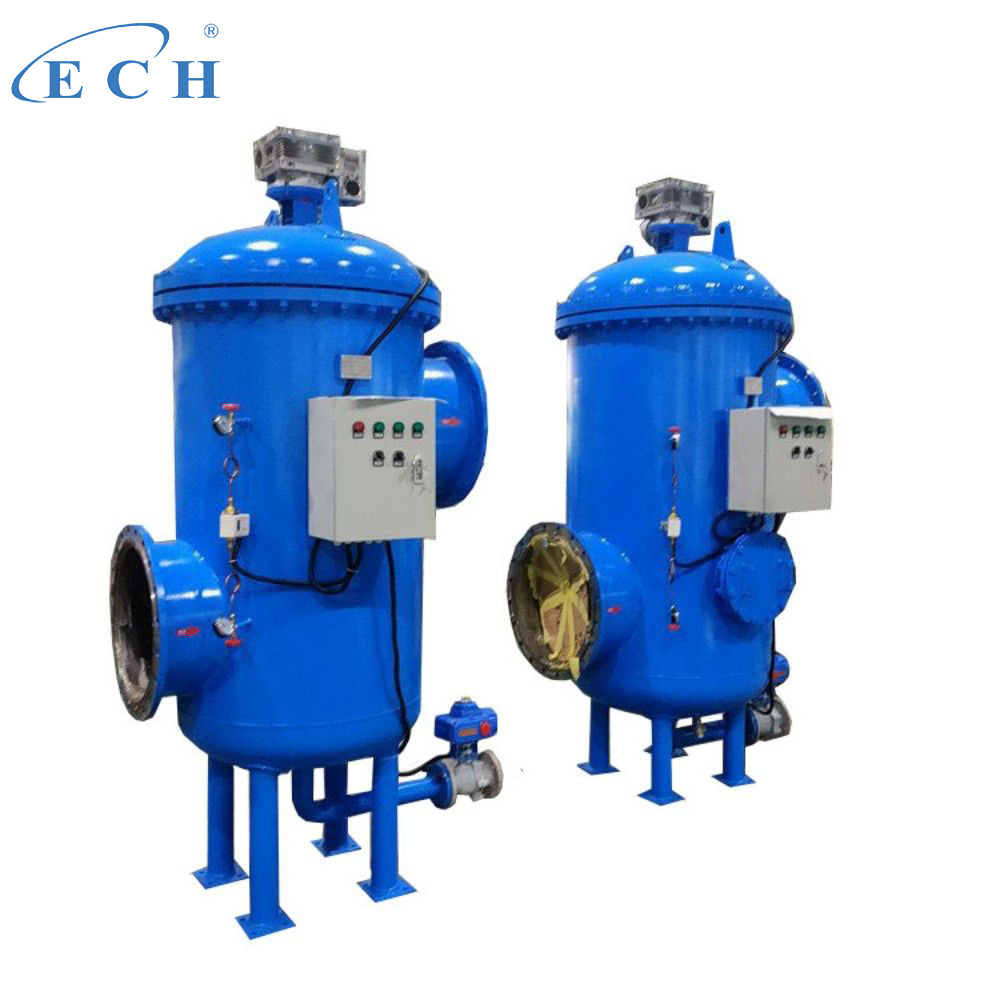

Understanding the internal mechanics of automated filtration clarifies how these systems maintain continuous flow. During the standard filtration phase, raw cooling water enters the filter housing through the inlet manifold. The fluid passes through a cylindrical screen or filter element, typically flowing from the inside to the outside. As the water passes through the precision mesh, suspended solids larger than the micron rating are trapped on the inner surface of the screen. The clean, filtered fluid then exits through the outlet manifold and continues downstream to the process equipment.
The transition from filtration to cleaning is governed by a precise trigger mechanism. As debris accumulates on the inner screen, it creates a restriction, causing the pressure at the outlet to drop relative to the inlet. A differential pressure (dP) transmitter continuously monitors this pressure drop across the screen. Industrial standards typically utilize dP setpoints between 7 and 10 psi (approximately 0.5 to 0.7 bar). Once the pressure differential reaches this critical threshold, the control system initiates the automated cleaning cycle.
The cleaning phase removes the accumulated filter cake without disrupting the primary cooling water flow. The sequence of operations follows a strict automated logic:
Signal Verification: The PLC receives the high dP signal and verifies it against a time-delay timer to ensure it is not a false reading caused by a transient pressure spike.
Valve Actuation: The automated flush valve, located at the bottom of the filter housing, opens to the atmospheric drain.
Pressure Drop: Opening the valve creates a localized low-pressure zone inside the filter housing, specifically within the cleaning mechanism.
Mechanism Engagement: The internal scanner, brush, or backwash arm engages the screen, dislodging the debris and expelling it through the open flush valve.
System Reset: After a predetermined time (usually 10 to 30 seconds), the flush valve closes, the cleaning mechanism retracts or stops rotating, and the dP returns to baseline.
Because the cleaning mechanism only covers a fraction of the screen area at any given moment, the majority of the screen continues to filter water. This ensures the primary flow remains completely uninterrupted.
Selecting the appropriate filtration technology requires matching the internal cleaning mechanism to the specific characteristics of the suspended solids. No single technology is universally applicable to all cooling water challenges.
A self-cleaning backwash filter operates by utilizing the system's own internal pressure to reverse the flow of water through a small, isolated section of the screen. As the internal backwash arm rotates, it creates a high-velocity reverse flow that lifts the debris off the mesh and directs it out through the flush valve. This technology is highly effective for removing rigid particulates such as sand, silt, and pipe scale commonly found in open cooling towers. However, it requires a minimum operating pressure (typically around 30 to 40 psi) to generate sufficient suction for effective cleaning.

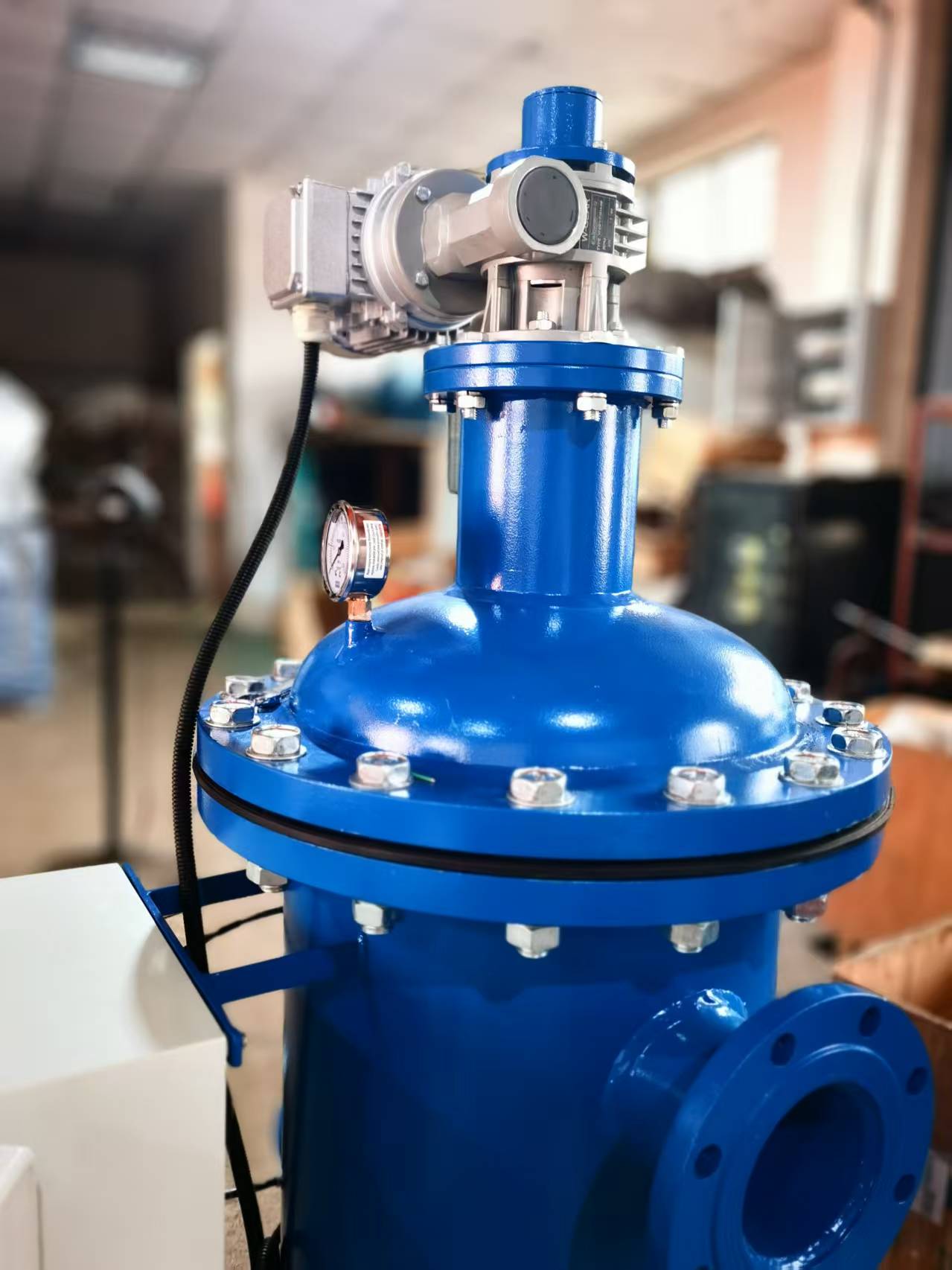

Mechanically scraped or brushed filters utilize physical force rather than hydraulic suction to clean the screen. An electric or pneumatic motor drives a series of brushes or polymer scrapers directly against the surface of the filter element. As the assembly rotates, it physically sweeps the accumulated debris down into a collection purge chamber, which is then periodically flushed. This mechanism is best suited for heavy, sticky, or biological fouling, such as algae, organic slimes, and heavy oils, where hydraulic backwashing alone might fail to dislodge the filter cake. The physical contact between the brushes and the screen necessitates periodic replacement of the cleaning components.
Vacuum scanner technology represents the most advanced hydraulic cleaning method. It utilizes a focused suction scanner equipped with multiple nozzles that spiral along the inner surface of the screen. When the flush valve opens, the pressure differential creates a powerful vacuum at the tip of each nozzle, aggressively vacuuming the debris off the mesh without making physical contact with the screen itself. This self-cleaning industrial filter technology is best for high-efficiency cleaning with minimal flush water waste, making it ideal for fine filtration applications. It requires a higher initial capital cost compared to simpler brush systems.
Filter Technology | Primary Cleaning Mechanism | Typical Flush Water Loss | Key Limitation | |
Backwash (Reverse Flow) | Hydraulic suction via system pressure | Sand, silt, rigid particulates | 1.5% - 2.0% of total flow | Requires minimum system pressure (30+ psi) |
Mechanically Scraped | Physical brushes or scrapers | Sticky organics, algae, heavy bio-fouling | 0.5% - 1.0% of total flow | Physical wear requires parts replacement |
Vacuum Scanner | Focused non-contact suction nozzles | Fine filtration, municipal makeup water | Less than 1.0% of total flow | Higher initial capital expenditure |
Specifying the correct micron rating is an engineering decision that dictates the success or failure of the filtration system. Understanding the difference between absolute and nominal ratings is necessary. An absolute micron rating guarantees that 100 percent of particles larger than the specified size will be captured by the screen. A nominal rating indicates that a certain percentage (often 80 to 90 percent) of particles of that size will be retained. In industrial cooling water, a common misconception is that tighter filtration is always superior. Specifying a micron rating that is too fine will result in continuous, unnecessary backwashing, leading to excessive water loss and premature mechanical wear.
Filter precision must be a component-driven selection, tailored specifically to the vulnerabilities of the downstream equipment. Different heat transfer technologies possess varying tolerances for suspended solids.
Plate and Frame Heat Exchangers: These units feature narrow, corrugated channels that are highly susceptible to clogging. They typically require fine filtration in the range of 50 to 200 microns to prevent debris from bridging the gaps between plates.
Tubular Heat Exchangers: Shell and tube designs generally have larger flow paths and can tolerate larger particulates. Filtration requirements for these systems often range from 200 to 500 microns.
Spray Nozzles: Cooling tower distribution nozzles and process spray headers require strict protection. The general engineering rule is to select a micron rating that is at least three to four times smaller than the smallest nozzle orifice in the system to prevent plugging.
Engineers must carefully navigate the trade-off between precision and flow. Finer screens inherently possess less open area and trap a higher volume of smaller particles. This accelerates the buildup of differential pressure, increasing the frequency of backwash cycles. If the micron rating is mismatched with a high Total Suspended Solids (TSS) load, the filter may enter a continuous cleaning loop, causing excessive flush water waste and placing unnecessary strain on system pumps.
Proper sizing goes beyond simply matching the filter's flange size to the existing pipe diameter. To size a pipeline self-cleaning filter correctly, engineers must calculate the maximum system flow rate (measured in GPM or m³/h) and determine the appropriate velocity through the screen area. Forcing too much water through a small screen increases the velocity, which can drive deformable organic particles through the mesh or embed rigid particles so deeply that the cleaning mechanism cannot dislodge them.
The TSS loading and the specific water source heavily influence the specification process. Municipal makeup water is generally clean and predictable, allowing for standard screen sizing. Conversely, systems drawing from surface water sources, such as rivers or lakes, experience dramatic TSS spikes during heavy rainfall or seasonal turnovers. In these scenarios, the filter must be oversized—providing a larger total screen area—to handle sudden influxes of dirt and debris without overwhelming the cleaning mechanism.
Material of Construction (MoC) is dictated by the chemical composition of the cooling water. Selecting the wrong material leads to rapid galvanic corrosion or pitting.
Carbon Steel with Epoxy Coating: Standard for closed-loop cooling systems utilizing treated municipal water with low chloride levels.
304 / 316L Stainless Steel: Provides excellent resistance to standard cooling water treatments and moderate chloride levels. Ideal for most open cooling tower applications.
Duplex 2205 / Super Duplex: Mandatory for systems utilizing brackish water or high-cycle cooling towers where chloride concentrations exceed 1000 ppm.
Titanium: Reserved for direct seawater cooling applications where extreme corrosion resistance is required.
Pressure and temperature ratings must align with the facility's operational parameters. The filter housing must be engineered and certified to meet relevant pressure vessel codes, such as ASME Section VIII in North America or the Pressure Equipment Directive (PED) in Europe. Ensuring the housing can withstand maximum surge pressures and temperature fluctuations prevents catastrophic structural failures.
Integrating redundancy and bypass design is a critical best practice. Even the most robust industrial self-cleaning strainer requires periodic inspection and maintenance. Incorporating isolation valves and a full-flow bypass loop allows maintenance personnel to take the filter offline for annual servicing, screen replacement, or sensor calibration without forcing a shutdown of the entire cooling system.
Evaluating filtration technologies requires a comprehensive analysis of the Total Cost of Ownership (TCO), shifting the focus from initial purchase price to long-term operational savings. Transparently comparing Capital Expenditure (CapEx) against Operating Expenditure (OpEx) reveals the true value of automation. While an automated system demands a higher initial CapEx than a manual basket strainer, the OpEx savings are substantial. The complete elimination of routine maintenance labor required to manually clean baskets often yields a Return on Investment (ROI) within 9 to 18 months.
Water and energy conservation serve as major financial drivers. Manual strainers are often cleaned via heavy blowdowns, wasting thousands of gallons of treated cooling water. Automated systems are highly efficient, typically consuming less than one to two percent of the total system flow during a brief flush cycle. Furthermore, maintaining optimal heat transfer efficiency by preventing micro-fouling translates directly into massive energy savings. A clean chiller operates at peak efficiency, drastically reducing the electrical load on compressors.
Chemical treatment optimization provides another layer of cost reduction. Suspended organic matter acts as a massive sponge for oxidizing biocides like sodium hypochlorite or bromine. When dirt and debris circulate freely in the cooling water, the chemical dosing system must work overtime to maintain a residual biocide level. The chemicals attack the suspended solids instead of targeting the biological growth on the heat exchanger tube walls. By continuously removing this organic matter, an automated filter drastically reduces the system's overall chemical demand. Facilities often see a 20% to 30% reduction in biocide consumption after installing proper filtration. Removing the dirt eliminates the primary habitat for Legionella bacteria, making the remaining chemical treatment significantly more effective at preventing outbreaks.
Deploying automated filtration systems in existing industrial facilities presents specific engineering challenges that must be addressed during the design phase.
Installation Footprint & Retrofitting: Existing piping galleries are often highly congested, leaving minimal physical space for new equipment. Engineers should evaluate inline versus offline configurations. Inline filters fit directly into the existing pipe run, while offline or side-stream configurations treat a percentage of the flow in a separate, more accessible location. Custom manifold designs can adapt the equipment to tight vertical or horizontal spaces.
Minimum Operating Pressure Issues: Hydraulic cleaning mechanisms rely on system pressure to function. If the cooling system experiences significant pressure drops, the backwash cycle will fail to generate enough suction to clean the screen, leading to a blinded filter and restricted flow. If baseline pressure is consistently low, facilities must install booster pumps specifically on the flush line to artificially generate the required differential, or opt for motorized brush filters that do not rely on hydraulic pressure for cleaning.
Handling Backwash Effluent: The automated cleaning cycle produces a concentrated stream of purge water heavily laden with suspended solids. Discharging this effluent improperly can violate environmental permits. Facilities must plan for the disposal or recovery of this purge water. Standard practices include routing the effluent to on-site clarifiers, settling tanks, or municipal drains, ensuring strict compliance with local environmental discharge regulations.
Biofilm and Sticky Organics Blinding: Open cooling towers with high biological activity face the risk of sticky organic matter blinding the screen. Standard hydraulic backwashing often struggles to shear off established biofilm. Facilities should incorporate aggressive chemical shock-dosing protocols in tandem with filtration. Selecting mechanically scraped filtration over hydraulic suction ensures that physical force is available to shear sticky organics from the mesh.
Winterization and Freeze Protection: For facilities located in colder climates, installing filtration equipment outdoors introduces the risk of freezing. If the water inside the filter housing or the flush lines freezes, the expansion of the ice will rupture the casing. Engineers must incorporate heat tracing and insulation into the system design. Electrical heat trace cables are wrapped around the filter body and flush valve manifold, covered by a weatherproof insulation jacket to retain heat.
Integrating these systems into the plant's Distributed Control System (DCS) ensures that operators can monitor the self-cleaning industrial filter remotely. Using protocols like Modbus TCP/IP allows the central control room to track backwash frequency and trigger alarms if the filter enters a continuous cleaning loop, preventing excessive water loss.
Selecting the right self-cleaning industrial filter is an exercise in balancing competing operational demands. It requires a deep understanding of the specific Total Suspended Solids (TSS) challenge, matching the micron rating to the precise vulnerabilities of downstream heat exchangers, and ensuring the facility can provide adequate system pressure to support the chosen cleaning mechanism. When engineered correctly, automated filtration transforms cooling water management from a reactive maintenance burden into a streamlined, continuous process.
Before engaging a manufacturer or procurement team, facilities should execute a rigorous shortlisting logic. Audit current manual maintenance logs to quantify existing labor costs and downtime. Review SCADA pressure data to confirm baseline operating pressures, and analyze recent water chemistry reports to identify the primary types of fouling agents present in the cooling loop.
To move forward with optimizing your cooling water system, take the following actionable steps:
Conduct a comprehensive water analysis to determine the baseline TSS concentration and particle size distribution.
Audit existing heat exchanger specifications to identify the maximum allowable particle size for safe operation.
Measure minimum and maximum system operating pressures to ensure compatibility with hydraulic or mechanical cleaning mechanisms.
Calculate current manual filtration costs, including labor hours and process downtime, to establish a clear ROI baseline
Consult with a specialized filtration engineer to design a custom bypass and manifold layout for seamless integration into your existing piping gallery.
A: A manual strainer requires operators to physically shut down the flow, open the housing, and clean the basket. This causes process downtime and incurs labor costs. A self-cleaning filter uses automated differential pressure triggers to clean itself continuously. It does this without interrupting the main fluid flow, completely eliminating manual maintenance labor.
A: Automated systems are highly efficient. Depending on the specific technology and operating pressure, a self-cleaning filter typically consumes less than 1% to 2% of the total system flow during a brief flush cycle. This volume is significantly less than the water wasted during manual blowdown procedures.
A: Hydraulic backwash filters require a minimum system pressure, usually between 30 and 40 psi, to generate the suction needed for cleaning. For low-pressure systems, engineers must either install a booster pump on the flush line or select mechanically scraped filters that use electric motors instead of system pressure.
A: The required micron rating depends entirely on your downstream equipment. Plate and frame heat exchangers typically require fine filtration between 50 and 200 microns. Tubular heat exchangers can generally tolerate larger particles, requiring ratings between 200 and 500 microns. Always check the manufacturer specifications for your specific heat exchanger.
A: While daily operation is automated, these strainers require annual or semi-annual inspections. Routine maintenance typically involves checking dynamic seals, inspecting the screen for structural integrity, and verifying the operation of moving parts. Installing a bypass line allows this maintenance to occur without shutting down the entire cooling system.
A: No. Self-cleaning filters are mechanical devices designed exclusively to remove Total Suspended Solids (TSS), such as sand, silt, and scale. They cannot remove Total Dissolved Solids (TDS) like dissolved minerals, salts, or chlorides. Removing TDS requires chemical treatment, ion exchange, or reverse osmosis systems.
