Facility managers and municipal engineers face escalating pressure to meet strict microbiological safety standards. They must achieve this without increasing chemical disinfection byproducts, such as trihalomethanes (THMs) and haloacetic acids (HAAs), or degrading overall water quality. Traditional chlorine treatments require 30 or more minutes of contact time. They leave chemical residues and routinely fail against thick-walled pathogens, including Cryptosporidium. Furthermore, chlorine creates corrosive, odor-heavy environments driven by chloramines. Facilities relying on unregulated well water or aging municipal grids face constant contamination threats. Surface runoff, animal waste, and hydraulic backflow during water main breaks pose severe operational risks. Integrating a commercial UV Sterilizer provides immediate, chemical-free DNA disruption at the point of entry (POE). This guide evaluates the engineering requirements, sector-specific dosing standards, and total cost of ownership (TCO) for implementing UV systems in high-stakes environments.
Pathogen Eradication Without Byproducts: UV-C (254 nm) neutralizes 99.99% of bacteria and viruses in 5–30 seconds (at a dose of 40 mJ/cm²) without altering water taste or generating toxic byproducts.
Strict Pre-treatment is Mandatory: UV light cannot penetrate turbid water. Systems require strict pre-filtration (Turbidity <1 NTU) and softening (Hardness <120 mg/L) to prevent "shadowing" and quartz sleeve scaling.
Regulated Dosing for Reclaimed Water: Municipal reuse projects must adhere to NWRI guidelines, requiring up to 100 mJ/cm² depending on the upstream filtration method to achieve a 6-log pathogen reduction.
High ROI in Commercial/Industrial Use: Operating costs are exceptionally low ($0.001–$0.01 per cubic meter), making UV highly viable for high-volume applications like beverage production, aquaculture, and hotel water systems.
Ultraviolet light operates as a highly efficient physical disinfectant by targeting the genetic core of microorganisms. The primary mechanism relies on the 254 nm wavelength, which falls squarely within the germicidal UV-C spectrum. When water passes through the reactor, this specific light penetrates microbial cell walls and cytoplasmic membranes. Once inside, the photon energy is absorbed by the pyrimidine bases in the organism's DNA and RNA. This absorption causes adjacent thymine bases to bond with each other, forming thymine dimers. This structural genetic damage prevents the DNA from unzipping for replication. Consequently, the pathogens are rendered completely unable to reproduce or cause infection, effectively neutralizing the threat without physically removing the cell from the water.
Engineers measure this exposure as a UV dose, calculated in millijoules per square centimeter (mJ/cm²). The dose is a product of the UV light intensity and the residence time the water spends inside the chamber. Dose-to-efficacy benchmarks dictate system sizing across all commercial and industrial applications. Different pathogens require different energy thresholds for complete deactivation.
Target Pathogen | Pathogen Type | Dose for 2-Log (99%) Reduction | Dose for 4-Log (99.99%) Reduction |
Escherichia coli (E. coli) | Bacteria | 6.6 mJ/cm² | 13.2 mJ/cm² |
Cryptosporidium parvum | Protozoa | 5.8 mJ/cm² | 10.0 mJ/cm² |
Giardia lamblia | Protozoa | 5.0 mJ/cm² | 10.0 mJ/cm² |
Adenovirus Type 40 | Virus | 109.0 mJ/cm² | 186.0 mJ/cm² |
As demonstrated in the data, standard bacteria and chlorine-resistant protozoa require surprisingly low doses for neutralization. However, certain robust viruses like Adenovirus demand significantly higher energy outputs, requiring specialized high-output reactor designs. Beyond standard disinfection, advanced non-disinfection applications utilize the 185 nm wavelength for photo-oxidation. This specific application generates hydroxyl radicals that reduce Total Organic Carbon (TOC) by 50 to 90%. TOC reduction is an absolute requirement in ultra-pure water (UPW) systems used for pharmaceutical manufacturing and microelectronics production.
Speed and physical footprint heavily favor UV technology over traditional chemical treatments. UV systems require only 5 to 30 seconds of contact time inside a compact stainless steel chamber. In contrast, chemical disinfection relies on the CT value (Concentration multiplied by Time). To achieve a 4-log reduction of viruses using chlorine, facilities must construct massive retention tanks to hold the water for 30 to 60 minutes. For a facility processing 1,000 gallons per minute, a chlorine contact tank would require tens of thousands of gallons of storage capacity. A UV reactor processing the same flow rate occupies a fraction of that floor space.
Chemical independence offers another major operational advantage. UV technology eliminates the handling, storage, and safety risks associated with bulk chlorine gas or sodium hypochlorite. Facilities no longer need to manage hazardous material protocols, install specialized ventilation systems, or worry about toxic gas leaks. Furthermore, UV treatment does not alter the pH, taste, or odor of the water, making it ideal for food and beverage applications.
However, operators must understand the strict limitations of UV technology. UV is not a physical filter. It does not remove heavy metals like lead or arsenic. It cannot extract dissolved chemical compounds such as PFAS or PFOA, nor does it filter physical sediment and turbidity. UV must operate as a specialized biological adjunct to physical filtration, never as a standalone replacement for comprehensive water conditioning.
Treating wastewater for agricultural or municipal reuse requires guaranteed pathogen destruction. Municipalities must achieve this strict standard without adding residual chemical toxicity to the surrounding environment or sensitive watersheds. UV disinfection meets this exact requirement, provided the engineering systems follow strict regulatory dosing protocols.
The National Water Research Institute (NWRI) outlines specific UV dosing guidelines for reclaimed water. These guidelines dictate mandatory energy requirements based on the upstream pre-treatment methods to guarantee a 6-log (99.9999%) pathogen reduction. Media-filtered effluent, which retains higher levels of suspended solids, requires a robust dose of 100 mJ/cm². Membrane-filtered effluent requires 80 mJ/cm². Reverse Osmosis (RO) effluent, representing the highest clarity, requires only 50 mJ/cm².
Engineering optimization is a strict requirement for large municipal plants processing millions of gallons per day. Designers use Computational Fluid Dynamics (CFD) modeling to map the velocity profiles inside the reactor. This prevents hydraulic short-circuiting, ensuring every drop of water receives a uniform dose of UV energy. Emerging municipal innovations now combine UV with Advanced Oxidation Processes (UV-AOP). By injecting hydrogen peroxide upstream of the UV reactor, the system generates powerful hydroxyl radicals that successfully degrade persistent PFAS compounds and pharmaceutical residues to below detection limits.
Immunocompromised patients remain highly vulnerable to waterborne pathogens. Healthcare-Associated Infections (HAIs) and multi-drug resistant organisms, such as MRSA, VRE, Pseudomonas aeruginosa, and Legionella pneumophila, pose severe mortality risks. Securing the facility water loop is a top priority for hospital facility engineers complying with ASHRAE Standard 188.
Point-of-entry (POE) and point-of-use (POU) UV systems provide a robust engineering solution. POE systems treat the entire municipal feed entering the hospital, while POU systems secure individual sinks and showerheads in high-risk wards. UV-C acts as a highly effective adjunct to manual thermal eradication and chemical flushing protocols. Clinical data demonstrates it consistently outperforms activated hydrogen peroxide in neutralizing resilient hospital pathogens embedded in plumbing biofilms.
Engineers must address the physical limitations of UV-C in healthcare settings. Line-of-sight issues and shadowing caused by organic matter can reduce surface efficacy. Furthermore, the 254 nm standard carries a strict maximum safe exposure limit of 60 J/m² to prevent human DNA damage and skin erythema. In response, healthcare facilities are deploying emerging 222 nm Far-UVC technology. Far-UVC wavelengths cannot penetrate the human stratum corneum or the ocular tear layer, offering safe, continuous, occupied-space surface disinfection.
Hospitality managers face high chemical costs and poor guest experiences due to overwhelming chlorine odors. Furthermore, the risk of waterborne illness outbreaks from tap water or recreational facilities threatens brand reputation and invites severe legal liabilities.
Commercial pools, aquatic centers, and spas benefit immensely from UV integration. While chlorine remains necessary for residual disinfection in the pool basin, it reacts with organic matter (sweat, urea) to form chloramines. These combined chlorines are responsible for indoor pool smell, eye irritation, and respiratory distress. Medium-pressure UV light actively destroys monochloramine, dichloramine, and trichloramine through direct photolysis. By keeping combined chlorine levels below 0.2 ppm, facilities can reduce fresh water makeup requirements by up to 85%, saving massive amounts of water and heating energy.
Guest experience improves dramatically when municipal tap water reaches 5-star potable standards. UV ensures absolute biological safety for guests brushing their teeth or showering. It also secures commercial food prep areas, ice machines, and beverage dispensers against sudden municipal boil-water advisories.
Industrial sectors demand high-volume, chemical-free water security to protect product integrity and infrastructure. In the food and beverage sector, deploying a uv sterilizer for beverage production ensures zero microbial contamination. It achieves this without altering the delicate flavor profile, pH, or color of the final product. For example, large-scale breweries utilize UV-AOP for process water reuse, successfully cutting overall water consumption from 2.9 to 1.4 hectoliters per hectoliter of beer produced.
Agricultural and processing facilities face similar demands for biological control. Utilizing a uv sterilizer for food processing water allows operators to safely wash produce, sanitize conveyor belts, and recycle flume water. This completely eliminates the risk of chemical taint on consumer goods and reduces wastewater discharge fees.
Heavy industry requires pristine thermal management to maintain efficiency. Implementing a uv sterilizer for circulating water in cooling towers, heat exchangers, and semiconductor plants prevents biological fouling. It destroys the bacteria responsible for biofilm buildup without relying on highly corrosive chemical biocides that degrade expensive metal infrastructure over time.
Marine biology and commercial fisheries rely heavily on strict pathogen control. Using a uv sterilizer for process water in Recirculating Aquaculture Systems (RAS) and wellboats is standard industry practice. High-dose UV systems control devastating aquatic pathogens like the Infectious Pancreatic Necrosis (IPN) virus and sea lice larvae, ultimately improving fry survival rates by 10 to 20% and maximizing harvest yields.
Selecting the correct lamp technology dictates the operational efficiency, footprint, and maintenance schedule of the entire system. Engineers must match the lamp output to the specific flow rate and water transmittance profile.
Lamp Technology | Wavelength Output | Electrical Efficiency | Ideal Application | Expected Lifespan |
Standard Low-Pressure | Monochromatic (254 nm) | High (~40%) | Residential, light commercial, high UVT water. | 9,000 hours |
Low-Pressure Amalgam | Monochromatic (254 nm) | High (~35%) | Industrial POE, municipal wastewater, warm water. | 12,000 hours |
Medium-Pressure | Polychromatic (200-400 nm) | Low (~15%) | High-flow municipal, chloramine destruction in pools. | 8,000 hours |
UV-LED (Emerging) | Selectable (e.g., 265 nm) | Moderate | Remote POU, medical devices, intermittent flow. | 20,000+ hours |
Low-pressure amalgam lamps represent the industry standard for commercial disinfection. They maintain stable UV output even in fluctuating water temperatures and offer the best balance of electrical efficiency and longevity. Medium-pressure lamps operate at much higher temperatures and consume more power, but their massive energy output allows for highly compact reactor designs in space-constrained municipal plants. UV-LED technology represents the future of disinfection. These systems are entirely mercury-free, offer instant on/off capabilities without warm-up degradation, and boast an impressive lifespan. Currently, their adoption is limited primarily by higher capital costs for large-scale flow rates.

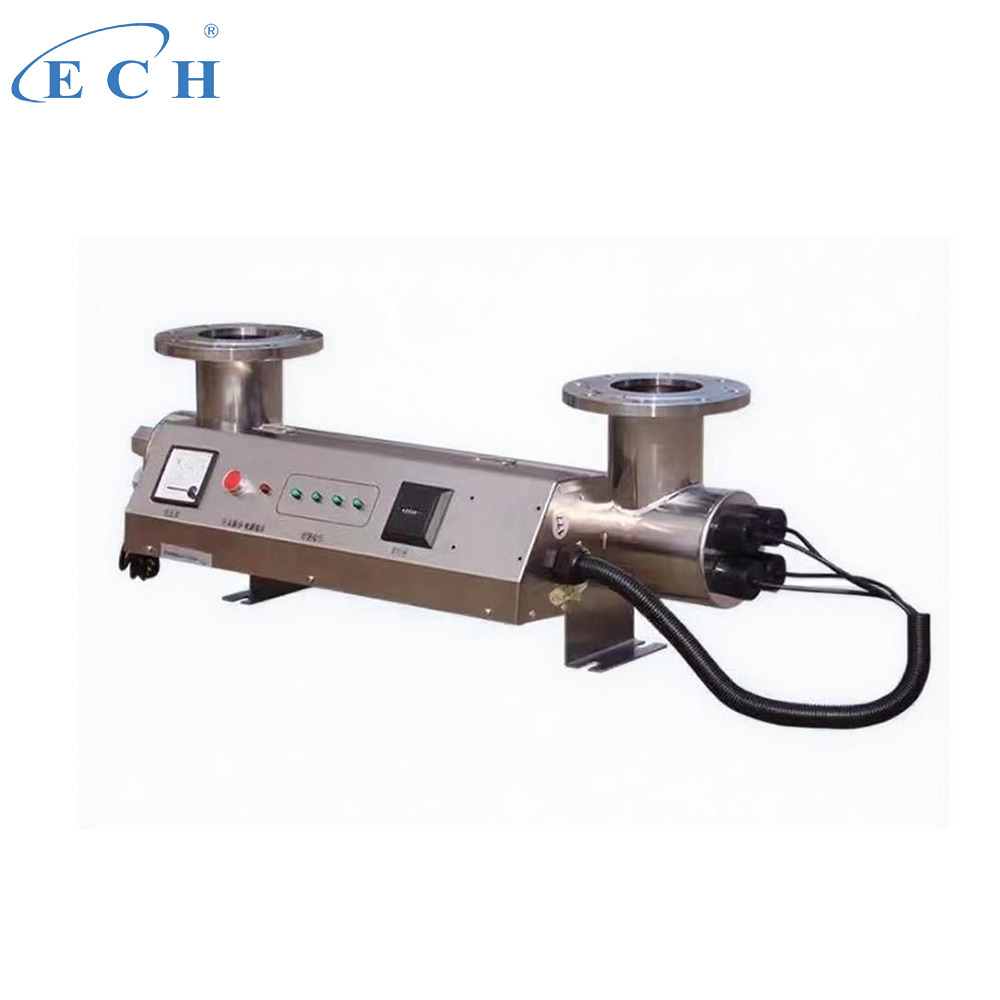

The physical construction of the UV chamber is critical for durability, hydraulic efficiency, and overall performance. Engineers mandate specifying an industrial uv sterilizer stainless steel reactor for all commercial applications. Using 304 or 316L stainless steel ensures the chamber can withstand high dynamic water pressures and resist corrosion from aggressive water chemistries. For ultra-pure water applications, the interior of the 316L stainless steel chamber must be electropolished to a surface roughness (Ra) of less than 0.38 µm. This prevents microscopic bacterial adhesion and maximizes internal UV reflection for better dose delivery.

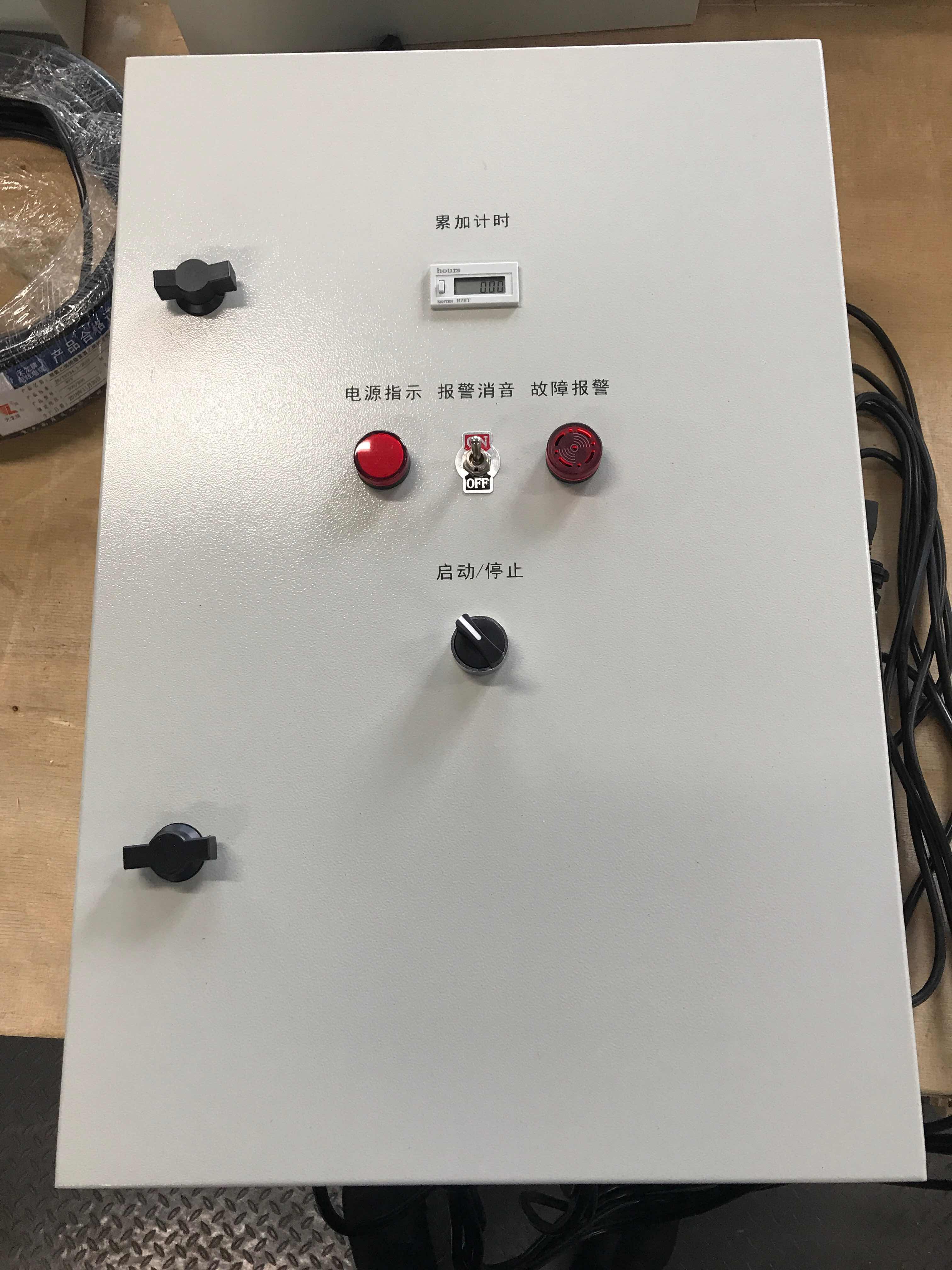

Modern systems require mandatory sensors and failsafes to guarantee compliance. Installations must include NIST-traceable UV intensity monitors and low-intensity alarms. These sensors continuously measure the actual UV light penetrating the water, accounting for lamp degradation and quartz fouling. Furthermore, automatic solenoid shut-off valves linked to the main water pump are non-negotiable. These valves halt water flow immediately during power outages or low-intensity alarm states, preventing untreated water from entering the facility distribution network.
UV systems fail if the feed water is not properly conditioned. Pathogens use suspended particulates as a physical shield against UV light, a phenomenon known as shadowing. To prevent this, strict water quality parameters must be met before water enters the UV chamber.
UV Transmittance (UVT): Must be greater than 75%, though ideally above 90%. UVT measures the percentage of UV light that can pass through a 1 cm water sample. Dissolved organics, iron, and manganese absorb UV light, drastically lowering UVT.
Turbidity: Must remain below 1 NTU. High turbidity indicates suspended solids that block light and harbor bacteria, strictly requiring mechanical pre-filtration.
Hardness: Must be below 7 gpg or 120 mg/L. Hard water requires a water softener to prevent calcium and magnesium scaling on the hot quartz sleeve, which blocks UV transmission.
Iron and Manganese: Iron must be below 0.3 ppm and manganese below 0.05 ppm to prevent severe sleeve staining and light blockage.
To achieve these parameters, facilities must implement a comprehensive treatment train. The table below outlines the ideal sequence for commercial water conditioning.
Treatment Stage | Equipment Type | Primary Function | Target Parameter Addressed |
Stage 1 | Sediment Filter (5-micron) | Removes physical particulates and sand. | Turbidity <1 NTU |
Stage 2 | Water Softener | Removes calcium and magnesium ions. | Hardness <120 mg/L |
Stage 3 | Carbon Filter | Removes chlorine, organics, and odors. | Improves UV Transmittance (UVT) |
Stage 4 | UV Sterilizer | Disrupts pathogen DNA/RNA. | Microbiological Safety (4-log reduction) |
Stage 5 (Optional) | Reverse Osmosis (RO) | Removes dissolved solids and heavy metals. | Total Dissolved Solids (TDS) |
Total Cost of Ownership (TCO) relies heavily on proactive maintenance and consumable replacement. Lamp degradation is inevitable due to the solarization of the quartz envelope. Lamps must be replaced annually or after 9,000 to 12,000 hours of operation. A lamp may still emit visible blue light while its invisible UV-C output has degraded well below safe germicidal levels.
Quartz sleeve cleaning is equally important for maintaining high UV transmittance. Sleeves must be cleaned quarterly with a 5-10% citric acid or vinegar solution to remove mineral fouling. Large municipal and industrial systems require automatic mechanical wiper systems. These wipers utilize Teflon or specialized rubber rings to combat algae and biofilm buildup along the sleeve without requiring system shutdowns or manual labor.
Occupational safety protocols must be strictly enforced during maintenance. Operators must never look directly at a lit UV bulb. Unprotected exposure causes photokeratitis, commonly known as welder's flash, and severe skin erythema within seconds of exposure. Systems should feature safety interlock switches that cut power to the lamps if the reactor housing is opened.
Finally, operators must manage secondary contamination risks. UV provides no residual disinfection downstream of the reactor. Periodic downstream pipe flushing is necessary to maintain system hygiene. Administering a 1 mg/L chlorine shock clears biological slime and biofilm from the distribution network, ensuring the water remains sterile from the POE to the final tap.
UV sterilization represents a highly efficient, chemical-free method for achieving up to a 6-log pathogen reduction across municipal, commercial, and industrial applications. While it requires strict pre-treatment and proactive maintenance, its low operating costs, minimal footprint, and elimination of toxic byproducts make it superior to traditional chemical disinfection. Decision-makers must evaluate vendors based on third-party validations, such as ANSI/NSF Standard 55 Class IIa for bacteria, and demand the inclusion of intensity sensors and automatic failsafes.
To move forward with a commercial UV integration, follow these actionable next steps:
Conduct a comprehensive feed water test focusing specifically on UVT, hardness, iron, and turbidity levels to establish a baseline.
Install necessary pre-treatment equipment, such as softeners and 5-micron sediment filters, to meet the strict UV input parameters and prevent quartz shadowing.
Consult with a certified water treatment engineer to calculate the exact mJ/cm² dosage required for your specific peak flow rate and target pathogens.
Implement an interlocked solenoid valve system to ensure water flow stops automatically during any power failure or low-intensity alarm state.
A: No. UV light only deactivates living microorganisms by disrupting their DNA. It must be paired with RO or carbon filtration to remove chemical or physical contaminants.
A: This is typically caused by a fouled quartz sleeve due to hard water scaling. It can also result from a degraded UV lamp exceeding its lifespan, or a sudden drop in the feed water's UV Transmittance (UVT).
A: While UV can replace chlorine for primary disinfection at the plant, a small amount of residual chlorine or chloramine is usually still required to protect the distribution pipes from secondary biofilm growth.
A: UV systems require electricity to function. Without power, untreated water can pass through. Systems must be wired to a solenoid valve and interlocked with the water pump to automatically shut off water flow if power is lost.
A: Most low-pressure lamps require replacement every 9,000 to 12,000 hours. This equates to roughly once a year of continuous use, regardless of whether the lamp still appears to be glowing blue.
