The shift away from chemical disinfection in commercial and industrial facilities stems from strict environmental regulations regarding disinfection byproducts (DBPs). Operations require immediate, residue-free pathogen control with a greater than 99.9% microbial kill rate. Facility managers and engineers frequently miscalculate peak flow rates or ignore baseline water quality metrics, specifically UV Transmittance (UVT). These specification errors result in undersized systems, failed health department inspections, and the dangerous phenomenon of microbial photorepair.
Selecting the right equipment requires moving beyond basic flow rate matching. Proper specification demands a thorough understanding of engineering parameters, pre-treatment prerequisites, and NSF/EPA compliance standards. This guide breaks down the technical metrics, validation protocols, and Total Cost of Ownership (TCO) required to specify a reliable disinfection system. Understanding these core principles ensures continuous regulatory compliance and facility safety across applications ranging from food processing to municipal well water management.
Sizing Requires Redundancy: Never size a commercial uv sterilizer for water based on average flow. Systems must be sized at 1.5x to 2x the peak flow rate to account for the 30–40% UV-C output degradation at the end of a lamp's lifecycle.
Pre-Treatment is Non-Negotiable: UV sterilization will fail if UV Transmittance (UVT) drops below 75–90%. Hardness (>6 gpg), Iron (>0.3 mg/L), and Turbidity (>5 NTU) must be mechanically or chemically removed prior to UV exposure.
Compliance Dictates Dosage: For microbiologically unsafe water, regulatory compliance requires an NSF/ANSI 55 Class A certified system delivering a minimum Reduction Equivalent Dose (RED) of 40 mJ/cm², equipped with real-time intensity sensors and automatic solenoid shut-off valves.
TCO Extends Beyond the Reactor: While a uv sterilizer for industrial water eliminates chemical storage costs, operational budgets must account for annual lamp replacements (every 10,000 hours), quartz sleeve maintenance, continuous power consumption, and professional installation.
Germicidal ultraviolet light operates on a fundamental biophysical principle. UV-C energy does not physically filter or remove pathogens from the water supply. Instead, it emits high-intensity light at a specific wavelength of 254 nanometers. This specific wavelength penetrates the cell walls of bacteria, viruses, and protozoa. Once inside the cellular structure, the UV-C energy disrupts the nucleic acids, specifically targeting the DNA and RNA. It creates thymine dimers, which are abnormal bonds between adjacent thymine bases. These bonds physically prevent the microorganisms from replicating. A pathogen that cannot reproduce is considered microbiologically dead and poses no threat of infection to humans or industrial processes.
The effectiveness of this biophysical process is measured in dosage. According to the EPA Ultraviolet Disinfection Guidance Manual (2006), dosage is calculated as a function of UV intensity multiplied by exposure time. Exposure time is directly dictated by the water's flow rate through the reactor chamber. This calculated metric is known as the Reduction Equivalent Dose (RED), expressed in millijoules per square centimeter (mJ/cm²). Achieving the correct RED is the single most important factor in system design. If the water flows too quickly, the exposure time drops, and the delivered dose falls below lethal thresholds. Engineers must calculate the exact residence time of water within the chamber to guarantee the minimum required RED is achieved under worst-case flow conditions.
Different microorganisms require different energy thresholds for complete inactivation. Standard industry guidelines outline specific lethal doses for common waterborne pathogens to achieve a 4-log (99.99%) reduction. System engineers must design the treatment array to exceed the highest required dose for the target contaminants.
Target Pathogen |
Pathogen Type |
Minimum Required Dose (mJ/cm²) for 4-Log Reduction |
E. coli |
Bacteria |
6.6 |
Salmonella typhi |
Bacteria |
7.6 |
Cryptosporidium parvum |
Protozoan Cyst |
5.8 - 10.0 |
Giardia lamblia |
Protozoan Cyst |
5.8 - 10.0 |
Hepatitis A |
Virus |
16.0 - 30.0 |
Adenovirus |
Virus |
186.0 |
This data highlights a massive operational advantage over traditional chlorination. Chlorine is highly ineffective against hard-shelled protozoa like Cryptosporidium and Giardia, requiring massive contact times and high chemical concentrations to achieve even minor reductions. Ultraviolet light easily penetrates their protective cysts, making it the superior choice for surface water and municipal water polishing.
Installing undersized systems or operating degraded lamps introduces severe biological risks. Sub-lethal UV doses may temporarily stun bacteria without permanently destroying their DNA. When these damaged microorganisms are subsequently exposed to visible light, they activate a photolyase enzyme. This enzyme repairs the broken DNA strands in a process known as photorepair. A similar enzymatic process, dark repair, occurs in certain bacterial strains even without visible light exposure. This biological rebound leads to sudden, dangerous contamination spikes downstream. Delivering a robust, redundant initial dose well above the minimum threshold prevents microbial reactivation.
The core emitter dictates the efficiency and application suitability of the entire system. Engineers select from three primary lamp technologies based on facility flow rates, water temperature, and environmental conditions.
Low-Pressure (LP) Lamps: These provide standard electrical efficiency and operate at lower surface temperatures (around 40°C). They emit a monochromatic light at exactly 254 nm. They are highly suitable for residential and light commercial use where flow rates remain relatively low and predictable.
Low-Pressure Amalgam (LPHO) Lamps: These emitters utilize a solid amalgam alloy rather than liquid mercury. They deliver significantly higher UV-C output—often three to four times that of standard LP lamps—and maintain exceptional temperature stability. LPHO lamps are ideal for facilities experiencing fluctuating water temperatures, as their output does not degrade when treating very cold water.
Medium-Pressure (MP) Lamps: These lamps generate a polychromatic, broad-spectrum output (200 nm to 400 nm) and pack massive power into a smaller physical footprint. They operate at extremely high temperatures (up to 800°C) and consume higher amounts of energy. They process immense volumes of water and are the standard choice for high-flow inline industrial uv sterilizer applications, such as municipal water plants and large-scale beverage bottling facilities.

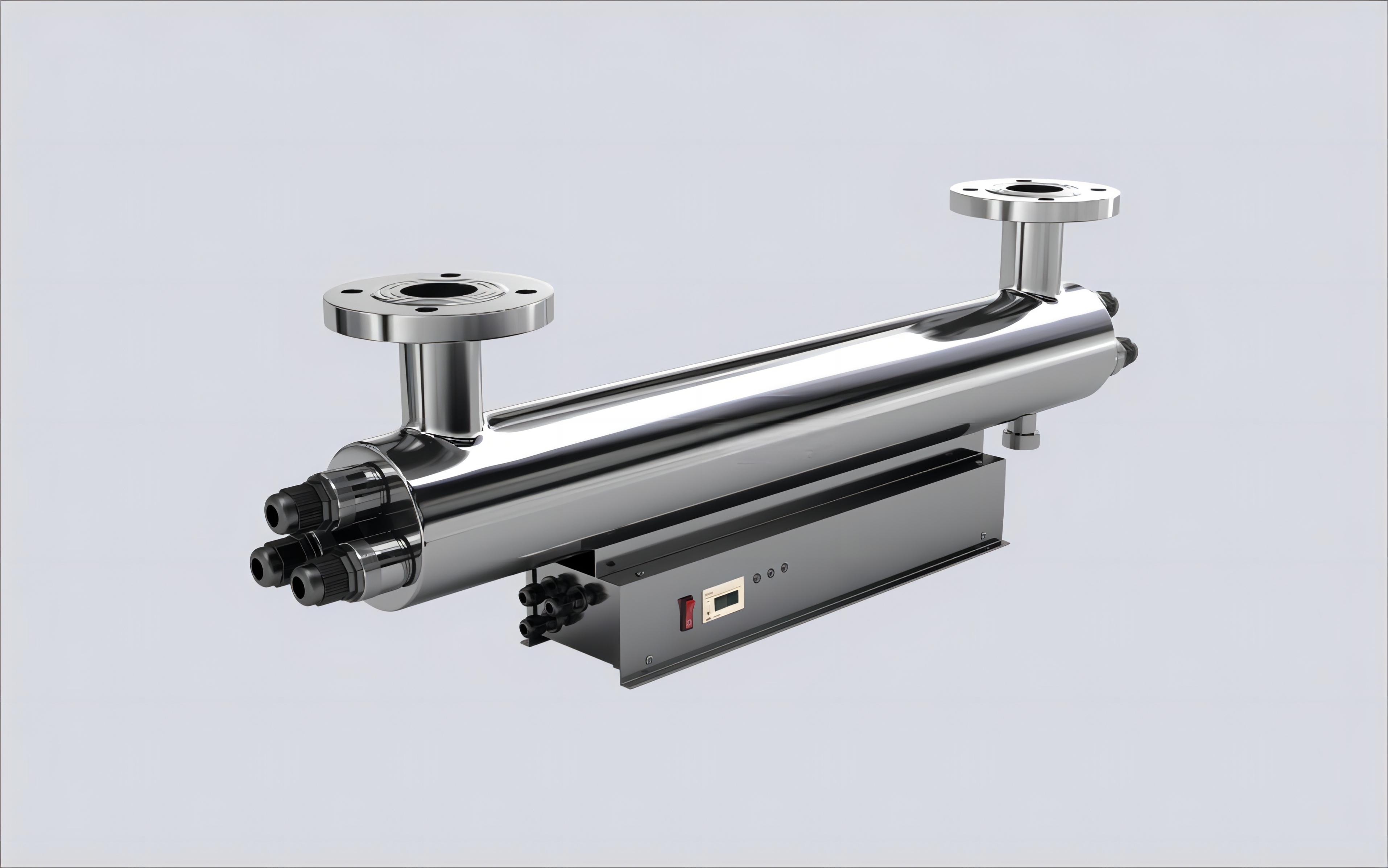

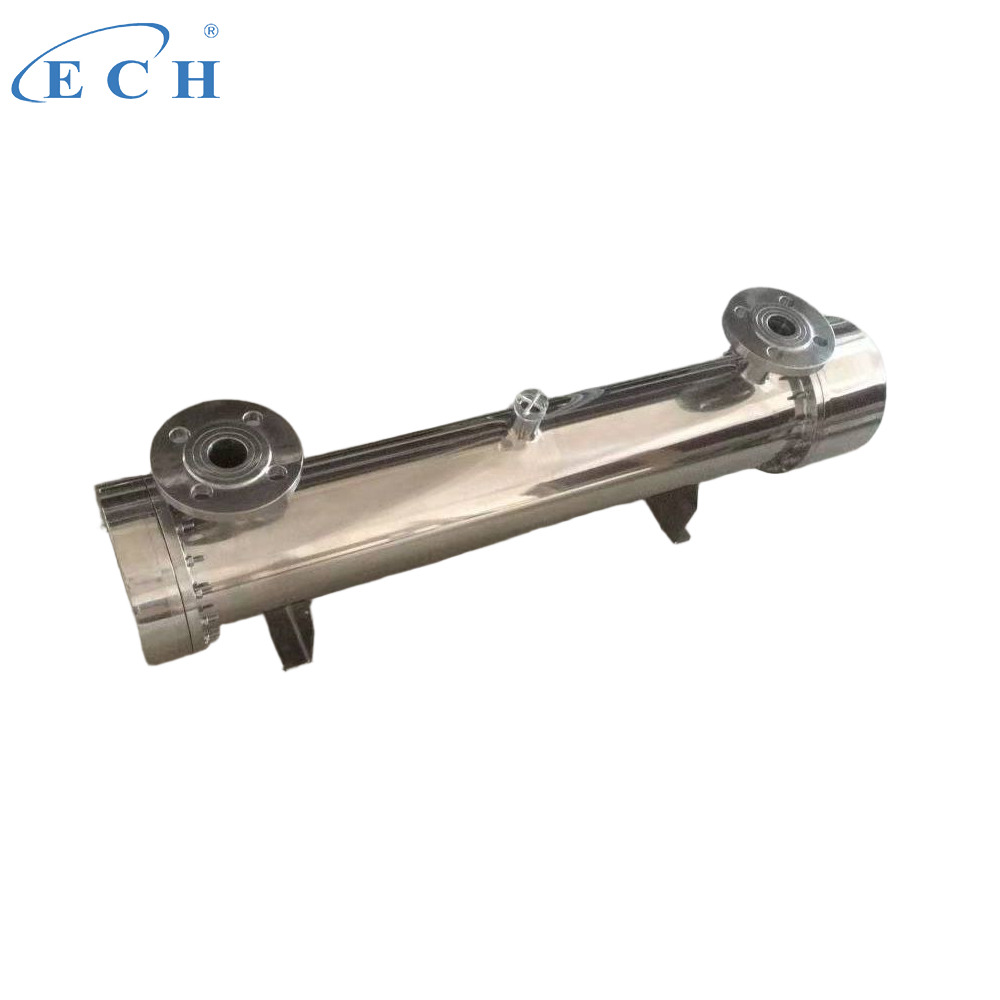

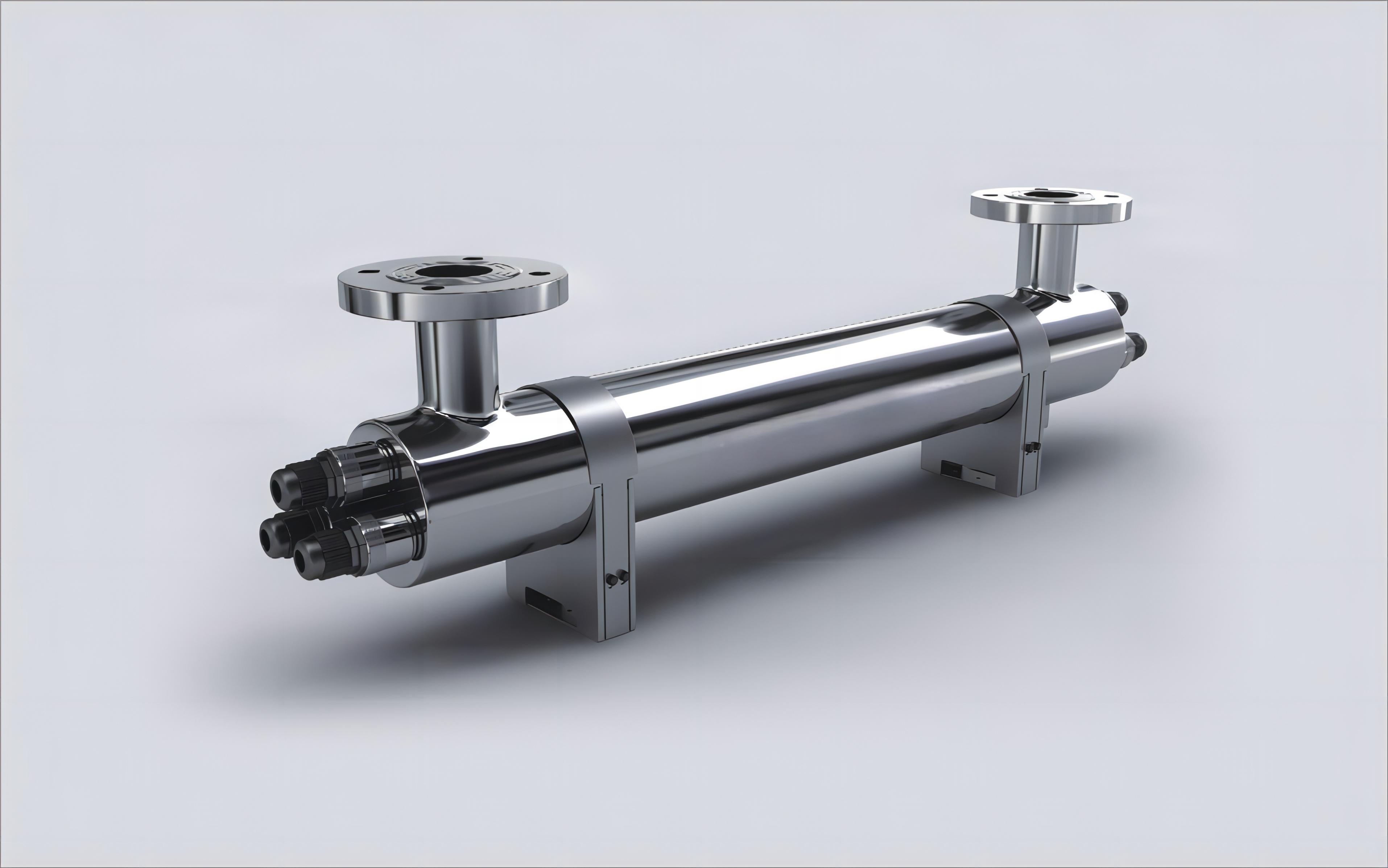

The reactor chamber houses the lamps and directs the water flow. Construction material depends on the application. Standard commercial units utilize 304 stainless steel, while high-purity pharmaceutical, food processing, or corrosive environments require 316L stainless steel to prevent pitting and degradation. Internal baffling is engineered into the chamber to create optimal water turbulence. This turbulence ensures all pathogens are pushed close to the quartz sleeves for maximum UV exposure, preventing short-circuiting where water bypasses the high-intensity zones.
Physical installation requires horizontal mounting for larger units. Horizontal configurations prevent the heavy stainless steel chamber from placing mechanical stress on the facility's plumbing joints and allow for easier lamp extraction during maintenance. Standard facilities use closed-channel reactors, whereas municipal plants often deploy open-channel arrays when utilizing a uv sterilizer for wastewater treatment to handle massive, gravity-fed effluent flows.
UV lamps never touch the water directly. They are housed inside highly transparent, fused silica quartz sleeves. The quartz sleeve isolates the electrical lamp from the water while maintaining the thermal stability required for optimal mercury vapor pressure. Minerals and organic matter naturally adhere to the warm quartz surface over time, creating a physical barrier that blocks UV-C transmission.
In high-fouling industrial environments, manual cleaning requires shutting down the water supply and disassembling the reactor, which is highly inefficient. Advanced systems incorporate automatic mechanical cleaning systems, known as wipers. These wipers utilize Teflon or specialized rubber collars driven by pneumatic or electric motors. They periodically scrape the quartz sleeves to prevent mineral scaling from blocking the germicidal light, ensuring continuous optimal dosage delivery.
The ballast serves as the control center, regulating the electrical output delivered to the lamps. It ensures a stable arc, manages the ignition voltage, and monitors system performance. Facility managers must account for the initial burn-in period. New UV lamps experience a characteristic 20% intensity drop during their first 100 hours of operation before stabilizing. Dosage calculations must always be based on the stabilized, end-of-life output, not the initial 100-hour peak.
Strict temperature constraints apply to low-pressure systems. They should only be installed on cold water lines maintaining temperatures between 50–100°F (10–37°C). Excessive heat degrades lamp output and compromises the ballast electronics. If a system operates with zero flow for extended periods, the water inside the chamber heats up, requiring automatic dump valves to flush the hot water and protect the equipment.
System sizing begins by defining the installation scope. Point of Use (POU) systems provide localized treatment, typically processing 1–3 Gallons Per Minute (GPM) for a single dedicated faucet, ice machine, or laboratory sink. Point of Entry (POE) systems treat all water entering the facility. POE systems scale from 40 to well over 1,000 GPM, ensuring facility-wide protection at the main water service line.
Accurate sizing requires establishing baseline flow metrics before scaling up to industrial capacities. The physical diameter of the incoming supply line dictates the absolute maximum potential flow. If a facility has a 2-inch main line, the system must be capable of handling the maximum flow velocity of that pipe, regardless of average daily usage.
3/4-inch pipe: Maximum flow capacity is approximately 7 to 10 GPM.
1-inch pipe: Maximum flow capacity is approximately 15 to 20 GPM.
1.5-inch pipe: Maximum flow capacity is approximately 35 to 40 GPM.
2-inch pipe: Maximum flow capacity is approximately 75 to 85 GPM.
Commercial sizing cannot operate on a 1:1 ratio with peak flow. A commercial uv sterilizer for water must be sized using the 1.5x to 2x redundancy rule. A system must deliver the mandatory 40 mJ/cm² dose at the very end of the lamp's life, typically after 10,000 hours of continuous use. By this time, the lamp's UV-C output degrades by 30% to 40%. To guarantee safe dosage levels on day 364 of the lamp's lifecycle, significant upfront over-sizing is an absolute engineering requirement. For example, a facility with a calculated peak flow of 50 GPM requires a system rated for at least 75 to 100 GPM at a 40 mJ/cm² dose.
Applying the redundancy rule allows engineers to map specific facility types to their required system capacities. Peak demand moments, such as manufacturing shift changes or restaurant dinner rushes, drastically reduce water exposure time in the reactor.
Small Offices / Clinics: Require systems rated for 15–20 GPM to handle simultaneous restroom and breakroom usage.
Mid-Sized Restaurants (50-100 seats): Require systems rated for 50–80 GPM to handle kitchen prep, dishwashers, and restroom peak flows simultaneously.
Schools / Large Campgrounds: Require systems rated for 100–150 GPM due to massive, concentrated usage spikes during class changes or morning routines.
Manufacturing / Pharma / Food & Beverage: Require systems rated for 200+ GPM. These massive flow rates necessitate multi-lamp industrial uv sterilizer system arrays, often utilizing medium-pressure technology to handle the volume.
Even with redundant sizing, unexpected municipal pressure spikes push water through the reactor too quickly. Installing flow restrictors, or flow control valves, is a mandatory safety measure. These physical valves restrict the water velocity, preventing it from exceeding the reactor's maximum rated GPM. This guarantees the water remains in the chamber long enough to absorb the lethal UV dose, acting as a physical fail-safe against over-pumping.
Ultraviolet light cannot disinfect what it cannot reach. UV Transmittance (UVT) measures the percentage of UV light that successfully passes through a 1-centimeter water column. For the calculated dose to reach the pathogens, the UVT must remain above 75%, with optimal performance occurring above 90%. Suspended solids, organic matter, and dissolved minerals create a shadowing effect. They act as microscopic shields, physically blocking the UV rays and allowing bacteria to pass through the reactor unharmed. If the UVT drops from 95% to 85%, the effective dosage delivered to the pathogens can drop by more than half, rendering the system ineffective.
Municipal water is typically pre-treated and maintains a high UVT, but well water and surface water present compound chemical challenges. Lake and well water frequently contain high levels of iron, manganese, and heavy sediment. These contaminants cause rapid iron staining and mineral scaling on the quartz sleeve. A UV Sterilizer cannot fix sulfur odors, remove heavy metals, or filter out mud. It is strictly a biological disinfection tool that requires pristine water clarity to function.
Before water enters the reactor chamber, it must meet strict chemical and physical parameters. Failure to meet these maximum allowable contaminant levels voids manufacturer warranties and compromises disinfection.
Water Quality Parameter |
Maximum Allowable Level |
Impact on UV System if Exceeded |
Turbidity |
< 5 NTU |
Creates shadowing effect; shields pathogens. |
Total Suspended Solids (TSS) |
< 10 mg/L |
Absorbs UV energy; physically blocks light. |
Hardness |
< 6 gpg (102.6 ppm) |
Causes rapid calcium scaling on quartz sleeves. |
Iron |
< 0.3 mg/L |
Stains quartz sleeves brown; blocks transmission. |
Manganese |
< 0.05 mg/L |
Creates black scaling on sleeves; absorbs UV-C. |
Tannins |
< 0.1 ppm |
Discolors water (yellow/brown); severely lowers UVT. |
To achieve these strict water quality metrics, facilities must implement a multi-stage filtration architecture. The installation order dictates the success of the entire plumbing network.
Pressure Tank: Stabilizes incoming well or municipal water pressure.
5-Micron Sediment Filter: Removes heavy particulates, sand, and turbidity.
Iron/Sulfur Filter: Oxidizes and removes dissolved metals that cause staining.
Acid Neutralizer: Corrects pH if it falls below 6.5 to prevent plumbing corrosion.
Water Softener: Removes calcium and magnesium hardness to protect the quartz sleeve from scaling.
Reverse Osmosis (Optional): Strips remaining total dissolved solids for high-purity applications.
UV Sterilizer: The absolute final stage before the water reaches the facility distribution lines, ensuring no downstream contamination occurs after treatment.
Regulatory bodies classify systems based on their proven dosage delivery. Understanding the distinction between Class A and Class B dictates whether a facility passes or fails health department audits.
Class A: These systems deliver a minimum RED of 40 mJ/cm² at the fail-safe setpoint. They are mandatory for commercial facilities, public water systems, and any application treating microbiologically unsafe water. They are validated to inactivate highly resilient pathogens, including viruses and cysts.
Class B: These systems deliver a much lower dose of 16 mJ/cm². They are only permitted for the supplemental treatment of already-safe, municipally treated water to reduce non-disease-causing nuisance bacteria. Using a Class B system as primary disinfection results in immediate failure during health department audits.
Manufacturers do not estimate their system's dosage. Class A certification requires rigorous biodosimetry testing. Independent laboratories inject challenge microorganisms, such as the MS2 bacteriophage or Bacillus subtilis spores, into the water stream under various flow rates and artificially lowered UVT conditions. The reduction of these live surrogate organisms proves the exact Reduction Equivalent Dose (RED) the reactor delivers under real-world, worst-case scenarios. This empirical data forms the basis of the system's validation certificate.
Commercial installations require automated fail-safes to protect public health. Relying on visual inspection of the reactor is inadequate.
Real-Time UV Intensity Monitors: Looking at a blue glow through a viewport is insufficient. Intensity sensors physically measure the actual UV-C penetration through the water column, alerting operators if the quartz sleeve scales over or if the lamp degrades prematurely.
Audio/Visual Alarms: Systems feature integrated alarms for immediate notification of ballast failure, power loss, or lamp degradation below the 40 mJ/cm² threshold.
Automatic Solenoid Shut-Off Valves: If the UV intensity drops below the safe threshold, the solenoid valve physically cuts off the water supply, preventing untreated water from entering the facility.
Health Department Logbooks: Facility managers maintain strict, up-to-date maintenance logs documenting lamp changes, quartz sleeve cleanings, and sensor calibrations for inspector review.
Evaluating the Return on Investment (ROI) requires framing UV technology against traditional chemical dosing. The operational advantages heavily favor ultraviolet systems in modern facilities.
Operational Metric |
UV Sterilization |
Chlorination |
Chemical Storage |
None required. Fully OSHA compliant. |
Requires hazardous material storage, ventilation, and handling. |
Disinfection Byproducts |
Zero DBPs created. |
Generates harmful Trihalomethanes (THMs) and Haloacetic Acids (HAAs). |
Taste & Odor |
Completely neutral. No alteration to water chemistry. |
Alters water taste and leaves strong chemical odors. |
Disinfection Speed |
Instantaneous upon exposure in the reactor. |
Requires large contact tanks and 20-30 minutes of retention time. |
While a uv sterilizer for industrial water eliminates chemical purchasing, it introduces continuous electrical loads. Industrial benchmarks provide clear TCO forecasting. Low-pressure systems are highly efficient, consuming roughly 100–250 kWh per million gallons treated. Medium-pressure systems, required for massive flow rates and poor UVT conditions, consume significantly more power, averaging 460–560 kWh per million gallons treated. Facility engineers must calculate this continuous electrical draw into the annual operating budget.
Predictable maintenance schedules prevent sudden compliance failures. Facility budgets must account for strict replacement cycles and professional labor.
Lamp Replacement: Lamps operate on a strict 9,000 to 10,000-hour replacement cycle. This equates to approximately one year of continuous operation. Lamps must be replaced at this interval regardless of whether they still emit visible blue light, as the invisible UV-C spectrum degrades over time.
Quartz Sleeve: The sleeve requires periodic acid-washing to remove mineral scale. It must be physically replaced every 2–3 years to maintain optimal optical clarity and prevent micro-fractures from thermal stress.
Installation Labor: Integration requires professional plumbing and electrical work. Facilities budget $500–$2,000 for initial installation labor, depending on pipe diameter and electrical panel upgrades.
Parts Estimates: Light commercial systems average $200–$350 annually in consumable parts. Multi-lamp industrial arrays require $400–$1,200+ annually for comprehensive maintenance, including multiple lamps, sleeves, and wiper seals.
A properly engineered ultraviolet system is the most efficient, broad-spectrum disinfection method available for commercial and industrial applications. It eliminates hazardous chemical handling, prevents the formation of toxic byproducts, and neutralizes chlorine-resistant protozoa. This efficiency depends entirely on strict adherence to pre-treatment protocols and sizing the system for end-of-life lamp degradation. Bypassing water quality requirements or undersizing the reactor guarantees system failure and regulatory non-compliance.
When evaluating manufacturers and equipment, prioritize systems backed by NSF Class A validation. Ensure the specified unit features integrated UV intensity sensors and offers seamless compatibility with automatic solenoid shut-off valves. These features maintain regulatory compliance and facility safety.
To move forward with a commercial installation, follow these immediate next steps:
Conduct a comprehensive laboratory water test, specifically isolating Iron, Hardness, and UV Transmittance (UVT) levels.
Calculate the facility's absolute peak GPM by auditing all incoming pipe diameters and concurrent fixture usage.
Design and install the necessary pre-treatment filtration sequence to bring turbidity and hardness within acceptable limits.
Request customized equipment quotes from industrial water treatment engineers based on the validated peak flow and water chemistry data.
A: Only if heavily pre-treated. Wastewater requires tertiary polishing, such as ultrafiltration or sand filtration, to bring total suspended solids and turbidity down to acceptable levels before UV exposure. Alternatively, specialized open-channel UV reactors equipped with automatic mechanical wipers handle higher fouling environments.
A: This indicates low UV Transmittance (UVT) inside the chamber. The alarm triggers due to fouled quartz sleeves, heavy iron buildup, or a sudden spike in water turbidity that physically blocks the UV sensor from reading the light output.
A: No. Unlike chlorination, UV is a physical biophysical process that adds zero chemicals to the water. It creates no disinfection byproducts (DBPs) and leaves the pH, taste, and odor completely unaltered.
A: UV systems require continuous electricity to maintain the germicidal arc. If power fails, untreated water passes through the chamber. Commercial systems must be wired to backup generators and utilize normally-closed solenoid valves that physically shut off water flow during power loss.
A: While 30 mJ/cm² is an older industry baseline that handles most standard bacteria, 40 mJ/cm² is the modern NSF/ANSI 55 Class A standard. This higher dose is required for commercial compliance and provides robust protection against highly resilient protozoan cysts and viruses.
A: Never. Hard water instantly scales the hot quartz sleeve with calcium and magnesium deposits, rendering the UV light useless. The UV sterilizer must always be the absolute final stage of the water treatment sequence.
