While over 85% of US households and countless industrial facilities deal with hard water, solving hardness alone does not guarantee safe or pure water. Relying on a single treatment method leaves critical vulnerabilities in water quality. Deploying advanced filtration like Reverse Osmosis (RO) or biological treatment like a UV sterilizer in isolation often leads to premature system failure. Hard water scales UV quartz sleeves, rendering them blind, and fouls RO membranes. Furthermore, particulate matter allows bacteria to survive UV exposure. Achieving comprehensive water quality—whether for a high-end residential whole-house system or a commercial facility—requires a multi-barrier approach. This guide breaks down the exact sequencing, dependencies, and sizing frameworks required to integrate softening, RO, and UV sterilization into a single, fail-safe treatment train.
Sequence is Non-Negotiable: The gold standard topology is Pre-filtration (20-micron) → Water Softener → Precision Filtration (5-micron) → RO System → UV Sterilizer.
Hardness Dictates UV Efficacy: A UV sterilizer cannot function effectively if water hardness exceeds manufacturer limits (typically 7 grains per gallon). Scaling blocks UV transmittance, making a preceding water softener mandatory in hard water environments.
The "Shadowing" Risk: UV light requires clear line-of-sight. A 5-micron pre-filter is strictly required before the UV chamber to prevent bacteria and viruses from hiding behind suspended particulates.
TCO and Maintenance Reality: While UV offers chemical-free sterilization, total cost of ownership relies on protecting the fragile quartz sleeve from iron, manganese, and calcium buildup through proper upstream conditioning.
Users often confuse the capabilities of different water treatment systems, leading to redundant purchases or dangerous gaps in water safety. No single technology addresses all water quality parameters. Biological contaminants, dissolved heavy metals, and scaling minerals each require distinct physical or chemical processes for removal or neutralization. Establishing a multi-barrier system means understanding the exact functional boundaries of each component.
Water softeners utilize an ion exchange process. Inside the resin tank, millions of microscopic polystyrene beads carry a negative charge, holding onto positively charged sodium ions. As hard water containing calcium and magnesium flows through the resin bed, the stronger positive charge of the hardness minerals displaces the sodium. This process effectively prevents scaling inside pipes and appliances. However, ion exchange does not filter out heavy metals, volatile organic compounds (VOCs), chlorine, or biological pathogens. The water is softened, but not necessarily purified.
Reverse Osmosis (RO) operates on a completely different principle. It uses hydrostatic pressure to force water molecules through a semi-permeable membrane with pores as small as 0.0001 microns. This physical barrier rejects microscopic contaminants, including lead, arsenic, nitrates, and dissolved salts, flushing them down the drain as concentrate. While RO produces exceptionally high-purity water, the membrane is highly susceptible to fouling. If hard water enters an RO system, calcium carbonate precipitates on the membrane surface, rapidly destroying its permeability and lifespan.
Ultraviolet sterilization targets biological threats. These systems emit UV-C light at a specific wavelength (typically 254 nanometers) to penetrate the cell walls of microorganisms like Cryptosporidium, Giardia, and E. coli. The light energy alters the DNA of these pathogens, preventing them from reproducing and rendering them harmless. Following EPA and WQA biological treatment standards, UV provides highly effective disinfection. It does not, however, remove dissolved solids, alter the taste of the water, or filter out chemical contaminants.
A persistent industry misunderstanding surrounds "salt-free" conditioners. Salt-free descalers utilize Template Assisted Crystallization (TAC) to alter the physical state of minerals, turning them into microscopic crystals that do not adhere to pipe walls. They do not remove the hardness minerals from the water. Because the calcium and magnesium remain present, these systems cannot protect a UV quartz sleeve from scaling in high-hardness scenarios. When the water hits the heat of the UV lamp, the minerals will still bake onto the glass.
Treatment System | Primary Mechanism | Target Contaminants | What It Cannot Do |
Water Softener | Ion Exchange | Calcium, Magnesium, low-level Iron | Cannot remove bacteria, viruses, heavy metals, or chemicals. |
Reverse Osmosis (RO) | Semi-permeable Membrane | Lead, Arsenic, Nitrates, VOCs, TDS | Cannot handle hard water; susceptible to mineral fouling. |
UV Sterilization | UV-C Light (254nm) | Bacteria, Viruses, Cysts (Giardia) | Cannot remove dissolved solids, minerals, or alter taste. |

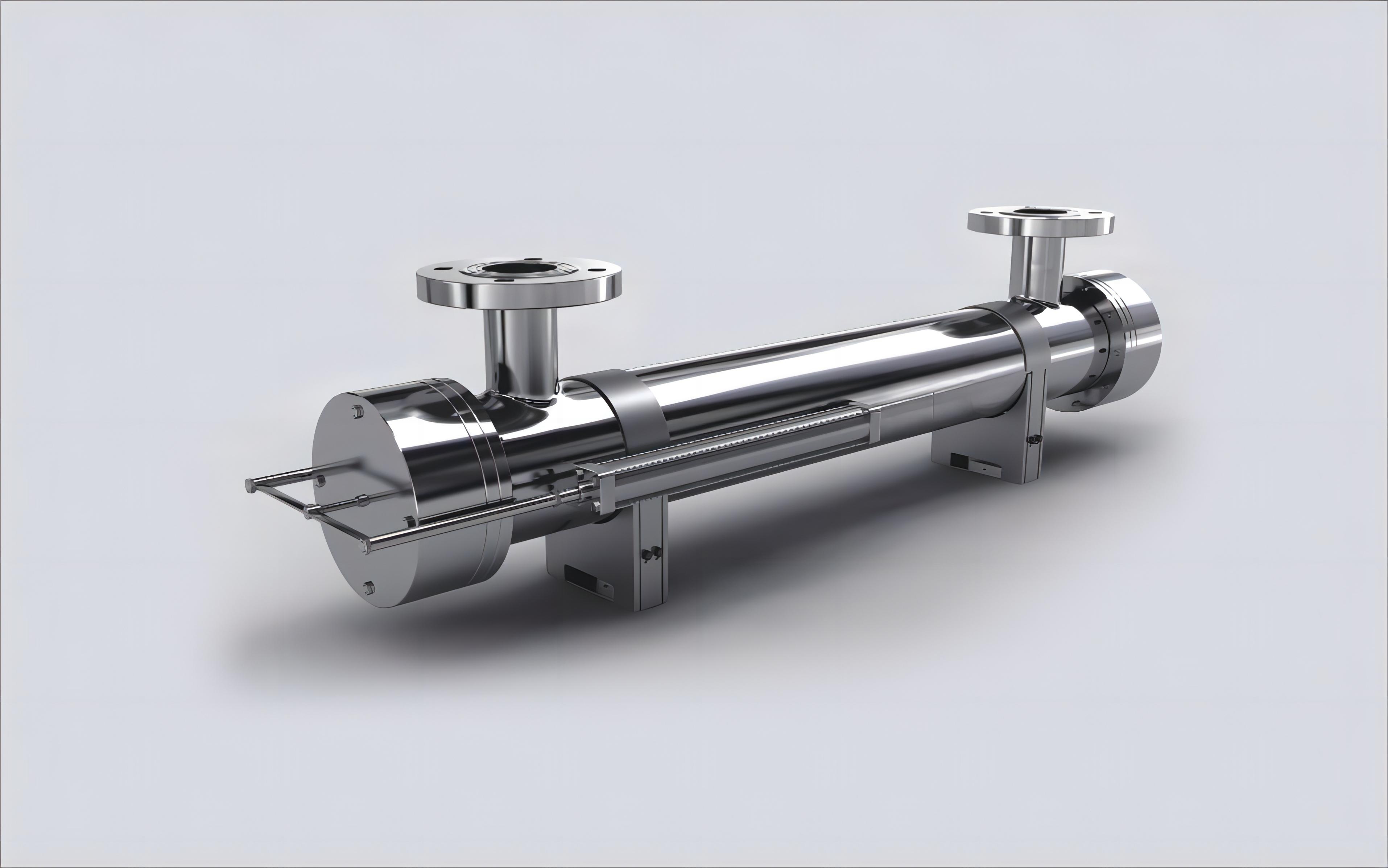

The physics of UV failure are directly tied to upstream water conditions. Inside a UV chamber, the ultraviolet lamp is housed within a clear quartz sleeve to protect the electrical components from water exposure. During operation, the UV lamp generates significant heat. When hard water flows past this heated quartz sleeve, the thermal energy causes dissolved calcium, magnesium, iron, and manganese to precipitate out of the water and bake onto the glass surface.
This scaling creates a cloudy, opaque film over the quartz. Because UV-C light requires absolute line-of-sight to penetrate the water column and reach the microorganisms, even a microscopic layer of scale severely reduces UV transmittance. Within weeks, a scaled quartz sleeve can block enough light to render the system entirely useless against bacteria, allowing live pathogens to pass through into the distribution system.
To prevent this failure, manufacturers enforce strict influent water quality requirements for UV systems to maintain compliance and warranty validity. Standard specifications dictate that water entering the UV chamber must have a hardness level below 120 mg/L (7 grains per gallon). Furthermore, iron levels must remain below 0.3 ppm, and manganese must not exceed 0.05 ppm. If the source water exceeds any of these parameters, an upstream water softener becomes a mandatory operational requirement.
For residential applications, fully softened water presents a secondary challenge: taste and texture. Many users dislike the "slick" feel of softened water during bathing or find the taste flat due to the removal of mineral content and the addition of trace sodium. Plumbers and system designers utilize two primary implementation strategies to mitigate these concerns while maintaining equipment protection.
The first approach is the bypass valve strategy. Installers can configure a bypass manifold at the softener to blend a precisely metered amount of hard water back into the treated line. This preserves a degree of mineral taste and reduces the slick feeling. The strict requirement here is that the blended water's total hardness must remain strictly below the UV manufacturer's maximum threshold of 7 gpg to prevent sleeve scaling.
The second approach is the dedicated line strategy. The softener is installed on the main incoming line to protect the entire plumbing infrastructure, the water heater, and the downstream UV system. However, a separate, unsoftened cold water line is routed directly to the kitchen sink for drinking and cooking. This ensures the primary distribution system remains scale-free while providing unadulterated water for consumption.
System architecture dictates the success or failure of a multi-barrier setup. The definitive, step-by-step installation order ensures that each component physically protects the subsequent equipment from damage or inefficiency.
Step 0: Specialty Oxidation Filtration (Well Water Only)
If the source water contains high levels of iron, manganese, or hydrogen sulfide (noted by a rotten egg odor), a dedicated oxidation system must precede all other equipment. Technologies like air injection (AIO) or hydrogen peroxide injection oxidize dissolved metals into solid particles, which are then trapped by a specialized media bed (such as Katalox Light or Birm). Softeners cannot handle high iron loads without the resin becoming permanently fouled.
Step 1: Coarse Pre-Filtration (20-Micron)
A pleated or spun polypropylene sediment filter acts as the first line of defense against physical debris. This stage captures large suspended solids, sand, silt, and rust flakes. Removing this coarse material protects the delicate internal control valves of the downstream water softener and prevents the resin bed from becoming clogged with mud.
Step 2: Water Softener
Positioned immediately after coarse filtration, the softener strips the water of calcium and magnesium. By converting hard water to soft water at this stage, the system ensures that no scaling minerals reach the highly sensitive RO membrane or the heat-generating UV quartz sleeve.
Step 3: Precision Filtration (5-Micron Big Blue)
This is a strict requirement before biological treatment. Microorganisms are incredibly small; bacteria range from 0.2 to 2 microns. If the water contains suspended particles larger than 5 microns, bacteria can physically hide behind these particles as they pass through the UV chamber. This phenomenon, known as the "shadowing effect," allows pathogens to survive UV exposure. A 5-micron absolute filter eliminates these hiding spots.
Step 4: Reverse Osmosis (RO)
Operating on softened, pre-filtered water, the RO membrane can function at peak efficiency without the risk of mineral scaling. For residential setups, whole-house RO systems require massive booster pumps, large atmospheric storage tanks, and generate significant wastewater. Therefore, point-of-use (under-sink) RO is often the more pragmatic choice, providing highly purified water specifically for drinking and cooking.
Step 5: UV Sterilizer
The biological safeguard is always the final stage. Placed at the end of the treatment train, it processes fully clarified, unscaled, and filtered water right before distribution or consumption. Positioning it last ensures the UV light operates at maximum transmittance and prevents any potential bacterial contamination introduced by the upstream filtration media or storage tanks.

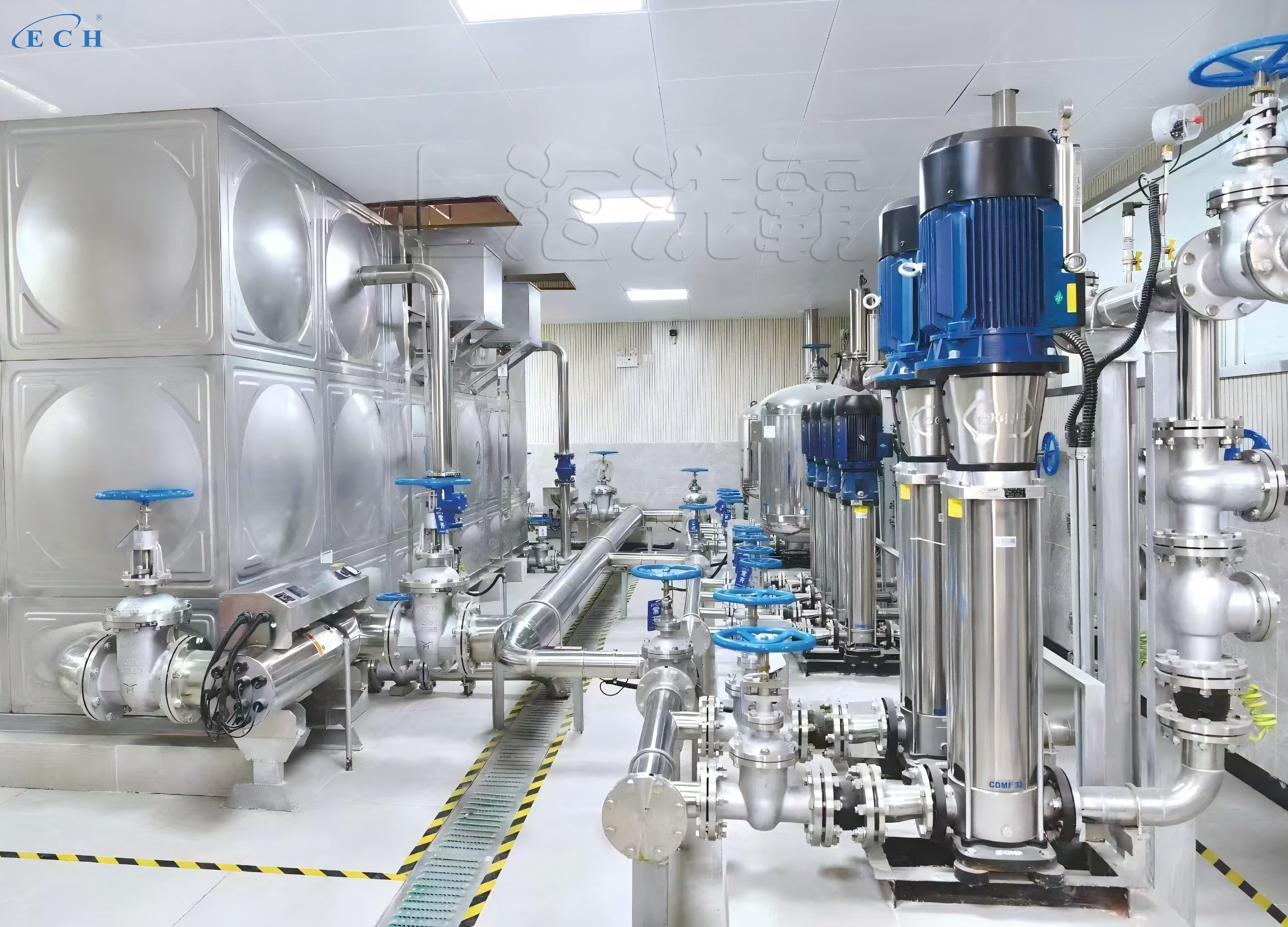

The residential multi-barrier concept scales directly into commercial and industrial use cases, though the equipment sizing, monitoring requirements, and regulatory compliance standards increase exponentially.
In manufacturing and cooling applications, integrating a uv sterilizer for recirculating process water provides significant operational advantages. Closed-loop cooling towers and industrial heat exchangers are highly susceptible to biological fouling. Bacteria thrive in warm water, creating thick biofilms that insulate heat transfer surfaces and drastically reduce cooling efficiency. Traditional mitigation involves dosing heavy biocides and corrosive chemicals, which degrade piping infrastructure. UV integration provides continuous, chemical-free disinfection, breaking down bacterial DNA on every pass through the loop, thereby maintaining heat transfer efficiency without accelerating corrosion.

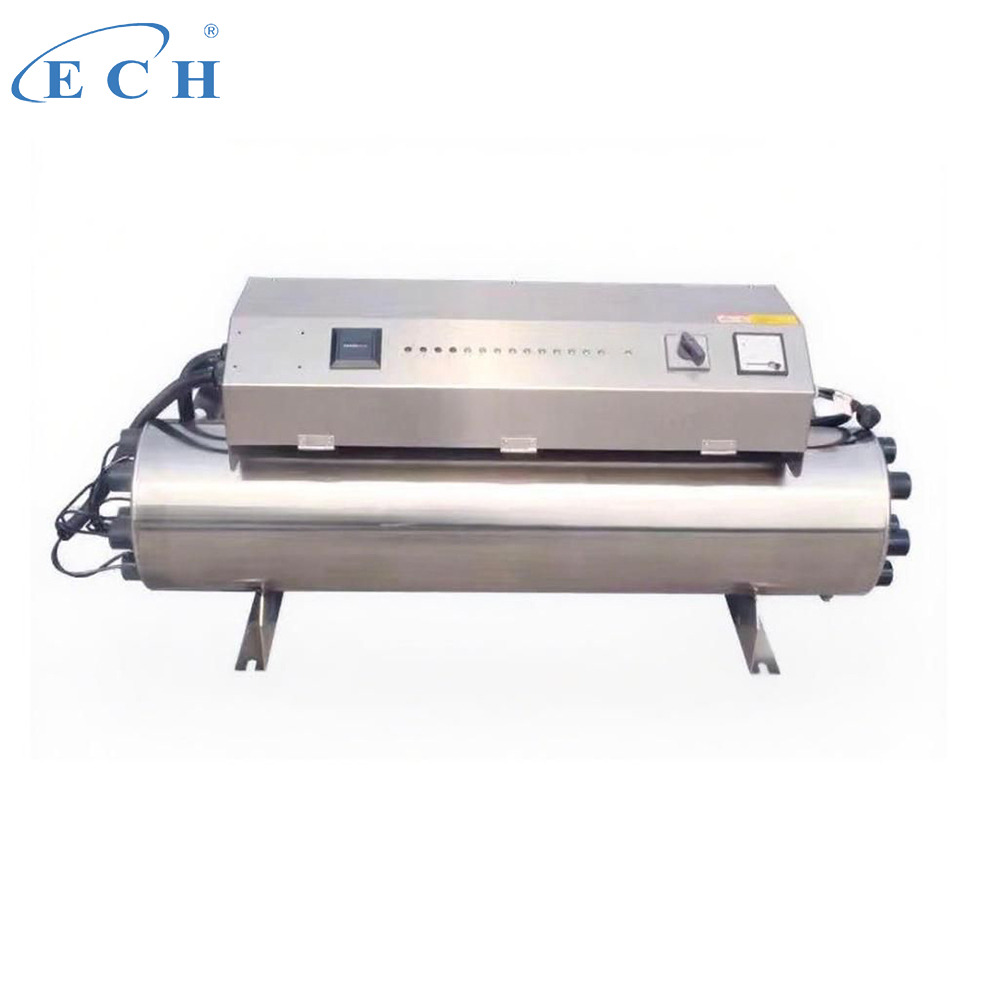

Municipal water treatment plants and large-scale manufacturing facilities face different challenges. Deploying an industrial uv sterilizer for raw water requires engineering for massive flow rates, often exceeding hundreds of gallons per minute. These systems utilize multi-lamp arrays housed in large stainless steel reactors. Because raw surface water fluctuates in turbidity and transmittance, these industrial units require redundant sensor monitoring. Automated UV intensity monitors continuously measure the actual light penetrating the water column. If transmittance drops due to sudden turbidity spikes, the sensors trigger automated wiper systems to clean the quartz sleeves or divert the water flow entirely.
Beverage production demands absolute biological security. Implementing a uv sterilizer for bottling line operations ensures that the final product remains uncontaminated before sealing. In these environments, FDA and EPA compliance mandates strict logging of UV dosage. The systems are integrated directly into the clean-in-place (CIP) loops and must feature sanitary tri-clamp connections to prevent any dead legs where bacteria could harbor.
The highest tier of water purity is found in medical and laboratory environments. Designing a uv sterilizer for pharmaceutical water involves generating USP-grade purified water or Water for Injection (WFI). In these highly regulated topologies, the synergy between industrial RO and UV is paramount. However, pharmaceutical UV systems are not utilized solely for disinfection. By utilizing specific wavelengths (185 nm alongside 254 nm), these advanced systems perform ozone destruction and Total Organic Carbon (TOC) reduction. The high-energy photons break down complex organic molecules into carbon dioxide and water, ensuring the final product meets the stringent conductivity and organic limits required for pharmaceutical manufacturing.
Proper equipment sizing dictates both the efficacy of the treatment and the long-term total cost of ownership. Oversizing wastes capital and consumables, while undersizing leads to system failure and compromised water quality.
Softener sizing relies on a specific mathematical framework. Capacity is calculated by multiplying the daily water usage by the total water hardness. A standard metric assumes 80 to 120 gallons of water per person, per day. For a facility or household of four people, daily usage averages 400 gallons. If the water hardness is 10 grains per gallon, the system must remove 4,000 grains of hardness daily. To achieve an optimal regeneration cycle of once every seven days, the softener requires a minimum capacity of 28,000 grains. Modern high-efficiency control valves utilize metered regeneration, tracking exact gallon usage rather than running on a fixed clock. This technology saves 30-40% on salt consumption and wastewater generation over the system's lifespan.
Reverse Osmosis systems present distinct efficiency trade-offs. The physical separation process inherently generates wastewater, known as the concentrate stream. Traditional systems operate at a 3:1 or 4:1 ratio, meaning three to four gallons of water are sent to the drain for every one gallon of purified permeate produced. When evaluating TCO, facility managers must compare the massive water footprint of a whole-house RO system against the targeted efficiency of a point-of-use RO system paired with a whole-house softener and UV unit. Adding permeate pumps to RO systems can reduce wastewater generation by up to 80% by utilizing the hydraulic energy of the reject water to increase membrane pressure.
Ultraviolet systems are often marketed as maintenance-free, but the reality of their operation requires strict adherence to replacement schedules. The primary consumable is the UV lamp. While the lamp may continue to emit visible blue light for years, the invisible UV-C intensity degrades predictably over time. Manufacturers mandate annual replacement of the lamp, as the dosage drops below safe disinfection thresholds after 9,000 hours of continuous operation. During this annual maintenance, operators must carefully remove and clean the quartz sleeve using a mild acid (like white vinegar) to remove any trace mineral buildup. The quartz is highly fragile; handling it with bare hands leaves skin oils that create hot spots, leading to premature lamp failure.
For commercial facilities, budgeting for replacement parts is a fixed operational expense. Securing a reliable source for the specific industrial uv sterilizer lamp assembly ensures minimal downtime during maintenance cycles. Commercial arrays often feature multiple lamps, ballasts, and automated wiper seals, all of which require scheduled inspection and replacement to maintain regulatory compliance.
Even with correct sequencing, deploying a multi-stage water treatment train carries specific implementation risks that operators must mitigate during the design phase.
The first major risk involves iron bacteria and hydrogen sulfide. Standard water softeners and UV systems cannot handle high levels of iron bacteria. These microorganisms feed on iron, creating a thick, rust-colored slime that coats the inside of pipes. This slime will rapidly foul a softener's resin bed, rendering it incapable of ion exchange, and will completely coat a UV quartz sleeve, blocking all light transmittance. Mitigation requires the dedicated oxidation filtration outlined in Step 0 of the topology. Air injection or peroxide systems physically oxidize the iron and destroy the bacteria before it reaches the primary treatment equipment.
The second risk centers on plumbing code violations and severe pressure drops. Stacking multiple treatment stages (Sediment Filter + Softener + Carbon Filter + RO + UV) introduces significant friction loss. Each component can drop the line pressure by 3 to 5 psi. In a comprehensive system, the total pressure drop can easily exceed 20 psi, resulting in unacceptable flow rates at the fixtures. Mitigation requires professional installation ensuring proper pipe sizing (often stepping up to 1-inch or 1.25-inch manifolds), the integration of booster pumps for RO systems, and strict adherence to local plumbing codes to protect manufacturer warranties.
The third risk is blind purchasing driven by marketing hype rather than empirical data. Buying equipment based on proprietary claims often leads to undersized or incompatible systems. Mitigation dictates that step zero must always be a comprehensive, independent water test from an EPA-certified laboratory. Furthermore, operators must utilize a neutral buying checklist, ensuring all selected components carry verified third-party certifications. Look for NSF/ANSI Standard 44 for softeners, Standard 58 for RO systems, and Standard 55 Class A for UV biological treatment.
Integrating a UV sterilizer with RO and water softeners creates an impenetrable barrier against both chemical and biological contaminants, provided the system architecture is sequenced correctly. Softening protects the hardware, RO removes the dissolved solids, and UV neutralizes the biological threats. Do not purchase a UV system until the source water has been tested, a softener has been sized to handle the exact hardness load, and a 5-micron pre-filter is integrated into the plumbing design.
Commission a comprehensive water test through an independent, EPA-certified laboratory to determine exact hardness, iron, and biological loads.
Calculate daily water consumption and peak flow rates to accurately size the water softener and prevent pressure drops.
Install a 5-micron absolute pre-filter immediately upstream of the UV chamber to eliminate bacterial shadowing.
Verify that all selected equipment carries the appropriate NSF/ANSI and WQA certifications for their specific treatment claims.
A: It is only possible if the baseline water hardness is naturally below 7 grains per gallon (120 mg/L). If the hardness exceeds this threshold, the heat from the UV lamp will cause minerals to rapidly scale the quartz sleeve, blocking light transmittance and causing complete system failure.
A: The UV sterilizer must always go after the RO system. It acts as the final biological safeguard, treating fully clarified and filtered water immediately before it is consumed or distributed, ensuring no bacteria are introduced from storage tanks.
A: No. UV sterilization is a strictly physical process that uses light energy to alter the DNA of microorganisms. It leaves no chemical byproducts in the water and has zero impact on taste, odor, or color.
A: The standard lifespan for a UV lamp is 9,000 to 10,000 hours of continuous operation. This equates to replacing the assembly roughly once a year. Replacement is mandatory regardless of visible light output, as invisible UV-C intensity degrades over time.
A: A 5-micron absolute filter is the strict minimum requirement. This prevents the "shadowing effect," where bacteria and viruses hide behind suspended micro-particles in the water column to survive exposure to the UV light.
A: Yes. Pharmaceutical units utilize 316L sanitary stainless steel, tri-clamp connections to prevent bacterial harboring, and emit specific dual-wavelengths (185nm and 254nm) to perform both disinfection and Total Organic Carbon (TOC) reduction, requiring strict validation documentation.
