Industrial water management costs are escalating rapidly across all sectors. Global wastewater production currently hits 380 billion cubic meters annually. Experts project this volume to increase 51% by 2050. Since 80% of this water remains untreated, regulatory and operational pressures force facilities to upgrade infrastructure. Traditional dead-end filtration, including bag and cartridge filters, creates severe operational bottlenecks in high-TSS (Total Suspended Solids) environments. These legacy systems suffer from frequent blinding, unacceptable downtime, high labor costs, and excessive consumable waste. Transitioning to automated filtration systems represents a strategic necessity for modern plants. Supported by a market projected to grow from $6.2 billion in 2024 to $9.2 billion by 2030 at a 6.8% CAGR, these systems act as the primary defense line. They protect downstream capital equipment, such as RO membranes and heat exchangers, while driving measurable ROI.
Operational Continuity: Automated filtration eliminates manual cleaning downtime, maintaining continuous flow even under extreme solid loads (>10,000 mg/L TSS).
Proven ROI: Facilities routinely report six-figure annual savings through reduced TSS surcharges, lower chemical usage (e.g., in DAF pretreatment), and decreased pump energy consumption.
Application-Specific Selection: Choosing between brush, disc, suction-scanning, and nozzle mechanisms depends strictly on fluid viscosity, particle type (rigid vs. deformable), and available system pressure.
ESG and Compliance: Modern systems integrate with IIoT (Industrial Internet of Things) to trigger cleaning only when necessary, minimizing backwash water waste and supporting corporate sustainability and carbon reduction goals.
Positioning filtration equipment correctly within the treatment train dictates the overall efficiency of the plant. An online self‑cleaning filter typically serves as the primary filtration stage. It intercepts heavy debris and suspended solids before the fluid reaches secondary biological phases or tertiary membrane systems. By removing the bulk of the particulate load early, facilities prevent the premature fouling of sensitive downstream equipment.
Automated filtration systems execute a precise mechanical sequence without interrupting the main system output. The continuous flow architecture ensures that downstream processes never experience fluid starvation during the purge cycle.
Liquid Inlet & Filtration: Unfiltered liquid enters the main housing through the inlet flange. The fluid passes through a coarse pre-filter (if equipped) and flows into the center of the fine screen. Solids are trapped on the inner surface of the cylindrical screen, allowing only clean fluid to pass through the mesh.
Trigger Mechanism: As solids accumulate on the screen, they form a filter cake. This cake restricts flow, causing a pressure differential between the inlet and outlet. A differential pressure (DP) switch detects this pre-set pressure drop (typically 7-10 psi). Alternatively, a programmed timer activates, sending a signal to the control panel.
Cleaning Cycle: The control panel initiates the cleaning sequence. The internal mechanism—whether a rotating brush, a mechanical scraper, or a vacuum scanner—actively dislodges the filter cake from the screen wall. A motor or hydraulic piston drives this movement, ensuring complete coverage of the screen area.
Clean Fluid Output: Filtered liquid continues to flow downstream uninterrupted throughout the entire cleaning phase. The design of the housing and the screen maintains sufficient open area to support continuous operation.
Waste Discharge: An exhaust valve opens momentarily to purge the concentrated debris. The internal pressure of the system forces the dislodged solids out through the exhaust manifold. This purge lasts only a few seconds, minimizing fluid loss without halting the main clean fluid output.
Modern industrial environments demand intelligent equipment. Filtration systems now utilize digital twin modeling and predictive maintenance sensors to optimize backwash frequency. State-based cleaning models monitor real-time fluid conditions, adjusting the cleaning triggers dynamically. This intelligent automation has been proven to reduce backwash water loss by up to 25% compared to legacy timer-based systems. Operators monitor DP trends, valve actuation cycles, and motor amp draw remotely, allowing maintenance teams to address mechanical wear before a catastrophic failure occurs.
Different industries present unique fluid challenges. The deployment of automated filtration varies significantly based on the specific particulate load, fluid viscosity, and regulatory environment.
Municipal facilities process millions of gallons of wastewater daily. In these environments, automated filters act as the first line of defense to protect sensitive ultrafiltration (UF) and reverse osmosis (RO) membranes from fouling. Membrane replacement represents a massive capital expense; therefore, reliable pre-filtration extends membrane lifespan and maintains flux rates.
Decentralized infrastructure also relies heavily on this technology. Approximately 25% of U.S. homes and rural facilities rely on off-grid or decentralized water treatment. These remote locations require unmanned, low-maintenance filtration. Automated systems provide the necessary reliability without requiring daily operator intervention.
Manufacturing environments subject filtration equipment to extreme conditions. A heavy‑duty self‑cleaning filter manages high solid loading, aggressive chemicals, and elevated temperatures.
Food & Beverage (F&B): Processing plants generate wastewater with extreme BOD (Biochemical Oxygen Demand), FOG (Fats, Oils, and Grease), and TSS. Cross-flow dynamics create conditions where particles tend to flow past the screen rather than through it. This fluid behavior prevents sticky organic matter from blinding the screens, ensuring continuous operation during peak production hours.
Steel & Metallurgy: Continuous casting and hot rolling operations rely on massive volumes of cooling water. Heavy-duty filters remove mill scale and airborne debris from cooling circuits. This prevents spray nozzle clogging, reducing unexpected mill downtime by up to 70%, while simultaneously cutting wash water usage by 30%.
Chemical, Petrochemical & Pharma: These sectors manage corrosive fluids, high-viscosity materials, and active pharmaceutical compounds that cause severe membrane fouling. Engineers specify PTFE-coated or ceramic-enhanced screens to withstand aggressive chemical attacks and high-temperature sterilization cycles.
Cement & Ceramics: Washdown water in cement plants contains extreme TSS and high-pH abrasive particles. Traditional media degrades rapidly under these conditions. Automated screens manufactured from hardened alloys withstand the abrasive nature of silica and limestone slurries.
Commercial skyscrapers and data centers utilize massive cooling tower networks. These open-loop systems scrub airborne debris, pollen, and pollution from the atmosphere. Automated filtration removes this debris and suspended scale to maintain heat exchanger efficiency. Clean heat exchangers directly reduce chiller energy consumption and eliminate the stagnant, nutrient-rich environments that serve as Legionella breeding grounds.
Industry Sector | Primary Fluid Challenge | Filtration Solution | Expected Operational Outcome |
Municipal Wastewater | High organic loading, membrane fouling | Fine mesh suction-scanning | Extended RO/UF membrane lifespan |
Food & Beverage | Sticky FOG, high BOD/TSS | Mechanical scraping with cross-flow | Prevention of screen blinding |
Steel Manufacturing | Abrasive mill scale, nozzle clogging | Heavy-duty brush or scraper | 70% reduction in mill downtime |
Commercial HVAC | Airborne debris, scale buildup | Disc filtration or suction-scanning | Optimized chiller energy efficiency |
Selecting the correct internal cleaning mechanism determines the success or failure of the installation. Engineers must match the mechanical action to the physical properties of the suspended solids.
Mechanical systems utilize spring-loaded brushes or polymer scraper blades that physically contact the screen surface. As the mechanism rotates, it drives the filter cake down toward the purge valve.
Best for: High solid loads, large/heavy particles, and viscous fluids such as manufacturing sludge or paper mill white water.
Trade-offs: Physical contact can force soft, deformable particles (like algae or gelatinous organics) through the mesh. The constant friction also results in higher wear on screen components, requiring periodic replacement of the brushes or blades.
Disc filters utilize stacks of color-coded, grooved synthetic rings. When compressed, the intersections of the grooves create a three-dimensional depth filtration matrix.
Best for: Agricultural irrigation, cooling water, and environments requiring depth filtration for organic matter. The depth matrix excels at capturing stringy or deformable particles.
Trade-offs: These systems demand a larger physical footprint. Backwashing requires decompressing the discs and reversing the flow, which can temporarily impact downstream pressure if the system is not multiplexed (using multiple pods in parallel).
Suction scanners operate on the Bernoulli principle. A hollow scanner tube with multiple nozzles rotates and moves linearly across the screen surface. When the exhaust valve opens, the pressure differential creates a high-velocity vacuum at the tip of each nozzle, vacuuming the cake off the screen.
Best for: Fine filtration (down to 10 microns), municipal water, and RO protection. They provide highly efficient cleaning without physically touching the screen.
Trade-offs: The mechanism requires a minimum operating pressure (usually around 30-40 psi) to create the necessary vacuum effect. While highly energy-efficient, suction scanners struggle with extremely large, rigid debris that can jam the nozzles.
These systems utilize a reverse flow of clean fluid, often assisted by compressed air, to blast the filter cake off the screen.
Best for: High-sanitation environments including F&B, aerospace, and semiconductor manufacturing. The non-contact cleaning method satisfies strict hygienic requirements.
Engineers must benchmark against top-tier industry designs using four core criteria to ensure optimal performance. First, evaluate fluid characteristics, specifically temperature and viscosity, which dictate the materials of construction. Second, analyze the particle load and size distribution to determine the required micron rating. Third, calculate the peak flow rate demands to size the housing correctly. Finally, determine the required PLC automation level for seamless integration into the plant's central SCADA system. Implementing a Self-Cleaning Filter based on these exact parameters guarantees long-term reliability.
Cleaning Mechanism | Ideal Particle Type | Minimum Pressure Required | Water Loss Per Cycle |
Mechanical Scraping | Large, rigid, high TSS | Low (15-20 psi) | Very Low (<1%) |
Disc Filtration | Organic, deformable | Medium (30-40 psi) | Low (1-2%) |
Suction-Scanning | Fine, inorganic | Medium (35-40 psi) | Very Low (<1%) |
Reverse Flow Nozzle | Mixed, sanitary applications | High (45+ psi) | Medium (2-5%) |
Capital expenditure represents only a fraction of the total cost of ownership. The true value of automated filtration lies in its ability to slash ongoing operational expenses.
Municipalities heavily penalize industrial facilities for discharging high levels of suspended solids. Surcharge mitigation offers an immediate financial return. For example, large California breweries save upwards of $500,000 annually by reducing TSS by 60-80% prior to municipal discharge. By capturing spent grain and yeast early, the facility avoids tiered penalty rates.
Chemical optimization provides another massive savings vector. Pre-filtering solids before Dissolved Air Flotation (DAF) units reduces the organic load entering the flotation chamber. This reduction can cut coagulant and polymer costs by 60%. An Oklahoma pork processing plant documented $180,000 in annual savings simply by installing automated screens upstream of their DAF system.
Energy and utility efficiency directly impact the bottom line. Dirty, blinded screens create severe pressure drops, forcing system pumps to work harder to maintain flow. Clean screens prevent these pressure drops, significantly reducing the electrical load on system pumps. A Texas beef plant saved $250,000 annually in utilities by reusing DAF effluent to wash rotary screens, lowering both freshwater intake and electrical consumption.
Furthermore, sensor-driven cleaning uses a fraction of the water required by continuous flush systems. This precision directly supports corporate carbon footprint reduction and water-loop closure goals. By minimizing waste, facilities align their operations with stringent Environmental, Social, and Governance (ESG) mandates.
Proper sizing and physical integration dictate the success of the installation. Engineers must account for spatial limitations, piping geometry, and fluid chemistry during the design phase.

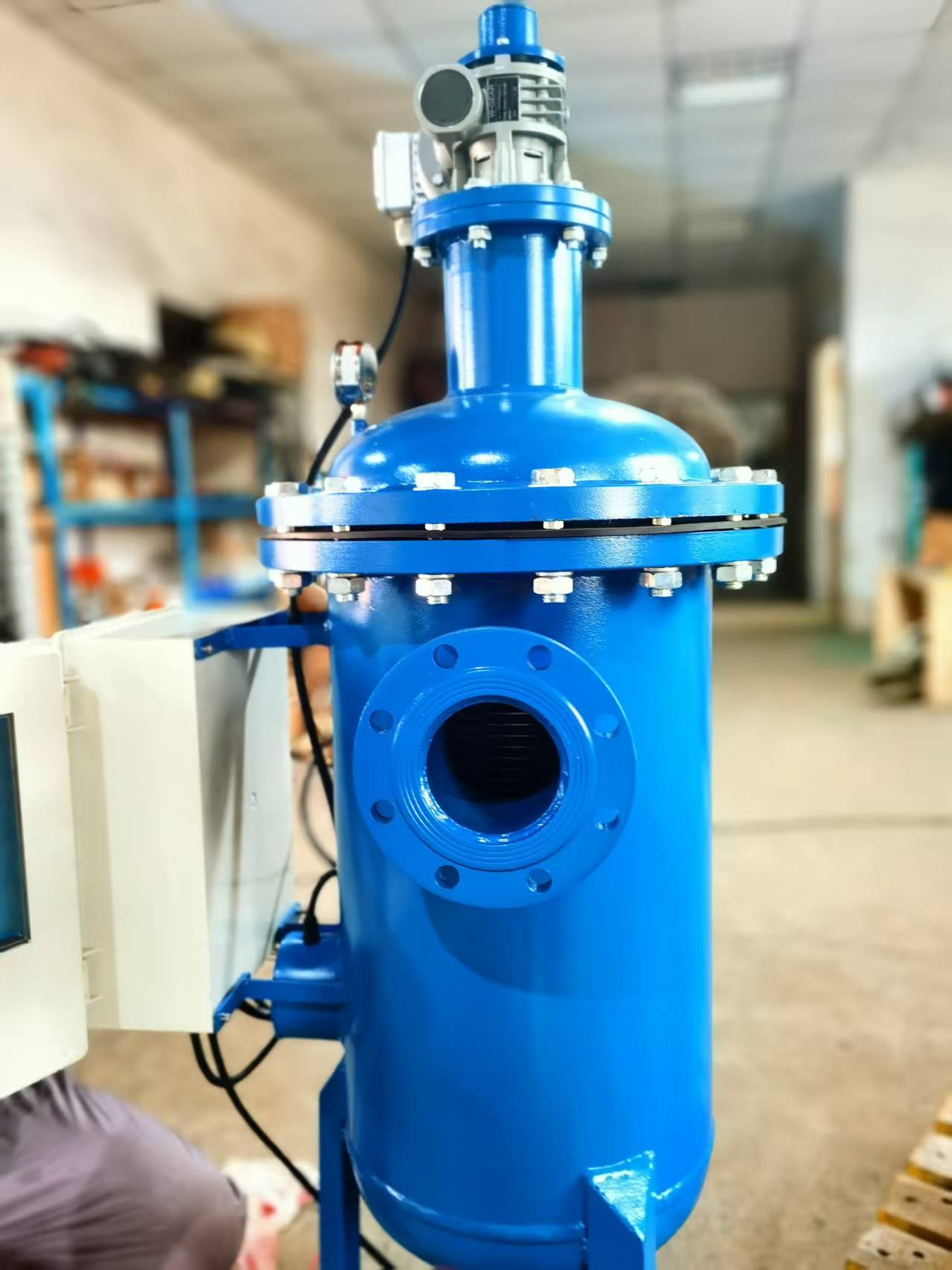

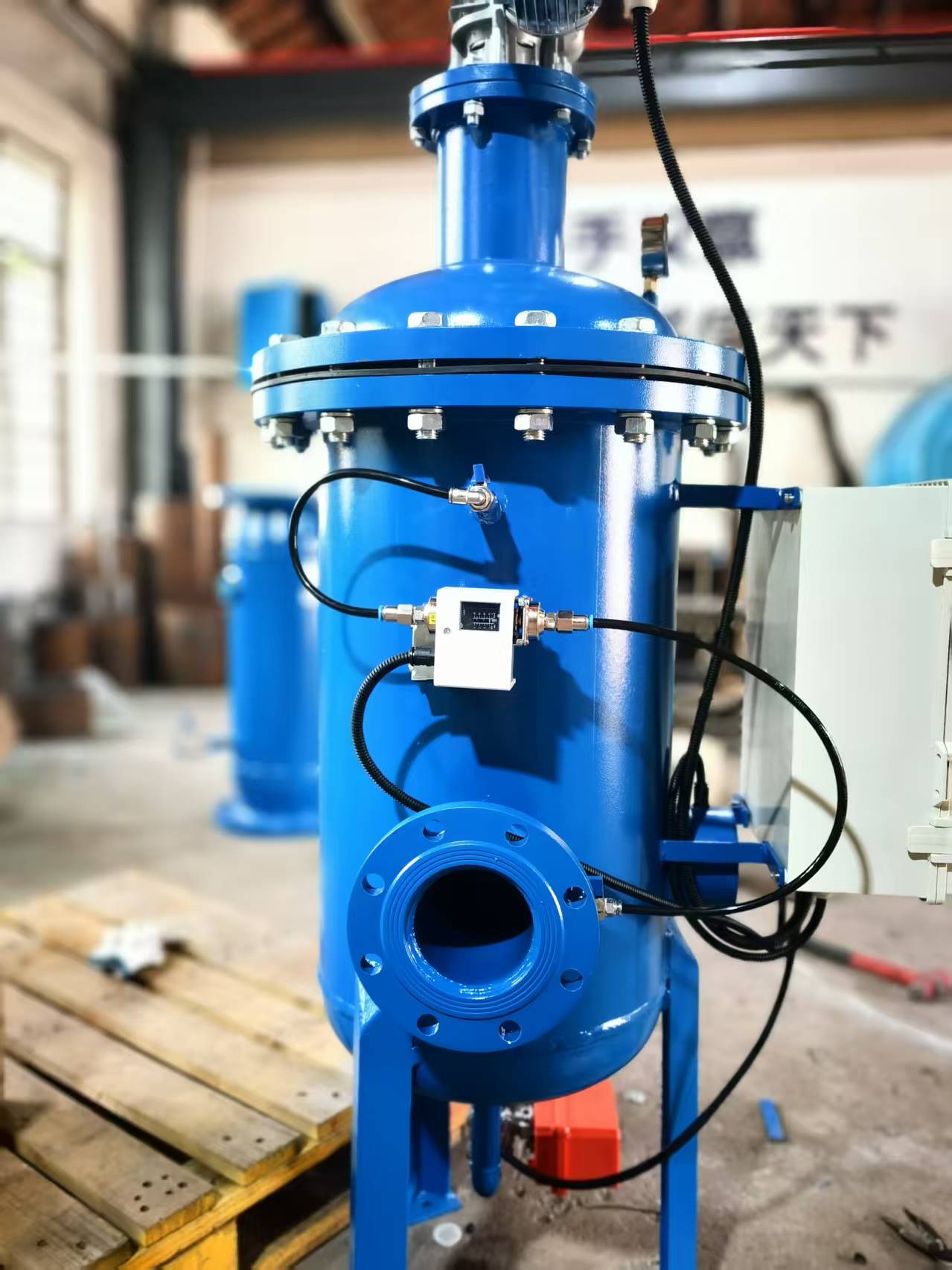

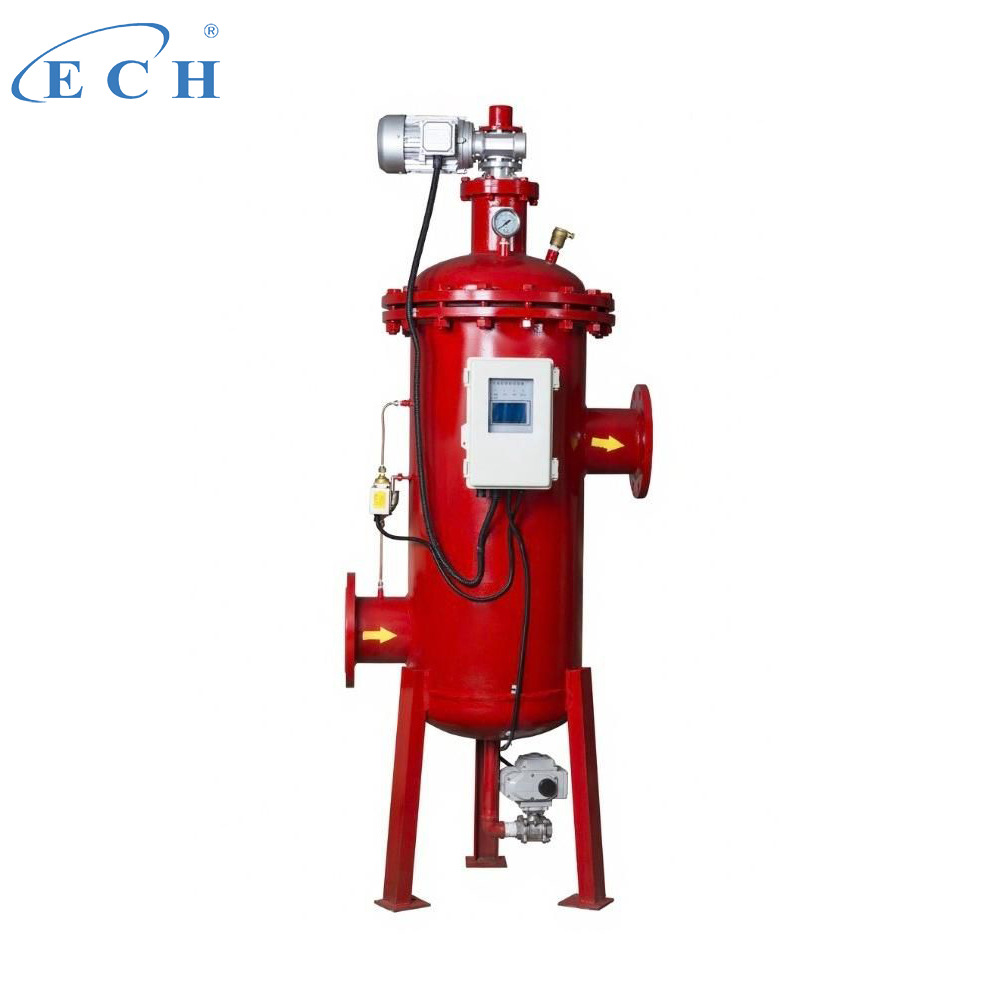

Facility layout often dictates the physical geometry of the equipment. A vertical self‑cleaning filter proves ideal for tight pump rooms and skid-mounted systems where floor space remains at a premium. The vertical orientation allows gravity to assist in the downward movement of heavy solids toward the purge valve.
Conversely, a horizontal self‑cleaning filter is better suited for high-flow, large-diameter piping in municipal plants where overhead clearance is restricted. Horizontal units align naturally with existing straight pipe runs, minimizing the need for complex elbows and pressure-dropping transitions.
Integrating high-pressure equipment requires strict adherence to international piping standards. Engineers must specify the correct flange self‑cleaning filter connections, such as ANSI B16.5, DIN EN 1092-1, or JIS standards. Matching the flange rating (e.g., Class 150 vs. Class 300) ensures leak-proof integration into existing high-pressure pipelines and prevents catastrophic blowouts.
Deploying automated systems carries specific engineering risks that require proactive mitigation.
Risk: Incorrect micron rating selection leading to either continuous backwashing (if the mesh is too fine) or downstream equipment damage (if the mesh is too coarse).
Mitigation: Conduct comprehensive particle size distribution (PSD) testing and utilize digital twin simulation tools prior to procurement. This data ensures the screen geometry matches the actual particulate load.
Risk: Chemical incompatibility causing premature screen degradation or housing corrosion.
Mitigation: Match screen metallurgy to the specific fluid pH and chloride levels. Standard applications use 316L Stainless Steel, while aggressive environments require Titanium, Super Duplex, or Hastelloy construction.
While the initial CapEx of automated filtration is higher than static bag or cartridge housings, the payback period is typically under 18 months in high-TSS applications. This rapid ROI stems directly from labor, chemical, and downtime savings. Procurement and engineering teams must base their vendor selection on fluid viscosity, particle deformability, available system pressure, and IIoT integration capabilities rather than upfront cost alone.
Request a pilot test program from the manufacturer to validate screen performance under actual plant conditions.
Utilize digital twin simulation tools offered by top-tier manufacturers to model pressure drops and backwash frequencies.
Conduct a comprehensive particle size distribution (PSD) test on your fluid stream to determine the exact micron rating required.
Consult an application engineer for a custom Total Cost of Ownership (TCO) analysis comparing your current consumable spend against automated CapEx.
A: A properly sized, clean filter typically exhibits a pressure drop of 1 to 3 psi. As solids accumulate on the screen, this differential increases. Control systems are usually programmed to trigger an automatic backwash cycle when the differential pressure (DP) reaches 7 to 10 psi, ensuring optimal flow without starving downstream processes.
A: Yes, but it requires specific engineering. Standard mesh can blind quickly. Handling Fats, Oils, and Grease (FOG) requires mechanical scraping mechanisms, high cross-flow dynamics to keep particles in suspension, or the integration of hot-water flush cycles to melt and purge the sticky organic matter from the screen.
A: Water loss is minimal, typically representing less than 1-2% of the total system flow. The exact volume depends on the specific cleaning mechanism (suction vs. flush), the operating pressure, and the DP trigger settings. Advanced state-based cleaning algorithms further reduce this waste by initiating purges only when mathematically necessary.
A: The internal cleaning mechanism and filtration efficiency are identical. The choice is strictly dictated by spatial constraints and piping layout. Vertical units save floor space and use gravity to assist solid settling, while horizontal units fit better in low-clearance areas and align seamlessly with large, straight pipe runs.
A: Most systems require electricity or compressed air to operate the control panels, motorized brushes, or pneumatic valves. However, specific hydraulic suction-scanners operate solely on the existing line pressure. These hydraulic units use the fluid's kinetic energy to drive the cleaning turbine, requiring no external power.
A: The standard engineering baseline for Reverse Osmosis (RO) pre-treatment is typically 10 to 50 microns. However, the exact rating depends entirely on the specific membrane manufacturer's warranty requirements and the results of a particle size distribution (PSD) test on the feed water.
