Reverse Osmosis (RO) membranes are highly effective purification tools, but they remain inherently fragile. Industrial and commercial facility operators face significant financial exposure when these components fail. Replacement costs for industrial RO elements routinely range from $500 to well over $2,000 per unit. Beyond direct component costs, businesses frequently suffer from premature membrane failure, aggressive biological fouling, and excessive operational downtime. These failures almost always trace back to inadequate or high-maintenance traditional pre-filtration methods, such as relying on disposable meltblown cartridges in high-demand environments.
Transitioning from disposable static filters to an automated self-cleaning filter eliminates manual maintenance bottlenecks. This upgrade stabilizes system pressure, reduces pump strain, and provides continuous, verifiable protection for high-value RO membranes. By automating the removal of particulate matter before it reaches the delicate semi-permeable barrier, facilities secure their water production infrastructure against unpredictable raw water fluctuations.
Zero-Downtime Protection: Automated self-cleaning mechanisms utilize pressure differentials to trigger backwashing without interrupting the primary water flow to the RO system.
Drastic TCO Reduction: Eliminating weekly disposable filter replacements and manual labor significantly lowers Operating Expenses (OpEx), often yielding a positive ROI within 6 to 14 months.
Membrane Longevity: By strictly enforcing a 5-micron physical barrier, self-cleaning systems prevent the formation of irreversible biofilms and physical blockages on 0.0001-micron RO membranes.
Resource Efficiency: Modern self-cleaning systems use targeted backwashing, minimizing wastewater and aligning with stringent industrial water conservation standards (e.g., EPA WaterSense initiatives).
Understanding the physical constraints of RO technology requires examining the microscopic scale at which these systems operate. The pores on a standard RO membrane measure approximately 0.0001 microns in diameter. To provide context, a single grain of fine sand is roughly 50 microns, and human hair is about 70 microns. When particulate matter larger than 5 microns bypasses inadequate pre-filtration and reaches the membrane, it causes immediate physical fouling. The high-pressure environment of the RO vessel forces these oversized particles into the delicate membrane structure, causing irreversible mechanical deformation, localized pressure drops, and a permanent reduction in permeate flux.
Facility operators must clarify what RO can and cannot accomplish. While the technology excels at removing heavy metals like arsenic and lead, as well as microscopic pathogens, it possesses distinct limitations. RO membranes cannot effectively remove dissolved gases, such as hydrogen sulfide, nor can they filter out certain volatile organic compounds (VOCs). Because of these limitations, a holistic three-stage architecture is mandatory for industrial water purification. This architecture consists of robust pre-treatment to handle suspended solids, high-pressure RO to handle dissolved ions, and post-treatment to manage dissolved gases and pH stabilization.
The materials used in modern membrane construction dictate strict pre-filtration requirements. Thin Film Composite (TFC) membranes dominate the industrial sector because they offer superior desalination rates compared to older Cellulose Acetate (CA) models. However, TFC membranes possess zero tolerance for free chlorine and are highly susceptible to chemical oxidation. Therefore, a mechanical sediment filter must act as the absolute first line of defense. This physical barrier protects the downstream activated carbon filters from becoming blinded by silt. The carbon filters, operating at peak efficiency, then remove the chlorine, ultimately protecting the TFC membrane from chemical degradation.
When organic matter, such as algae, silt, and coagulated proteins, becomes trapped on an unprotected RO membrane, it creates an ideal breeding ground for biological fouling. Bacteria naturally present in the feed water attach to this organic debris and begin secreting Extracellular Polymeric Substances (EPS). This EPS forms a slimy, highly resilient matrix known as a biofilm. Biofilms are notoriously resistant to standard chemical cleaning agents. Once established, removing a biofilm requires aggressive, high-pH sanitation protocols that inherently degrade the polyamide layer of the RO membrane, shortening its operational lifespan.
In highly regulated sectors, pre-filtration is not merely an operational preference; it is a legal requirement. The FDA and equivalent global regulatory bodies mandate strict pre-filtration protocols for RO systems utilized in food, beverage, and pharmaceutical manufacturing. These regulations are designed to prevent secondary microbial contamination. If a static filter fails and allows organic loading onto the RO membrane, the resulting bacterial bloom can contaminate the permeate, leading to massive product recalls, facility shutdowns, and severe compliance penalties.
| Contaminant Type | Approximate Size (Microns) | Required Filtration Stage | Filtration Mechanism |
|---|---|---|---|
| Sand & Heavy Silt | 50 - 100+ | Primary Pre-Filtration | Automated Screen Filter (50-micron) |
| Fine Silt & Organics | 5 - 20 | Secondary Pre-Filtration | Automated Screen Filter (5-micron) |
| Bacteria & Cysts | 0.2 - 2.0 | Microfiltration / RO | Physical Barrier / Semi-permeable |
| Dissolved Salts & Ions | 0.0001 - 0.001 | Reverse Osmosis | Osmotic Pressure Reversal |
Many facilities fall into the false economy of relying on inexpensive meltblown or pleated cartridges for RO protection. While a disposable cartridge may only cost $50, the financial risk it introduces is disproportionately high. Meltblown filters are depth filters; as they load with debris, the pressure differential across the filter increases. If a maintenance cycle is delayed, this pressure buildup can cause "channeling" or "unloading." Unloading occurs when a sudden pressure spike forces previously trapped dirt entirely through the filter media and directly into the RO system, instantly destroying a $2,000 membrane to save a $50 consumable.
The operational reality of static filters involves constant manual intervention. In environments with high turbidity or seasonal fluctuations in raw water quality, meltblown filters may require replacement every one to two weeks. This process is highly disruptive. It necessitates complete system shutdowns, depressurization of the filter housings, and dedicated maintenance labor. The hidden costs of this manual process include the hourly wages of the maintenance technicians, the physical cost of the replacement cartridges, the disposal fees for the fouled filters, and the revenue lost during the production downtime.
Static filters inherently cause unstable system pressure. As debris accumulates on the cartridge, it creates a gradual but severe pressure drop (ΔP) across the housing. Operators frequently miss early sensory indicators, such as a slight reduction in permeate flow. By the time the issue is identified, the high-pressure RO booster pumps are already overworked. Centrifugal pumps operate on a specific efficiency curve; when feed pressure drops, the pump moves off its Best Efficiency Point (BEP). This deviation causes cavitation, excessive vibration, increased energy consumption (measured in kWh/m³), and accelerated wear on the pump impellers and bearings.
Relying on manual filter changes introduces a critical operational error known as the secondary contamination loop. When technicians open a filter housing to replace a fouled cartridge, they expose the internal wet surfaces to airborne pathogens. Furthermore, installing new disposable filters into an unsanitized housing guarantees immediate failure. Without proper system sterilization—such as circulating chlorine dioxide through the empty housings before installing new media—the new static filters instantly become re-contaminated by the existing bacterial growth clinging to the housing walls.
Initial Loading: The static filter begins capturing debris, slowly restricting water flow.
Pressure Differential Increase: The restriction causes a measurable drop in feed pressure to the RO booster pump.
Pump Cavitation: The booster pump overcompensates, drawing excess amperage and vibrating off its efficiency curve.
Media Unloading: The pressure forces trapped debris through the weakened filter media.
Membrane Fouling: The bypassed debris strikes the RO membrane, causing irreversible physical blockages and biological fouling.

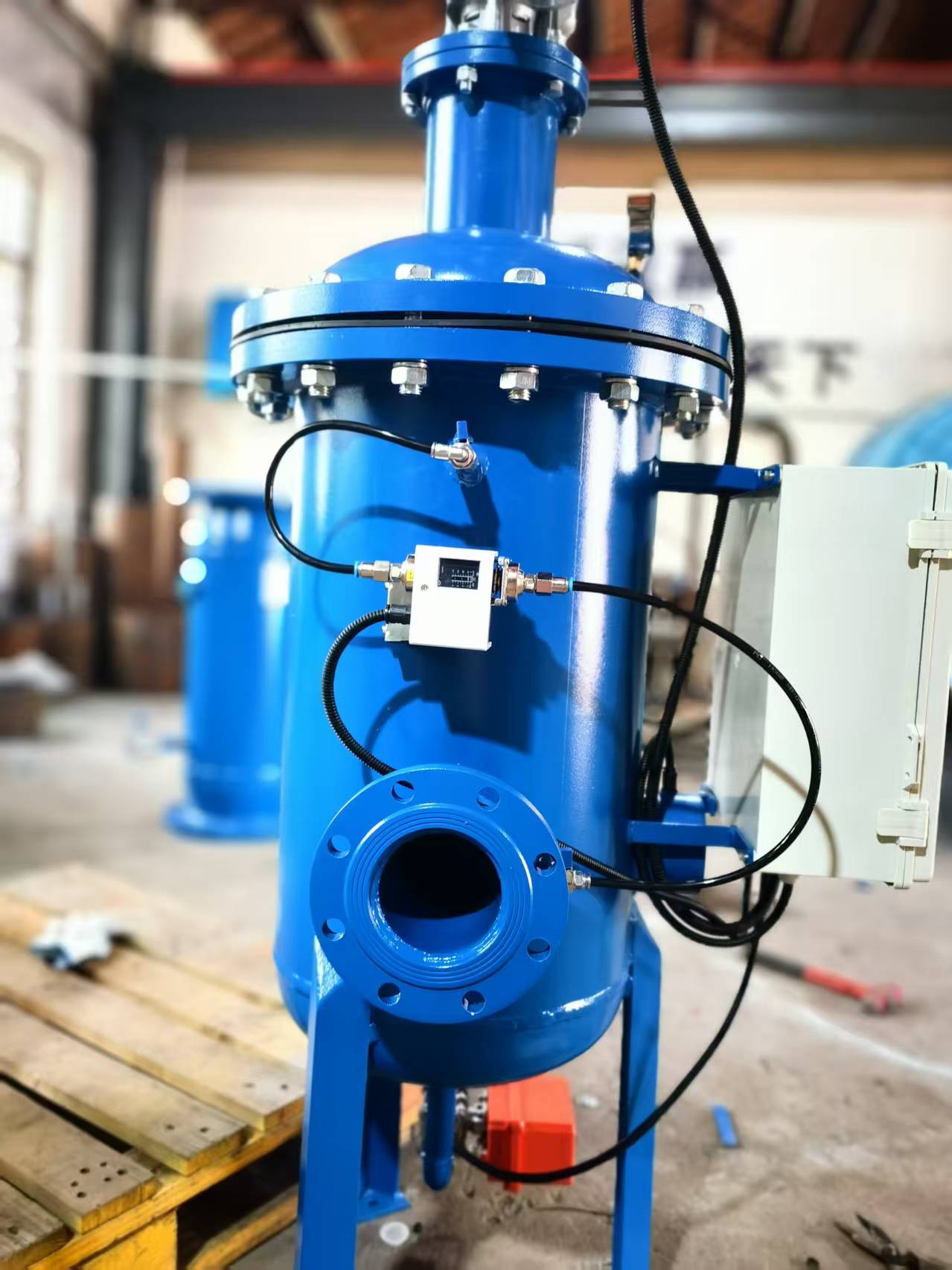

Automated filtration systems eliminate the guesswork and manual oversight associated with static cartridges. The core of this automation is the pressure differential (ΔP) trigger mechanism. Precision sensors continuously monitor the water pressure at both the inlet and the outlet of the filter housing. As particulate matter accumulates on the internal screen, the outlet pressure naturally drops. When this variance reaches a specific, pre-programmed threshold—typically around 7 PSI—the system's programmable logic controller (PLC) automatically initiates the cleaning cycle without requiring human intervention.
The most significant mechanical advantage of an automated system is its ability to clean itself without interrupting the primary water flow. When the ΔP trigger activates, a flush valve opens to atmospheric pressure. This creates a localized, high-velocity suction effect at the nozzles of the internal scanner. The scanner rotates and moves linearly across the screen, vacuuming the debris and discharging it through the flush valve. Throughout this entire 15-to-30-second backwash cycle, the main system continues to supply uninterrupted, perfectly filtered water to the downstream RO unit.
Water temperature plays a critical role in RO efficiency. Water becomes more viscous as it cools, requiring higher pressure to force the molecules through the semi-permeable membrane. Specifically, RO permeate production drops by 1% to 2% for every degree below the standard baseline of 77°F (25°C). During colder months, facilities cannot afford any additional pressure losses from clogged pre-filters. An automated system ensures that feed pressure remains perfectly optimized and stable, preventing compounded efficiency losses and keeping production rates predictable year-round.
Modern filtration technology replaces the ambiguity of manual filter inspections with empirical, real-time performance data. Automated systems feature digital controllers that integrate seamlessly with facility-wide Supervisory Control and Data Acquisition (SCADA) networks. Operators receive continuous data streams regarding inlet pressure, outlet pressure, backwash frequency, and water consumption. This data-driven approach allows engineers to identify seasonal shifts in raw water turbidity and adjust the filtration parameters proactively, rather than reacting to a sudden membrane failure.
Selecting the correct drive mechanism is critical for ensuring reliable operation in specific industrial environments. The two primary categories are hydraulic and electric systems.
A hydraulic self-cleaning filter operates entirely on the existing line pressure of the water system. These units typically require a minimum operating pressure of 40 to 80 PSI to generate enough force to rotate the internal suction scanner and open the flush valve. Because they require no external power source, hydraulic models are ideal for remote locations, mobile water treatment skids, or explosive environments where running electrical conduit presents a safety hazard.

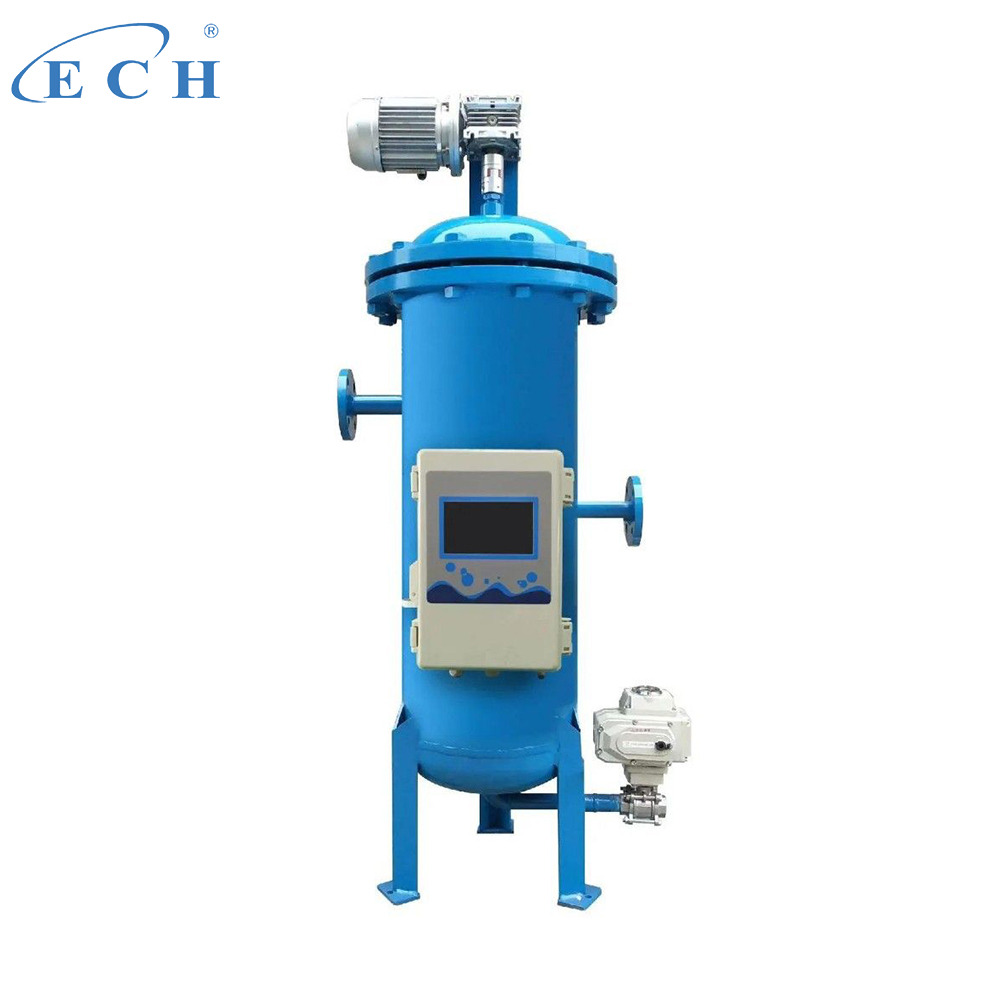

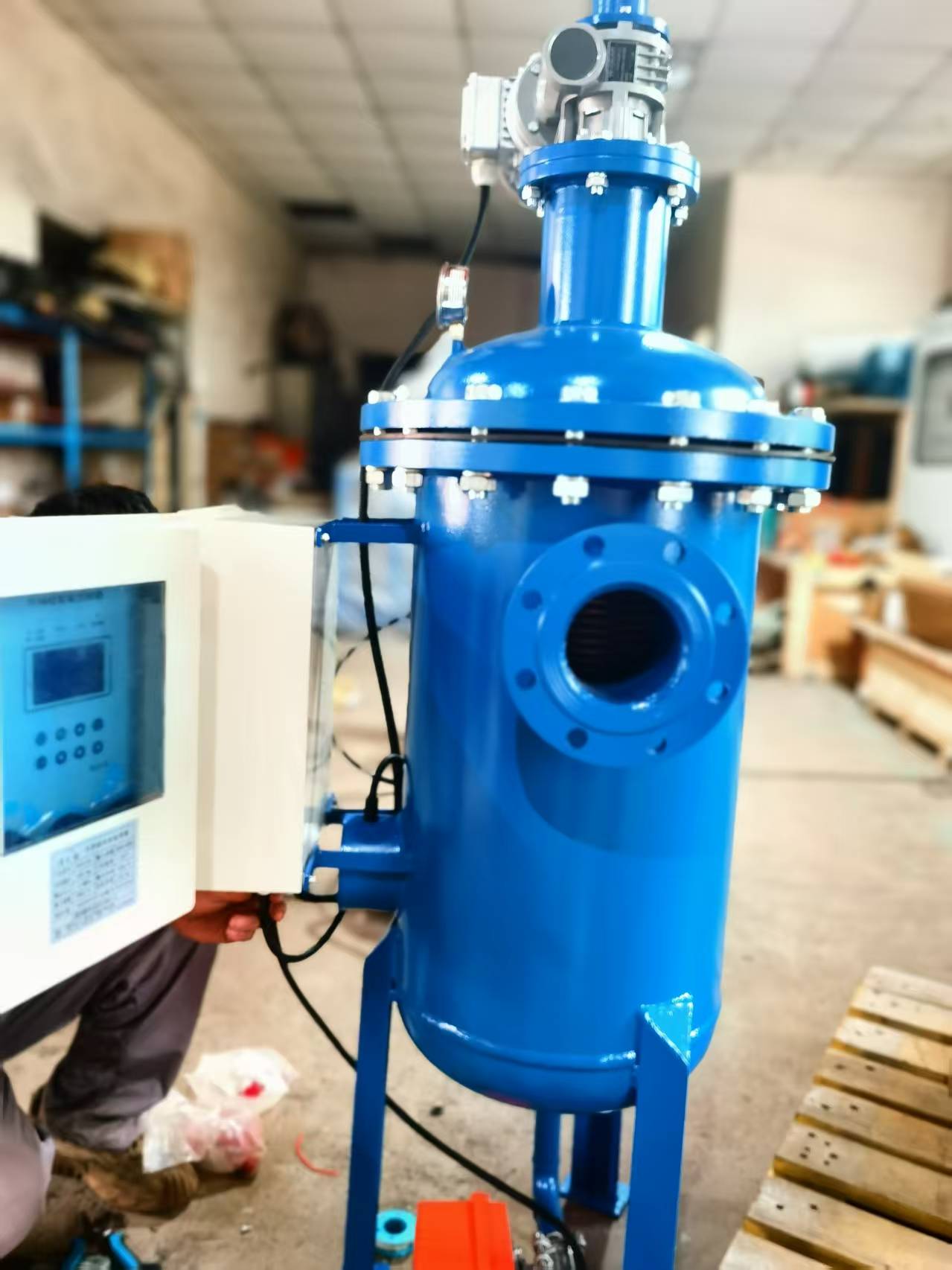

Conversely, an electric self-cleaning filter utilizes a fractional horsepower electric motor and a gearbox to drive the internal cleaning mechanism. These systems are better suited for low-pressure environments where the line pressure is insufficient to drive a hydraulic motor. Furthermore, electric models provide the immense torque required to scrape and clean screens in applications dealing with highly viscous fluids or exceptionally heavy, sticky particulate loads where hydraulic suction alone would fail.
Regardless of the physical filtration mechanism deployed, operators must establish hard rules for RO feed water chemistry. Physical screens remove suspended solids, but they do not alter dissolved mineral content. If the feed water hardness exceeds 7 grains per gallon (gpg), a dedicated water softener or chemical antiscalant dosing system must precede the RO membrane. Failing to address water hardness will result in irreversible mineral scaling (calcium carbonate precipitation) on the membrane surface, which physical pre-filtration cannot prevent.
Properly sizing the filter screen is a delicate balance between protecting the RO membrane and optimizing the backwash frequency. For RO pre-filtration, a 5-micron absolute rating is the industry standard. However, in applications with high-turbidity raw water, forcing all debris through a single 5-micron screen will cause the system to backwash constantly, wasting water and accelerating component wear. In these scenarios, engineers recommend a staged approach: installing a 20-micron or 50-micron primary screen to capture heavy silt, followed immediately by a 5-micron secondary screen to polish the water before it enters the RO vessel.
The construction materials of the filter housing and the internal screen must match the corrosiveness of the feed water. For standard municipal water or light industrial applications, 304 stainless steel is generally sufficient. However, for brackish water, high-chloride environments, or aggressive industrial effluents, 316L stainless steel or specialized duplex alloys are mandatory to prevent pitting and crevice corrosion. The screens themselves should utilize sintered wire mesh, which bonds the woven wires together at every intersection, providing extreme structural integrity against high-pressure differentials.
| Feature | Hydraulic Drive | Electric Drive |
|---|---|---|
| Power Source | Line Pressure (Water) | Electric Motor (110V/220V/480V) |
| Minimum Pressure Required | 40 - 80 PSI | 15 - 30 PSI |
| Best Use Case | Remote areas, explosive zones | Low pressure, heavy/sticky debris |
| Maintenance Complexity | Low (fewer moving electrical parts) | Moderate (requires motor/gearbox upkeep) |
Procurement departments often hesitate at the initial Capital Expenditure (CapEx) of an automated filtration system, which is undeniably higher than purchasing a basic static filter housing. However, Total Cost of Ownership (TCO) modeling quickly justifies the investment. The automated system drastically reduces Operating Expenses (OpEx) by completely eliminating the recurring costs of disposable cartridges, eradicating the manual labor required for weekly filter changes, and reducing the energy consumption of the RO booster pumps. When these OpEx savings are aggregated, facilities typically achieve a full Return on Investment (ROI) within 6 to 14 months.
The most significant financial driver in the TCO calculation is the preservation of the RO membranes themselves. In heavy industrial applications relying on static filters, operators often accept a membrane lifespan of 12 months as a standard cost of doing business. By implementing fail-safe, automated 5-micron pre-filtration, facilities routinely extend the operational lifespan of their RO membranes to 24, 36, or even 48 months. For a facility operating a multi-vessel RO skid with dozens of elements, doubling or tripling the membrane lifespan yields tens of thousands of dollars in direct component savings annually.
Modern large-scale RO plants utilize Energy Recovery Devices (ERDs), such as isobaric chambers or pressure exchangers, to capture the high-pressure energy from the RO brine (concentrate) stream and transfer it to the incoming feed water. ERDs can successfully recover 80% to 90% of this pressure energy, lowering overall system energy use to approximately 3 kWh/m³. However, ERDs require highly stable, uninterrupted feed pressure to function correctly. Automated pre-filtration guarantees this pressure stability, allowing the ERDs to operate at peak efficiency and maximize the facility's energy savings.
Industrial water conservation standards, such as the EPA WaterSense initiatives and corporate Zero Liquid Discharge (ZLD) mandates, require facilities to minimize wastewater. Modern automated filters align perfectly with these goals. The targeted backwash cycle of a suction scanner utilizes less than 1% of the total system flow, making it vastly more efficient than continuous flushing methods. Furthermore, facilities can route the backwash effluent and the RO reject water toward secondary uses, such as landscape irrigation, cooling tower make-up, or facility washdowns, maximizing the utility of every gallon drawn into the plant.
Large-scale municipal desalination and brackish water treatment plants represent the most demanding environments for RO technology. A heavy-duty water-treatment self-cleaning filter is mandatory in these applications to protect the massive high-pressure pumps. The pressure requirements highlight the severity of the application: treating brackish water requires 10 to 25 bar of pressure, while seawater desalination demands an immense 50 to 60 bar (725 psi). At these extreme pressures, even microscopic sand particles bypassing the pre-filter act as abrasive projectiles, capable of destroying pump impellers and shredding RO membranes within hours.
Industrial cooling and heating loops present unique fouling challenges that require specialized filtration integrations.
Cooling Towers: Open cooling towers act as massive air scrubbers, pulling airborne dust, pollen, and industrial exhaust directly into the water supply. Installing a cooling-tower self-cleaning filter to protect the RO make-up water prevents this airborne debris from entering the system. This protection stops severe scaling and biological fouling within the downstream heat exchangers, maintaining optimal thermal transfer efficiency.
Closed-Loop Systems: In closed-loop manufacturing processes, a circulating-water self-cleaning filter is deployed as a side-stream filtration unit. This setup continuously sweeps the loop, removing pipe scale, rust, and process debris before the circulating water is drawn off and sent to the RO purification stage for recycling.
While pre-filtration protects the RO membrane, operators must also manage the water after it exits the system. RO permeate is highly aggressive and acidic because the purification process removes all the natural alkalinity and dissolved minerals. If left untreated, this aggressive water will rapidly corrode downstream metallic piping and storage tanks. Therefore, post-treatment is necessary. Facilities typically utilize calcite contactors for remineralization and pH adjustment, followed by 254nm UV sterilization to ensure the stored permeate remains microbiologically safe for end-use or human consumption.
Relying on manual, disposable pre-filtration for industrial RO systems is an outdated and high-risk operational strategy. The hidden costs of maintenance labor, unpredictable pressure drops, and premature membrane fouling far outweigh the perceived savings of cheap static cartridges. Integrating an automated self-cleaning filter serves as a mandatory insurance policy for expensive RO membranes, high-pressure pumps, and downstream energy recovery devices.
When shortlisting equipment, the decision matrix is straightforward: specify hydraulic models for high-pressure or low-power environments, and select electric models for heavy debris loads or low-pressure setups. Regardless of the drive mechanism, always specify the internal screen to a 5-micron absolute rating to ensure complete physical protection for the RO elements.
To transition away from static filtration and secure your RO infrastructure, execute the following next steps:
Conduct a comprehensive feed water analysis, documenting Total Dissolved Solids (TDS), turbidity, hardness, temperature, and baseline pressure.
Consult with a dedicated filtration engineer to calculate your facility's specific TCO and size the appropriate automated system based on peak flow rates.
Integrate the new filtration data points (inlet/outlet pressure and backwash frequency) into existing SCADA systems for real-time monitoring.
Establish a routine maintenance schedule for downstream components, ensuring the entire three-stage architecture remains optimized.
A: RO membrane pores measure approximately 0.0001 microns. Particles larger than 5 microns cause immediate physical blockages, deform the membrane structure under high pressure, and create organic foundations for irreversible biofilms. A 5-micron absolute barrier prevents this mechanical and biological fouling.
A: The system utilizes a pressure differential (ΔP) sensor mechanism. It continuously monitors the pressure at the inlet and outlet. When debris buildup causes a variance—usually set between 7 and 10 PSI—the controller automatically initiates the backwash cycle.
A: No. Self-cleaning filters handle physical sediment and particulate matter. Activated carbon filters are still strictly required downstream to remove dissolved free chlorine, which chemically oxidizes and destroys Thin Film Composite (TFC) RO membranes.
A: Hydraulic models typically require a minimum of 40 PSI to operate the internal cleaning scanner and flush valve. If the system pressure is lower, operators must install a booster pump or utilize an electric motor-driven filter.
A: RO permeate production drops by 1% to 2% for every degree below the standard baseline of 77°F (25°C) due to increased water viscosity. Automated pre-filtration mitigates compounded efficiency losses by ensuring optimal feed pressure is always maintained.
A: Modern automated systems utilizing targeted suction scanners are highly efficient. A standard backwash cycle lasts 15 to 30 seconds and consumes less than 1% to 2% of the total system water flow, vastly outperforming continuous flushing methods.
A: Depending on the system flow rate, local labor costs, and the previous frequency of disposable filter replacements, facilities typically achieve a full Return on Investment (ROI) in 6 to 14 months through eliminated OpEx and extended membrane lifespans.
