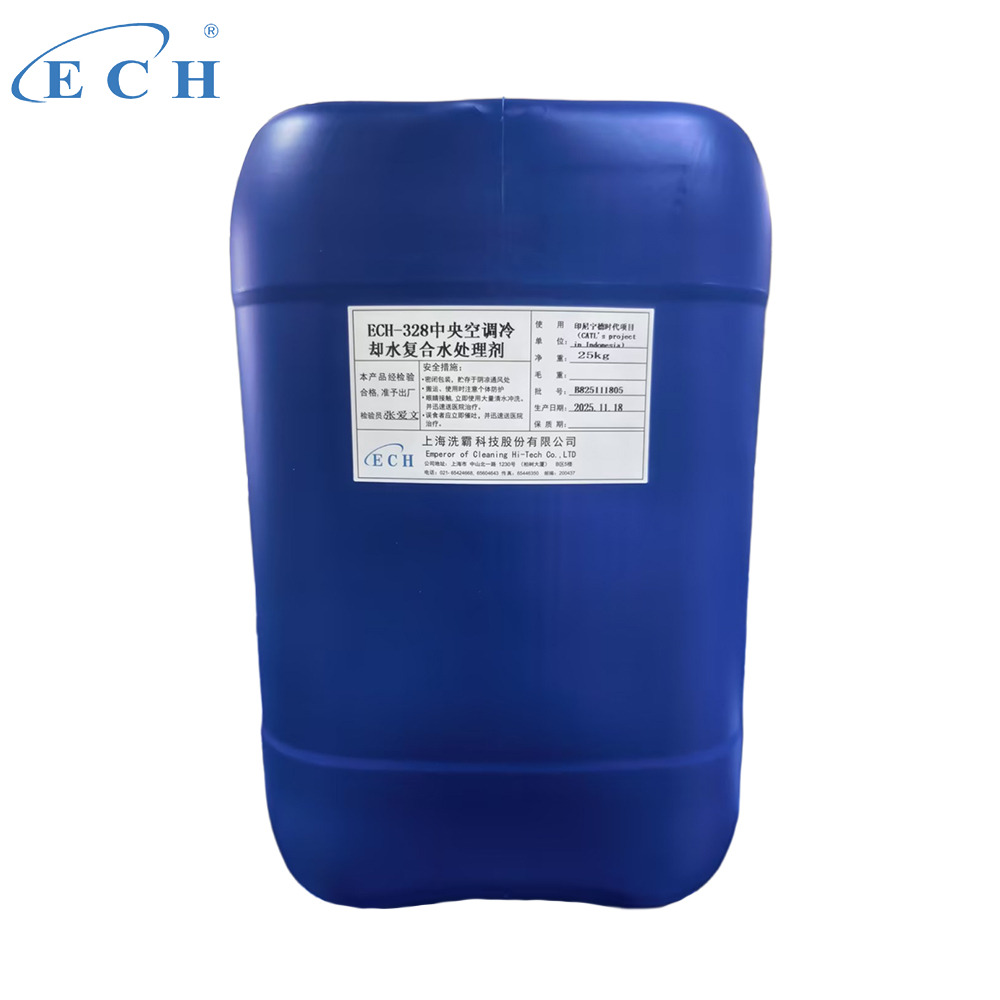

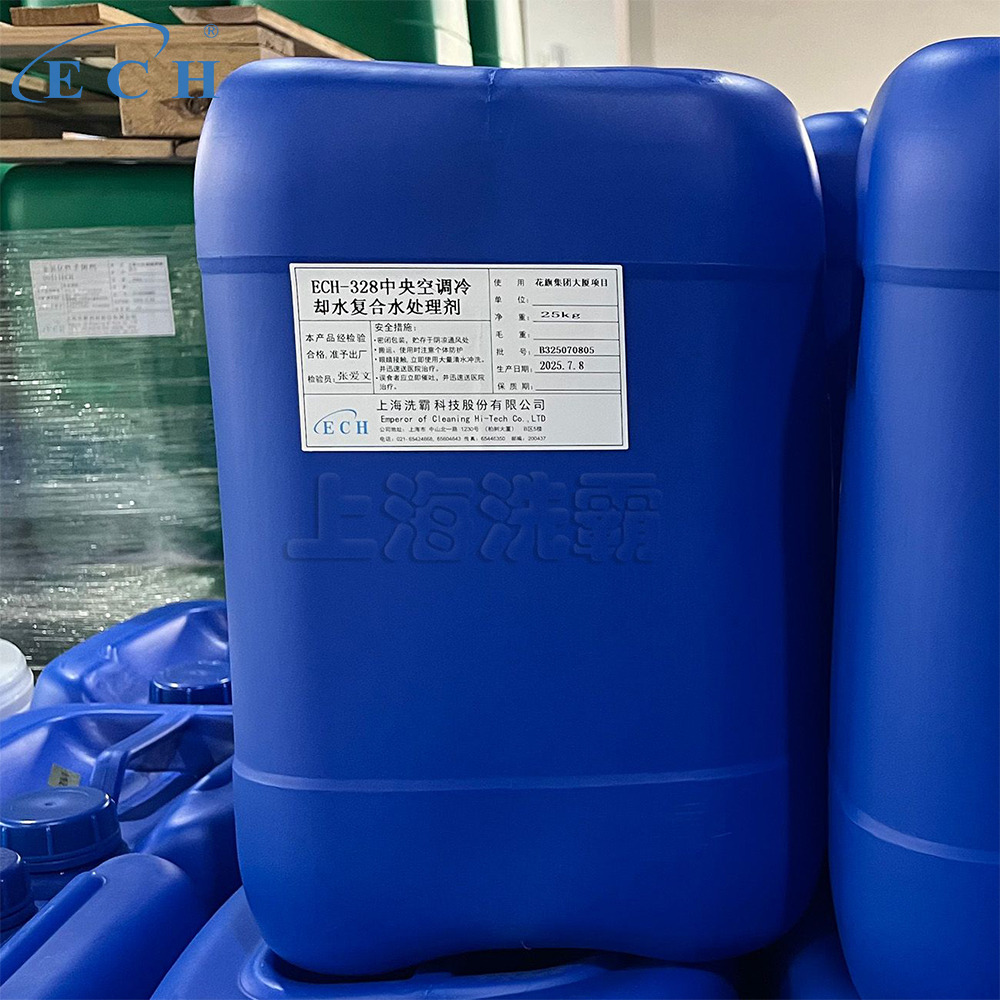

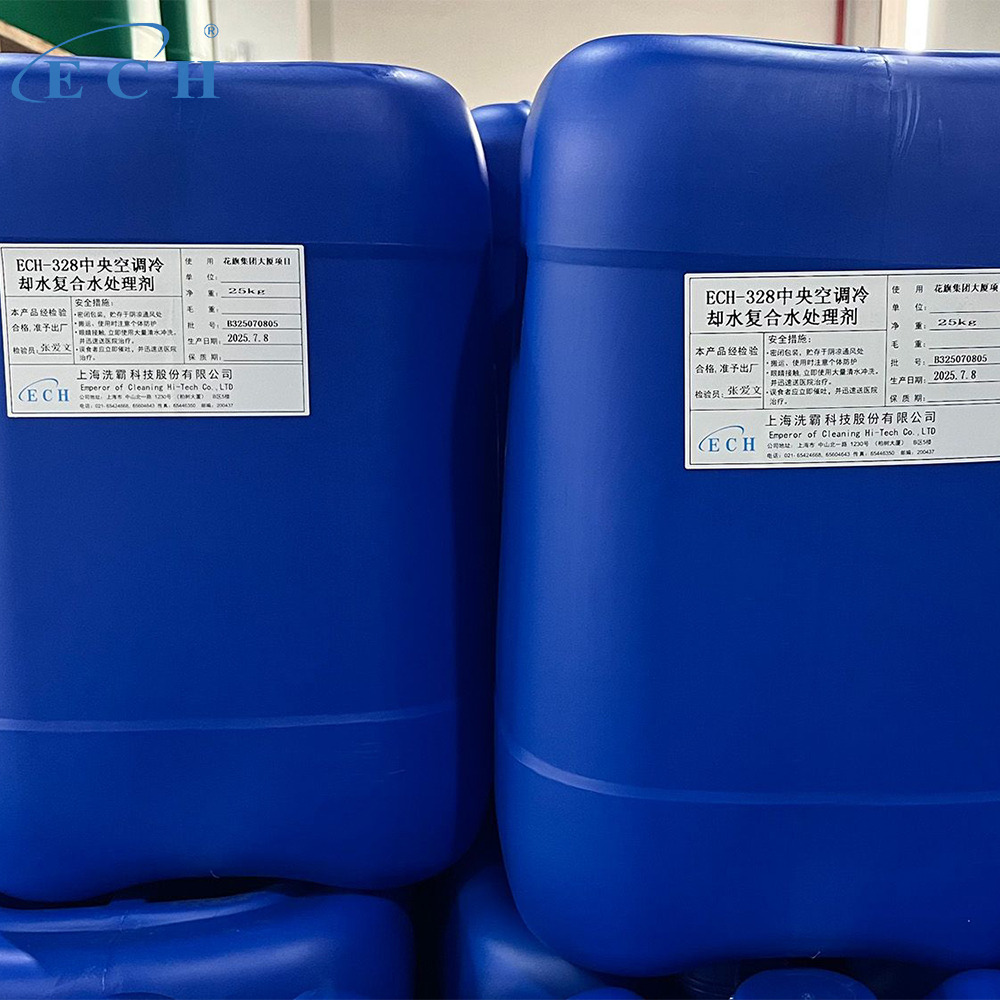

ECH-328
Product Overview
ECH-328 is a highly concentrated composite water treatment chemical specifically developed for central air conditioning cooling water systems. Primarily composed of polyepoxysuccinic acid (PESA), it is biodegradable, non-toxic, and free from hazardous discharge, fully complying with the standards of a green water treatment formula. This versatile agent also serves as an efficient scale and corrosion inhibitor for industrial circulating cooling water systems, demonstrating excellent performance in high-hardness and high-alkalinity water environments while maintaining good compatibility with common biocides.
Technical Specifications
Item | Specifications |
Chemical Category | Mixture |
Physical Form | Liquid |
pH Value | 3.0±1 |
Solid Content(%) | >25.0 |
Relative Density(20℃,g/cm³) | ≥1.10 |
Primary Use | Scale and corrosion inhibitor for recirculating cooling water systems |
Hazardous Components
| Aqueous solution containing HEDP(Hydroxyethylidene Diphosphonic Acid)and PBTCA(2- |
Total phosphorus content >2.5% |
Core Advantages
Green & Environmentally Friendly : Biodegradable and non-toxic, with no hazardous discharge, adhering to strict environmental standards for water treatment chemicals.
Exceptional Compatibility : Works seamlessly with common biocides, ensuring stable performance when integrated into existing water treatment systems without causing adverse chemical reactions.
Wide Adaptability : Highly effective in high-hardness and high-alkalinity water systems, addressing key challenges in harsh water quality conditions.
Dual Functional Benefits : Acts as both a scale inhibitor and corrosion inhibitor, providing comprehensive protection for circulating water system equipment and pipelines.
High Concentration Formula : Offers strong efficacy at optimal dosages, contributing to cost-effective water treatment operations for enterprises.
Application Fields
Central Air Conditioning Cooling Water Systems : Ideal for commercial buildings, office buildings, shopping malls, hotels, hospitals, and other public facilities. It effectively prevents scale formation and corrosion in cooling water systems, ensuring efficient heat exchange and extending the service life of air conditioning equipment.
Industrial Circulating Cooling Water Systems : Suitable for circulating cooling water systems in various industrial enterprises, including power plants, chemical plants, petrochemical plants, steel mills, textile mills, and printing and dyeing plants. It safeguards equipment such as cooling towers, condensers, and heat exchangers from scale buildup and corrosion.
Usage Methods & Safety Precautions
Usage Methods & Dosage
Dosage Adjustment Basis : The specific dosage should be adjusted according to the water quality of the circulating water system (including hardness, alkalinity, microbial content, pH value), system volume, and operating conditions. It is recommended to conduct water quality testing first and determine the optimal dosage based on test results.
Recommended Dosage Range : For general central air conditioning cooling water systems and industrial circulating cooling water systems, the recommended dosage is 50-150mg/L. For systems with severe scale or corrosion issues, the initial dosage can be appropriately increased, and then adjusted to the maintenance dosage based on subsequent water quality monitoring.
Adding Method : Dilute the product with 5-10 times of clean water before use, then add it to the circulating water system continuously or intermittently through a professional dosing device. It is recommended to add the diluted agent at the water inlet of the cooling tower or the return water pipeline to ensure uniform mixing with the circulating water.
Adding Frequency : For continuous operation systems, continuous dosing is recommended to maintain stable concentrations; for intermittent operation systems, dosing once every 2-3 days is advisable. In high temperature, high humidity, or high water consumption seasons, the dosing frequency can be increased appropriately based on water quality changes.
Safety Precautions
Personal Protection : Operators must wear protective equipment such as gloves, goggles, and masks during use to avoid direct contact with eyes and skin. If accidental contact occurs, rinse the affected area immediately with a large amount of clean water for more than 15 minutes. If irritation symptoms persist, seek medical attention promptly.
Storage Requirements : Store the product in a cool, dry, and well-ventilated warehouse, away from direct sunlight, high temperatures, and open flames. The storage temperature should be controlled within 5-35℃ to ensure product stability.
Chemical Compatibility : Do not store or mix the product with strong oxidants, concentrated acids, or other incompatible chemicals to prevent chemical reactions that may affect product performance or cause safety hazards.
Sealed Preservation : Keep the product sealed when not in use to prevent volatilization of active ingredients and contamination by external impurities.
Safety for Children and Pets : Keep the product out of the reach of children and pets to avoid accidental ingestion. If ingested accidentally, do not induce vomiting; take the product label and seek medical attention immediately.
