Cooling water systems operate quietly behind many commercial buildings and industrial facilities, yet they face some of the most persistent water quality challenges. Evaporation inside cooling towers concentrates dissolved minerals, warm water encourages biological growth, and metal surfaces remain continuously exposed to corrosion risk. In many facilities, chemical treatment is still managed manually based on periodic testing and operator experience. That approach often leads to unstable chemical levels, inconsistent protection, and unnecessary chemical consumption. This is where a Intelligent dosing device becomes essential. Instead of relying on manual judgment, an intelligent dosing system automatically regulates chemical addition based on real-time water conditions. The result is a more stable cooling loop, reduced operational risk, and significantly improved system efficiency. This article explains how such devices function in cooling water treatment, what signals they rely on, where they are installed, and how a stable dosing strategy can be established in real operational environments.
Cooling water chemistry revolves around maintaining balance. Three primary risks dominate most cooling water systems: mineral scale, metal corrosion, and microbial fouling. Scale forms when minerals such as calcium carbonate precipitate under high concentration cycles. Even thin layers of scale dramatically reduce heat transfer efficiency, forcing equipment to consume more energy. Corrosion develops when water chemistry allows metal surfaces to oxidize or dissolve, leading to equipment degradation and leaks. Biofouling occurs when bacteria, algae, or slime-forming microorganisms colonize wet surfaces, restricting flow and accelerating corrosion.
An intelligent dosing system continuously manages these three threats by maintaining chemical concentrations within defined operating ranges. Scale inhibitors prevent mineral precipitation, corrosion inhibitors protect metal surfaces, and biocides suppress microbial growth. The dosing device ensures these chemicals are introduced at the right amount and timing so that protective levels remain consistent.
In day-to-day operation, chemical dosing typically focuses on two control parameters. The first is maintaining a stable concentration of treatment chemicals within the circulating water. The second is ensuring that residual levels remain within an effective range for protection.
An intelligent dosing system continuously adjusts chemical addition to maintain those target ranges. When water conditions change due to evaporation, system load variation, or fresh makeup water entering the system, the dosing device responds automatically to restore balance.
Cooling towers operate as open recirculating systems where evaporation concentrates dissolved solids. This concentration effect causes chemical levels to fluctuate frequently. Semi-closed systems such as certain HVAC loops experience smaller variations but still require stable treatment control. Intelligent dosing devices are particularly valuable in open cooling towers because chemical demand varies constantly as water evaporates and makeup water is introduced.
In most installations, chemical injection occurs at carefully selected points to ensure proper mixing and distribution. The most common injection locations include the makeup water line, the cooling tower basin return line, and side-stream filtration loops.
Injecting chemicals into the makeup water line allows treatment to begin immediately as new water enters the system. Basin or return line injection ensures chemicals disperse throughout the circulating water. Side-stream injection can also be used in systems equipped with filtration or water treatment loops.
A frequent problem in poorly designed systems is chemical short-circuiting. This occurs when chemicals are injected into the system but do not have enough time to mix before reaching sensors or blowdown outlets. The result is inaccurate readings and inefficient chemical use.
Proper injection location ensures adequate mixing time so that chemicals distribute evenly across the entire water loop. Intelligent dosing systems are designed with injection equipment that supports stable and controlled distribution.

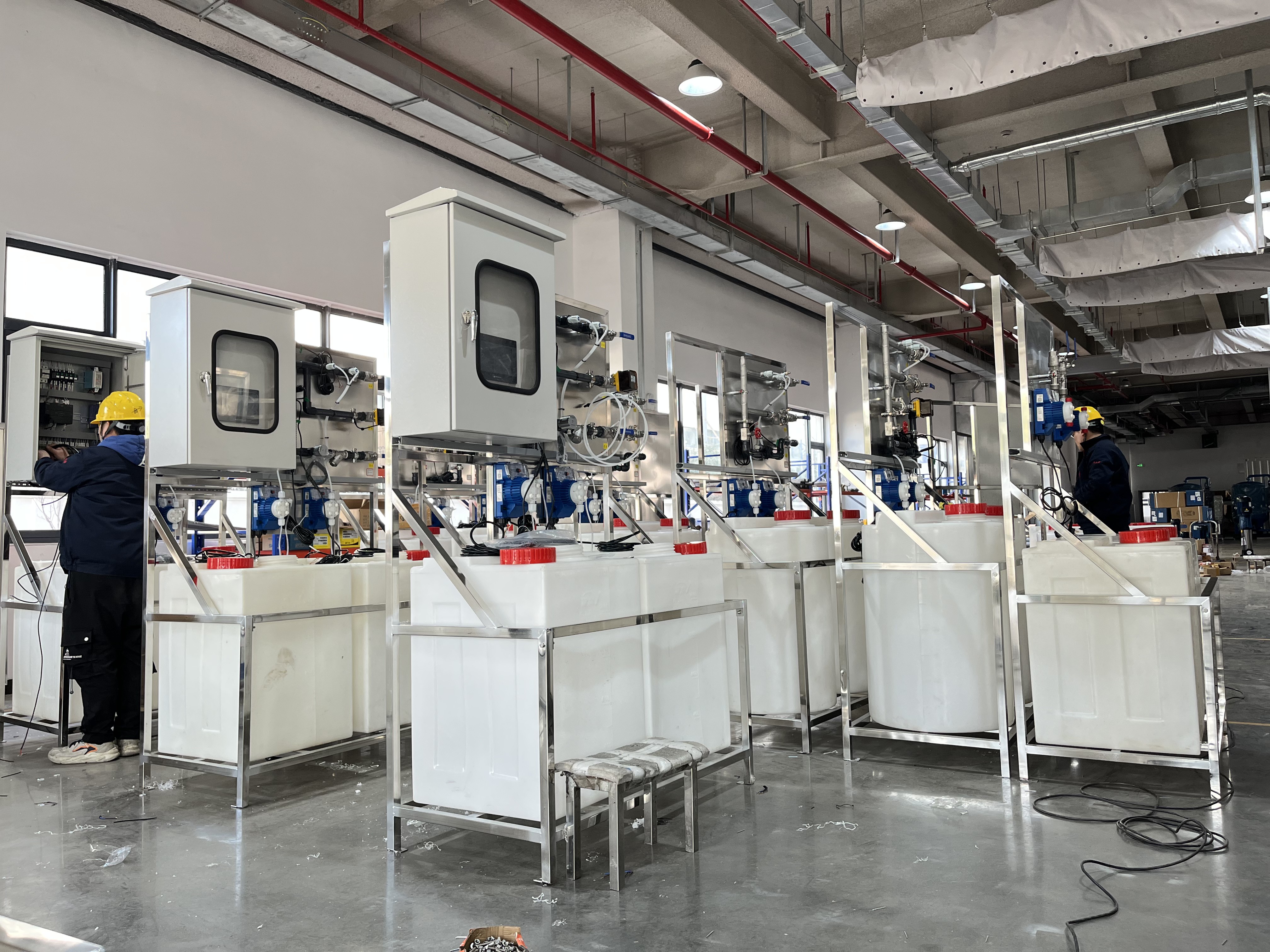

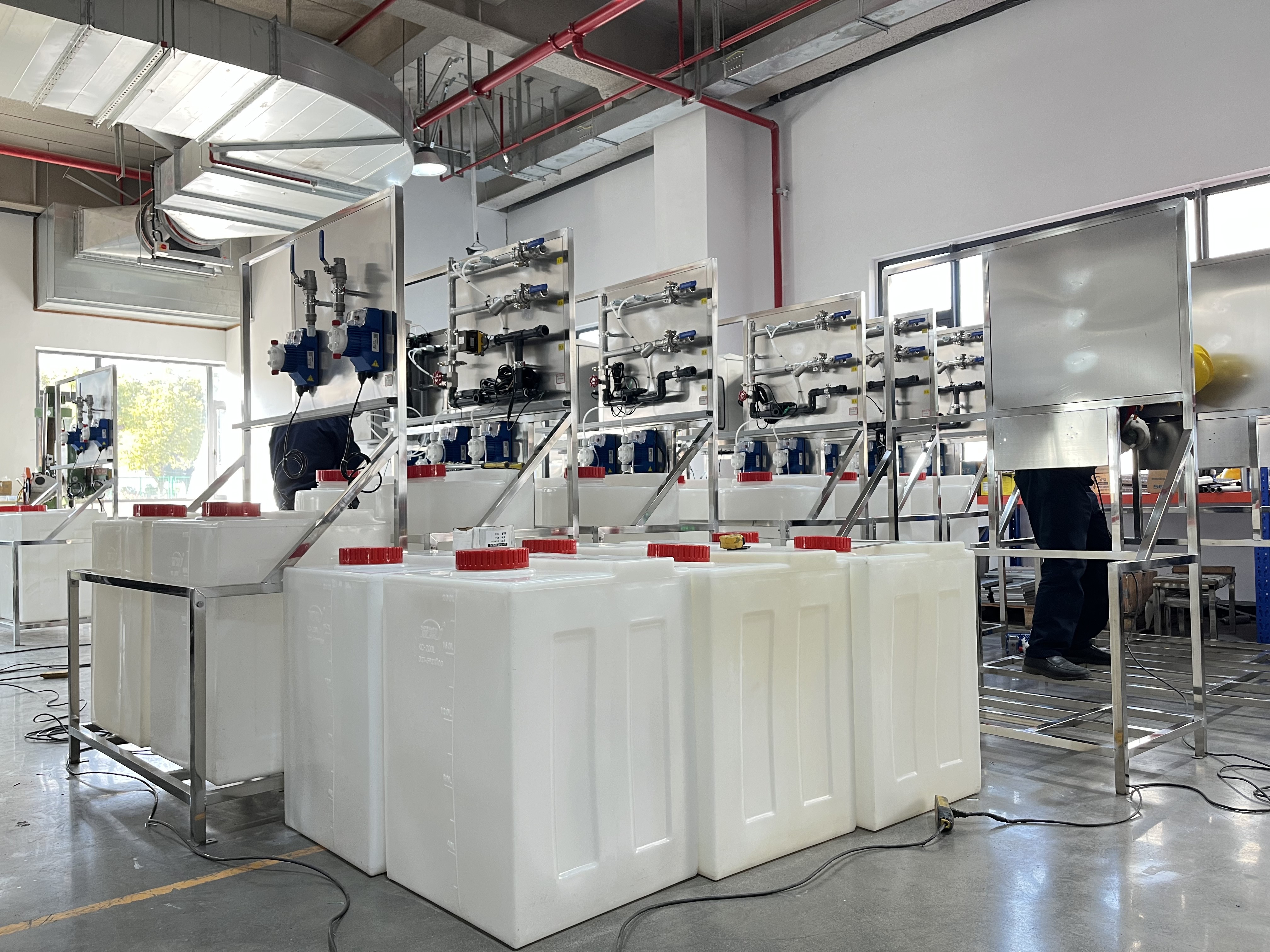

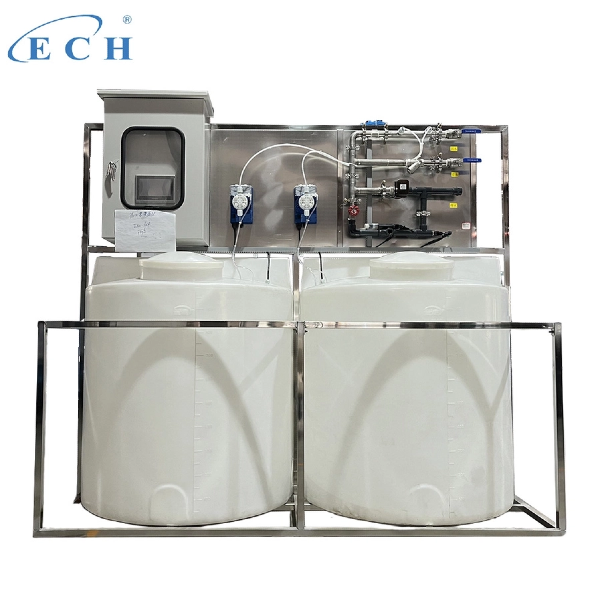

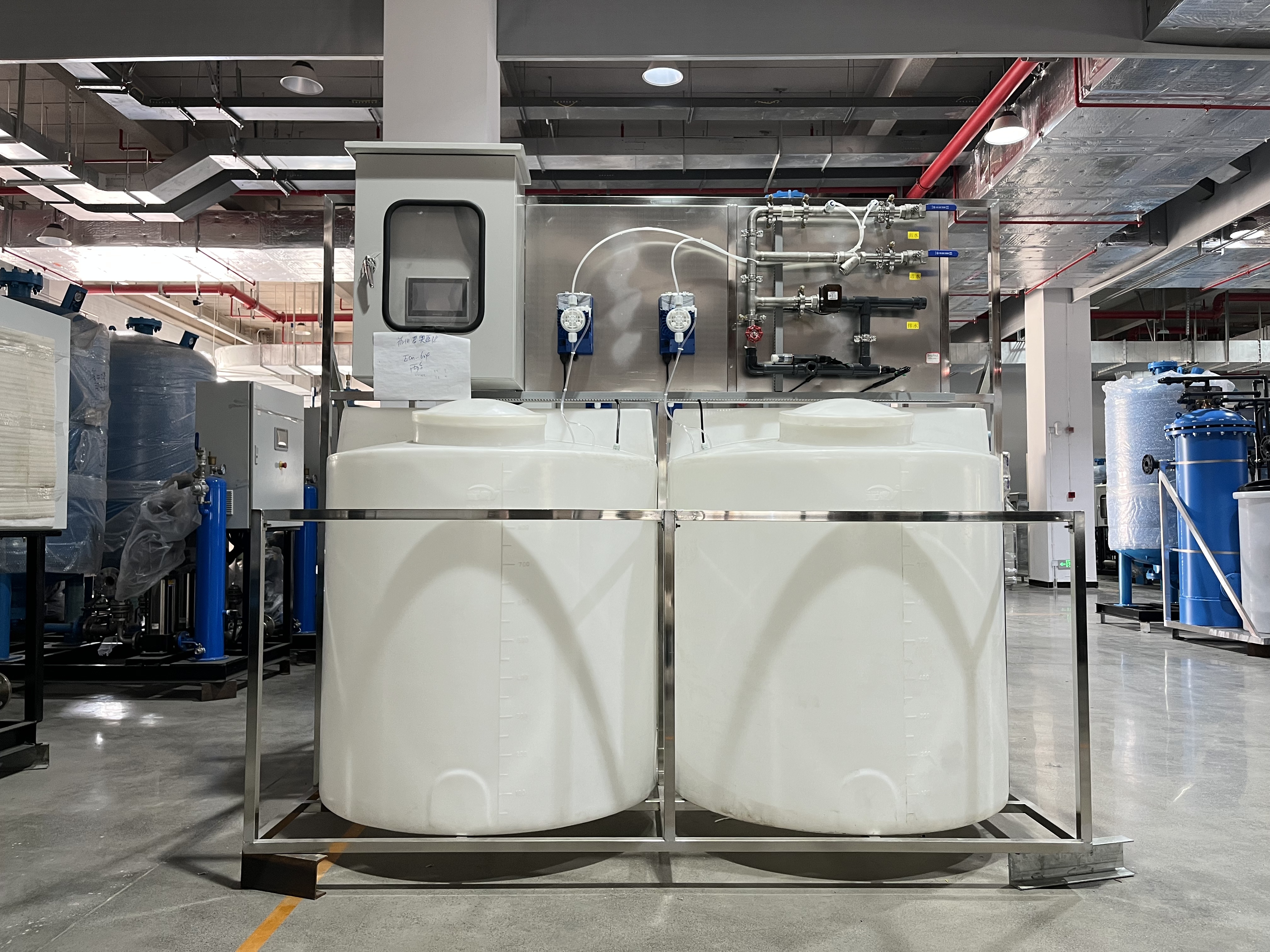

A typical dosing system includes chemical storage tanks, metering pumps, dosing pipelines, control cabinets, and monitoring instruments. These components work together to create a complete dosing platform. At ECH, dosing systems are designed to integrate pumps, sensors, and automated control units into a compact and reliable configuration suitable for cooling water applications in commercial and industrial facilities.
Intelligent chemical dosing relies on continuous measurement of water parameters. Conductivity is widely used to measure the concentration of dissolved solids in cooling water. As evaporation increases mineral concentration, conductivity rises. This signal helps determine blowdown and chemical treatment requirements.
pH sensors monitor acidity or alkalinity levels in the system, which can influence corrosion and scaling tendencies. ORP sensors may be used when oxidizing biocides are applied to control microbial activity. Flow meters and makeup water meters measure the volume of fresh water entering the system.
Each measurement provides insight into water chemistry trends. Conductivity reflects concentration cycles and evaporation effects. pH indicates the chemical balance that influences scaling and corrosion. ORP readings help verify that biocide levels remain effective. Flow signals show when new water dilutes the system.
When these signals are combined, the dosing controller can determine how much chemical treatment is required and when it should be delivered.
In some large or critical facilities, additional monitoring tools are introduced. Corrosion monitoring devices track metal loss rates in real time. Microbial monitoring tools help verify the effectiveness of biocide treatment programs. While not always necessary, these measurements provide deeper insight into system performance.
Timer dosing is the simplest approach. Chemicals are added at fixed time intervals regardless of water conditions. While easy to implement, timer dosing can lead to over-treatment or under-treatment if water conditions fluctuate.
Flow-paced dosing links chemical injection to the amount of makeup water entering the system. When new water enters the cooling tower, additional chemicals are automatically introduced to maintain the correct treatment concentration.
Conductivity-based control is one of the most effective strategies for cooling water treatment. When conductivity rises beyond a set threshold due to evaporation, blowdown occurs to remove concentrated water. The dosing system then adds treatment chemicals in proportion to the makeup water entering the system.
Cooling systems often experience load fluctuations during night hours or seasonal changes. During low load conditions, evaporation decreases and chemical demand falls. Intelligent dosing devices automatically adjust injection rates to prevent unnecessary chemical consumption.
Before starting automated dosing, baseline water testing is essential. Operators determine the desired operating range for conductivity, pH, inhibitor concentration, and microbial control.
Initial chemical dosing should begin at conservative levels. As operational data accumulates, control bands can be refined to maintain optimal protection without excessive chemical use.
Even with automated systems, periodic water sampling remains important. Operators compare laboratory results with online sensor data to confirm that control strategies are functioning correctly.
Cooling water demand often varies between summer and winter. Intelligent dosing systems allow different operational recipes to be stored for different seasonal conditions, improving long-term system stability.
Issue | What you observe | What the device controls | Typical chemical category | Practical note |
Scale formation | Rising conductivity and reduced heat transfer | Blowdown control and inhibitor dosing | Scale inhibitors | Maintain proper cycles of concentration |
Corrosion | Metal staining or increasing iron levels | pH balance and corrosion inhibitor feed | Corrosion inhibitors | Monitor metal levels periodically |
Biofouling | Slime buildup and microbial growth | Biocide dosing and ORP monitoring | Oxidizing or non-oxidizing biocides | Alternate biocide types periodically |
Chemical instability | Wide fluctuations in treatment levels | Automated dosing adjustment | Multiple chemical programs | Avoid manual dosing variations |
Stable cooling water treatment requires precise chemical control and continuous monitoring. By maintaining consistent treatment levels, reducing manual intervention, and responding automatically to changing water conditions, an intelligent dosing system helps cooling facilities operate more safely and efficiently. ECH designs dosing equipment that integrates monitoring signals, automated control, and reliable chemical delivery to support cooling water treatment across commercial buildings, hospitals, industrial plants, and large infrastructure projects. Facilities seeking to improve water stability and equipment protection can explore the ECH dosing solutions to configure a system tailored to their cooling water environment.
Contact us to learn more about configuring an automated cooling water dosing system for your facility. Our engineers can help evaluate your system conditions and recommend the appropriate equipment and control strategy.
An intelligent dosing device automatically regulates chemical addition based on measured water parameters. This helps maintain stable inhibitor and biocide levels while preventing overuse of chemicals.
Automated dosing keeps scale inhibitors and corrosion inhibitors within effective ranges. This prevents deposits on heat transfer surfaces and allows equipment to maintain optimal thermal efficiency.
Typical monitoring signals include conductivity, pH, ORP, and flow measurements. These signals provide information about water concentration, chemical balance, and system conditions.
Yes. By adding chemicals only when required and adjusting injection rates according to water conditions, automated dosing systems often reduce unnecessary chemical use while maintaining effective protection.
