Industrial circulating water systems rarely operate under stable conditions for long. Flow rates change as equipment starts or stops, makeup water fluctuates depending on evaporation and leakage, temperatures shift with production demand, and blowdown operations periodically alter water chemistry. Under these constantly changing conditions, chemical dosing cannot rely on manual adjustment alone. Maintaining water treatment stability requires a coordinated system that can interpret signals, apply control logic, and execute chemical injection reliably. A PLC controlled dosing unit makes this possible by integrating programmable logic control with dosing equipment and monitoring instruments. Instead of acting as a simple pump system, the dosing unit becomes an automated control platform that continuously evaluates system conditions and adjusts chemical feed accordingly. Understanding how this system works helps facility operators see why PLC-based dosing units provide greater stability, repeatability, and long-term operational efficiency in an industrial circulating water system.

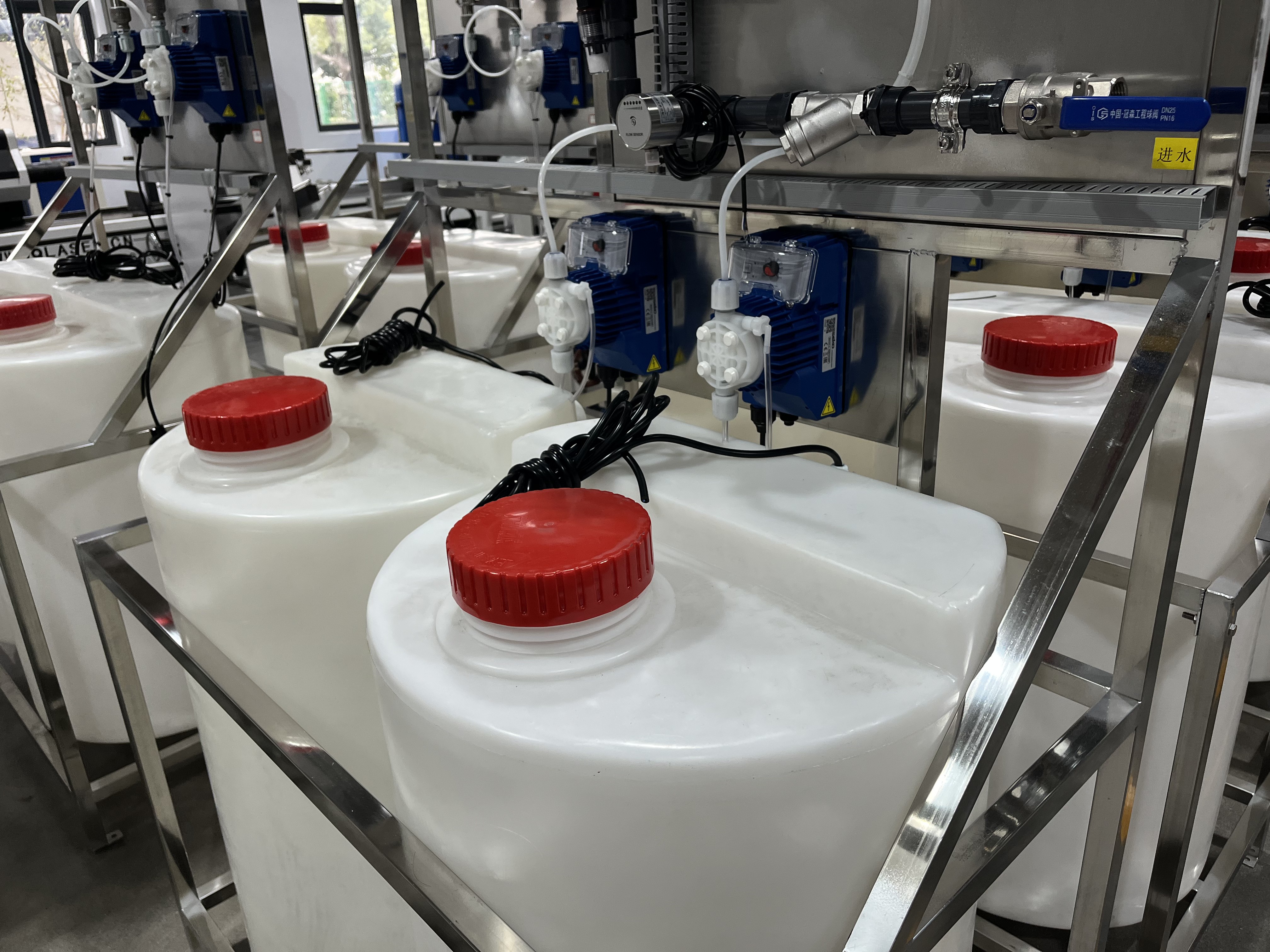

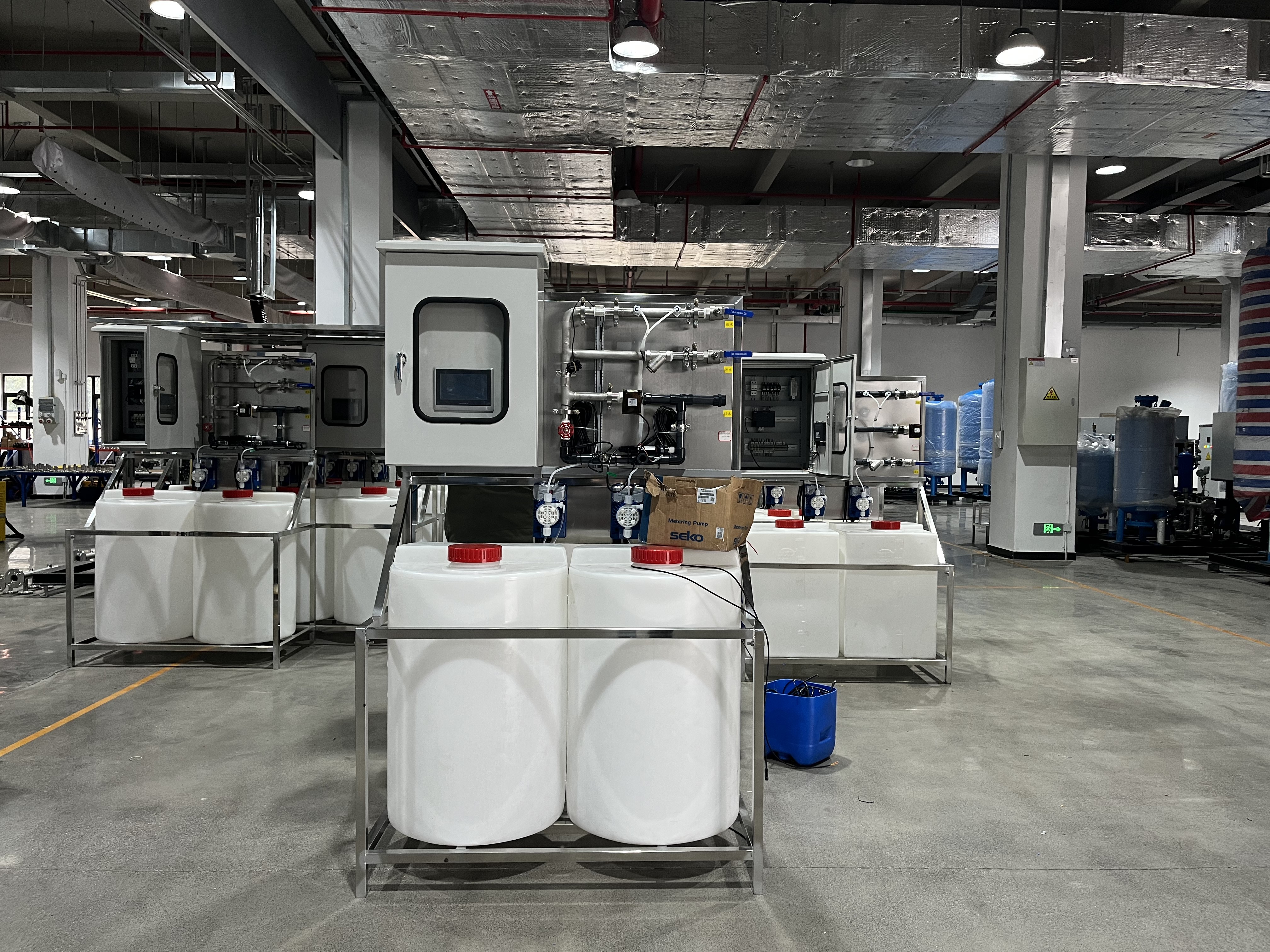

The physical path of chemical dosing begins with the chemical storage tank. This tank holds the treatment solution that will be introduced into the circulating water loop. From the tank, a metering pump precisely measures and injects the required amount of chemical into the system. Metering pumps are designed to deliver highly accurate flow rates so that dosing remains consistent even when system pressure changes.
Injection quills or dosing valves introduce chemicals into the water pipeline at controlled points. These components ensure the chemical stream mixes effectively with circulating water rather than remaining concentrated in one location. Proper injection design allows chemicals to disperse rapidly throughout the water loop, which is critical for effective treatment.
Together, these components form the physical dosing pathway. However, without automated coordination, the pump would simply deliver chemicals at a fixed rate regardless of system conditions. This is where the PLC control system becomes essential.
The programmable logic controller functions as the central control unit for the dosing system. It collects information from sensors and instruments, processes that information using predefined control logic, and sends commands to pumps and valves. Because the PLC can analyze multiple signals simultaneously, it can make dosing decisions that reflect real system conditions.
For example, if conductivity increases due to evaporation or increased system concentration, the PLC can trigger chemical adjustments or coordinate blowdown operations. If flow rates change due to equipment load variations, the controller can adjust dosing frequency to maintain the desired treatment level.
In this way, the PLC acts as the operational coordinator that connects monitoring signals, dosing equipment, and system protection logic.
Many PLC dosing units also integrate supporting components that improve accuracy and monitoring capability. Online sensors such as pH probes or conductivity meters provide real-time water quality data. Mixers may be installed in chemical tanks to ensure uniform solution concentration. Calibration columns allow operators to verify pump dosing accuracy during maintenance or commissioning.
These auxiliary components strengthen the reliability of the dosing unit and ensure that automated control remains precise.
One of the most important signals in circulating water treatment is flow measurement. Flow meters or pulse signals from makeup water meters provide information about how much water enters the system. When new water enters the loop, it dilutes existing chemical concentrations. The PLC uses this signal to adjust chemical dosing proportionally.
This approach is often referred to as flow-paced dosing. It ensures that chemical feed rates automatically scale with system water volume.
Conductivity measurement indicates the concentration of dissolved solids within the circulating water system. As evaporation occurs in cooling towers, mineral concentrations increase and conductivity rises. This signal allows the PLC to detect when concentration levels exceed the desired range.
pH sensors provide information about acidity or alkalinity within the water. Maintaining proper pH balance is important for preventing corrosion and maintaining chemical stability.
ORP measurements may be used when oxidizing biocides are applied. Oxidation-reduction potential readings provide indirect confirmation that microbial control chemicals remain active in the water.
Together, these signals allow the PLC to monitor chemical conditions and adjust dosing accordingly.
In addition to water chemistry data, the PLC also receives signals related to equipment safety and operational status. Tank level sensors indicate whether sufficient chemical supply remains available. Pump status signals confirm whether dosing pumps are operating correctly. Pressure switches verify that injection lines maintain safe operating pressure.
These signals ensure that the dosing system operates safely and that automated commands are executed only when equipment conditions are appropriate.

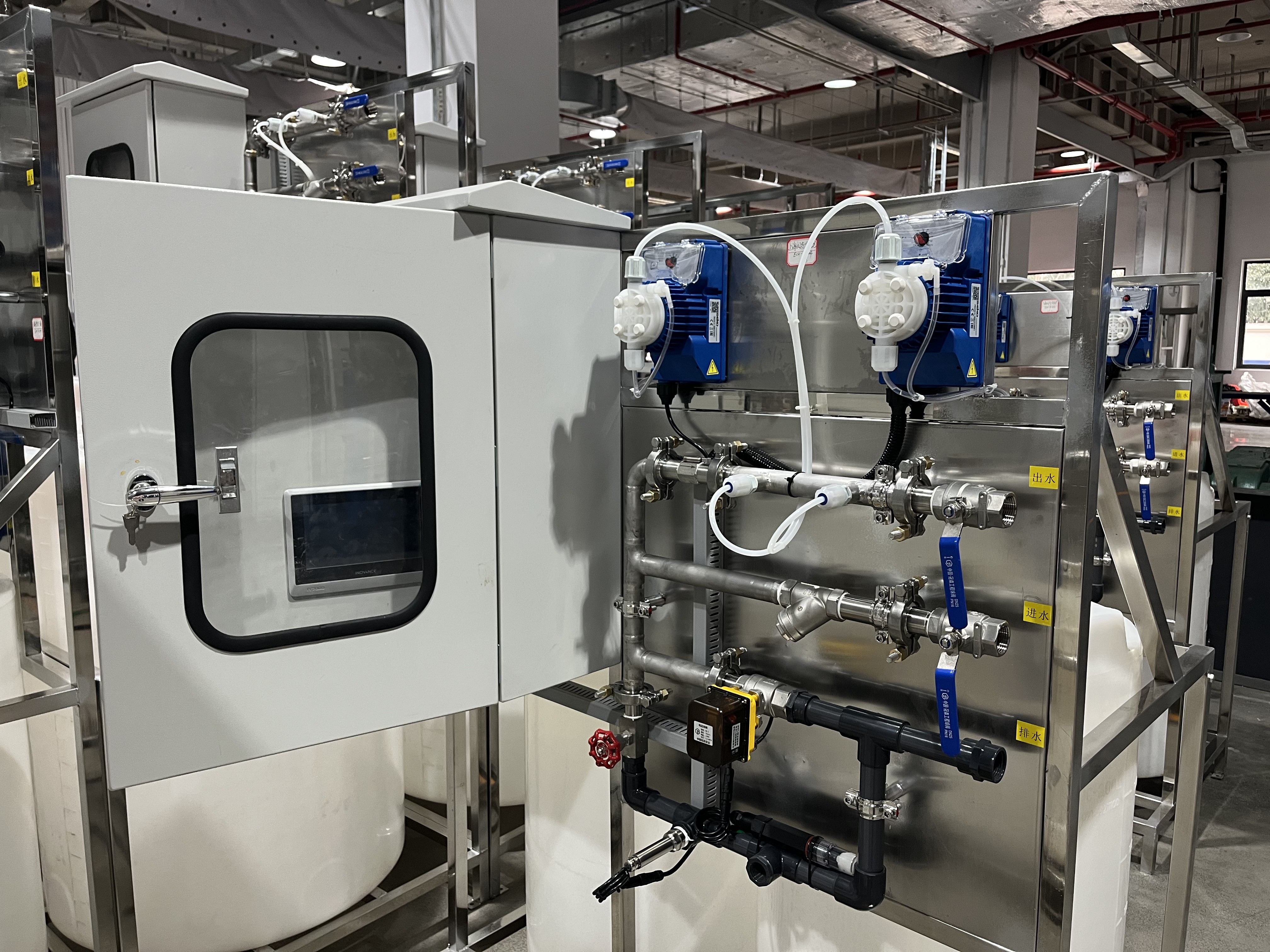

One of the most direct outputs from the PLC is the control signal sent to dosing pumps. The PLC can start or stop pumps, adjust pump stroke length, or modify dosing frequency depending on the system design. Some systems also include duty and standby pumps, allowing the controller to alternate operation between pumps for reliability.
This flexibility allows the dosing system to maintain accurate chemical feed rates under a wide range of operating conditions.
The PLC also controls auxiliary devices such as solenoid valves and tank mixers. Valves may open or close to regulate chemical injection paths, while mixers ensure chemicals remain evenly blended inside storage tanks.
Alarm systems are another important PLC output. If chemical levels drop too low, pumps fail to operate, or water parameters move outside acceptable limits, the controller generates alerts that notify operators of potential problems.
Data logging functions also record system parameters over time, allowing operators to analyze trends and optimize dosing strategies.
In circulating water systems that rely on conductivity control, blowdown operations remove concentrated water from the system to maintain acceptable mineral levels. The PLC can coordinate chemical dosing with blowdown events so that chemical balance remains stable after water discharge and replacement.
This coordination helps maintain consistent treatment conditions and prevents chemical imbalance.
Before executing dosing commands, the PLC verifies that all required conditions are satisfied. Chemical tanks must contain adequate supply, pumps must be available for operation, and injection lines must be properly pressurized. If any of these conditions fail, the controller suspends dosing and generates an alarm.
Once safety conditions are confirmed, the PLC determines which dosing strategy should be used. Depending on system configuration, the controller may apply timer-based dosing, flow-paced dosing, or target-band control based on sensor measurements.
The choice of strategy depends on system design and treatment objectives.
After determining the appropriate dosing mode, the PLC sends commands to pumps and valves to deliver the required chemical volume. Sensors continue to monitor water parameters to verify that the dosing action produces the expected effect.
Trend monitoring allows the system to confirm that chemical levels stabilize within the desired range.
If monitored values deviate significantly from target conditions, the PLC activates exception handling procedures. These procedures may include adjusting dosing rates, triggering blowdown, or activating alarms to notify operators.
By managing these events automatically, the dosing unit prevents minor disturbances from developing into larger operational problems.
When a circulating water system begins operation after maintenance or shutdown, chemical levels may require rapid adjustment. Startup recipes define temporary dosing parameters that quickly establish the correct treatment balance.
Once the system stabilizes, the PLC transitions to normal operating parameters.
During stable operation, dosing parameters maintain consistent chemical levels that protect equipment from scaling, corrosion, and biological growth. The PLC continuously monitors sensor data and adjusts dosing to maintain these conditions.
When production processes stop or water circulation slows significantly, chemical demand may decrease. Shutdown recipes reduce dosing rates to prevent chemical overuse while maintaining protective levels within the system.
Industrial facilities often experience seasonal changes in water demand. High evaporation during warm seasons may increase chemical requirements, while cooler periods may reduce demand. PLC dosing programs can store multiple operating recipes and automatically apply them according to operational conditions.
Even highly automated systems must allow manual intervention when maintenance or troubleshooting occurs. PLC logic allows operators to temporarily override automatic dosing while maintaining safety protections.
PLC input | What it means | PLC decision | Output action | Operator note |
Makeup water flow signal | New water entering system | Increase dosing proportionally | Increase pump frequency | Verify chemical concentration trend |
Conductivity measurement | Mineral concentration rising | Initiate blowdown or adjust dosing | Activate valve or modify dosing rate | Monitor cycles of concentration |
pH sensor reading | Chemical balance shift | Adjust treatment chemical feed | Increase or decrease pump output | Confirm pH stabilization |
Tank level sensor | Chemical supply level | Prevent dry pump operation | Stop pump and trigger alarm | Refill chemical tank |
Pump status feedback | Pump malfunction | Activate standby pump | Switch operation to backup pump | Inspect primary pump |
Maintaining chemical stability in an industrial circulating water system requires more than simply injecting chemicals into the pipeline. Effective treatment depends on continuous monitoring, coordinated control logic, and reliable execution of dosing actions. By integrating sensors, programmable control, and automated chemical delivery, a PLC-based dosing platform translates water quality targets into consistent operational behavior that can be repeated and maintained across changing system conditions. ECH develops integrated dosing equipment and water treatment solutions designed to support these automated control strategies across industrial facilities. Organizations seeking to stabilize their circulating water treatment programs can implement a PLC-driven approach that ensures reliable chemical management and long-term operational consistency through a automated dosing control system.
Contact us to discuss your circulating water treatment requirements and explore how ECH can help configure a dosing solution tailored to your industrial system.
A PLC controlled dosing unit monitors system signals such as flow, conductivity, and pH, then automatically adjusts chemical dosing to maintain stable water treatment conditions.
PLC automation allows chemical dosing to respond instantly to changes in system conditions. This improves treatment consistency and reduces the risk of over-dosing or under-dosing chemicals.
Common signals include flow measurement, conductivity monitoring, pH readings, chemical tank levels, and pump status indicators.
Yes. Automated monitoring, alarm systems, and backup pump switching help prevent chemical imbalance and reduce the risk of equipment damage in circulating water systems.
